Coxreels HP1125-4-200-E electric 12V DC 1/3 HP motor rewind hose reel provides heavy-duty automated hose management for up to 200' of 1/2" hose. Its 12V DC 1/3 HP motor delivers smooth and reliable hose retraction, reducing manual effort while providing high-pressure performance. Rated for 5,000 PSI, the HP1125 Series is suitable for air, water, and oil service in industrial, maintenance, and chemical applications requiring dependable and long-reach hose handling.

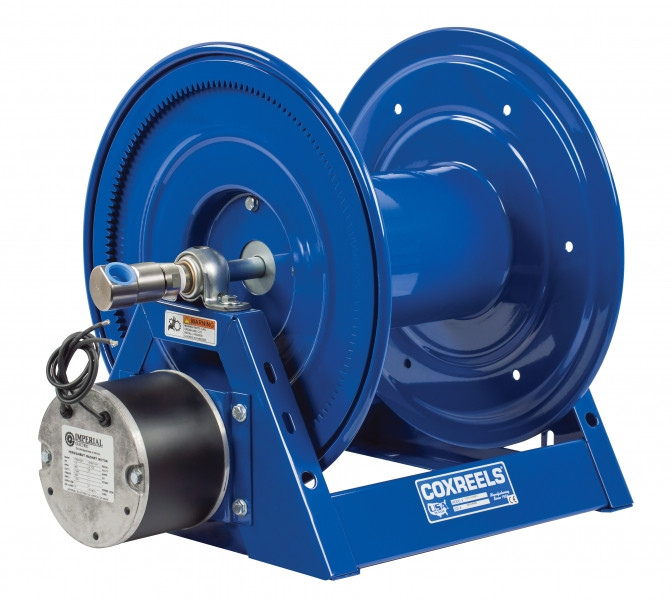

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric 12V DC 1/3 HP Motor Rewind Hose Reel | Series: HP1125 Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 200 ft | Max Pressure: 5,000 PSI | Service: Air, Water, Oil | Voltage: 12V DC
Features:
- 12V DC 1/3 HP motor provides automated, smooth hose rewind with minimal effort
- Heavy-duty steel construction resists industrial wear and impact
- Swivel mounting allows flexible wall, ceiling, or bench installation
- Adjustable hose stop ensures controlled payout and prevents overextension
- Compact design accommodates full 200' hose length while conserving workspace
- Mounting hardware included for secure installation
Made in USA:
Applications:
- Industrial maintenance and workshop environments requiring high-pressure hose management
- Chemical and fluid service applications needing DC-powered rewind
- Fleet service and tool stations requiring 200' hose deployment
- Air, water, or oil transfer applications in demanding industrial settings
FAQs:
- Q: What does less hose mean?
A: The reel is supplied without hose installed. Buyers must provide a compatible hose separately. - Q: How is the hose rewind powered?
A: The 12V DC motor provides smooth, automated retraction for high-pressure service. - Q: Can it handle 5,000 PSI applications?
A: Yes, it is rated for up to 5,000 PSI with 1/2" hose diameter. - Q: Can it be mounted in different orientations?
A: Yes, the swivel mount allows wall, ceiling, or bench installation. - Q: Is outdoor use recommended?
A: The reel is designed primarily for indoor industrial use; protection from extreme conditions is advised.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
