Built for mobile equipment and machinery with an available hydraulic power source, the Coxreels 1125-4-200-H Hydraulic Rewind Hose Reel provides powered retrieval for up to 200 feet of 1/2-inch I.D. hose. The hydraulic rewind configuration eliminates manual cranking and does not require an electric motor or compressed-air supply, making this 1125 Series reel practical for construction equipment, agricultural machinery, utility vehicles, and hydraulic service systems. Its 3,000 PSI maximum working pressure supports compatible air, water, oil, lubrication, and hydraulic fluid applications when the separately installed hose and fittings carry suitable ratings.
The hydraulic motor powers a direct gear drive, transferring rewind force to the drum without a chain for smooth hose retrieval. A low-profile outlet riser and open drum slot encourage a flat hose wrap while reducing sharp bends near the connection point. Permanently lubricated self-aligning pillow block bearings support steady drum rotation, and an adjustable tension brake helps limit unwanted free-wheeling during payout. The one-piece welded steel A-frame provides a rigid mounting platform for vehicle, equipment-skid, and stationary installations.

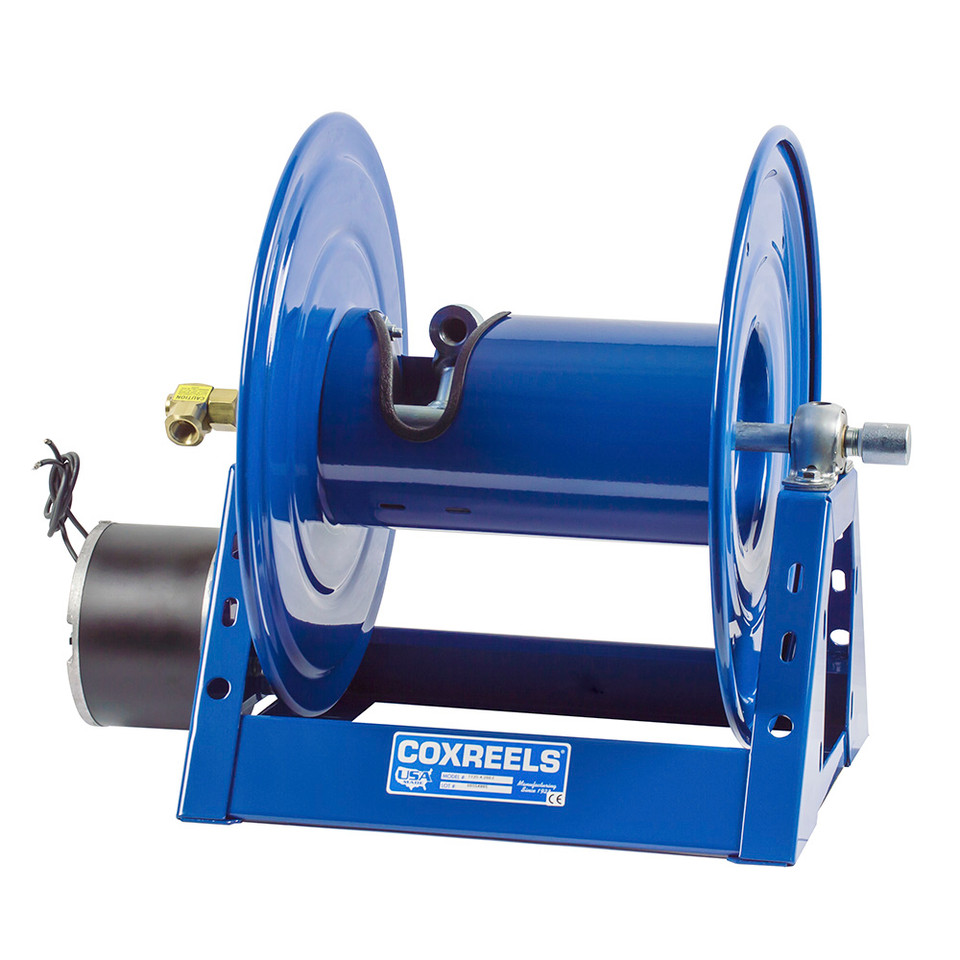

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hydraulic Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Rewind Method: Hydraulic Motor | Drive: Direct Gear Drive | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 200 ft | Max Pressure: 3,000 PSI | Swivel Inlet: 1/2" Female NPT | Outlet Riser: 1/2" Female NPT | Overall Dimensions: 23" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base Dimensions: 17.38" X x 16" Y
Features:
- Hydraulic motor provides powered hose retrieval from a compatible mobile or stationary hydraulic system.
- Direct gear drive produces smooth, quiet retraction without a chain-drive mechanism.
- One-piece, all-welded steel A-frame construction creates a rigid mounting platform for equipment and vehicle installations.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer and serviceable seal replacement.
- Low-profile outlet riser and open drum slot promote a flat, non-crimping hose wrap during payout and rewind.
- Permanently lubricated self-aligning bearings and an adjustable tension brake support smooth, controlled drum movement.
Made in USA:
Applications:
- Construction and earthmoving equipment equipped with an available hydraulic power circuit.
- Agricultural machinery and field-service equipment requiring powered hose retrieval.
- Utility and fleet vehicles carrying hydraulic, lubrication, air, water, or compatible fluid hose.
- Mobile equipment skids where electrical power and compressed air are unavailable or impractical.
- Industrial hydraulic service stations managing long 1/2-inch hose assemblies.
FAQs:
- Q: Does the Coxreels 1125-4-200-H include hose?
A: No. This model is supplied as a reel only. Install a compatible 1/2-inch I.D. hose with an outside diameter no greater than 7/8 inch and suitable pressure, temperature, bend-radius, and media ratings. - Q: What does the 'H' suffix indicate?
A: The H suffix identifies the hydraulic motor rewind configuration. The motor connects to a compatible hydraulic power source to drive hose retrieval. - Q: Is this reel powered by the fluid traveling through the hose?
A: No. The rewind motor requires a separate hydraulic power connection. The reel's hose fluid path and the hydraulic circuit that powers the rewind motor are separate systems. - Q: Can this reel operate at the full 3,000 PSI rating?
A: Yes, provided the installed hose, fittings, connectors, and every other component in the fluid path are rated for the intended pressure. The completed assembly is limited by its lowest-rated component.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-A | 5,000 | 39 | 2 |
| 1125-4-200-A | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-AB | 5,000 | 39 | 2 |
| 1125-4-200-AB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-C | 5,000 | 39 | 2 |
| 1125-4-200-C | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-E | 5,000 | 39 | 2 |
| 1125-4-200-E | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EA | 5,000 | 39 | 2 |
| 1125-4-200-EA | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EB | 5,000 | 39 | 2 |
| 1125-4-200-EB | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-ED | 5,000 | 39 | 2 |
| 1125-4-200-EF | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-EF | 5,000 | 39 | 2 |
| 1125-4-200-ED | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200-H | 5,000 | 39 | 2 |
| 1125-4-200-H | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
