Coxreels HP1125-5-175-E Electric 12V DC 1/3 HP Motor Rewind Hose Reel | HP1125 Series | 3/4" Hose Diameter | 175' Hose Length | 4500 Max PSI | Less Hose

Built for high-pressure hose management in washdown, pressure washing, spraying, lubrication, and hydraulic service areas, the Coxreels HP1125-5-175-E motor rewind hose reel provides controlled storage for up to 175 ft of 3/4" I.D. hose. The HP1125 Series is the high-pressure version of Coxreels' 1125 Series, with this electric rewind model using a 12V DC, 1/3 HP reversible motor to retrieve long hose runs without manual cranking. Its 4500 PSI max pressure rating supports demanding high-pressure fluid handling applications when paired with compatible hose, fittings, and system components.

The reel's all-welded steel 'A' frame, low profile outlet riser, and open drum slot help the hose lay flat during rewind, reducing the chance of kinks or uneven wrapping. An external 90° full-flow NPT swivel with electroless nickel plated steel inlet keeps the fluid path accessible, while AFLAS swivel seals are used on Coxreels high-pressure HP prefix models.

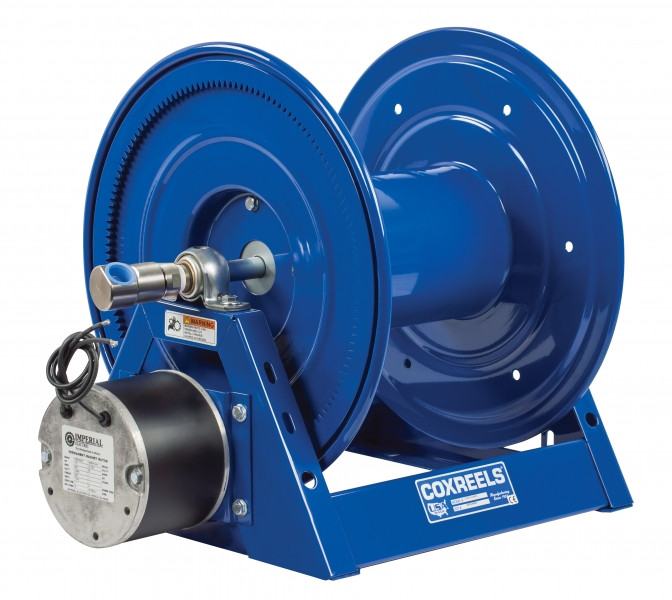

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: HP1125 Series | Model: HP1125-5-175-E | Configuration: Less Hose | Motor: 12V DC, 1/3 HP Reversible | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 175 ft | Max Pressure: 4500 PSI | Hose Included: No | Approx. Ship Weight: 63 lbs | Overall Dimensions: 32" W x 19.25" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 23.38" X x 16" Y

Features:

• Electric 12V DC, 1/3 HP reversible motor rewind helps retrieve long hose runs without hand cranking.
• High-pressure HP1125 Series construction supports applications rated up to 4500 PSI when used with compatible hose and system components.
• External 90° full-flow NPT swivel with electroless nickel plated steel inlet keeps the fluid path accessible for installation and service.
• AFLAS swivel seals are used on high-pressure HP prefix models for compatibility with demanding high-pressure reel applications.
• All welded steel 'A' frame construction provides a rigid reel structure for fixed installation on trucks, skids, benches, or plant equipment.
• Exclusive low profile outlet riser and open drum slot design help promote a flat, smooth hose wrap during rewind.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with reduced routine bearing maintenance.
• Adjustable tension brake helps prevent free-wheeling during operation, keeping hose payout more controlled.

Made in USA:

2 Year Warranty

Applications:

• Pressure washing and washdown: Manages long high-pressure hose runs used around wash bays, service yards, and cleaning stations.
• Spraying and pest control: Provides reel storage for mobile or stationary spray systems where hose length, pressure rating, and controlled rewind are important.
• Industrial plant and MRO: Helps organize high-pressure hose used for maintenance, lubrication, cleaning, and fluid transfer tasks.
• Fleet and service trucks: Supports truck-mounted hose storage where electric rewind can reduce manual handling at the jobsite.
• Agricultural and grounds maintenance: Suited for equipment setups used in high-flow watering, hydro seeding, and general spray service when the hose and fluid compatibility match the system.

FAQs:

• Q: What does 'less hose' mean on the HP1125-5-175-E?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/4" I.D. hose separately, making sure the hose pressure rating, outside diameter, fittings, and media compatibility match the application.
• Q: Is this a spring rewind reel?
  A: No. This model uses an electric 12V DC, 1/3 HP reversible motor rewind. That makes it better suited for long hose lengths where manual crank rewind or spring rewind may not be preferred.
• Q: What kind of hose will fit this reel?
  A: This model is listed for 3/4" I.D. hose with 1-1/4" O.D. and a 175 ft standard capacity. Confirm the hose outside diameter before ordering because hose capacity depends on both I.D. and O.D.
• Q: Can this reel be used for high-pressure washdown or pressure washing?
  A: Yes, when the system pressure, hose rating, fluid temperature, fittings, and media compatibility are within the reel and hose limits. The reel is rated for high-pressure service up to 4500 PSI.
• Q: Does the electric motor make this reel explosion proof?
  A: No. The 'E' suffix is a 12V DC, 1/3 HP reversible electric motor option and is not the explosion-proof motor option. Use the correct Coxreels explosion-proof suffix when the installation requires that rating.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
