Built for hydraulic hose storage in service trucks, maintenance bays, construction equipment yards, and industrial MRO areas, the Coxreels 1125-5-175-H gives buyers a motorized rewind solution for handling up to 175 ft of 3/4" I.D. hose at pressures up to 3000 PSI. The hydraulic rewind configuration reduces manual winding effort on longer hose runs, while the open drum slot and low profile outlet riser help the hose wrap flatter and with less risk of crimping during storage.
Part of the 1125 Series, this reel uses Coxreels' welded steel 'A' frame construction, ribbed spun discs, permanently lubricated self-aligning pillow block bearings, and a 90° full-flow NPT swivel for routing fluid through the reel. It is supplied less hose, making it a fit for buyers who need to install a specific hydraulic hose type, fitting style, or brand already approved for their equipment or fleet standards.

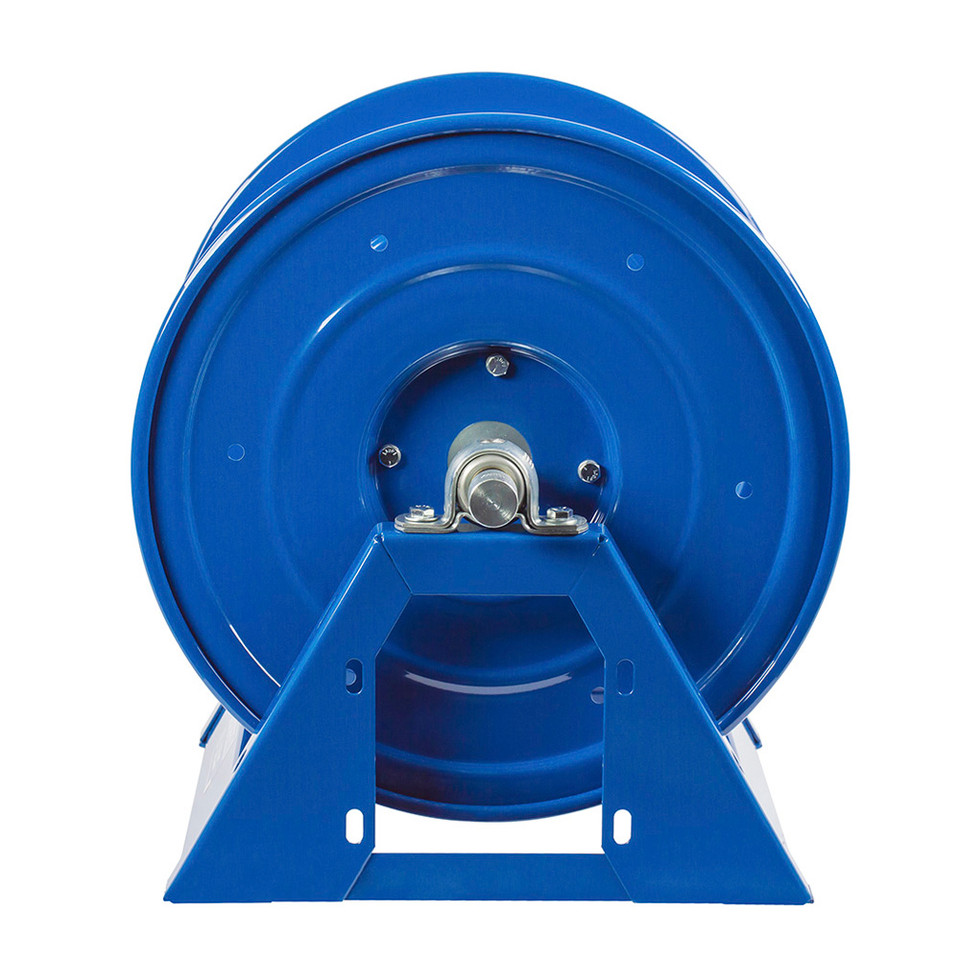

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hydraulic Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 175 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 56 lbs | Overall Dimensions: 29.38" W x 18.75" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 23.38" X x 16" Y
Features:
- Hydraulic motor rewind helps retract longer hose runs without relying on hand-crank effort.
- All welded steel 'A' frame construction provides a rigid base for shop, vehicle, or equipment-mounted installation.
- Exclusive low profile outlet riser and open drum slot design support a flatter, smoother hose wrap with reduced crimping.
- Machined 90° full-flow NPT swivel supports efficient fluid flow through the reel and simplifies seal maintenance.
- Swivel seals are Nitrile for compatibility with common oil and hydraulic fluid service requirements.
- Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation with reduced routine bearing service.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Adjustable tension brake helps prevent free-wheeling during operation.
Made in USA:
Applications:
- Hydraulic service trucks for storing and deploying high-pressure hose used around mobile equipment.
- Fleet and heavy equipment maintenance areas where longer hose reach is needed for service bays or outdoor work zones.
- Industrial MRO stations handling hydraulic oil transfer, lubrication support, or pressure-rated fluid delivery.
- Agricultural and construction equipment shops that need organized hose storage for repair, washdown-adjacent, or hydraulic support tasks.
- Manufacturing and fabrication facilities where a fixed or vehicle-mounted reel helps keep hydraulic hose off the floor and ready for use.
FAQs:
- Q: What does 'less hose' mean on the 1125-5-175-H?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose rated for the intended pressure, fluid, fittings, and application. - Q: Is this a hand crank reel or a hydraulic rewind reel?
A: This SKU uses the '-H' hydraulic rewind configuration. It is part of the Coxreels 1125 Series motorized hose reel family and is intended for powered retraction rather than manual hand-crank-only winding. - Q: Can this reel be used for hydraulic service?
A: Yes, this model is listed with a 3000 PSI pressure rating and is commonly selected for grease, hydraulics, oil, lubrication, and other compatible fluid service when the hose and fittings also match the system requirements. - Q: What hose size should be used with this reel?
A: The model is sized for 3/4" hose I.D. with a listed 1-1/4" hose O.D. capacity and up to 175 ft of hose length. Hose outside diameter is important because it affects how much hose will fit on the drum. - Q: Why choose hydraulic rewind instead of a hand crank version?
A: Hydraulic rewind is useful when the hose length, hose weight, work frequency, or mounting location makes manual rewinding less practical. It can save effort in mobile service, fleet maintenance, and industrial areas where hose is deployed repeatedly.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-175 | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 | 8 |
| 1125-5-175-A | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-A | 4,500 | 50 | 8 |
| 1125-5-175-AB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-AB | 4,500 | 50 | 8 |
| 1125-5-175-C | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-C | 4,500 | 50 | 8 |
| 1125-5-175-E | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-E | 4,500 | 50 | 8 |
| 1125-5-175-EA | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EA | 4,500 | 50 | 8 |
| 1125-5-175-EB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EB | 4,500 | 50 | 8 |
| 1125-5-175-ED | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-ED | 4,500 | 50 | 8 |
| 1125-5-175-EF | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EF | 4,500 | 50 | 8 |
| 1125-5-175-H | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-H | 4,500 | 50 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
