Coxreels 1125-5-175-ED Electric 12V DC Explosion Proof 1/2 HP Motor Rewind Hose Reel | 1125 Series | 3/4" Hose Diameter | 175' Hose Length | 3000 Max PSI | Less Hose

When a manual crank is too slow for long hose runs, the Coxreels 1125-5-175-ED provides motorized rewind for shops, service trucks, washdown stations, agricultural spraying setups, and industrial fluid-transfer areas that need organized hose storage without hand-cranking every retrieval. This 1125 Series reel is configured for 3/4" I.D. hose with a 175 ft standard hose capacity, giving crews the reach needed to cover larger work bays, equipment yards, and mobile service layouts while keeping hose off the floor when the job is done.

The 12V DC, 1/2 HP explosion proof, reversible electric motor supports powered rewind in applications where the specified motor style is required and 12V DC power is available. Its 3000 PSI standard pressure rating suits medium-pressure hose handling, while the all-welded steel 'A' frame, low profile outlet riser, and open drum slot help the hose wrap smoothly across the drum instead of bunching or crimping during rewind.

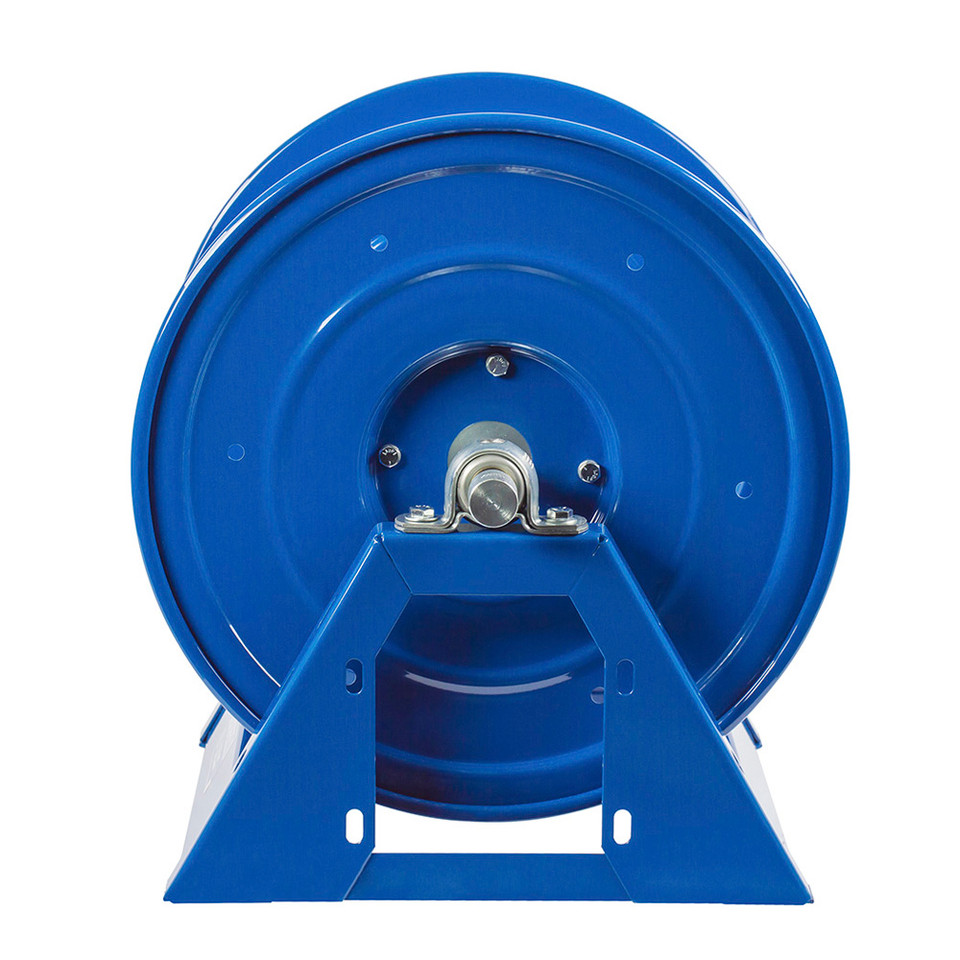

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-175-ED | Configuration: Less Hose | Motor: 12V DC, 1/2 HP Explosion Proof, Reversible | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 175 ft | Max Pressure: 3000 PSI | Inlet Swivel & Outlet Riser: 3/4" F NPT | Ship Weight: 76 lbs | Overall Dimensions: 30.38" W x 18.75" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 23.38" X x 16" Y

Features:

• 12V DC, 1/2 HP explosion proof, reversible electric motor provides powered rewind where 12V DC operation and this motor configuration are required.
• Reliable direct gear drive on motor driven models provides quiet, smooth retraction without a chain drive.
• All welded steel 'A' frame construction gives the reel a rigid base structure for fixed installations and mobile mounting layouts.
• Exclusive low profile outlet riser and open drum slot design help guide the hose into a flat, smooth wrap during rewind.
• Machined solid brass 90° full-flow NPT swivel supports efficient fluid flow through the reel connection.
• Swivel seals are nitrile for compatibility with the standard 1125 Series swivel configuration.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation with reduced routine bearing maintenance.
• Adjustable tension brake helps prevent free-wheeling during operation, while the long-handled locking pin secures the reel during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Industrial plant and ground maintenance where longer hose reach and powered rewind help reduce hose handling time.
• Pressure washing, washdown, and high-flow watering setups using compatible hose within the reel’s pressure and size ratings.
• Agricultural spraying, pest and weed control, hydro seeding, and landscape service operations that need controlled hose payout and storage.
• Construction sites and mobile service equipment where a 12V DC power source is available and hose needs to be kept organized between jobs.
• Air compressor and general fluid-transfer stations requiring a 3/4" hose path and 3000 PSI reel rating.

FAQs:

• Q: What does 'less hose' mean on the 1125-5-175-ED?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose separately and confirm that the hose outside diameter, pressure rating, and media compatibility match the application.
• Q: What does the ED suffix indicate?
  A: ED identifies the motor option as 12V DC, 1/2 HP, explosion proof, and reversible. Confirm the electrical requirements and hazardous-location requirements for your installation before ordering.
• Q: Can this reel handle more hose than 175 ft?
  A: The standard capacity is 175 ft of 3/4" I.D. x 1-1/4" O.D. hose. Coxreels lists an optional capacity of 325 ft for 1/2" I.D. x 7/8" O.D. hose, with a reducer required.
• Q: Is this a spring rewind hose reel?
  A: No. This model is a motor rewind reel. The ED configuration uses a reversible 12V DC electric motor rather than a spring mechanism or manual crank for rewind.
• Q: What should be checked before installation?
  A: Verify mounting space, bolt pattern, hose size, hose pressure rating, media compatibility, electrical supply, and whether the explosion proof motor option is appropriate for the work area classification.
