For extended 3/4" hose runs where manual rewind is preferred, the Coxreels 1125-5-175 Hand Crank Hose Reel provides reel-only storage in the 1125 Series platform. This less-hose reel is sized for 3/4" I.D. hose with a 175 ft hose capacity and a 3,000 PSI maximum pressure rating, making it a practical choice for air, water, oil, pressure wash, spray, chemical transfer, and compatible medium-pressure fluid handling applications where the hose assembly will be selected separately.
The 1125-5-175 uses hand-crank rewind, meaning the operator manually retrieves the hose with the crank handle rather than a spring or motor. The 1125 Series design includes a one-piece all-welded steel A frame base, low-profile outlet riser, open drum slot for a flatter hose wrap, permanently lubricated self-aligning pillow block bearings, an adjustable tension brake to help reduce freewheeling, and a locking pin to secure the reel during transport or storage. Its 18" drum width supports longer 3/4" hose capacity while keeping the reel suitable for fixed shop, truck, skid, washdown, service, and maintenance installations.

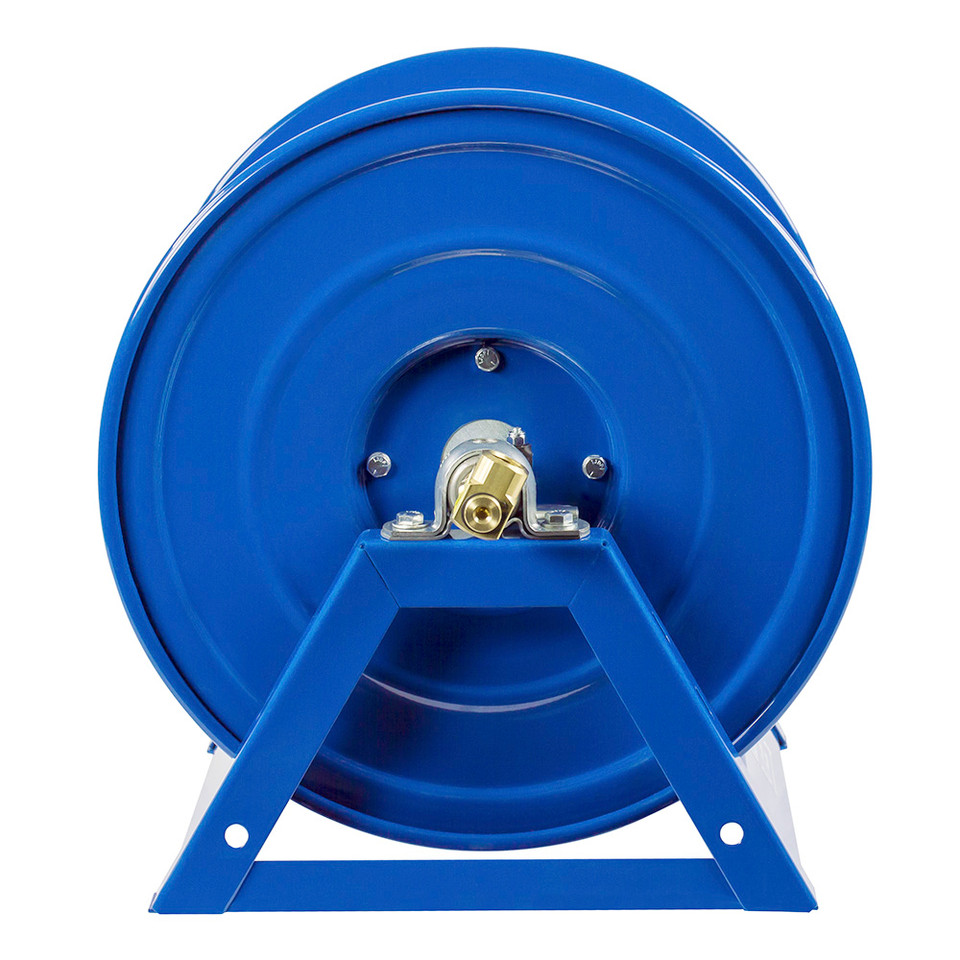

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | SKU: 1125-5-175 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 175 ft | Max Pressure: 3,000 PSI | Drum Width: 18" | Rewind Type: Hand Crank | Ship Weight: 50 lb | Overall Dimensions: 32.38" W x 18.75" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 23.38" X x 15.38" Y
Features:
- Less-hose configuration allows the buyer to install hose selected for the application, pressure requirement, chemical compatibility, temperature range, and fitting style.
- Manual hand crank rewind gives operators direct control over hose retrieval without relying on spring rewind or electric, air, or hydraulic rewind power.
- One-piece all-welded steel A frame base provides a rigid mounting structure for longer 3/4" hose storage.
- Low-profile outlet riser and open drum slot help guide hose onto the reel in a flatter, smoother wrap.
- Permanently lubricated self-aligning pillow block bearings support smooth reel rotation during hose payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Adjustable tension brake helps reduce freewheeling when pulling hose from the reel.
- CPC powder coat finish, rolled ribbed discs, and CNC spun reel discs support routine use in shop, truck, washdown, and maintenance environments.
Made in USA:
Applications:
- Pressure wash and washdown setups where the installed 3/4" hose, fittings, temperature range, and operating pressure match the 3,000 PSI reel rating.
- Service trucks, maintenance trailers, and mobile equipment where manual rewind provides simple hose retrieval without powered rewind components.
- Air, water, oil, spray, and compatible fluid transfer stations where 175 ft of 3/4" hose capacity provides extended reach from a fixed reel location.
- Fleet, facility, and industrial MRO areas where a reel-only purchase supports custom hose installation or standardized hose inventory.
- Wall, floor, bench, skid, vehicle, or equipment-mounted installations where a sturdy hand crank reel is preferred for larger hose assemblies.
FAQs:
- Q: Does the Coxreels 1125-5-175 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The 1125-5-175 is sized for up to 175 ft of 3/4" I.D. hose with a 1-1/4" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: What does the 1125 Series design offer for longer hose runs?
A: The 1125 Series uses a welded A frame structure, low-profile outlet riser, open drum slot, pillow block bearings, adjustable brake, and wide drum options for longer or larger-diameter hose capacities. - Q: How is the 1125-5-175 different from the 1125-5-100?
A: The 1125-5-175 is sized for 175 ft of 3/4" hose, while the 1125-5-100 is sized for 100 ft. Choose the 175 ft model when the application needs additional reach in the same hose diameter. - Q: Can this reel be used for pressure washing?
A: Yes, when the installed hose, fittings, temperature range, chemical exposure, and system pressure match the reel's 3,000 PSI rating and the pressure washer's requirements.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-175 | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 | 8 |
| 1125-5-175-A | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-A | 4,500 | 50 | 8 |
| 1125-5-175-AB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-AB | 4,500 | 50 | 8 |
| 1125-5-175-C | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-C | 4,500 | 50 | 8 |
| 1125-5-175-E | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-E | 4,500 | 50 | 8 |
| 1125-5-175-EA | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EA | 4,500 | 50 | 8 |
| 1125-5-175-EB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EB | 4,500 | 50 | 8 |
| 1125-5-175-ED | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-ED | 4,500 | 50 | 8 |
| 1125-5-175-EF | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EF | 4,500 | 50 | 8 |
| 1125-5-175-H | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-H | 4,500 | 50 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
