When long hose runs need controlled hand rewind instead of automatic spring retraction, the Coxreels 1125-5-175-C Bevel Geared Crank Hose Reel gives crews a strong, serviceable storage platform for air, water, oil, grease, hydraulics, pest control, pressure washing, spraying, and washdown applications. This 1125 Series reel is built for 3/4" I.D. hose with a 175 ft hose capacity, giving users extended reach for fixed stations, mobile service setups, agricultural work, and facility maintenance areas. Its 3000 PSI maximum pressure rating supports medium-pressure service when paired with compatible hose, fittings, fluid media, and system requirements.
The 1125 Series hand crank design uses a sturdy one-piece welded steel “A” frame base, a low-profile outlet riser, and an open drum slot to help the hose wrap flat onto the drum without unnecessary crimping. The front bevel geared crank provides mechanical rewind assistance, while the adjustable tension brake helps reduce free-wheeling during payout and retraction. For shops and field crews that prefer manual control over powered rewind, the 1125-5-175-C offers practical hose management in a compact, mountable reel package.

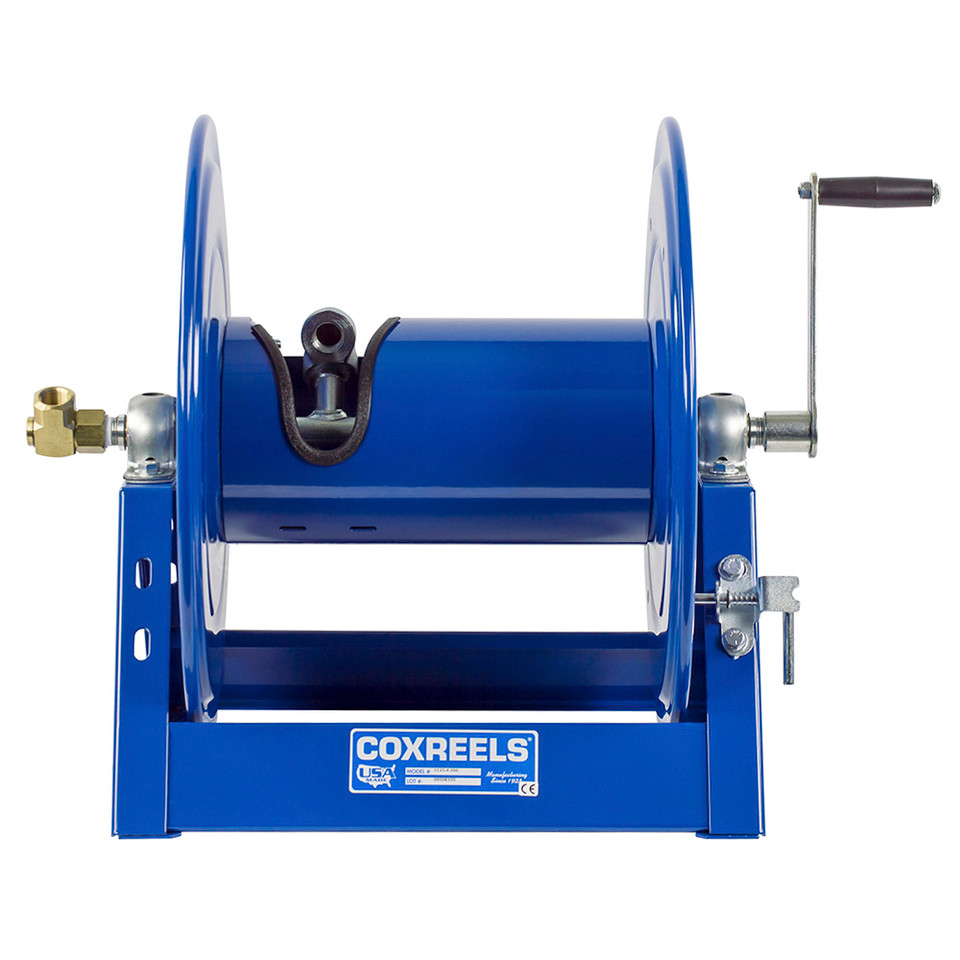

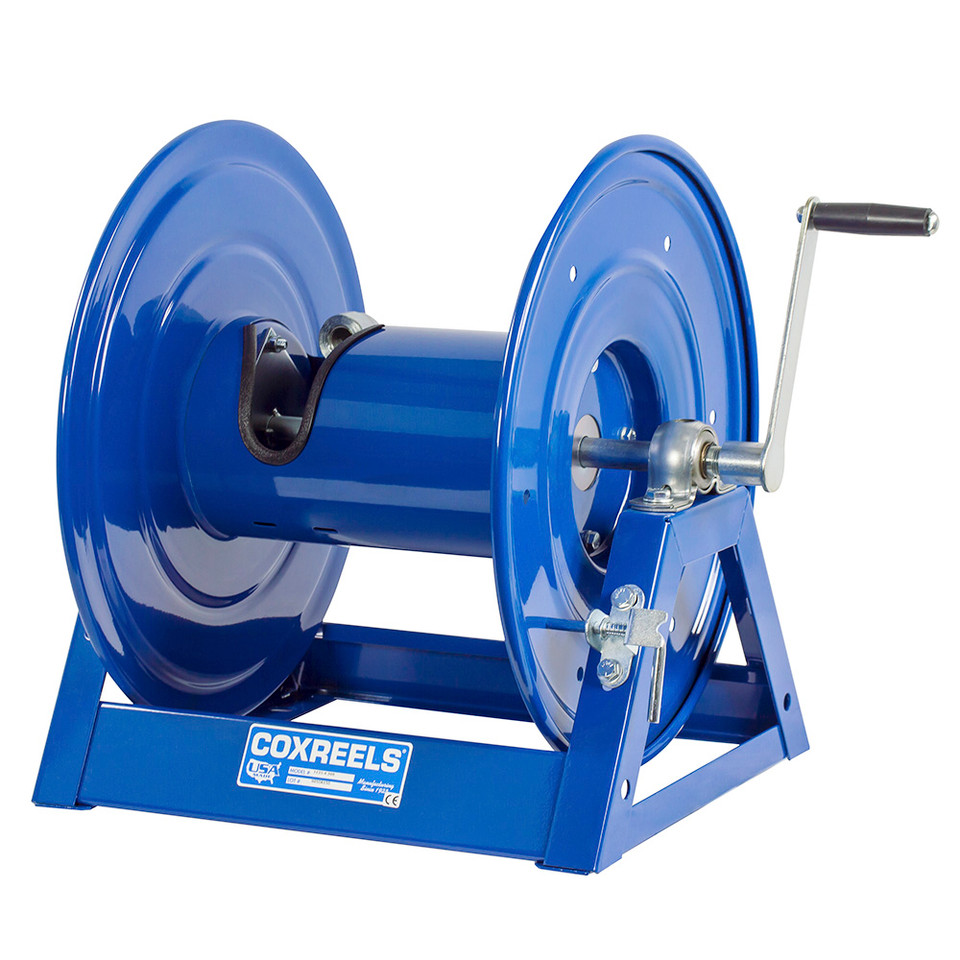

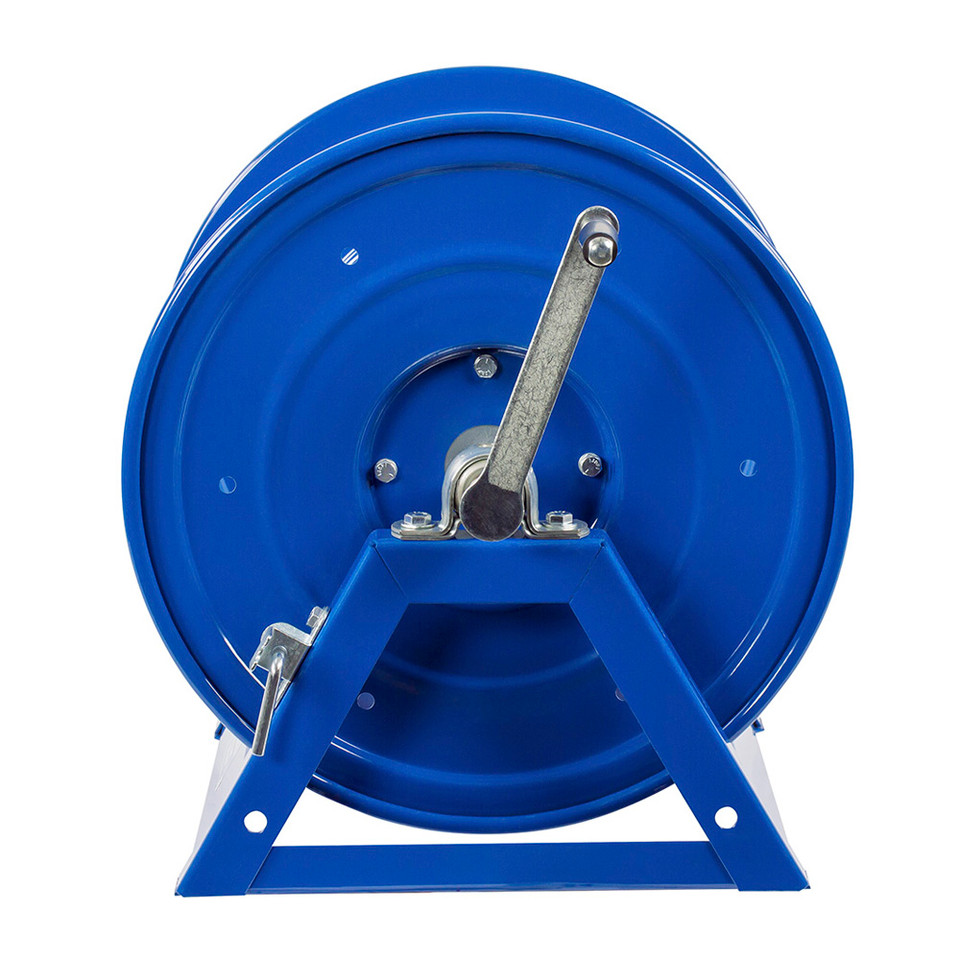

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Configuration: Less Hose | Model: 1125-5-175-C | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 175 ft | Hose Included: No | Max Pressure: 3000 PSI | Approx. Ship Weight: 50 lbs | Drum Width: 18" | Overall Dimensions: 32.38" W x 18.75" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 23.38" X x 15.38" Y
Features:
- Front bevel geared crank provides controlled mechanical hand rewind for long hose lengths without requiring electric, air, or hydraulic motor power.
- One-piece, all-welded steel “A” frame base supports the reel structure and includes the mounting pattern for installation and removal.
- Low-profile outlet riser and open drum slot design help create a flat, smooth hose wrap to reduce crimping during storage.
- Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling, giving the operator more control when handling hose on the job.
- Rolled edges and ribbed discs add drum strength while helping protect the hose and surrounding work area.
- External fluid path with full-flow NPT swivel supports efficient fluid movement through the reel assembly.
- CPC powder coat finish helps resist chips, rust, and corrosion in shop, plant, field, and washdown environments.
Made in USA:
Applications:
- Industrial maintenance and MRO stations for storing long air, water, oil, or fluid-transfer hose runs.
- Pressure washing and washdown areas where 3/4" hose capacity and a 3000 PSI reel rating are required.
- Agricultural spraying, pest control, and grounds maintenance setups using compatible hose, fittings, and media.
- Fleet, utility, and mobile service trucks that need controlled manual rewind without adding powered rewind equipment.
- Construction, transportation, and shop environments where hose organization helps reduce trip hazards and hose damage.
FAQs:
- Q: What does “less hose” mean on the Coxreels 1125-5-175-C?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose separately and confirm that the hose, fittings, and fluid media match the reel and system requirements. - Q: What is a bevel geared crank hose reel?
A: A bevel geared crank reel uses a hand-operated crank with gearing to rewind the hose onto the drum. It gives the operator controlled manual rewind, which is useful for long hose runs where spring rewind is not preferred. - Q: Can this reel be used for pressure washing?
A: Yes, pressure washing is one of the listed application types for the 1125 Series when the reel, hose, fittings, and system pressure are properly matched. This model is rated for 3000 PSI maximum pressure. - Q: Does the 1125-5-175-C include a hose?
A: No. The reel is listed with “No” hose included. Order compatible hose separately based on the required length, inside diameter, outside diameter, pressure rating, and media compatibility. - Q: What mounting information should be checked before ordering?
A: Confirm the available mounting space against the reel’s 32.38" W x 18.75" H x 17.63" L overall dimensions, 21.44" M x 10" N mounting pattern, and 23.38" X x 15.38" Y base dimensions.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-175 | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 | 8 |
| 1125-5-175-A | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-A | 4,500 | 50 | 8 |
| 1125-5-175-AB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-AB | 4,500 | 50 | 8 |
| 1125-5-175-C | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-C | 4,500 | 50 | 8 |
| 1125-5-175-E | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-E | 4,500 | 50 | 8 |
| 1125-5-175-EA | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EA | 4,500 | 50 | 8 |
| 1125-5-175-EB | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EB | 4,500 | 50 | 8 |
| 1125-5-175-ED | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-ED | 4,500 | 50 | 8 |
| 1125-5-175-EF | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-EF | 4,500 | 50 | 8 |
| 1125-5-175-H | 3/4" | 1 1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175-H | 4,500 | 50 | 8 |
