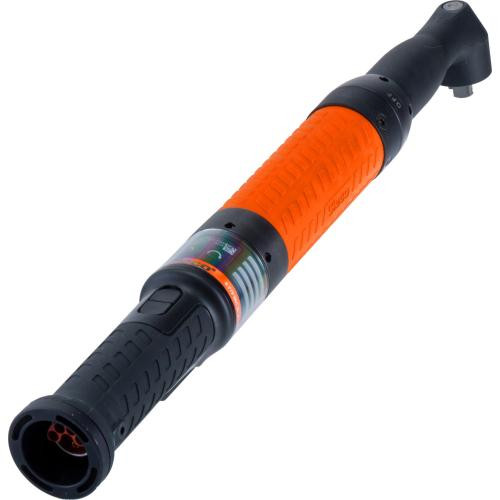

Cleco 50EAN30FA3 NeoTek Right Angle Corded Electric Nutrunner | 50 Series | 1765 RPM | 4.4 - 22.1 (ft-lbs) Torque Range | 3/8" Square Drive

Built for fast, controlled assembly fastening, the Cleco 50EAN30FA3 NeoTek Right Angle Corded Electric Nutrunner combines a 4.4 - 22.1 ft-lbs torque range with a high 1765 RPM free speed for applications that need quick rundown and repeatable final torque. The 3/8" square drive accepts compatible 3/8" drive sockets, while the right-angle configuration helps operators access fasteners positioned near housings, brackets, fixtures, and side-facing assemblies where straight tools may not fit cleanly.

As part of the Cleco NeoTek 50 Series, the 50EAN30FA3 is built for precision fastening systems that rely on transducer control, which electronically measures torque during the fastening cycle for better process feedback than basic shut-off tools. Its 3.5 lb tool weight, 17.68" length, 0.65" side-to-center distance, and 1.58" angle head height make it a practical option for production cells where access, fastening speed, and quality documentation all matter.

Type: Corded Electric Nutrunner | Series: NeoTek 50 Series | Model: 50EAN30FA3 | Configuration: Right Angle | Torque Range: 4.4 - 22.1 ft-lbs / 6 - 30 Nm | Free Speed: 1765 RPM | Output Drive: 3/8" Square | Weight: 3.5 lbs / 1.60 kg | Length: 17.68" / 449 mm | Side to Center: 0.65" / 16 mm | Angle Head Height: 1.58" / 40.25 mm

Features:

• NeoTek 50 Series right-angle corded electric nutrunner for precision assembly fastening.
• Transducer control supports electronic torque measurement for quality-critical fastening operations.
• Engineered to provide 1 million cycles maintenance-free.
• Repeatability and accuracy of 2.0 Cm/Cmk at +/- 7%.
• 1765 RPM free speed helps reduce cycle time during fastener rundown.
• 3/8" square output drive accepts compatible square-drive sockets for nut and bolt assembly.
• Configurable LED light ring provides clear visual status feedback at the tool.
• Compact right-angle head improves access around fixtures, brackets, panels, and recessed fastener locations.

Made in USA:

Applications:

• Automotive assembly — fastening brackets, housings, interior structures, and production subassemblies within the tool’s rated torque range.
• Large appliance manufacturing — running down repeated bolted joints on frames, panels, mounts, and mechanical assemblies.
• Heavy truck and trailer production — tightening medium-torque fasteners where fast cycle time and repeatable torque are required.
• Agriculture and lawn equipment assembly — controlled fastening on guards, supports, chassis components, and powertrain-related subassemblies.
• Industrial maintenance and production support — standardizing controlled electric fastening in tool cribs, repair stations, and manufacturing workcells.

FAQs:

• Q: What makes the 50EAN30FA3 different from a general-purpose electric wrench?
  A: The 50EAN30FA3 is a precision assembly nutrunner, not a general repair tool. It is used where a fastening process requires controlled torque, repeatable output, and tool feedback rather than simple bolt removal or casual tightening.
• Q: What does the 4.4 - 22.1 ft-lbs torque range mean?
  A: This is the working torque window for the tool. The application fastener, joint design, and torque program should fall within this range to get the best combination of speed, control, and repeatability.
• Q: Why is the 1765 RPM speed useful?
  A: Higher free speed helps the tool run fasteners down quickly before final torque is reached. That can reduce cycle time on repeated assembly work, especially when the fastener has several threads of travel before seating.
• Q: What is side-to-center distance on a right-angle nutrunner?
  A: Side-to-center distance is the offset from the outside of the angle head to the centerline of the drive. The 0.65" side-to-center measurement helps determine whether the tool can reach fasteners close to walls, fixtures, or adjacent components.
• Q: Does this tool include the controller, cable, or sockets?
  A: The supplied title and source details identify the nutrunner model and specifications, but they do not confirm included accessories. Confirm the required Cleco controller, tool cable, sockets, and programming requirements before ordering for a production station.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
