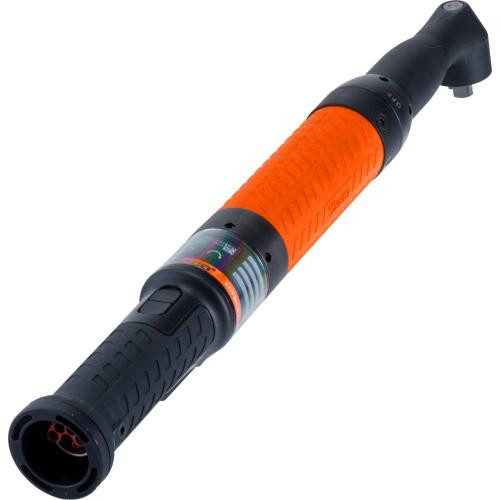

Cleco 30EAN12EA3 NeoTek Corded Electric Nutrunner | 1450 RPM | 1.9 - 8.8 (ft-lbs) Torque Range | 3/8" Square Drive

Built for controlled fastening in compact assembly stations, the Cleco 30EAN12EA3 NeoTek Corded Electric Nutrunner delivers a 1.9 - 8.8 ft-lbs torque range for light-to-medium threaded fasteners that require repeatable tightening rather than impact force. Its 1450 RPM free speed helps operators run down fasteners efficiently before final torque, while the 3/8" square drive accepts compatible industrial sockets for nut-and-bolt assembly. The right-angle head improves access around brackets, panels, housings, and fixture-mounted components where inline tools may not have enough clearance.

As part of Cleco’s NeoTek 30 Series, this corded electric nutrunner uses transducer control, which electronically measures torque during the fastening cycle to support repeatable, traceable assembly results. With configurable LED light rings, programmable multi-function buttons, and a brushless motor, the 30EAN12EA3 is suited for production environments that need controlled fastening, operator feedback, and reduced brush-maintenance requirements in one connected assembly tool.

Type: Corded Electric Right Angle Nutrunner | Series: NeoTek 30 Series | Model: 30EAN12EA3 | Control Type: Transducer Control | Grip Style: Right Angle | Torque Range: 1.9 - 8.8 ft-lbs / 2.6 - 12 Nm | Free Speed: 1450 RPM | Output Drive: 3/8" Square Drive | Length: 14.96" | Height: 1.42" | Side to Center: 0.48"

Features:

• Transducer control supports electronically monitored torque output for repeatable fastening on quality-critical joints.
• Right-angle head gives operators better access to fasteners near housings, panels, brackets, and other obstructions.
• 1450 RPM free speed helps balance fast rundown with control in light-to-medium torque assembly work.
• 1.9 - 8.8 ft-lbs torque range supports controlled tightening of smaller fasteners without using impact-style force.
• 3/8" square output drive accepts compatible sockets for common nut-and-bolt assembly tasks.
• Engineered to provide 1 million cycles maintenance-free.
• Repeatability and accuracy of 2.0 Cm/Cmk at +/- 7%.
• Configurable LED light ring provides clear visual tool status feedback during production fastening.

Made in USA:

Applications:

• Automotive assembly — fastening brackets, panels, trim-related hardware, and light mechanical subassemblies with controlled torque.
• Aerospace and aviation production — tightening smaller fasteners in areas where access, repeatability, and documentation matter.
• Industrial manufacturing — repeated socket-driven fastening on assembly lines, work cells, and fixture-based production stations.
• Agricultural and outdoor power equipment — assembling guards, housings, frames, and light structural components.
• Heavy truck and trailer assembly — reaching smaller hardware around cab, body, accessory, and equipment-mounting locations.

FAQs:

• Q: What type of fastening work is the Cleco 30EAN12EA3 best suited for?
  A: This model is suited for controlled production fastening where the required torque falls between 1.9 and 8.8 ft-lbs. It is a precision assembly nutrunner, not a tool for loosening rusted or seized fasteners.
• Q: What does transducer control do on a NeoTek nutrunner?
  A: Transducer control electronically measures torque during the fastening cycle. This helps assembly teams improve repeatability, verify fastening results, and support traceability requirements in production environments.
• Q: Why would I choose this model over the faster 30EAN06EA3?
  A: The 30EAN12EA3 runs at 1450 RPM and covers a higher 1.9 - 8.8 ft-lbs torque range. The 30EAN06EA3 is faster at 2925 RPM but is intended for lower-torque fastening from 0.9 - 4.4 ft-lbs.
• Q: Does the 3/8" square drive work with standard sockets?
  A: Yes, the tool uses a 3/8" square drive for compatible 3/8" drive sockets. Socket choice should match the fastener size, clearance, and assembly torque requirement.
• Q: Is this a good choice for a home garage?
  A: This is a specialized electric assembly nutrunner for production fastening. For general vehicle repair, tire work, or DIY fastener removal, an impact wrench or ratchet wrench is usually a more appropriate tool category.
