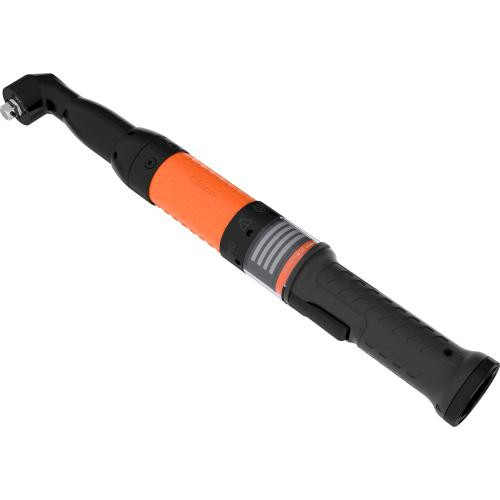

Cleco 30EAN21FA3 NeoTek Corded Electric Nutrunner | 835 RPM | 3.2 - 15.4 (ft-lbs) Torque Range | 3/8" Square Drive

Built for controlled fastening in production assembly cells, the Cleco 30EAN21FA3 NeoTek Corded Electric Nutrunner delivers a 3.2 - 15.4 ft-lbs torque range for applications that need more tightening capability than lower-range 30 Series models while still requiring repeatable torque control. It's 835 RPM free speed supports efficient rundown on socket-driven fasteners, and the 3/8" square drive accepts compatible industrial sockets for nut-and-bolt assembly. The right-angle head helps operators reach fasteners near housings, brackets, covers, and fixture-mounted components where straight tools may not clear the workpiece.

As part of Cleco’s NeoTek 30 Series, this corded electric nutrunner uses transducer control, which electronically measures torque during the fastening cycle to support repeatable and traceable tightening results. With configurable LED light rings, a maintenance-free brushless motor, and a compact 0.65" side-to-center distance, the 30EAN21FA3 is suited for quality-critical production lines where access, fastening feedback, and controlled torque are all part of the process.

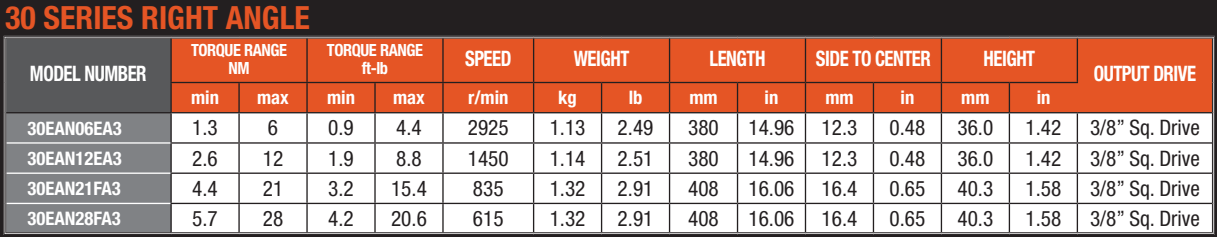

Type: Corded Electric Right Angle Nutrunner | Series: NeoTek 30 Series | Model: 30EAN21FA3 | Control Type: Transducer Control | Grip Style: Right Angle | Torque Range: 3.2 - 15.4 ft-lbs / 4.4 - 21 Nm | Free Speed: 835 RPM | Output Drive: 3/8" Square Drive | Weight: 2.9 lbs | Length: 16.06" | Angle Head Height: 1.58" | Side to Center: 0.65"

Features:

• Transducer control supports electronically monitored torque output for repeatable fastening on quality-critical assembly joints.
• Right-angle head improves access to fasteners located near brackets, housings, panels, covers, and fixture obstructions.
• 835 RPM free speed supports efficient rundown while maintaining control across the tool’s higher 30 Series torque range.
• 3.2 - 15.4 ft-lbs torque range is suited for light-to-medium assembly fasteners requiring controlled tightening.
• 3/8" square output drive accepts compatible industrial sockets for nut-and-bolt fastening operations.
• Engineered to provide 1 million cycles maintenance-free.
• Repeatability and accuracy of 2.0 Cm/Cmk at +/- 7%.
• Configurable LED light ring gives operators clear visual status feedback during the fastening process.

Made in USA:

Applications:

• Automotive assembly — tightening bracket, housing, interior, and accessory fasteners where controlled torque is required.
• Aerospace and aviation production — fastening smaller hardware in restricted-access areas with repeatable tightening control.
• Industrial manufacturing — repeated socket fastening in assembly stations, work cells, and fixture-based production lines.
• Agricultural and outdoor power equipment — assembling guards, frames, covers, and light mechanical components.
• Heavy truck and trailer assembly — reaching smaller fasteners around cab, body, accessory, and equipment-mounting locations.

FAQs:

• Q: What fastening range does the Cleco 30EAN21FA3 cover?
  A: This model covers 3.2 - 15.4 ft-lbs, or 4.4 - 21 Nm. It is a controlled assembly nutrunner for production fastening, not an impact tool for breaking loose seized hardware.
• Q: What does the right-angle head help with?
  A: The 90-degree head lets the socket reach fasteners beside panels, frames, housings, and other obstructions. This is useful when a straight inline tool cannot approach the fastener squarely.
• Q: How is this model different from the 30EAN12EA3?
  A: The 30EAN21FA3 provides a higher torque range of 3.2 - 15.4 ft-lbs and runs at 835 RPM. The 30EAN12EA3 is faster at 1450 RPM but covers a lower 1.9 - 8.8 ft-lbs range.
• Q: What does transducer control mean on a NeoTek nutrunner?
  A: Transducer control means the tool electronically measures torque during the fastening cycle. This supports repeatable tightening, process monitoring, and traceability in production environments.
• Q: Does this tool work with standard 3/8" drive sockets?
  A: Yes, the 30EAN21FA3 uses a 3/8" square drive for compatible 3/8" drive sockets. Select sockets based on the fastener size, joint access, and required torque.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
