Built for industrial operations where compressed air is readily available for powered hose retrieval, the Coxreels 1125-6-35-A compressed air motor rewind hose reel provides efficient hose management for manufacturing plants, maintenance facilities, construction sites, and heavy equipment service operations. Utilizing a compressed air motor rewind system, this reel simplifies hose recovery while accommodating up to 35 feet of 1-inch hose. Its 3000 PSI maximum operating pressure makes it suitable for demanding high-pressure fluid transfer applications where dependable hose storage and reduced manual handling improve workplace efficiency.
As a member of the 1125 Series, this reel is supplied in a Less Hose configuration, allowing users to install the hose best suited to their operating pressure, media, and application. The compressed air-powered rewind system eliminates the need for electrical power, making it well suited for industrial environments where plant air is already available and reliable powered hose retrieval is required.

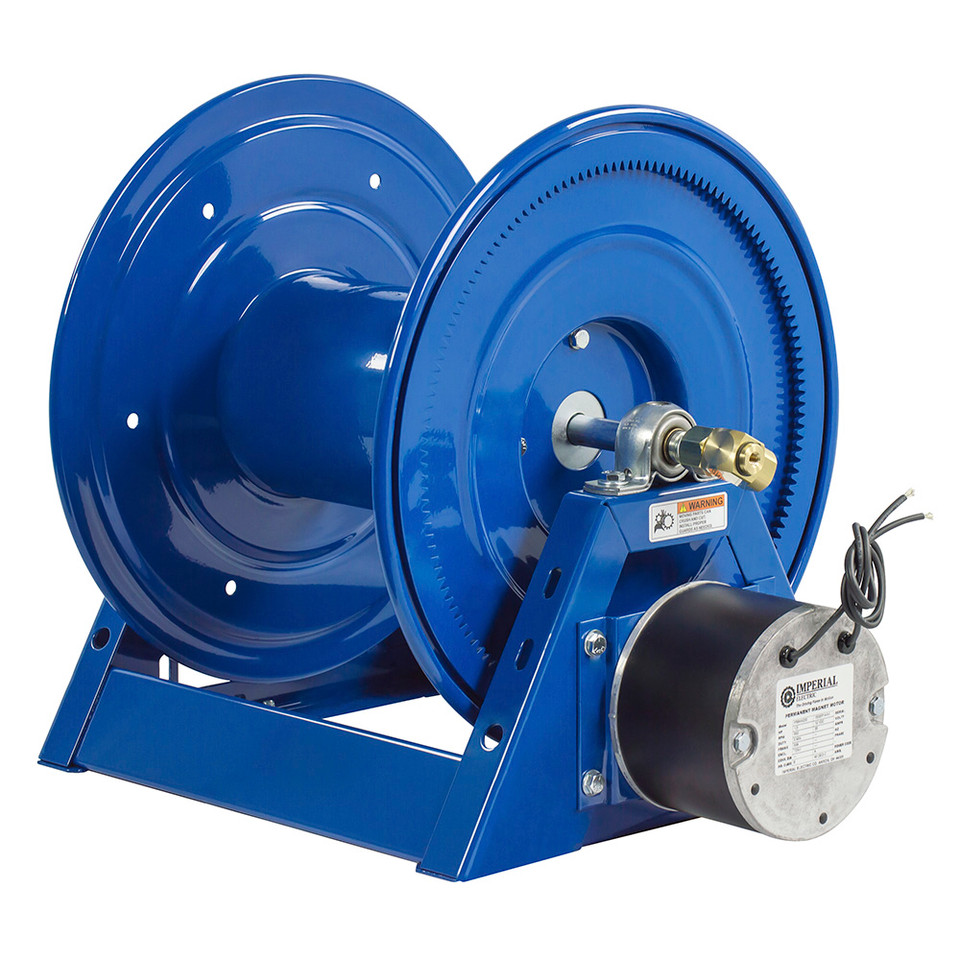

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-35-A | Configuration: Less Hose | Hose I.D.: 1" | Hose Capacity: 35 ft | Maximum Pressure: 3000 PSI
Features:
- Compressed air motor provides powered hose rewind without requiring an electrical power source.
- Designed to accommodate up to 35 feet of 1-inch hose for high-pressure industrial fluid transfer applications.
- 3000 PSI maximum pressure rating supports demanding service when paired with compatible hose and fittings.
- Less hose configuration allows users to install a hose that matches their specific operating media and pressure requirements.
- 1125 Series construction promotes organized hose storage while helping reduce hose wear caused by dragging, twisting, and improper coiling.
- Powered rewind system helps reduce manual effort and speeds hose retrieval during repetitive daily operations.
Made in USA:
Applications:
- Industrial manufacturing facilities with plant compressed air systems requiring powered hose retrieval.
- Maintenance departments servicing production machinery and industrial equipment.
- Construction and heavy equipment maintenance operations where compressed air is readily available.
- Oil, utility, and industrial service installations requiring organized management of large-diameter high-pressure hose.
- General industrial fluid transfer applications utilizing compatible 1-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. A compatible 1-inch hose must be purchased separately based on your application's requirements. - Q: How is the hose rewound?
A: This model uses a compressed air motor rewind system that utilizes an external compressed air supply to power hose retrieval rather than electricity. - Q: How much hose can this reel accommodate?
A: The reel is designed to store up to 35 feet of 1-inch hose, depending on the hose's outside diameter and construction. - Q: Is this reel suitable for high-pressure hose applications?
A: Yes. It has a maximum operating pressure rating of 3000 PSI when paired with compatible hose, fittings, and operating conditions.
| LESS HOSE | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1125-6-35 | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-A | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-AB | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-C | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-E | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-EA | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-EB | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-ED | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-EF | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
| 1125-6-35-H | 1" | 1 7/16" | 35 | 3/4" | 1 1/4" | 50 | 1" F NPT | 3,000 | 50 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
