Coxreels 1125-6-35-C Bevel Geared Crank Hose Reel | 1125 Series | 1" Hose Diameter | 35' Hose Length | 3000 Max PSI | Less Hose

For compact 1-inch hose drops where operator-controlled retraction is preferred over a motorized reel and no power source is available high-flow compressed air supply stations, large-bore water service points, and industrial washdown positions on remote sites and mobile units the Coxreels 1125-6-35-C delivers gear-assisted hand retraction in a narrow 26-inch wide footprint. The front bevel geared crank with removable handle (a gear-assisted crank mounted at the front face of the reel that multiplies winding effort so 35 feet of heavy 1-inch I.D. hose cranks back without the strain of a direct-drive handle) gives the operator full control over retraction speed with no shop air or electrical connection required. The removable handle stows flat for compact storage on truck beds, trailers, and tight wall-mount positions. Rated to 3,000 PSI at up to 250°F for compressed air, water, and oil service. As standard on all 1125 Series 1-inch models, the swivel is nickel plated steel with AFLAS seals a fluoroelastomer compound that provides better chemical resistance than the nitrile seals used on smaller hose sizes in the same series. Built on the CNC robotically welded 12-gauge steel "A" frame common to the 1125 family.

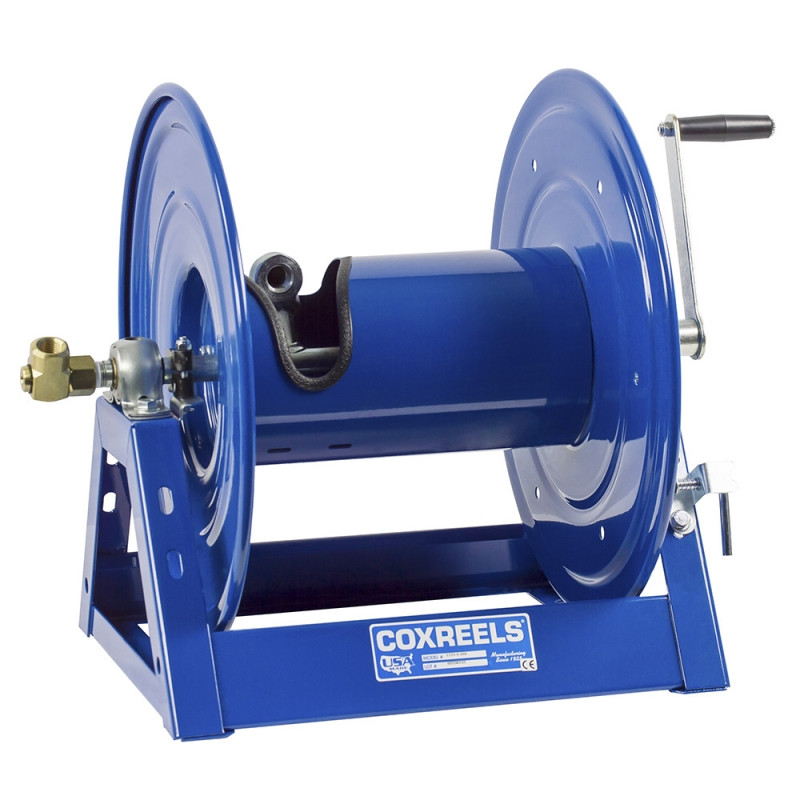

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Bevel Geared Hand Crank Hose Reel | Series: 1125 | Crank Type: Front Bevel Gear with Removable Handle | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Capacity (ft.): 35 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 1 in. F NPT | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Width (in.): 26 | Height (in.): 18.5 | Length (in.): 17.63 | Drum Width (in.): 9.5 | Mounting Pattern M (in.): 14.94 | Mounting Pattern N (in.): 10 | Base X (in.): 14.88 | Base Y (in.): 15.38

Features:

• Front bevel geared crank with removable handle gear-assisted winding reduces effort on 1-inch hose runs; handle removes for flat, compact storage on vehicles and wall mounts
• No power source required no shop air supply or electrical connection; operates anywhere the reel is mounted
• Nickel plated steel 90° full-flow 1" NPT swivel with AFLAS seals standard on all 1125 Series 1-inch models for improved chemical resistance over the brass/nitrile swivel used on smaller hose sizes
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Long-handled locking pin secures reel from rotation during transport or storage
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect large-bore hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for shop, plant, and covered outdoor environments

Made in USA:

2 Year Warranty

Applications:

• High-CFM compressed air supply remote & mobile gear-cranked 1-inch air drops on job sites and service trucks where no shop air supply is available to power a motorized reel
• Industrial washdown & high-flow water service large-bore water drops at processing plants and cleaning stations where operator-controlled retraction speed is preferred over automatic rewinding
• Agricultural & rural equipment service 1-inch water or chemical supply on farms and remote facilities where power infrastructure is limited and manual operation is the practical choice
• Construction & infrastructure sites compact high-flow hose management on sites where space is at a premium and no electrical or air-motor power is available at the reel position
• Plant & facility maintenance fixed 1-inch service drops where operator preference for manual retraction control outweighs the convenience of motor-driven rewinding

FAQs:

• Q: What is the difference between the 1125-6-35-C and the plain 1125-6-35 hand crank?
  A: The base 1125-6-35 uses a solid steel direct hand crank. The -C adds a front bevel gear crank with a removable handle the gear mechanism multiplies winding effort so 1-inch hose retracts more easily, and the handle removes flat for compact storage on vehicles and tight-space installations.
• Q: When should I choose this manual model over a motorized option (-A or -AB)?
  A: Choose the -C when no shop air supply or electrical outlet is available at the installation point, when the reel will be used on a mobile or remote unit, or when you prefer direct operator control over retraction speed. The air motor models (-A, -AB) are the better choice for high-cycle fixed stations where hands-free automatic retraction saves time on every use.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 35 feet of 1-inch I.D. (1-7/16-inch O.D. max) hose, or up to 50 feet of 3/4-inch I.D. hose with a reducer.
