Coxreels 1125-6-35-EB Electric 24V DC 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 35' Hose Length | 3000 Max PSI | Less Hose

For medium and heavy-duty service trucks with 24V DC electrical systems that need automatic retraction on large-bore 1-inch hose drops high-flow compressed air supply, bulk water service, and industrial washdown on commercial vehicles with dual-battery systems the Coxreels 1125-6-35-EB delivers the strongest non-explosion-proof 24V motor option in the 1125-6-35 lineup. The 1/2 HP 24V DC motor (higher torque than the 1/3 HP -EF model on the same voltage, providing more retraction force for the additional weight and resistance of 1-inch hose compared to smaller bore sizes) wires directly to the vehicle's 24V electrical system with no shop air supply needed. Quiet direct gear-drive retraction, no chain. The drum holds 35 feet of 1-inch I.D. hose at up to 3,000 PSI and 250°F for compressed air, water, and oil service. As standard on all 1125 Series 1-inch models, the swivel is nickel plated steel with AFLAS seals a fluoroelastomer compound that provides better chemical resistance than the nitrile seals used on smaller hose sizes in the same series. Built on the CNC robotically welded 12-gauge steel "A" frame common to the 1125 family. Made in the USA, backed by a 2-year warranty.

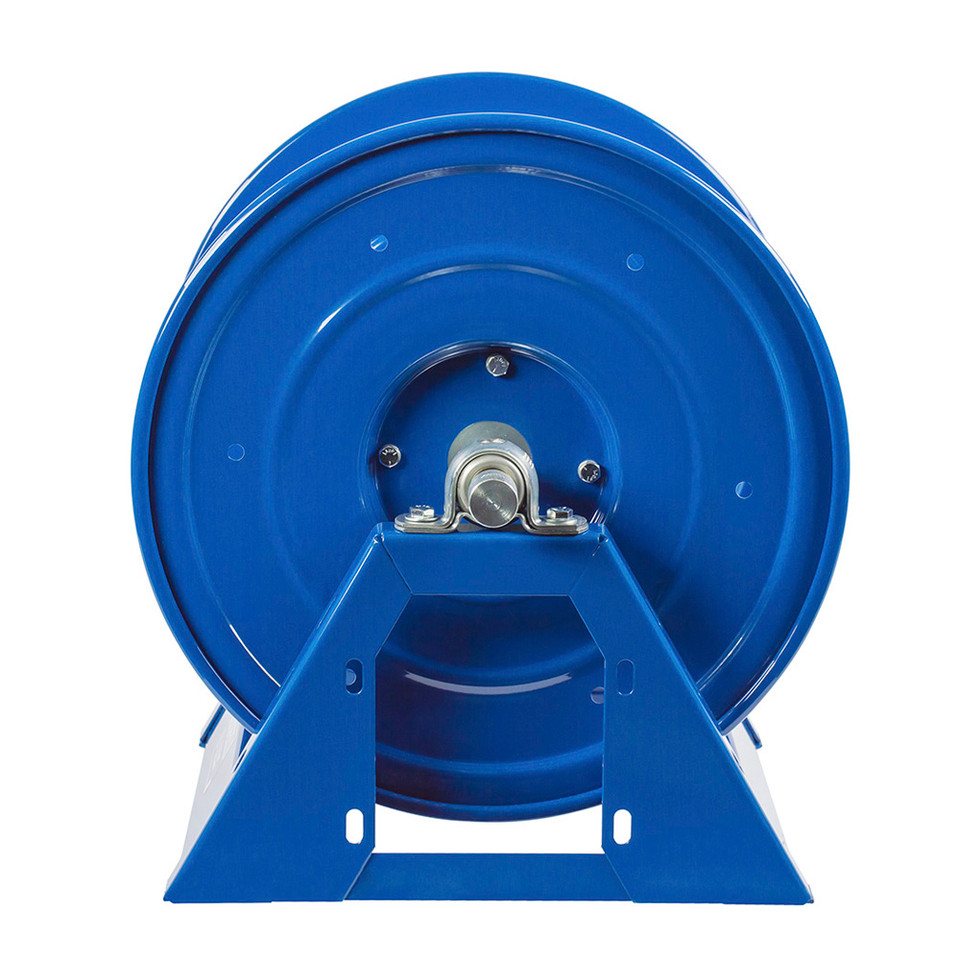

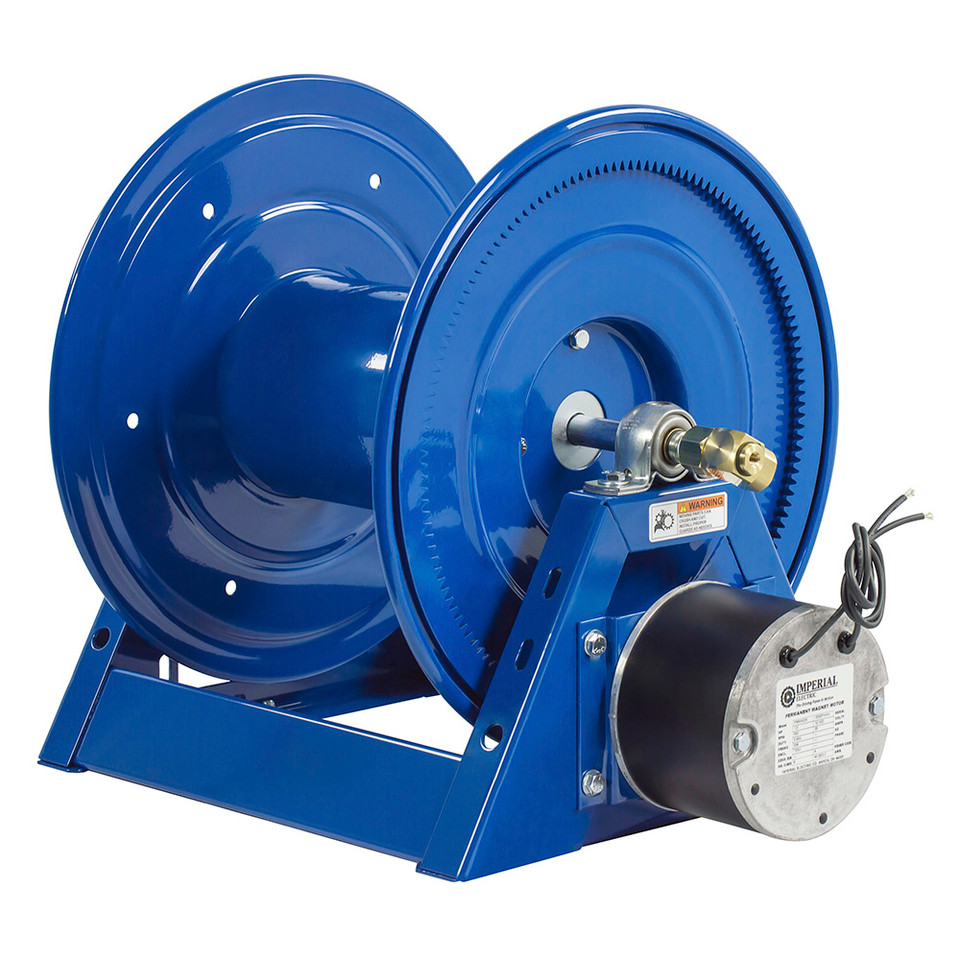

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor: 24V DC, 1/2 HP | Drive: Direct Gear (No Chain) | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Capacity (ft.): 35 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 1 in. F NPT | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Height (in.): 18.5 | Length (in.): 17.63 | Drum Width (in.): 9.5 | Mounting Pattern M (in.): 14.94 | Mounting Pattern N (in.): 10 | Base X (in.): 14.88

Features:

• 24V DC 1/2 HP electric motor provides automatic hands-free retraction from vehicle or facility 24V systems greater torque than the 1/3 HP -EF motor on the same voltage, suited to the additional weight of 1-inch hose
• Reliable direct gear drive for quiet, chain-free retraction no chain to adjust, skip, or replace
• Nickel plated steel 90° full-flow 1" NPT swivel with AFLAS seals standard on all 1125 Series 1-inch models for improved chemical resistance over the brass/nitrile swivel used on smaller hose sizes
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect large-bore hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for shop, plant, and mobile environments

Made in USA:

2 Year Warranty

Applications:

• Heavy-duty service trucks & commercial vehicles automatic 1-inch hose retraction on boom trucks, lube trucks, and utility rigs running 24V DC dual-battery electrical systems where 3/4-inch hose flow is insufficient for the connected equipment
• High-flow compressed air supply on 24V vehicles large-bore air drops on commercial vehicles where the 1/2 HP motor handles the heavier 1-inch hose load more reliably than a 1/3 HP drive
• Municipal & fleet maintenance fixed or truck-mounted 1-inch service drops at fleet yards where 24V DC is the vehicle electrical standard and high-volume hose service is required
• Agricultural & rural equipment service 1-inch water and fluid drops on large agricultural vehicles with 24V battery systems operating in areas without facility AC power
• Industrial washdown on 24V systems high-flow water service retraction at processing plants and cleaning stations with 24V DC panel power where 1-inch hose is specified for flow rate requirements

FAQs:

• Q: What is the difference between the 1125-6-35-EB (24V 1/2 HP) and the 1125-6-35-EF (24V 1/3 HP)?
  A: Both run on 24V DC, but the -EB delivers more retraction torque with its 1/2 HP motor the better choice for 1-inch hose, which is heavier than smaller bore sizes and resists rewinding more under load. The -EF's 1/3 HP motor handles lighter loads and lower cycle counts at reduced cost and weight.
• Q: Is this model explosion-proof?
  A: No the -EB is a standard electric motor not rated for classified hazardous locations. For flammable vapor or combustible dust environments, select the explosion-proof -EA (115V AC) or -ED (12V DC) models instead. If your installation is in a classified area, standard electric motors are not permitted regardless of voltage.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 35 feet of 1-inch I.D. (1-7/16-inch O.D. max) hose, or up to 50 feet of 3/4-inch I.D. hose with a reducer.
