Coxreels 1125-6-35-EF Electric 24V DC 1/3 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 35' Hose Length | 3000 Max PSI | Less Hose

For 24V DC vehicles and equipment managing large-bore 1-inch hose at moderate cycle counts high-flow compressed air drops, bulk water service, and industrial washdown on agricultural tractors, medium-duty trucks, and dual-battery utility rigs, the Coxreels 1125-6-35-EF delivers hands-free automatic retraction without the added weight and cost of the 1/2 HP -EB motor. The 24V DC 1/3 HP motor (the same horsepower class as the standard 12V -E model, rewired for 24V electrical systems common on medium-duty commercial vehicles and large agricultural equipment) drives quiet, chain-free direct gear-drive retraction from the vehicle's existing 24V supply with no shop air needed. The drum holds 35 feet of 1-inch I.D. hose at up to 3,000 PSI and 250°F for compressed air, water, and oil service. As standard on all 1125 Series 1-inch models, the swivel is nickel plated steel with AFLAS seals a fluoroelastomer compound providing better chemical resistance than the nitrile seals used on smaller bore models in the same series. Built on the CNC robotically welded 12-gauge steel "A" frame common to the 1125 family.

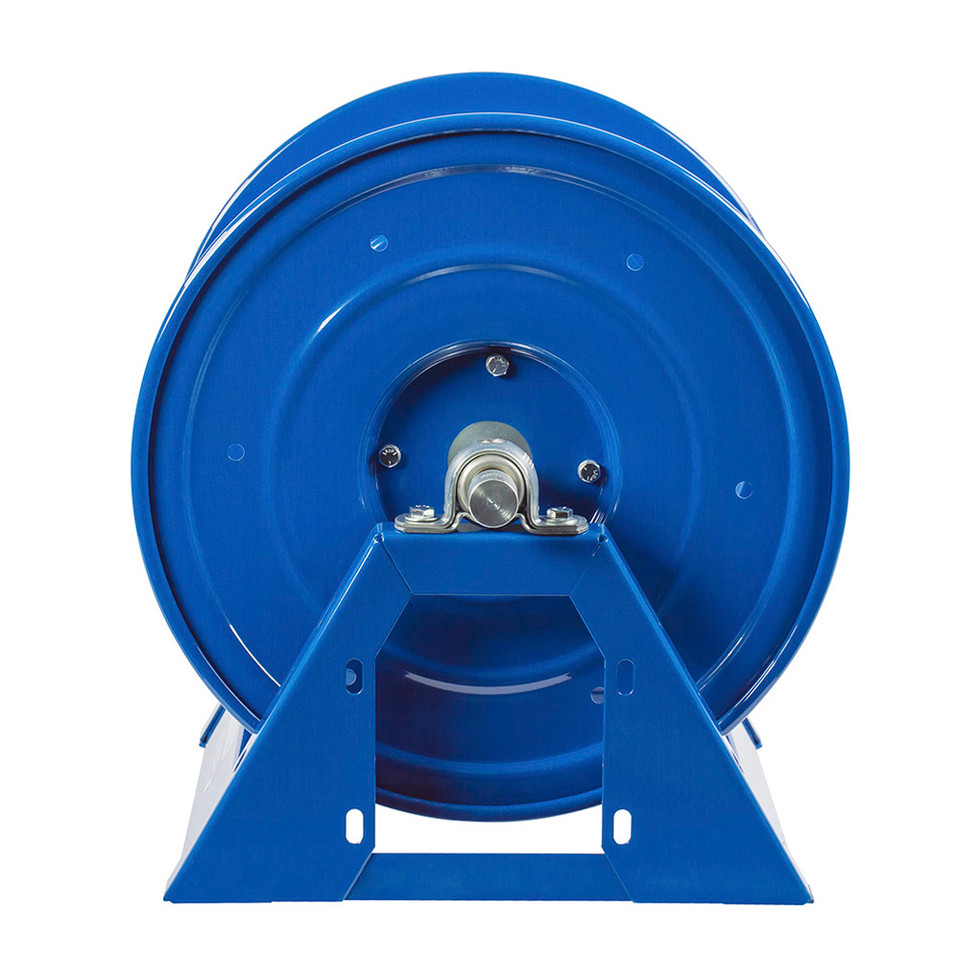

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor: 24V DC, 1/3 HP | Drive: Direct Gear (No Chain) | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Capacity (ft.): 35 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 1 in. F NPT | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Width (in.): 22.25 | Height (in.): 18.5 | Length (in.): 17.63 | Drum Width (in.): 9.5 | Mounting Pattern M (in.): 14.94 | Mounting Pattern N (in.): 10 | Base X (in.): 14.88

Features:

• 24V DC 1/3 HP electric motor provides automatic hands-free retraction on 24V vehicle and facility electrical systems no air supply required
• Lighter motor assembly than the 1/2 HP -EB right-sized for moderate hose loads and lower cycle counts on 1-inch hose where the heavier motor adds unnecessary cost and weight
• Reliable direct gear drive for quiet, chain-free retraction no chain to adjust, skip, or replace
• Nickel plated steel 90° full-flow 1" NPT swivel with AFLAS seals standard on all 1125 Series 1-inch models for improved chemical resistance over the brass/nitrile swivel used on smaller hose sizes
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect large-bore hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent or mobile installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for shop, plant, and mobile environments

Made in USA:

2 Year Warranty

Applications:

• Agricultural & rural equipment service 1-inch air and water drops on large tractors, combines, and farm service vehicles with 24V battery systems where moderate cycle counts keep the 1/3 HP motor well within its duty range
• Medium-duty service trucks & utility vehicles large-bore hose retraction on 24V commercial vehicles where the full torque of the 1/2 HP -EB is more than the application requires
• High-flow compressed air supply on 24V equipment 1-inch air drops on vehicles and machinery where 24V power is available and lower cycle counts make the 1/3 HP motor the practical choice
• Municipal & fleet maintenance fixed 24V DC-powered 1-inch service drops in fleet yards where 24V is the vehicle standard and moderate daily use fits the lighter motor class
• Industrial washdown & water service on 24V systems large-bore water drops at processing plants and facilities with 24V panel power where hands-free retraction is needed but high cycle counts don't justify the 1/2 HP motor upgrade

FAQs:

• Q: What is the difference between the 1125-6-35-EF (24V 1/3 HP) and the 1125-6-35-EB (24V 1/2 HP)?
  A: Both run on 24V DC, but the -EB delivers more retraction torque at 1/2 HP better suited to high-cycle installations and heavier hose loads where reliable, consistent retraction of 1-inch hose matters more than motor weight and cost. The -EF's 1/3 HP motor suits moderate loads and lower cycle counts where the extra output of the -EB isn't warranted.
• Q: What is the difference between the 1125-6-35-EF (24V) and the 1125-6-35-E (12V)?
  A: Same 1/3 HP output, different voltage. The -EF is wired for 24V systems common on medium-duty trucks and dual-battery agricultural equipment; the -E is wired for standard 12V vehicle electrical systems. Match the model to your power supply running the wrong voltage will damage the motor.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 35 feet of 1-inch I.D. (1-7/16-inch O.D. max) hose, or up to 50 feet of 3/4-inch I.D. hose with a reducer.
