For short 1" hose assemblies where manual rewind is preferred, the Coxreels 1125-6-35 Hand Crank Hose Reel provides reel-only hose storage in the 1125 Series platform. This less-hose reel is sized for 1" I.D. hose with a 35 ft hose capacity and a 3,000 PSI maximum pressure rating, making it a practical choice for air, water, oil, pressure wash, spray, chemical transfer, and compatible medium-pressure fluid handling applications where the hose assembly will be selected separately.
The 1125-6-35 uses hand-crank rewind, meaning the operator manually retrieves the hose with the crank handle rather than a spring or motor. The 1125 Series design features a one-piece all-welded steel A frame base, low-profile outlet riser, open drum slot for a flatter hose wrap, permanently lubricated self-aligning pillow block bearings, an adjustable tension brake to help reduce freewheeling, and a locking pin to secure the reel during transport or storage. Its 9.5" drum width supports compact 1" hose storage while keeping the reel suitable for shop, truck, skid, washdown, service, and maintenance mounting locations.

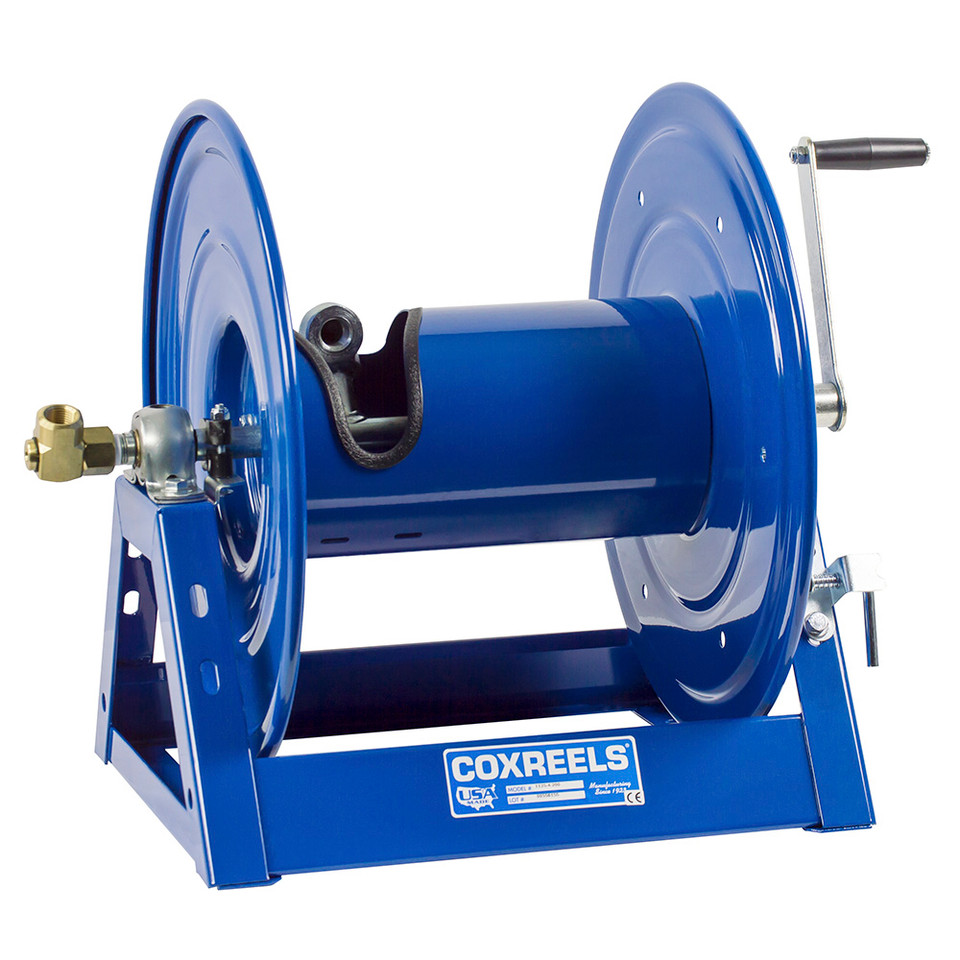

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | SKU: 1125-6-35 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 35 ft | Max Pressure: 3,000 PSI | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Drum Width: 9.5" | Rewind Type: Hand Crank | Ship Weight: 50 lb | Overall Dimensions: 26" W x 18.5" H x 17.63" L | Mounting Pattern: 14.94" M x 10" N | Base: 14.88" X x 15.38" Y
Features:
- Less-hose configuration allows the buyer to install hose selected for the application, pressure requirement, chemical compatibility, temperature range, and fitting style.
- Manual hand crank rewind gives operators direct control over hose retrieval without relying on spring rewind or electric, air, or hydraulic rewind power.
- One-piece all-welded steel A frame base provides a rigid mounting structure for larger 1" hose assemblies in shop, skid, trailer, and equipment-mounted installations.
- Low-profile outlet riser and open drum slot help guide hose onto the reel in a flatter, smoother wrap.
- Nickel plated steel 90° full-flow NPT swivel and AFLAS swivel seals are used on 1" models for compatible larger-hose fluid service.
- Permanently lubricated self-aligning pillow block bearings support smooth reel rotation during hose payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Adjustable tension brake helps reduce freewheeling when pulling hose from the reel.
- CPC powder coat finish, rolled ribbed discs, and CNC spun reel discs support routine use in washdown, service, and maintenance environments.
Made in USA:
Applications:
- Pressure wash and washdown setups where the installed 1" hose, fittings, temperature range, and operating pressure match the 3,000 PSI reel rating.
- Service trucks, maintenance trailers, and mobile equipment where manual rewind provides simple hose retrieval without powered rewind components.
- Air, water, oil, spray, and compatible fluid transfer stations where 35 ft of 1" hose capacity provides short-reach service from a fixed reel location.
- Fleet, facility, and industrial MRO areas where a reel-only purchase supports custom hose installation or standardized hose inventory.
- Wall, floor, bench, skid, vehicle, or equipment-mounted installations where a compact hand crank reel is preferred for larger-diameter hose assemblies.
FAQs:
- Q: Does the Coxreels 1125-6-35 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The 1125-6-35 is sized for up to 35 ft of 1" I.D. hose with a 1-7/16" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: How is the 1125-6-35 different from the 1125-6-50?
A: The 1125-6-35 is sized for 35 ft of 1" hose, while the 1125-6-50 is sized for 50 ft. Choose the 35 ft model when the application needs the same hose diameter with less hose length to store and rewind. - Q: What does hand crank rewind mean?
A: Hand crank rewind means the operator manually turns the crank to retrieve the hose. This keeps the reel simple and avoids the need for spring, electric, air, or hydraulic rewind power. - Q: Can this reel be used for pressure washing?
A: Yes, when the installed hose, fittings, temperature range, chemical exposure, and system pressure match the reel's 3,000 PSI rating and the pressure washer's requirements.
| SKU | LESS HOSE | INLET SWIVEL & OUTLET RISER |
PSI | LESS HOSE SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
|||||||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-100 | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100 | 5,000 | 36 | 1 |
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
| 1125-4-325 | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3,000 | HP1125-4-325 | 5,000 | 48 | 3 |
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-5-50 | 3/4" | 1-1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 | 6 |
| 1125-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-175 | 3/4" | 1-1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 | 8 |
| 1125-5-200 | 3/4" | 1-1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 | 9 |
| 1125-5-250 | 3/4" | 1-1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-6-35 | 1" | 1-7/16" | 35 | 3/4" | 1-1/4" | 50 | 1" F NPT | 3,000 | - | - | 50 | 11 |
| 1125-6-50 | 1" | 1-7/16" | 50 | 3/4" | 1-1/4" | 75 | 1" F NPT | 3,000 | - | - | 55 | 12 |
| 1125-6-75 | 1" | 1-7/16" | 75 | 3/4" | 1-1/4" | 120 | 1" F NPT | 3,000 | - | - | 62 | 13 |
| 1125-6-100 | 1" | 1-7/16" | 100 | 3/4" | 1-1/4" | 150 | 1" F NPT | 3,000 | - | - | 69 | 14 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
