Coxreels 1125-6-35-EA Electric 115V Explosion Proof 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 35' Hose Length | 3000 Max PSI | Less Hose

For fixed installations in classified hazardous locations that require large-bore 1-inch hose service high-flow compressed air supply, bulk water drops, and industrial washdown in petrochemical plants, paint booths, grain handling facilities, and fuel storage areas the Coxreels 1125-6-35-EA combines explosion-proof 115V AC motor retraction with a compact 1-inch bore drum. The explosion-proof 1/2 HP motor (built to NEC standards to contain any internal arc or spark within the motor housing, preventing ignition propagation to the surrounding atmosphere required in Class I flammable vapor and Class II combustible dust environments) runs from standard facility 115V AC power with no vehicle battery or shop air supply needed. The drum holds 35 feet of 1-inch I.D. hose at up to 3,000 PSI and 250°F for compressed air, water, and oil service. As standard on all 1125 Series 1-inch models, the swivel is nickel plated steel with AFLAS seals a fluoroelastomer compound that provides better chemical resistance than the nitrile seals used on smaller hose sizes in the same series. Built on the CNC robotically welded 12-gauge steel "A" frame used across the 1125 family. Made in the USA, backed by a 2-year warranty.

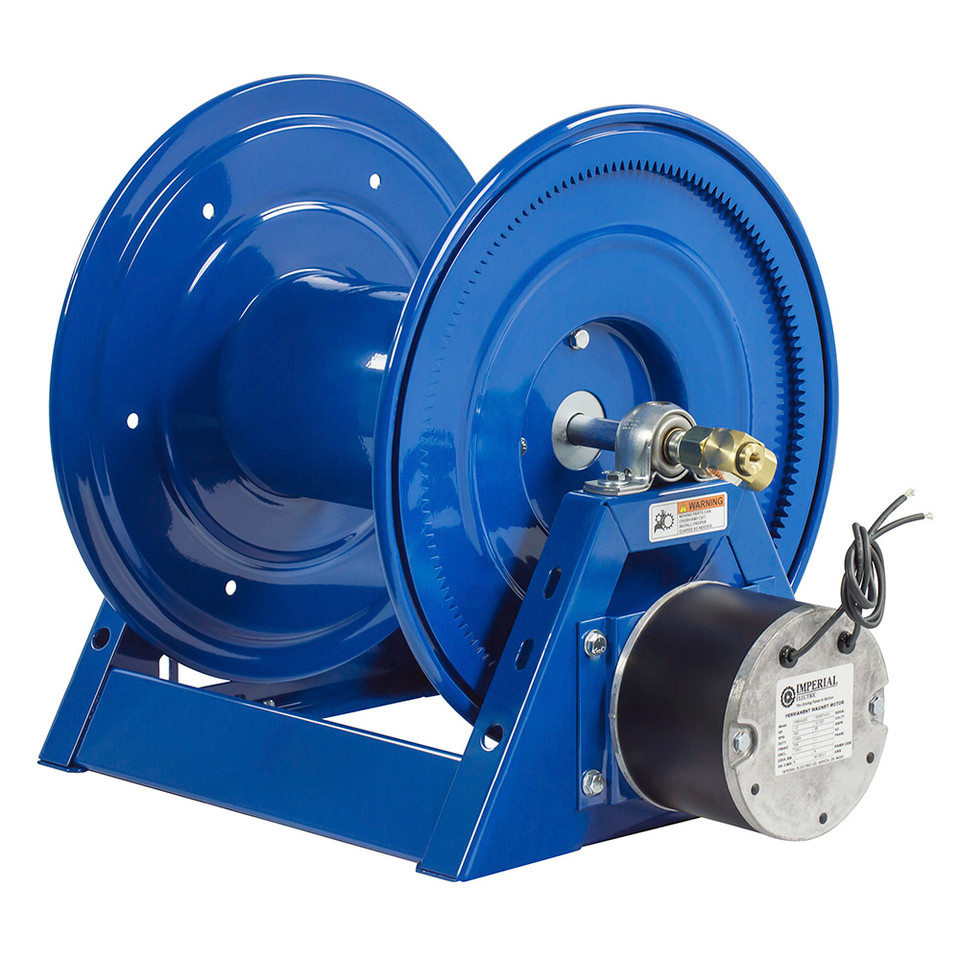

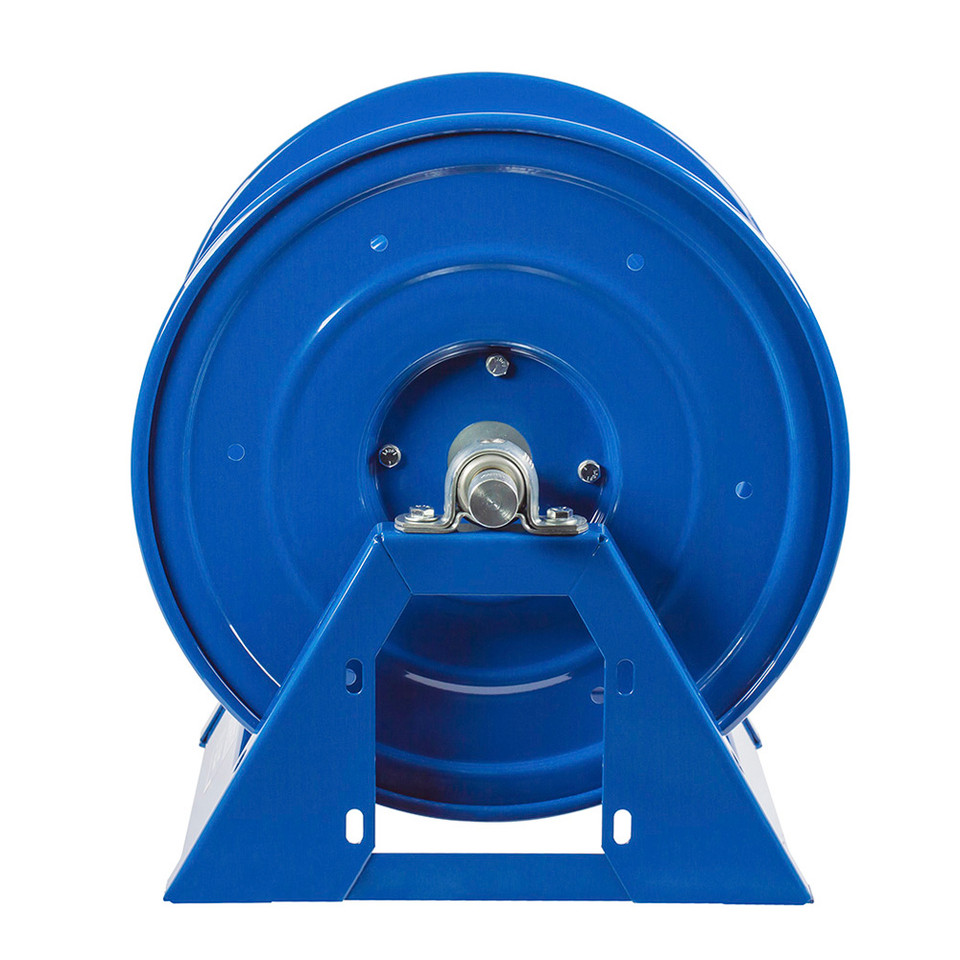

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor: 115V AC, 1/2 HP, Explosion Proof | Drive: Direct Gear (No Chain) | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Capacity (ft.): 35 | Hose Included: No | Max PSI: 3,000 | Max Temperature (°F): 250 | Inlet Swivel: 1 in. F NPT | Swivel Material: Nickel Plated Steel | Swivel Seals: AFLAS | Height (in.): 18.5 | Length (in.): 17.63 | Drum Width (in.): 9.5 | Mounting Pattern M (in.): 14.94 | Mounting Pattern N (in.): 10 | Base X (in.): 14.88

Features:

• Explosion-proof 115V AC 1/2 HP motor built to NEC hazardous location standards to contain internal ignition and prevent spark propagation in classified environments where flammable vapors or combustible dust are present
• Runs from standard facility 115V AC power no vehicle battery, shop air supply, or DC converter required
• Reliable direct gear drive for quiet, chain-free retraction no chain to adjust, skip, or replace
• Nickel plated steel 90° full-flow 1" NPT swivel with AFLAS seals standard on all 1125 Series 1-inch models for improved chemical resistance over the brass/nitrile swivel used on smaller hose sizes
• Adjustable tension brake prevents free-wheeling during hose deployment for controlled line management
• Exclusive low profile outlet riser and open drum slot design provides non-crimping, flat smooth hose wrap to protect large-bore hose and extend service life
• One-piece CNC robotically welded 12-gauge steel "A" frame base (not bolted) with integrated mounting pattern for permanent installation
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• CPC powder coat finish chip resistant and rust inhibiting for industrial, chemical facility, and plant environments

Made in USA:

2 Year Warranty

Applications:

• Petrochemical & fuel storage facilities explosion-proof 115V AC-powered 1-inch air or fluid hose retraction in classified areas where flammable vapor concentrations require ignition-safe electrical equipment throughout
• Paint booths & finishing operations large-bore compressed air drops and fluid supply lines in spray finishing environments where solvent vapors create persistent ignition risk and high air volume is required
• Grain handling & agricultural processing facilities 1-inch hose management in NEC Class II combustible dust environments where standard electric motors are not permitted at fixed service stations
• Industrial washdown in classified locations high-flow water service drops at processing plants and cleaning stations in areas requiring explosion-proof electrical components by site specification
• Chemical processing & plant maintenance fixed 115V AC-powered 1-inch service drops in facilities where both AFLAS swivel seals and explosion-proof motor certification are required by the installation spec

FAQs:

• Q: What does explosion-proof mean on this motor, and when is it required?
  A: An explosion-proof motor contains any internal arc or spark within its housing so it cannot ignite the surrounding atmosphere. It is required by the NEC in classified hazardous locations Class I (flammable gases or vapors, such as fuel storage and paint booths) and Class II (combustible dust, such as grain silos and flour mills). Standard electric motors are not permitted in classified areas regardless of voltage.
• Q: What is the difference between the -EA (115V AC explosion-proof) and the -ED (12V DC explosion-proof) on this reel?
  A: Both are explosion-proof. The -EA runs on standard facility 115V AC power suited to fixed plant and facility installations with AC panel access. The -ED runs on 12V DC vehicle battery power suited to service trucks and mobile units operating in or near classified locations. Choose based on your available power source at the installation point.
• Q: Does this reel come with hose?
  A: No sold less hose. The drum holds up to 35 feet of 1-inch I.D. (1-7/16-inch O.D. max) hose, or up to 50 feet of 3/4-inch I.D. hose with a reducer.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
