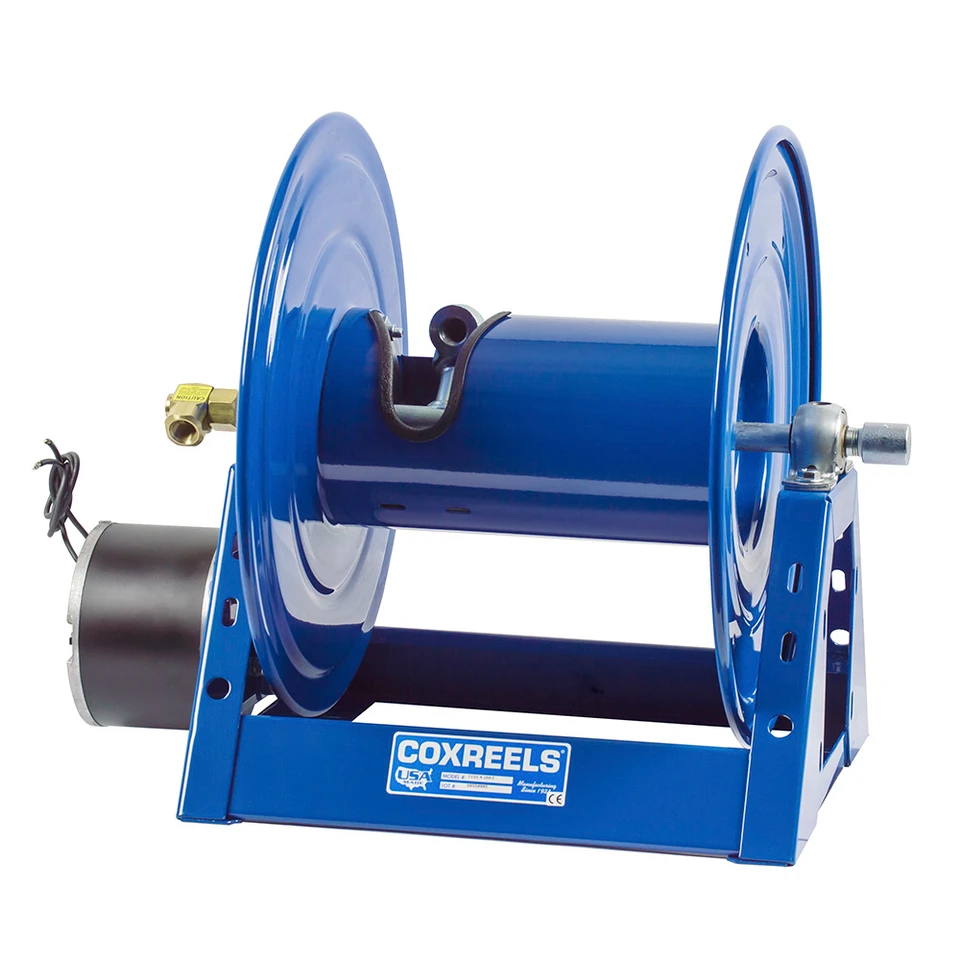

Built for demanding industrial hose management where long hose runs require dependable powered retrieval, the Coxreels 1125-4-450-ED electric motor rewind hose reel delivers efficient hose handling for manufacturing plants, maintenance facilities, construction equipment, and mobile service operations. Featuring a 12V DC 1/2 HP electric motor, this reel provides powered hose rewind to minimize manual effort while accommodating 450 feet of 1/2-inch hose. Its 3000 PSI maximum operating pressure makes it well suited for high-pressure fluid transfer applications where extended hose capacity and organized storage improve productivity.
As a member of the 1125 Series, this model is supplied in a Less Hose configuration, allowing users to install a hose that matches their specific pressure, fluid, and operating requirements. The powered rewind system helps speed hose retrieval, reduce handling fatigue, and promote proper hose storage to help minimize kinks, abrasion, and unnecessary wear.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-4-450-ED | Motor: 12V DC, 1/2 HP | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 450 ft | Maximum Pressure: 3000 PSI
Features:
- 12V DC 1/2 HP electric motor provides powered hose rewind for efficient hose retrieval with reduced manual handling.
- Designed to accommodate up to 450 feet of 1/2-inch hose for applications requiring extended operating reach.
- 3000 PSI maximum pressure rating supports demanding high-pressure service when used with compatible hose and fittings.
- Less hose configuration allows users to install the hose best suited for their specific fluid transfer application.
- 1125 Series construction promotes organized hose storage while helping reduce hose wear and improve workplace safety.
- Powered rewind system enhances workflow efficiency in applications where hoses are deployed and retrieved repeatedly.
Made in USA:
Applications:
- Mobile service trucks and field maintenance vehicles utilizing 12V DC electrical systems.
- Industrial manufacturing facilities requiring efficient management of extended high-pressure hose assemblies.
- Construction and heavy equipment maintenance operations where long hose deployment is common.
- Plant maintenance departments performing fluid transfer and pressure service across large work areas.
- General industrial applications using compatible 1/2-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. A compatible 1/2-inch hose must be selected and installed separately. - Q: What power source is required for this reel?
A: The 1125-4-450-ED uses a 12V DC, 1/2 HP electric motor to provide powered hose rewind. - Q: How much hose can this reel accommodate?
A: It is designed to store up to 450 feet of 1/2-inch hose, depending on the hose's outside diameter and construction. - Q: Is this reel suitable for high-pressure hose systems?
A: Yes. It has a maximum operating pressure rating of 3000 PSI when paired with compatible hose, fittings, and application requirements.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
