Built for long hose storage where powered rewind is not required, the Coxreels 1125-4-450-C gives maintenance teams a controlled manual rewind platform with a front hand crank bevel geared crank configuration. Bevel gearing uses angled gears to transfer crank motion smoothly to the reel drum, helping the user retrieve long hose runs with better mechanical control than a direct crank alone. This 1125 Series reel is rated for 1/2" hose I.D., up to 450 ft hose capacity, and 3000 PSI maximum pressure, making it a practical choice for air, water, oil, grease, hydraulic, washdown, spraying, and fluid-transfer applications when matched with compatible hose.
The 1125 Series uses Coxreels' all-welded steel 'A' frame base, low-profile outlet riser, and open drum slot layout to support a flat, non-crimping hose wrap during payout and rewind. Its permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly, while the adjustable tension brake helps reduce free-wheeling during use or installation setup.

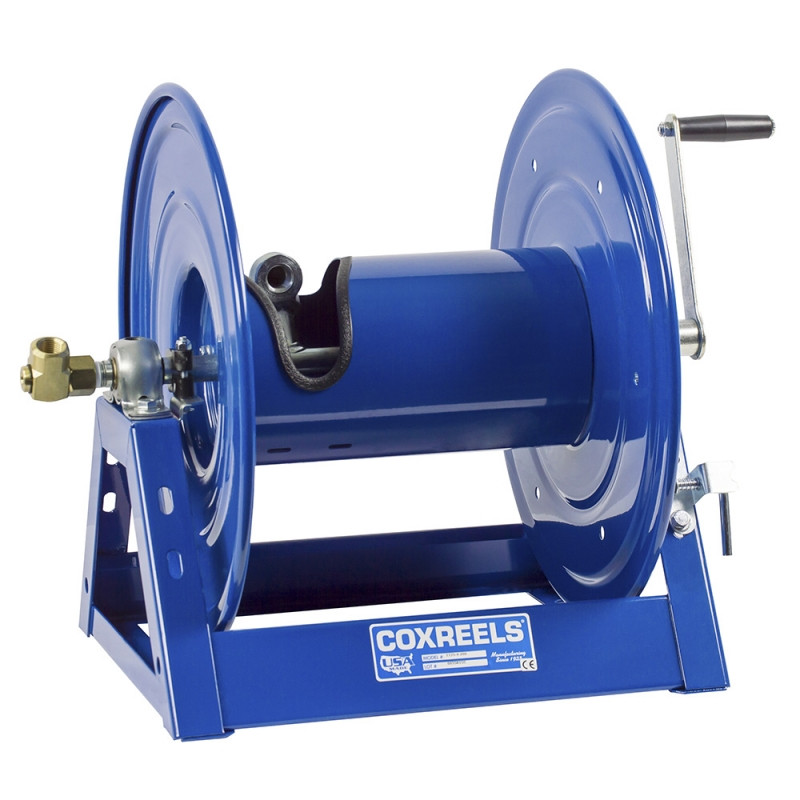

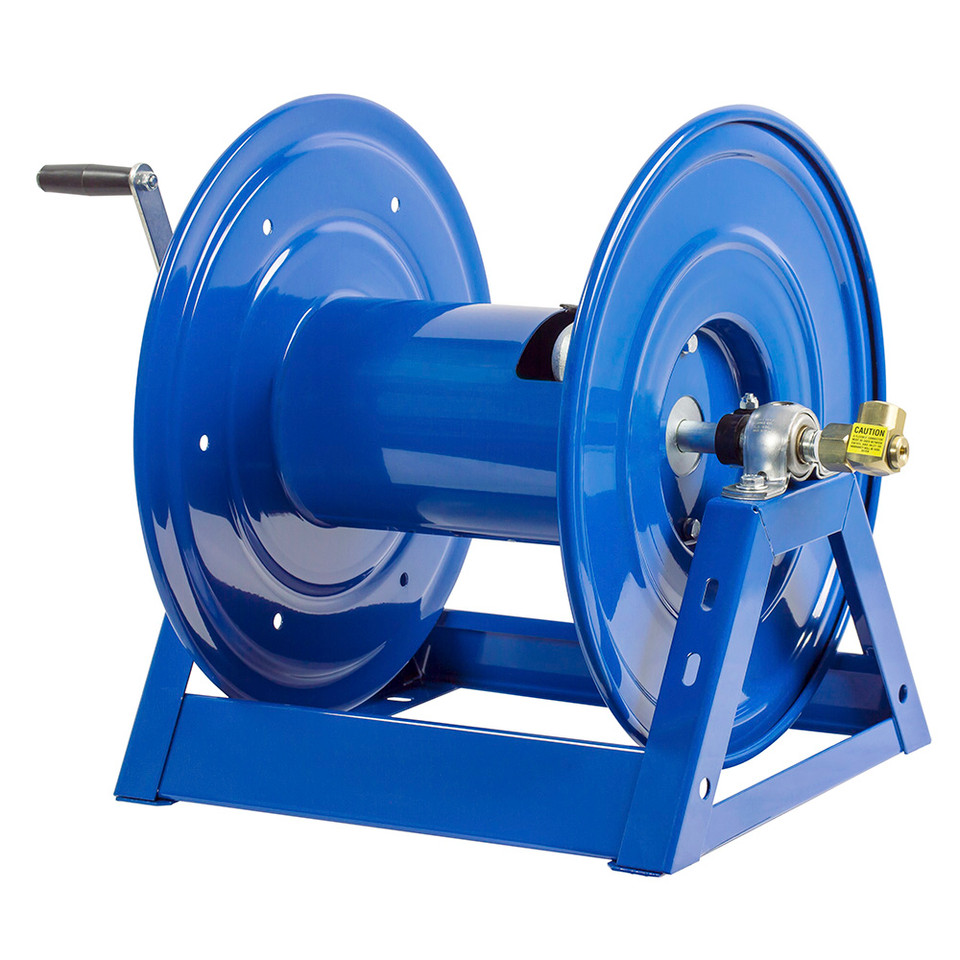

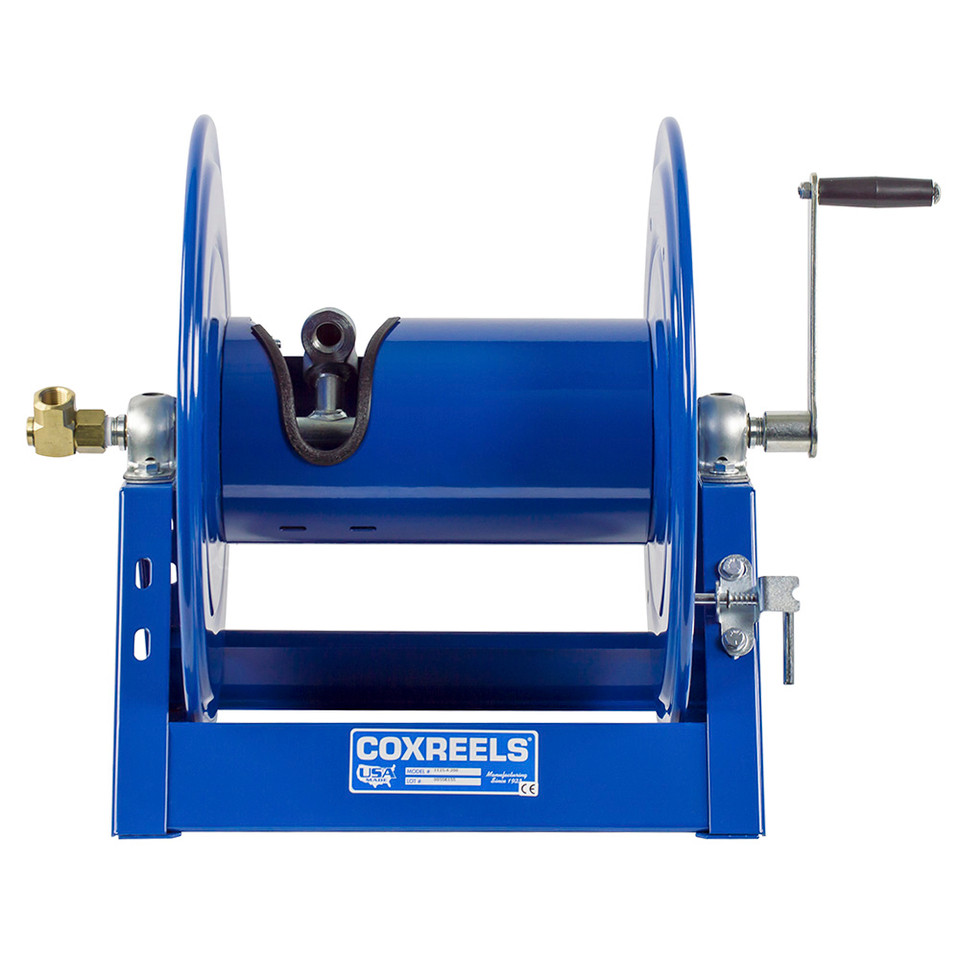

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Model: 1125-4-450-C | Configuration: Less Hose | Rewind: Front Hand Crank Bevel Geared Crank | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Inlet/Outlet: 1/2" F NPT | Max Pressure: 3000 PSI | Ship Weight: 52 lbs | Drum Width: 24" | Overall Dimensions: 37.5" W x 18.75" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 15.38" Y
Features:
- Front hand crank bevel geared crank provides manual hose retrieval with mechanical advantage for longer hose lengths.
- All-welded steel 'A' frame construction supports fixed mounting and provides a rigid reel structure without a bolted frame joint.
- Exclusive low-profile outlet riser and open drum slot design help create a flat, smooth hose wrap and reduce hose crimping.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Machined solid brass 90° full-flow NPT swivel supports flow through the reel connection point.
- Durable CPC powder coat finish helps resist chips and rust in shop, truck, and facility environments.
Made in USA:
Applications:
- Industrial plant and ground maintenance crews managing long 1/2" hose runs for air, water, oil, or general fluid transfer.
- Fleet service trucks and mobile maintenance trailers where a manual crank reel is preferred over electric or pneumatic rewind.
- Hydraulic, grease, and lubrication areas that need a 3000 PSI reel platform with a user-selected hose assembly.
- Washdown, spraying, and pressure washing setups where hose length and pressure rating must match the operating system.
- Agricultural, landscape, and pest-control operations using compatible hose for water, chemical transfer, or spraying tasks.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-4-450-C?
A: It means this reel is supplied without hose installed. The buyer must add a compatible hose assembly separately and confirm that the hose, fittings, and media are appropriate for the application. - Q: What is the benefit of the bevel geared crank?
A: The bevel geared crank uses a gear set to help transfer hand-crank motion to the reel drum. This gives the user more controlled manual rewind, which is helpful when retrieving longer hose lengths. - Q: Can this reel be used for hydraulic or grease service?
A: Yes, the 1125 Series is listed for grease and hydraulic applications when the selected hose and fittings match the fluid, pressure, temperature, and system requirements. - Q: Is this the same as a motor rewind reel?
A: No. The 'C' suffix identifies a front hand crank bevel geared crank model. It is manually rewound and does not include an electric, air, or hydraulic rewind motor. - Q: What should be checked before installation?
A: Confirm the mounting surface, hose size, hose length, pressure rating, fitting thread, and reel orientation before installation. A 450 ft hose run can add significant filled hose weight, so the mounting structure should be selected accordingly.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
