When long hydraulic, grease, oil, air, or water hose runs need powered retrieval instead of manual cranking, the Coxreels 1125-4-450-EB provides a motorized hose storage solution for shops, service trucks, plant maintenance areas, and mobile equipment setups. This 1125 Series reel is built for 1/2" I.D. hose with up to 450 ft of hose capacity, giving operators extended working reach while keeping hose stored in a controlled wrap. Its 3000 PSI maximum pressure rating supports medium-pressure fluid handling applications when paired with compatible hose and fittings, while the 24V DC electric rewind with 1/2 HP motor helps bring long hose lengths back onto the reel with less manual effort.
The 1125 Series uses Coxreels' all-welded steel 'A' frame construction, low-profile outlet riser, and open drum slot design to help guide hose into a flat, smooth wrap without crimping. For buyers planning installation, this model has a 37.75" W x 19.25" H x 17.63" L overall footprint, a 27.44" x 10" mounting pattern, and a 78 lb listed ship weight. The adjustable tension brake helps control drum movement during payout, while the long-handled locking pin secures the reel from rotation during transport or storage.

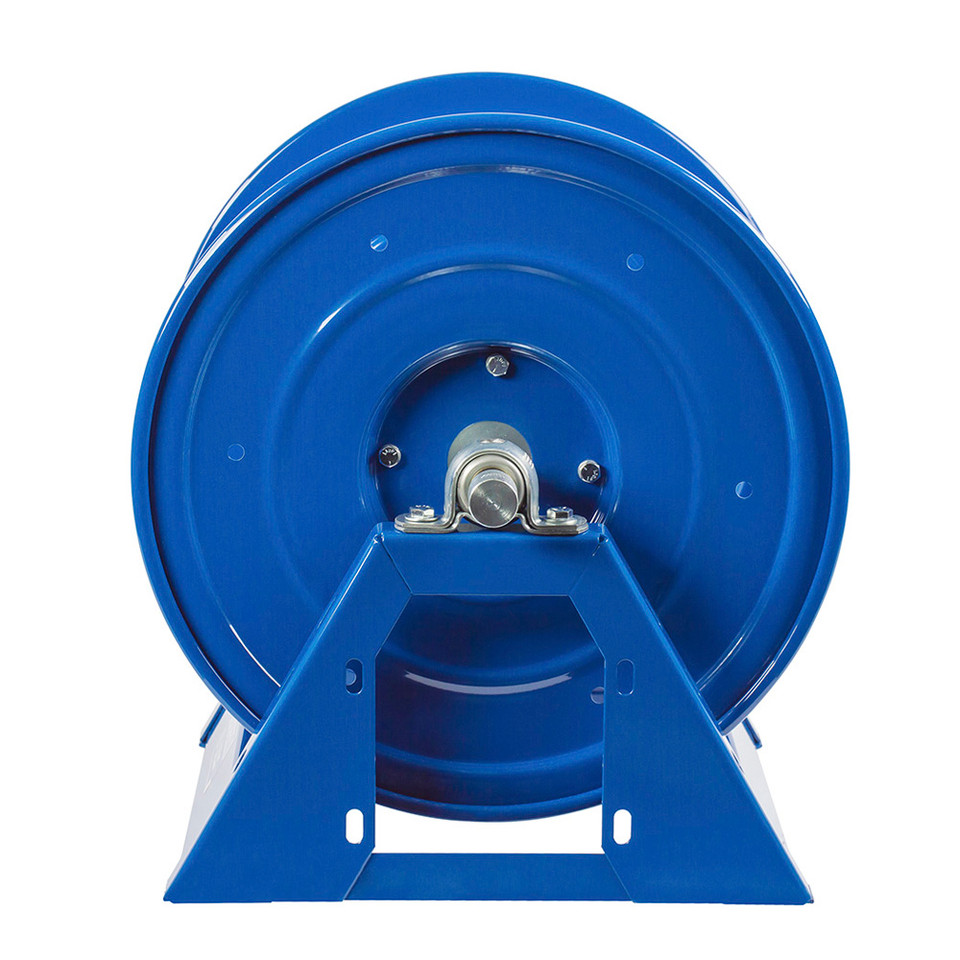

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motorized Hose Reel | Series: 1125 Series | Model: 1125-4-450-EB | Configuration: Less Hose | Rewind: Electric 24V DC | Motor: 1/2 HP | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 78 lb | Overall Dimensions: 37.75" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- Electric 24V DC motor rewind helps retrieve long hose lengths without hand cranking, making it useful for mobile service rigs, plant maintenance areas, and equipment-mounted hose systems.
- All-welded steel 'A' frame construction provides a rigid reel base for permanent mounting and repeated hose payout and retrieval.
- Low-profile outlet riser and open drum slot help the hose wrap flat and smooth while reducing the chance of hose crimping at the reel.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with minimal routine attention.
- Adjustable tension brake helps prevent free-wheeling during operation, giving the user better control during hose payout.
- Long-handled locking pin secures the drum from rotation during transport, storage, or when the hose reel is mounted on mobile equipment.
- Rolled edges and ribbed discs add strength to the reel sides while helping protect the hose during winding.
- Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the reel frame in shop, fleet, and field environments.
Made in USA:
Applications:
- Industrial maintenance and MRO storing and retrieving long medium-pressure hose runs used around machinery, service bays, and maintenance work areas.
- Fleet and mobile service trucks mounting a powered rewind reel where 24V DC electrical systems are available and manual hose retrieval is impractical.
- Lubrication and equipment service managing hose used for oil, grease, or fluid service when hose pressure and media compatibility are confirmed separately.
- Washdown and water handling organizing long hose runs in facilities where controlled storage reduces floor clutter and hose wear.
- Construction and field support keeping extended hose lengths contained on trailers, skids, or service equipment between jobsites.
FAQs:
- Q: What does 'less hose' mean on the 1125-4-450-EB?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/2" I.D. hose separately and verify that the hose, fittings, and media match the application. - Q: What is the advantage of a 24V DC electric rewind reel?
A: A 24V DC electric rewind reel is useful on mobile equipment, service trucks, and installations where DC power is available. It helps retrieve long hose lengths without manually turning a crank. - Q: Can this reel be used up to 3000 PSI?
A: The reel is rated for a maximum pressure of 3000 PSI. The installed hose, fittings, swivel, and fluid media must also be rated for the same pressure and service conditions before use. - Q: What hose size fits this model?
A: This model is listed for 1/2" I.D. hose with a 7/8" hose O.D. and a 450 ft hose capacity. Do not exceed the listed hose outside diameter or capacity when selecting replacement hose. - Q: Is this a spring rewind hose reel?
A: No. The 1125-4-450-EB is a motorized hose reel with electric 24V DC rewind. Buyers needing automatic spring retraction should select a spring-driven Coxreels model instead.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
