When compressed-air hose runs need powered rewind instead of hand cranking, the Coxreels 1125-4-450-AB provides a motorized reel platform for long hose storage, transfer, and retrieval. This 1125 Series reel is configured with a #6 Gast compressed air motor rewind, giving users air-powered retraction where electrical power is not preferred or where a pneumatic rewind system fits the facility setup. With 1/2" hose I.D. capacity, 450 ft hose capacity, and a 3000 PSI maximum pressure rating, it is suited for medium-pressure air, water, oil, grease, hydraulic, and fluid-transfer applications when paired with compatible hose and fittings.
The 1125 Series uses Coxreels' open drum slot and low-profile outlet riser layout to help guide hose onto the drum without crimping, while the all-welded steel 'A' frame base supports fixed mounting in shops, plants, service trucks, and equipment bays. The direct gear drive rewind system uses gearing rather than a chain, helping provide smooth powered retrieval with fewer exposed drive components.

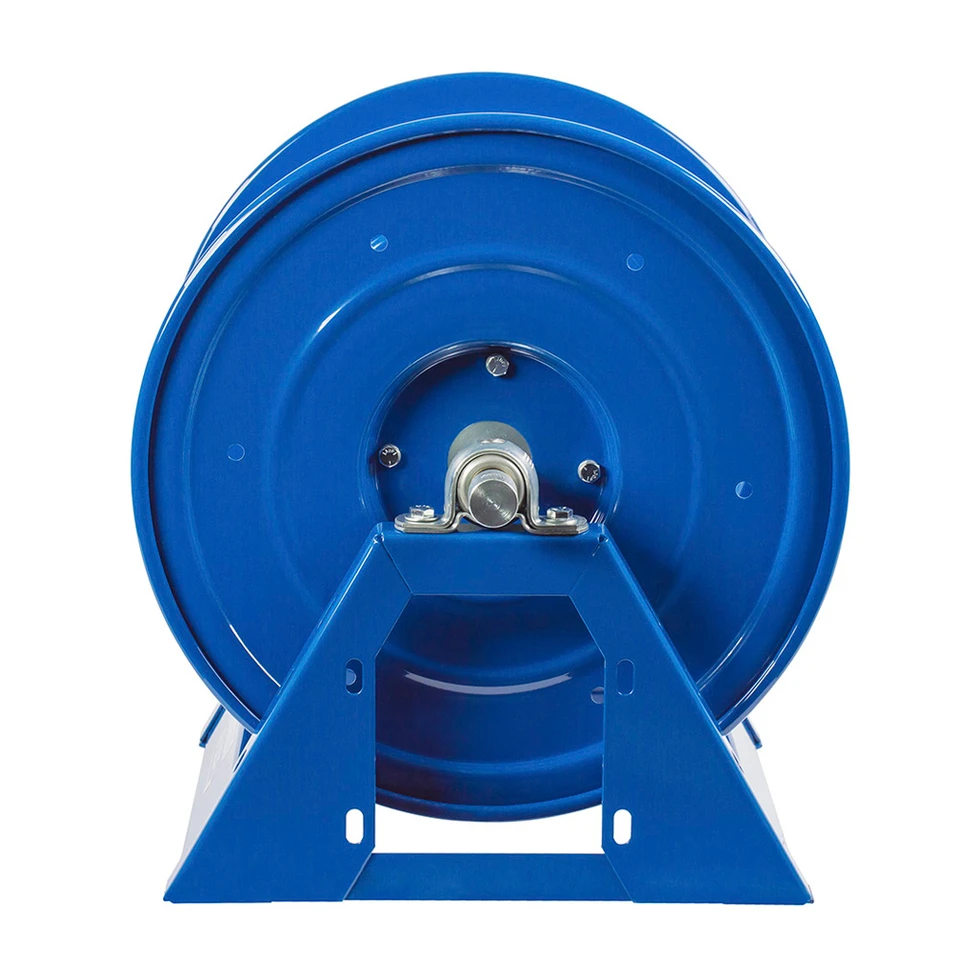

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motorized Hose Reel | Series: 1125 Series | Model: 1125-4-450-AB | Rewind: #6 Gast Compressed Air Motor | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Max Pressure: 3000 PSI | Ship Weight: 60 lbs | Overall Dimensions: 35" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- #6 Gast compressed air motor rewind supports powered hose retrieval using shop air instead of manual hand-crank operation.
- All-welded steel 'A' frame base provides a rigid mounting structure for fixed installation on floors, benches, trucks, or equipment skids.
- Open drum slot and low-profile outlet riser help guide hose onto the reel in a flat wrap and reduce the chance of hose crimping.
- Direct gear drive rewind system provides smooth motor-driven retraction without a chain drive.
- Machined solid brass 90° full-flow NPT swivel supports fluid flow through the reel connection point.
- Nitrile swivel seals are used on this series for standard air, water, oil, grease, and hydraulic reel service.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during payout and rewind.
- Adjustable tension brake helps control drum rotation and reduce free-wheeling during operation.
Made in USA:
Applications:
- Industrial plants and MRO departments managing long hose runs for compressed air, water, oil, or grease service.
- Fleet and service truck builds where pneumatic rewind is preferred for hose retrieval at field maintenance locations.
- Hydraulic and lubrication areas requiring a 3000 PSI reel platform with user-supplied compatible hose.
- Washdown, spraying, and fluid-transfer setups where hose length, pressure rating, and rewind method must match the system.
- Fabrication shops and equipment service bays that need organized storage for long 1/2" hose assemblies.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-4-450-AB?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" hose assembly separately and verify that the hose, fittings, and media are suitable for the system pressure and application. - Q: What does the #6 Gast motor do?
A: The #6 Gast motor is the compressed-air motor used to rewind the reel. Instead of turning a hand crank, the user powers rewind pneumatically with shop air. - Q: Can this reel be used for hydraulic or grease service?
A: Yes, the 1125 Series is listed for grease and hydraulic-type applications when the selected hose, fittings, seals, and system requirements are compatible with the media and 3000 PSI maximum pressure rating. - Q: Is this reel ready to connect and use immediately?
A: No. Because this model is supplied less hose, it must be fitted with the correct hose assembly before use. Installation should also verify mounting surface strength, hose routing, and air supply requirements for the rewind motor. - Q: Why choose compressed air motor rewind instead of electric rewind?
A: Air motor rewind can be a practical choice in pneumatic work areas, mobile service setups, or locations where shop air is already available and an electrical rewind circuit is not preferred.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
