When electric power is not the preferred rewind source, the Coxreels 1125-4-450-H gives service crews and equipment builders a hydraulic rewind option for managing long hose runs. This 1125 Series motorized hose reel is built for up to 450 ft of 1/2" I.D. hose with a 3000 PSI maximum pressure rating, helping buyers support extended-reach fluid handling applications when the selected hose, fittings, and service media are properly matched. The hydraulic rewind configuration is well suited for mobile equipment, field service systems, and machinery installations where hydraulic power is available and hand-cranking a long hose length would slow the job down.
The 1125 Series open-frame construction uses Coxreels' all-welded steel 'A' frame, low-profile outlet riser, and open drum slot design to help guide hose into a flat, smooth wrap without crimping at the drum. This model is listed with a 35" W x 19.25" H x 17.63" L overall footprint, a 27.44" x 10" mounting pattern, and a 58 lb ship weight, giving installers practical dimensions for skid, truck, bench, trailer, or equipment-mounted layouts.

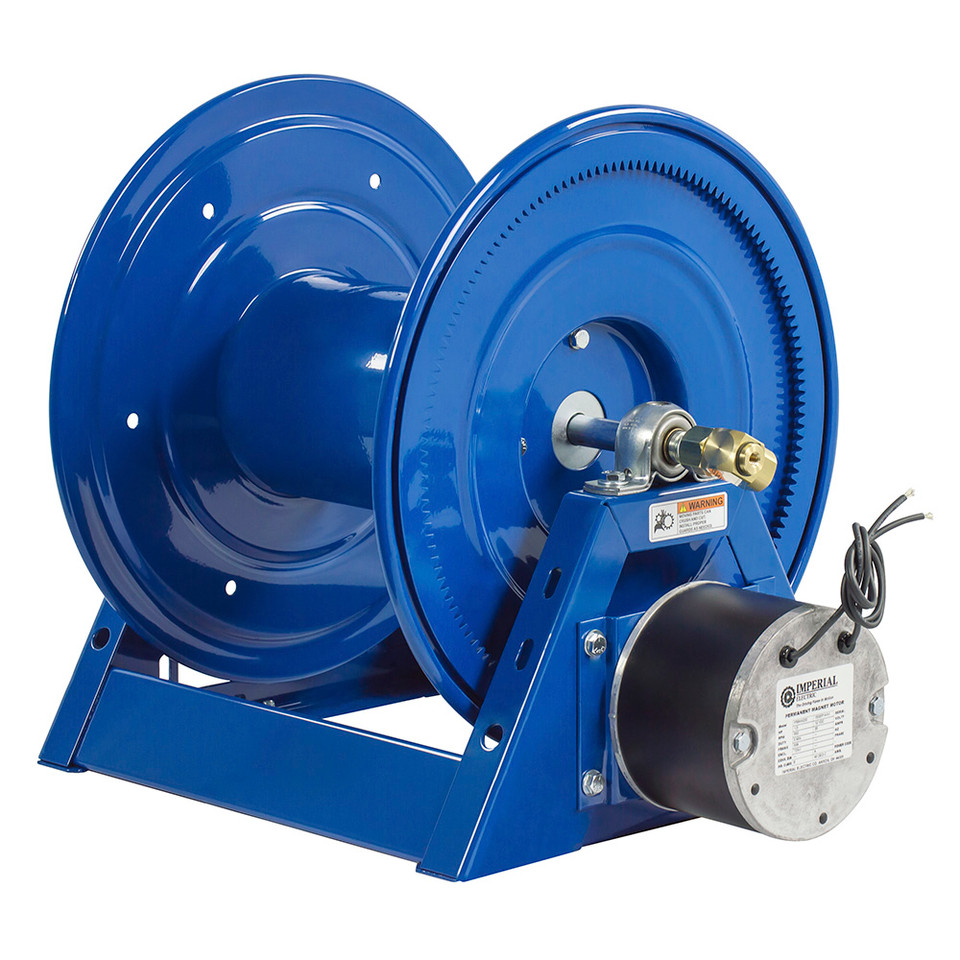

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motorized Hose Reel | Series: 1125 Series | Model: 1125-4-450-H | Configuration: Less Hose | Rewind: Hydraulic | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 58 lb | Overall Dimensions: 35" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- Hydraulic rewind configuration supports powered hose retrieval on equipment and mobile service systems where hydraulic power is available.
- 450 ft capacity for 1/2" I.D. hose gives operators extended reach while keeping hose organized on a single reel.
- All-welded steel 'A' frame construction provides a rigid mounting base for repeated payout and rewind cycles.
- Exclusive low-profile outlet riser and open drum slot design help create a flat, smooth hose wrap while reducing crimping at the drum.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation with minimal routine service.
- Adjustable tension brake helps prevent free-wheeling during operation and gives the user better control during hose payout.
- Long-handled locking pin secures the reel from rotation during transport, storage, or mobile equipment movement.
- Rolled edges, ribbed discs, and chip-resistant CPC powder coat finish help protect the reel and hose in shop, fleet, and field environments.
Made in USA:
Applications:
- Mobile service equipment storing long hose runs on trucks, trailers, and skids where hydraulic rewind power is available.
- Construction and field maintenance managing hose on machinery support equipment used across jobsites, yards, and remote work areas.
- Industrial MRO and plant service organizing medium-pressure hose in maintenance bays, repair areas, and equipment service stations.
- Lubrication and hydraulic service systems handling hose for compatible grease, oil, or hydraulic applications after confirming hose, swivel, fitting, and media compatibility.
- Agricultural and utility fleet support keeping extended hose lengths contained on service vehicles and equipment-mounted maintenance systems.
FAQs:
- Q: Does the Coxreels 1125-4-450-H come with hose?
A: No. This is a less-hose reel, so the hose must be ordered separately. Select 1/2" I.D. hose with the correct outside diameter, pressure rating, fittings, and material compatibility for the fluid being used. - Q: What does hydraulic rewind mean?
A: Hydraulic rewind means the reel uses hydraulic power to rewind the hose instead of a hand crank, spring, or electric motor. This is useful on service equipment and machinery where hydraulic power is already available. - Q: What hose size and capacity does this model support?
A: The 1125-4-450-H is listed for 450 ft of 1/2" I.D. hose with a 7/8" hose O.D. Staying within the listed hose size helps the hose fit correctly on the drum and rewind properly. - Q: Can this reel be used at 3000 PSI?
A: The reel is rated for a maximum pressure of 3000 PSI. The installed hose, fittings, swivel, and all system components must also be rated for the same pressure and compatible with the application. - Q: How is this different from the electric rewind versions?
A: The H version uses hydraulic rewind, while the E, EF, EB, and related models use electric rewind options. Choose the rewind style based on the power source available at the installation point.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
