When a long 1/2" hose run needs powered retrieval from a mobile or low-voltage DC power source, the Coxreels 1125-4-450-EF gives maintenance crews, fleet technicians, and service equipment builders a controlled way to store and rewind hose. This 1125 Series motor rewind hose reel is rated for 450 ft of 1/2" I.D. hose and up to 3000 PSI, making it suitable for medium-pressure applications when the selected hose, fittings, and service media are properly matched. The 24V DC electric rewind with 1/3 HP motor helps reduce hand-cranking effort, especially when retrieving extended hose lengths from shop floors, service bays, trailers, or equipment-mounted installations.
Built around Coxreels' 1125 Series open-frame layout, this reel uses an all-welded steel 'A' frame, a low-profile outlet riser, and an open drum slot to help the hose lay in a smooth, flat wrap without crimping at the drum. Its 37.75" W x 19.25" H x 17.63" L overall dimensions and 27.44" x 10" mounting pattern give installers clear layout information before drilling or fabricating mounts, while the 65 lb listed ship weight helps with equipment planning and freight handling.

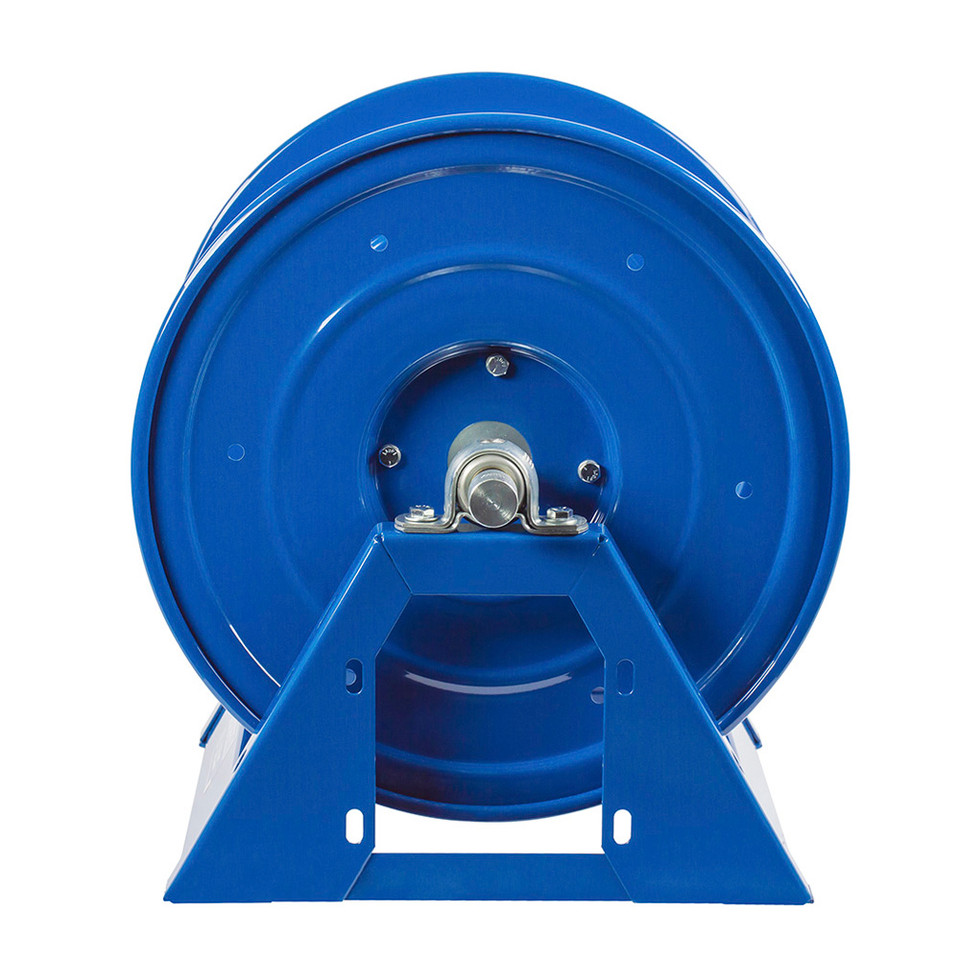

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motorized Hose Reel | Series: 1125 Series | Model: 1125-4-450-EF | Configuration: Less Hose | Rewind: Electric 24V DC | Motor: 1/3 HP | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 65 lb | Overall Dimensions: 37.75" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- 24V DC electric rewind supports powered hose retrieval on mobile service equipment, fleet trucks, trailers, and fixed installations using compatible DC power.
- 1/3 HP motor rewind configuration is suited for reducing manual effort when bringing long hose runs back onto the reel.
- All-welded steel 'A' frame provides a rigid mounting structure for repeated payout and rewind cycles.
- Low-profile outlet riser and open drum slot help the hose wind in a flat, smooth wrap while reducing the risk of hose crimping.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with minimal routine maintenance.
- Adjustable tension brake helps control drum speed during payout and limits free-wheeling.
- Long-handled locking pin secures the reel from rotation during transport, storage, or when mounted on mobile equipment.
- CPC powder coat finish helps resist chips and corrosion in shop, field, and service-truck environments.
Made in USA:
Applications:
- Fleet and mobile service vehicles managing long 1/2" hose runs on trucks, trailers, and service skids where 24V DC power is available.
- Industrial maintenance and MRO keeping hose organized around equipment, maintenance bays, and plant service areas while reducing trip hazards.
- Lubrication and fluid service systems storing hose used for oil, grease, or other compatible service fluids when pressure and material compatibility are verified.
- Construction and field support mounting a powered rewind reel on portable equipment used across changing jobsites.
- Shop air, water, or medium-pressure utility service supporting controlled hose storage where the installed hose and system requirements match the reel rating.
FAQs:
- Q: Does the Coxreels 1125-4-450-EF include hose?
A: No. This is a less-hose reel, so hose is not installed or included. Select a compatible 1/2" I.D. hose separately and confirm the hose outside diameter, pressure rating, fittings, and media compatibility before use. - Q: What does the EF motor option mean on this reel?
A: The EF option identifies a 24V DC electric rewind configuration with a 1/3 HP motor. This makes it useful for mobile equipment or low-voltage DC installations where hand-cranking a long hose is not preferred. - Q: What hose capacity does this model support?
A: The 1125-4-450-EF is listed for 450 ft of 1/2" I.D. hose with a 7/8" hose O.D. Exceeding the listed hose outside diameter or capacity can affect winding performance and fit. - Q: Can this reel handle 3000 PSI service?
A: The reel is rated for a maximum pressure of 3000 PSI. The installed hose, fittings, swivel, and system components must also be rated for the same pressure and compatible with the fluid being used. - Q: Is this model the same as the 1125-4-450-EB?
A: No. Both are 24V DC electric rewind models in the same capacity range, but the EF version is listed with a 1/3 HP motor, while the EB version is listed with a 1/2 HP explosion-proof motor configuration. Match the motor option to the installation environment and power requirements.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
