When long hose runs need electric rewind in areas where a standard motor may not be appropriate, the Coxreels 1125-4-450-EA provides a powered reel platform with a 115V explosion-proof 1/2 HP motor. Explosion-proof motor construction is intended for specific classified-location requirements, but the installation environment must always be verified by the buyer's safety team or qualified electrician before use. This 1125 Series reel is built for 1/2" hose I.D., up to 450 ft hose capacity, and a 3000 PSI maximum pressure rating, giving maintenance crews a less-hose reel option for air, water, oil, grease, hydraulic, spraying, washdown, and fluid-transfer systems when paired with compatible hose and fittings.
The 1125 Series combines Coxreels' all-welded steel 'A' frame base with an open drum slot and low-profile outlet riser to help guide hose into an even wrap during rewind. For long 1/2" hose assemblies, the electric motor rewind reduces the physical effort required to retrieve hose while the adjustable tension brake and locking pin help control drum movement during storage, transport, or installation setup.

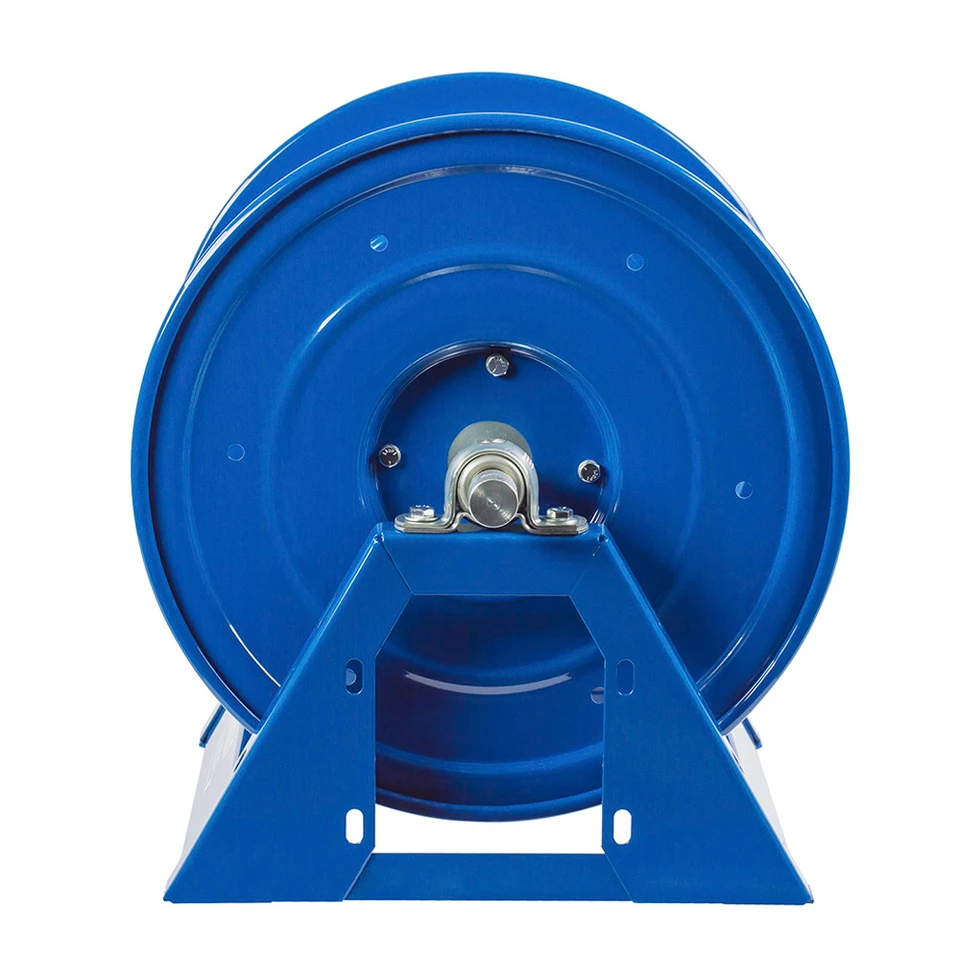

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-4-450-EA | Configuration: Less Hose | Rewind: 115V Explosion Proof 1/2 HP Electric Motor | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 450 ft | Inlet/Outlet: 1/2" F NPT | Max Pressure: 3000 PSI | Ship Weight: 78 lbs | Overall Dimensions: 37.75" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- 115V explosion proof 1/2 HP electric motor rewind reduces manual effort when retrieving long hose assemblies.
- All-welded steel 'A' frame base provides a rigid mounting platform for shop, plant, truck, or skid-mounted installations.
- Open drum slot with low-profile outlet riser helps guide hose onto the drum in a smooth, even wrap without pinching.
- Machined solid brass 90° full-flow NPT swivel supports flow through the reel connection point.
- Nitrile swivel seals are used for standard air, water, oil, grease, and hydraulic reel service.
- Permanently lubricated, self-aligning pillow block bearings support smooth rotation during payout and rewind.
- Adjustable tension brake helps control drum speed and reduce free-wheeling during operation.
- Long-handled locking pin helps secure the reel from rotation during transport, storage, or maintenance.
Made in USA:
Applications:
- Industrial maintenance areas where long hose retrieval is frequent and electric rewind helps reduce manual handling.
- Lubrication, grease, and hydraulic service stations requiring a 3000 PSI reel platform with user-selected hose.
- Fleet maintenance facilities and service bays managing long 1/2" hose assemblies for air, water, oil, or fluid-transfer work.
- Washdown, spraying, and pressure service locations where reel pressure rating, hose compatibility, and motor configuration must match the system.
- Facilities with classified-location considerations where an explosion proof motor may be required after review by qualified personnel.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-4-450-EA?
A: It means this reel is supplied without hose installed. The buyer must provide a compatible 1/2" hose assembly separately and confirm that the hose, fittings, media, and pressure rating match the system. - Q: What makes the EA model different from a standard electric rewind reel?
A: The EA configuration uses a 115V explosion proof 1/2 HP electric motor. A standard electric rewind model may not use the same motor enclosure style, so buyers should match the motor option to the installation environment. - Q: Can this reel be used in any hazardous location?
A: Do not assume universal hazardous-location suitability from the product title alone. The area classification, wiring method, electrical code requirements, and motor rating must be reviewed by qualified personnel before installation. - Q: Does the 3000 PSI rating apply to the hose too?
A: No. The reel is rated to 3000 PSI, but the hose and fittings selected by the buyer must also be rated for the intended pressure, media, temperature, and working conditions. - Q: Is this reel manually rewound?
A: No. This model uses an electric motor rewind. The operator controls powered retrieval rather than turning a hand crank, which is useful for long hose lengths such as 450 ft.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-450-A | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-A | 5,000 | 52 | 4 |
| 1125-4-450-AB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-AB | 5,000 | 52 | 4 |
| 1125-4-450-C | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-C | 5,000 | 52 | 4 |
| 1125-4-450-E | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-E | 5,000 | 52 | 4 |
| 1125-4-450-EA | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EA | 5,000 | 52 | 4 |
| 1125-4-450-EB | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EB | 5,000 | 52 | 4 |
| 1125-4-450-ED | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-ED | 5,000 | 52 | 4 |
| 1125-4-450-EF | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-EF | 5,000 | 52 | 4 |
| 1125-4-450-H | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450-H | 5,000 | 52 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
