For 1/2" hose installations that need manual rewind in a more compact 1125 Series frame, the Coxreels 1125-4-100 Hand Crank Hose Reel provides reel-only hose storage for buyer-selected hose assemblies. This less-hose reel is sized for 1/2" I.D. hose with a 100 ft hose capacity and a 3,000 PSI maximum pressure rating, making it a practical choice for air, water, oil, pressure wash, spray, chemical transfer, and compatible medium-pressure fluid handling applications where hose selection needs to be handled separately.
The 1125-4-100 uses hand-crank rewind, meaning the operator manually retrieves the hose with the crank handle rather than a spring or motor. The 1125 Series design features a one-piece all-welded steel A frame base, low-profile outlet riser, open drum slot for a flatter hose wrap, permanently lubricated self-aligning pillow block bearings, an adjustable tension brake to help reduce freewheeling, and a locking pin to secure the reel during transport or storage. Its 6" drum width supports 100 ft of 1/2" hose capacity while keeping the reel suited for shop, truck, skid, washdown, service, and maintenance mounting locations.

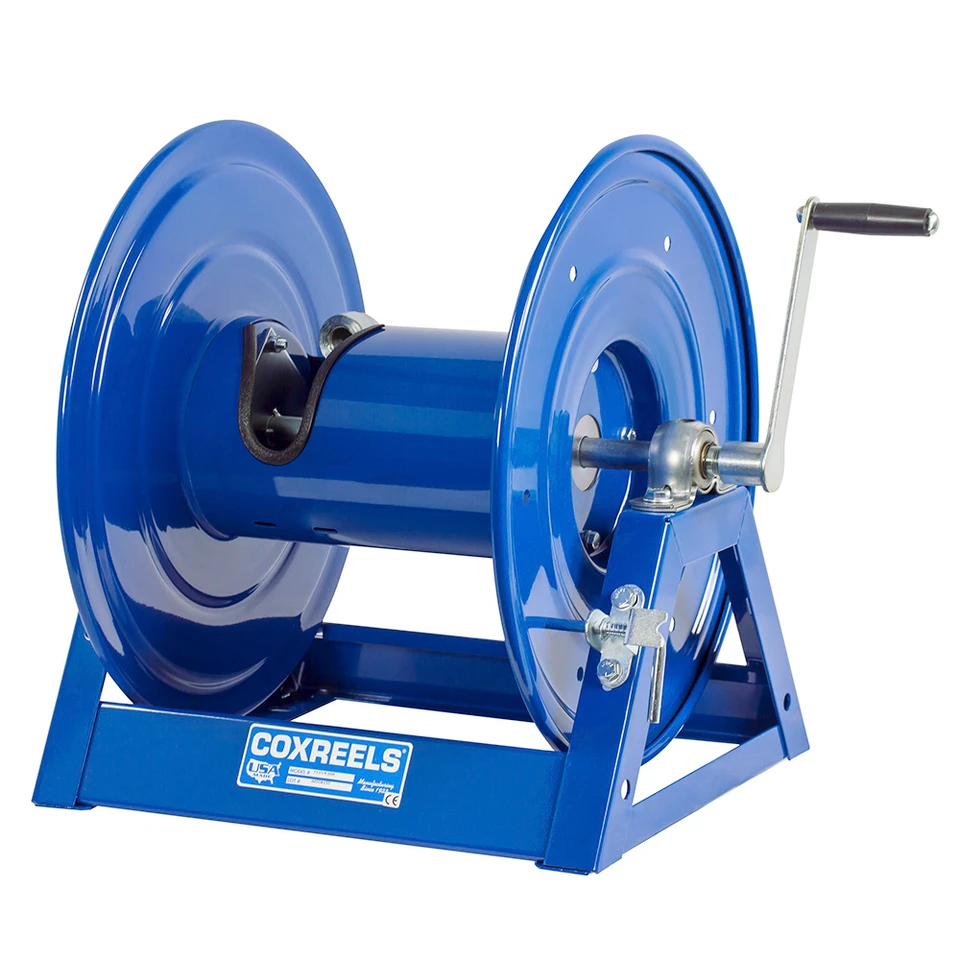

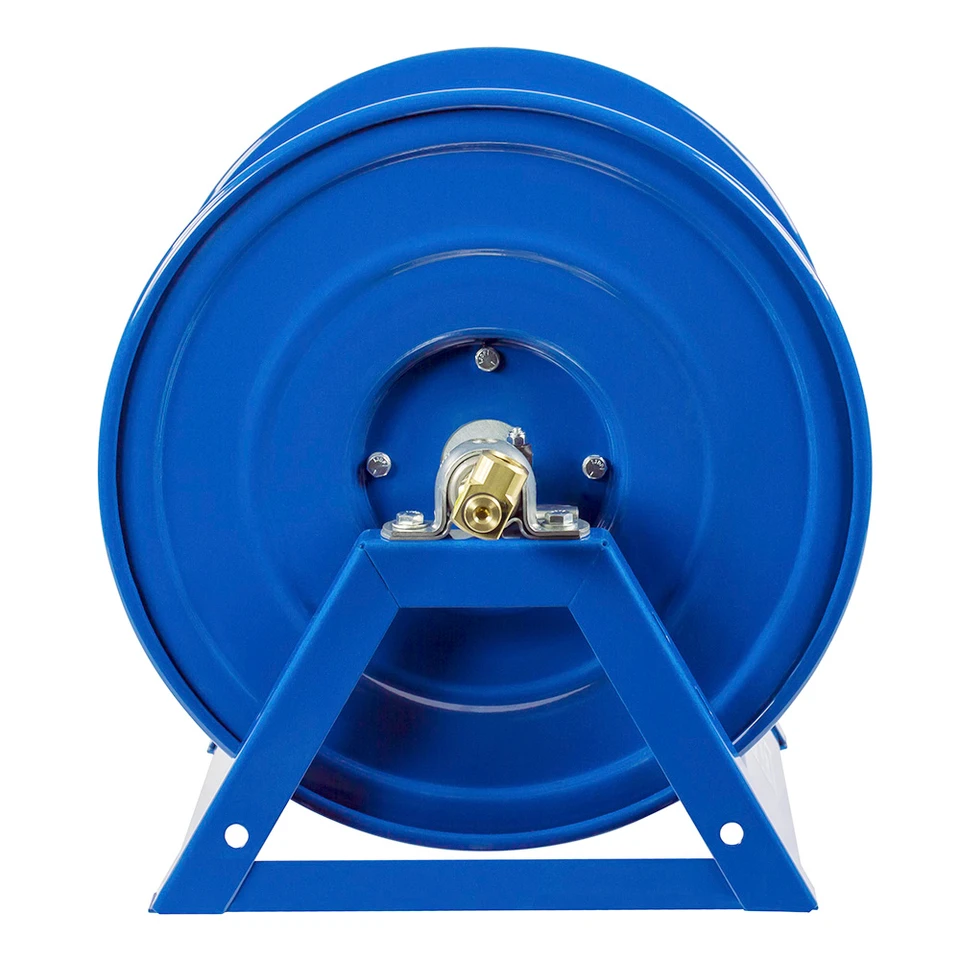

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | SKU: 1125-4-100 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 100 ft | Max Pressure: 3,000 PSI | Drum Width: 6" | Rewind Type: Hand Crank | Ship Weight: 36 lb | Overall Dimensions: 19.5" W x 18.75" H x 17.63" L | Mounting Pattern: 9.44" M x 10" N | Base: 11.38" X x 15.38" Y
Features:
- Less-hose configuration allows the buyer to install hose selected for the application, pressure requirement, chemical compatibility, temperature range, and fitting style.
- Manual hand crank rewind gives operators direct control over hose retrieval without relying on spring rewind or electric, air, or hydraulic rewind power.
- One-piece all-welded steel A frame base provides a rigid mounting structure for shop, truck, skid, and equipment-mounted installations.
- Low-profile outlet riser and open drum slot help guide hose onto the reel in a flatter, smoother wrap.
- Permanently lubricated self-aligning pillow block bearings support smooth reel rotation during hose payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Adjustable tension brake helps reduce freewheeling when pulling hose from the reel.
- CPC powder coat finish, rolled ribbed discs, and CNC spun reel discs support routine use in washdown, service, and maintenance environments.
Made in USA:
Applications:
- Pressure wash and washdown setups where the installed 1/2" hose, fittings, temperature range, and operating pressure match the 3,000 PSI reel rating.
- Service trucks, maintenance trailers, and mobile equipment where manual rewind provides simple hose retrieval without powered rewind components.
- Air, water, oil, spray, and compatible fluid transfer stations where 100 ft of 1/2" hose capacity provides useful reach from a fixed reel location.
- Fleet, facility, and industrial MRO areas where a reel-only purchase supports custom hose installation or standardized hose inventory.
- Wall, floor, bench, skid, vehicle, or equipment-mounted installations where a hand crank reel is preferred for controlled manual hose storage.
FAQs:
- Q: Does the Coxreels 1125-4-100 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The 1125-4-100 is sized for up to 100 ft of 1/2" I.D. hose with a 7/8" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: How is the 1125-4-100 different from the 1125-4-200?
A: The 1125-4-100 is sized for 100 ft of 1/2" hose, while the 1125-4-200 is sized for 200 ft. Choose the 100 ft model when the application needs a shorter hose length and a narrower 6" drum. - Q: What does the hand crank rewind mean?
A: Hand crank rewind means the operator manually turns the crank to retrieve the hose. This keeps the reel simple and avoids the need for spring, electric, air, or hydraulic rewind power. - Q: Can this reel be used for pressure washing?
A: Yes, when the installed hose, fittings, temperature range, chemical exposure, and system pressure match the reel's 3,000 PSI rating and the pressure washer's requirements.
| SKU | LESS HOSE | INLET SWIVEL & OUTLET RISER |
PSI | LESS HOSE SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD CAP | OPTIONAL CAP. Reducer required |
|||||||||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-100 | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100 | 5,000 | 36 | 1 |
| 1125-4-200 | 1/2" | 7/8" | 200 | 3/8" | 3/4" | 300 | 1/2" F NPT | 3,000 | HP1125-4-200 | 5,000 | 39 | 2 |
| 1125-4-325 | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3,000 | HP1125-4-325 | 5,000 | 48 | 3 |
| 1125-4-450 | 1/2" | 7/8" | 450 | 3/8" | 3/4" | 625 | 1/2" F NPT | 3,000 | HP1125-4-450 | 5,000 | 52 | 4 |
| 1125-4-500 | 1/2" | 7/8" | 500 | 3/8" | 3/4" | 700 | 1/2" F NPT | 3,000 | HP1125-4-500 | 5,000 | 58 | 5 |
| 1125-5-50 | 3/4" | 1-1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 | 6 |
| 1125-5-100 | 3/4" | 1-1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-175 | 3/4" | 1-1/4" | 175 | 1/2" | 7/8" | 325 | 3/4" F NPT | 3,000 | HP1125-5-175 | 4,500 | 50 | 8 |
| 1125-5-200 | 3/4" | 1-1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 | 9 |
| 1125-5-250 | 3/4" | 1-1/4" | 250 | 1/2" | 7/8" | 500 | 3/4" F NPT | 3,000 | HP1125-5-250 | 4,500 | 59 | 10 |
| 1125-6-35 | 1" | 1-7/16" | 35 | 3/4" | 1-1/4" | 50 | 1" F NPT | 3,000 | - | - | 50 | 11 |
| 1125-6-50 | 1" | 1-7/16" | 50 | 3/4" | 1-1/4" | 75 | 1" F NPT | 3,000 | - | - | 55 | 12 |
| 1125-6-75 | 1" | 1-7/16" | 75 | 3/4" | 1-1/4" | 120 | 1" F NPT | 3,000 | - | - | 62 | 13 |
| 1125-6-100 | 1" | 1-7/16" | 100 | 3/4" | 1-1/4" | 150 | 1" F NPT | 3,000 | - | - | 69 | 14 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
