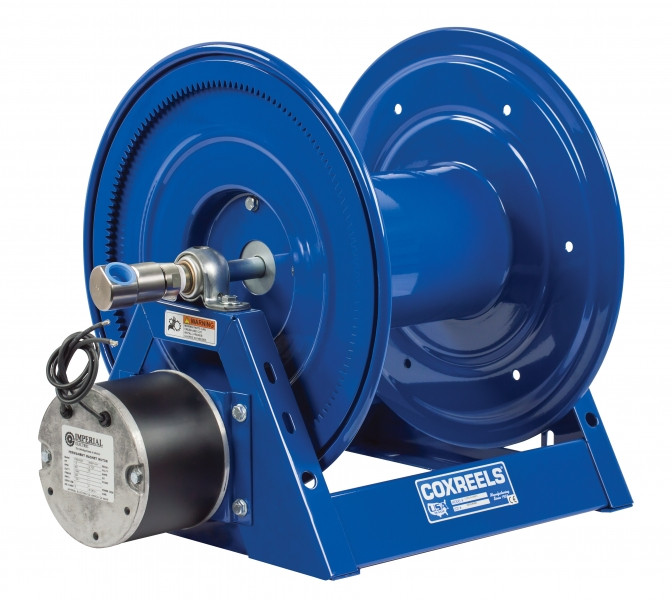

Large commercial vehicles, transit buses, and heavy equipment on 24-volt DC electrical systems sometimes carry hose lines that push past the 3,000 PSI ceiling of standard reels hydraulic service hose, high-pressure fluid delivery lines, and elevated-pressure applications where the working pressure demands the HP1125 Series rating but the installation area is not a classified hazardous location and the lighter 1/3 HP motor draw is sufficient for the hose routing and duty cycle. The Coxreels HP1125-4-100-EF puts a 24V DC, 1/3 HP reversible motor (a non-explosion-proof direct-current rewind drive with powered operation in both pay-out and retraction directions, connecting to a standard 24V vehicle or equipment battery system) on the HP1125 Series high-pressure frame with direct gear drive (no chain gears engage the drum directly for quiet, smooth retraction without chain stretch or lubrication intervals). The electroless nickel-plated steel 90° NPT swivel hardened for 5,000 PSI service over the brass swivel on standard 1125 models pairs with AFLAS seals for the chemical and heat resistance the high-pressure fluid path demands. For 24V platforms in standard environments where the pressure requirement exceeds the standard 1125 Series and the 1/2 HP -EB motor provides more output than the application needs, the HP1125-4-100-EF provides the pressure rating upgrade without the heavier motor draw or explosion-proof cost premium.
Type: Electric Motor Rewind Hose Reel | Series: HP1125 | Motor Type: 24V DC, 1/3 HP, Non-Explosion Proof, Reversible | Drive: Direct Gear Drive (No Chain) | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 100 | Hose Included: No | Max PSI: 5,000 | Swivel: Electroless Nickel Plated Steel 90° NPT | Swivel Seals: AFLAS
Features
- 24V DC, 1/3 HP non-explosion-proof reversible motor with direct gear drive connects directly to 24V vehicle or equipment battery systems; no AC outlet or compressed air supply required at the reel
- Reversible motor operation powered control in both pay-out and retraction directions, enabling remote deployment and retrieval from a cab or service body switch
- Direct gear drive no chain or sprocket; engages the drum directly for quiet, smooth retraction without chain slack, stretch, or lubrication requirements
- Electroless nickel plated steel 90° full-flow NPT swivel inlet hardened swivel construction rated for 5,000 PSI service; greater pressure capability and corrosion resistance than the brass swivel on standard 1125 Series models
- AFLAS swivel seals fluoroelastomer compound with superior chemical and heat resistance over Nitrile seals, suited to hydraulic fluid, petroleum, chemical, and elevated-pressure service environments
- Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
- Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
- Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or ceiling installation
- Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
- Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage; long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty
Made in USA:
Applications
- Commercial truck & transit fleet high-pressure service large commercial vehicles and transit buses on 24V systems carrying hydraulic service hose or elevated-pressure fluid lines where the HP1125 pressure rating is required and the installation area is not a classified hazardous location
- Heavy construction equipment service trucks 24V service vehicles maintaining hydraulic-intensive construction machinery where working hose pressures exceed the standard 1125 ceiling and the lighter 1/3 HP motor draw suits the vehicle's electrical capacity and retraction duty cycle
- Mobile hydraulic test & service units 24V portable test units and service vehicles carrying 5,000 PSI test hose in non-classified environments where automatic retraction from the vehicle battery and the HP1125 pressure rating are both required
- Agricultural & field service equipment large tractors and 24V self-propelled service units handling high-pressure fluid lines where the compact HP1125 chassis and 1/3 HP motor draw suit the vehicle electrical architecture without the overhead of a larger-output motor
- Fixed plant installations with 24V DC infrastructure maintenance stations and test facilities running 24V DC power where 5,000 PSI service lines require a motorized reel beyond the pressure capability of standard 1125 Series models and the non-classified environment makes the explosion-proof -EB unnecessary
FAQs
Q: What is the difference between the HP1125-4-100-EF and the standard 1125-4-100-EF?
A: Both use a 24V DC, 1/3 HP reversible motor on the same basic chassis with direct gear drive. The difference is working pressure and swivel specification. The HP1125-4-100-EF is rated to 5,000 PSI with an electroless nickel plated steel swivel and AFLAS seals. The standard 1125-4-100-EF is rated to 3,000 PSI with a machined brass swivel and Nitrile seals. For 24V non-classified applications at or below 3,000 PSI, the standard 1125-4-100-EF is the more economical choice; for applications requiring up to 5,000 PSI, the HP1125-4-100-EF is required.
Q: When should I choose the 1/3 HP -EF over the 1/2 HP -EB at 24V?
A: The 1/3 HP -EF draws less current from the vehicle battery and is adequate for most straightforward overhead drop or wall-mount installations with minimal hose routing friction standard vertical drop, moderate hose weight, and cycle frequency of up to several times per hour. The 1/2 HP -EB is the better choice when the hose routes through a service body bulkhead, runs horizontally over a long distance, carries heavier fluid-loaded hose, or the reel cycles at high frequency throughout the shift. If the installation is in a classified hazardous location, also confirm which 24V variant carries the appropriate explosion-proof rating from the 2021 Coxreels catalog.
Q: What is the difference between the HP1125-4-100-EF and the HP1125-4-100-E?
A: Both are 1/3 HP non-explosion-proof reversible motors on the HP1125 Series 5,000 PSI frame, but the supply voltage differs. The -E runs on 12V DC suited to light-to-medium service trucks and standard-voltage 12V equipment. The -EF runs on 24V DC suited to larger commercial vehicles, heavy construction equipment, and transit platforms running 24V electrical systems. Choose based entirely on the vehicle or equipment electrical architecture: 12V platforms use the -E; 24V platforms use the -EF.
Q: What electrical connection does the 24V DC motor require?
A: The motor connects to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. Coxreels does not publish the exact amperage draw for this motor. Confirm current requirements, circuit fusing, and wiring gauge with a qualified electrician sized for sustained bidirectional motor operation before installation.
Q: Does the reel come with hose included?
A: No the HP1125-4-100-EF ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 100 feet. Select hose with a working pressure rating at or above your system pressure (up to 5,000 PSI), rated for your specific media, and compatible with the electroless nickel plated steel swivel and AFLAS seals. At 5,000 PSI, use hose assemblies with fittings rated and crimped for high-pressure service.
| LESS HOSE | SIZE INDEX |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | HP SKU | HP PSI | APRX. LBS. |
|||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-100 | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100 | 5,000 | 36 | 1 |
| 1125-4-100-A | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-A | 5,000 | 36 | 1 |
| 1125-4-100-AB | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-AB | 5,000 | 36 | 1 |
| 1125-4-100-C | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-C | 5,000 | 36 | 1 |
| 1125-4-100-E | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-E | 5,000 | 36 | 1 |
| 1125-4-100-EA | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-EA | 5,000 | 36 | 1 |
| 1125-4-100-EB | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-EB | 5,000 | 36 | 1 |
| 1125-4-100-ED | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-ED | 5,000 | 36 | 1 |
| 1125-4-100-EF | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-EF | 5,000 | 36 | 1 |
| 1125-4-100-H | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | HP1125-4-100-H | 5,000 | 36 | 1 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
