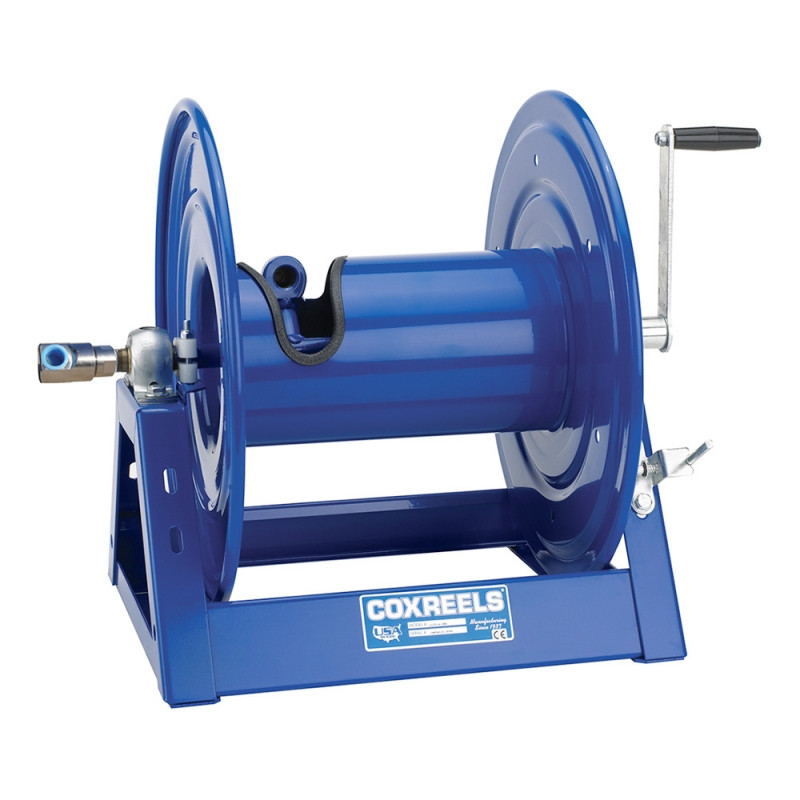

Coxreels HP1125-4-100 Hand Crank Hose Reel | HP1125 Series | 1/2" Hose Diameter | 100' Hose Length | 5000 Max PSI | Less Hose

Pressure washing at elevated line pressures, hydraulic test benches, high-pressure chemical injection lines, and oilfield service applications push past the 3,000 PSI ceiling of standard industrial hose reels and require a reel built from the swivel outward to handle those pressures without leaking, fatiguing, or failing under sustained cycling. The Coxreels HP1125-4-100 is the high-pressure variant of the 1125 Series, built specifically for applications up to 5,000 PSI. The electroless nickel plated steel 90° full-flow NPT swivel (a harder, more corrosion-resistant swivel material than the brass swivel used on standard 1125 Series models, suited to higher working pressures and broader fluid compatibility) pairs with AFLAS seals (a fluoroelastomer compound offering greater chemical and heat resistance than the Nitrile seals on standard 1125 models) to give the fluid path the durability that high-pressure service demands. A solid steel direct hand crank with smooth round handle gives operator-controlled retraction of 100 feet of 1/2-inch ID hose, with no power source required no compressed air, no electrical connection, no hydraulic circuit at the reel. The same all-welded 12-gauge steel A-frame, CNC-spun ribbed discs, permanently lubricated pillow block bearings, adjustable tension brake, and long-handled locking pin as the rest of the 1125 Series complete a reel that delivers high-pressure capability in a compact, self-contained manual format.

Type: Hand Crank Hose Reel | Series: HP1125 | Crank Type: Solid Steel Direct Hand Crank | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 100 | Hose Included: No | Max PSI: 5,000 | Swivel: Electroless Nickel Plated Steel 90° NPT | Swivel Seals: AFLAS

Features

• Electroless nickel plated steel 90° full-flow NPT swivel inlet hardened swivel construction rated for 5,000 PSI service, replacing the brass swivel used on standard 1125 Series models for greater pressure capability and corrosion resistance
• AFLAS swivel seals fluoroelastomer compound with superior chemical and heat resistance over the Nitrile seals on standard 1125 Series models, suited to elevated pressures and broader fluid compatibility
• Solid steel direct hand crank with smooth round handle manual retraction with no external power source required; no air, electrical, or hydraulic supply needed at the reel
• Long-handled locking pin locks and secures the drum from rotation during storage, transport, or fixed-extension use
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, floor, or vehicle-body installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• High-pressure washing & surface preparation pressure washers, water jetting equipment, and industrial cleaning systems operating above 3,000 PSI where standard hose reels are not pressure-rated for the line
• Hydraulic test benches & pressure testing laboratory and field pressure testing of hydraulic components, fittings, and assemblies where 5,000 PSI test lines require a reel rated for the test pressure
• Oilfield & well service operations high-pressure chemical injection, well control fluid lines, and field service applications in oil and gas production where 3,000 PSI reels are undersized for working line pressures
• Industrial fluid transfer at elevated pressure hydraulic fluid lines, high-pressure lube oil circuits, and process fluid delivery in facilities where operating pressures exceed the standard 1125 Series rating
• Remote & off-grid installations field locations, remote job sites, and installations without available power where a manual crank reel at 5,000 PSI serves high-pressure applications without requiring a motor supply

FAQs

Q: What is the difference between the HP1125-4-100 and the standard 1125-4-100?
A: The HP1125-4-100 and 1125-4-100 share the same A-frame chassis, drum size, and hose capacity, but differ in three key ways. First, pressure rating: the HP1125 is rated to 5,000 PSI versus 3,000 PSI on the standard 1125. Second, swivel material: the HP1125 uses electroless nickel plated steel versus the machined brass swivel on the standard 1125 harder and more corrosion-resistant for high-pressure service. Third, swivel seals: the HP1125 uses AFLAS seals versus Nitrile on the standard 1125, providing broader chemical and heat resistance. For applications at or below 3,000 PSI, the standard 1125 is the appropriate and more economical choice; above 3,000 PSI, the HP1125 is required.

Q: Is 5,000 PSI the maximum working pressure, or is there a safety margin above that?
A: 5,000 PSI is the maximum working pressure rating for this reel. Always select hose with a working pressure rating that meets or exceeds the line pressure never rely on the reel rating alone to determine system safety. For high-pressure systems, follow applicable pressure safety standards and use hose assemblies with appropriate safety factors per the hose manufacturer's specifications.

Q: Can this reel be fitted with a motorized rewind option instead of the hand crank?
A: Yes the HP1125 Series is available with motor rewind options including compressed air (#4 Gast and #6 Gast motors), electric (12V DC, 24V DC, 115V AC, and explosion-proof variants), and hydraulic. The base hand crank model (HP1125-4-100, this SKU) uses a solid steel direct hand crank. If you need automatic retraction on a 5,000 PSI reel at this drum capacity, the motorized HP1125-4-100 variants (e.g., HP1125-4-100-A, HP1125-4-100-AB, HP1125-4-100-EA) are the appropriate products.

Q: What fluids is this reel compatible with?
A: Models supplied less hose like the HP1125-4-100 can be used for air, water, oil, and other fluids compatible with the electroless nickel plated steel swivel and AFLAS seals. AFLAS seals offer broad chemical resistance including petroleum fluids, many acids, and steam. Confirm compatibility with your specific fluid against AFLAS chemical resistance data before installation, particularly for aggressive solvents or specialty process chemicals.

Q: Does the reel come with hose included?
A: No the HP1125-4-100 ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 100 feet. Select hose with a working pressure rating at or above your system pressure (up to 5,000 PSI), rated for your specific media, and install it on the drum before use. At 5,000 PSI, hose selection and assembly quality are critical safety considerations use hose assemblies with fittings rated and crimped for high-pressure service.
