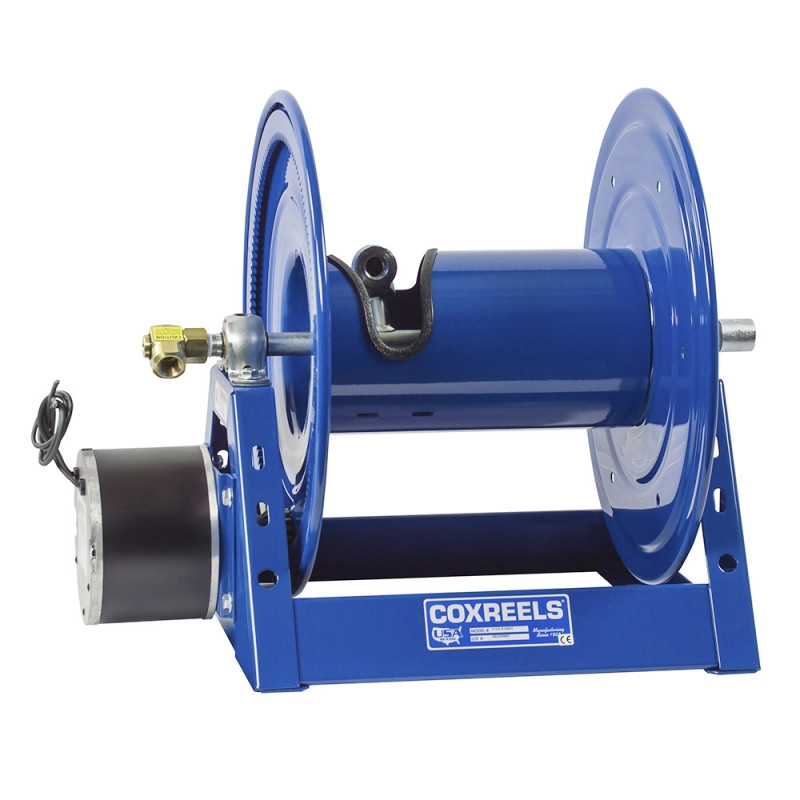

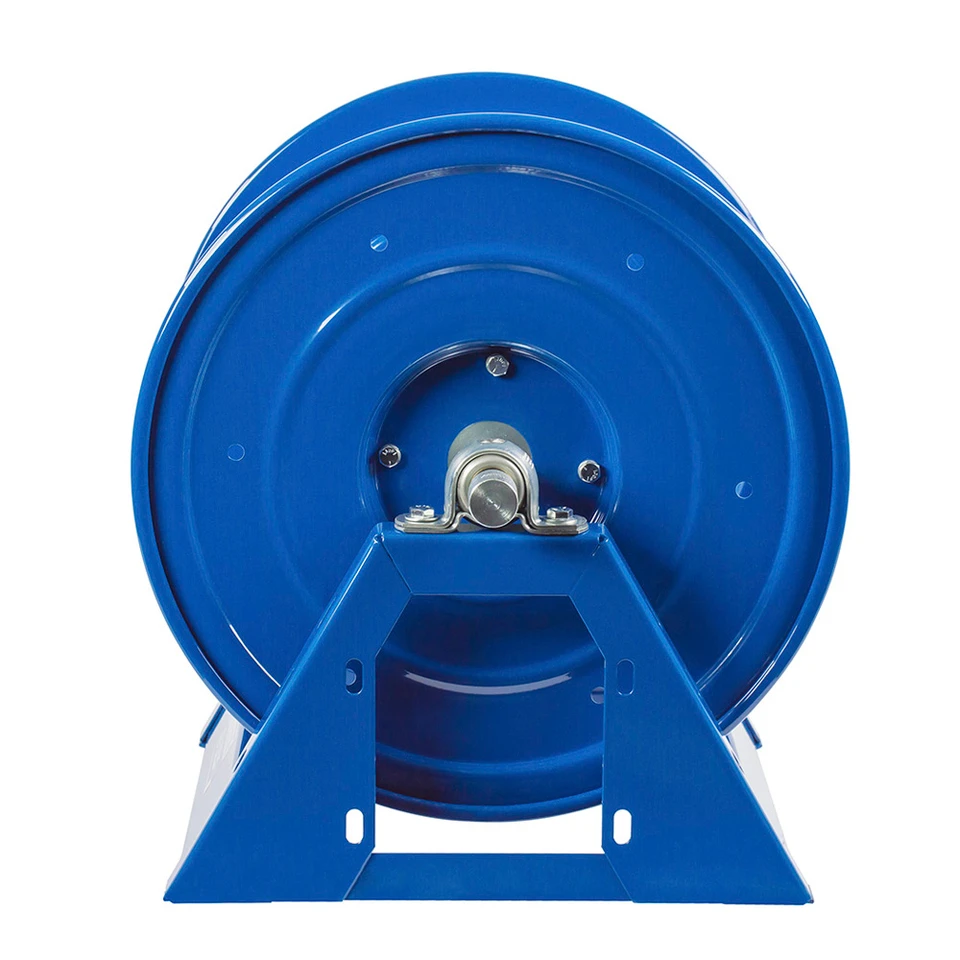

Coxreels 1125-4-100-EF Electric 24V DC 1/3 HP Motor Rewind Hose Reel | 1125 Series | 1/2" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

Commercial trucks, transit buses, and heavy equipment running 24-volt DC electrical systems often need motorized hose retraction that draws from the vehicle battery, integrates cleanly into the existing 24V architecture, and handles 1/2-inch hose in a compact reel footprint without the additional weight and cost of an explosion-proof motor where it isn't required. The Coxreels 1125-4-100-EF delivers exactly that: a 24V DC, 1/3 HP reversible motor (a non-explosion-proof direct-current drive with powered operation in both pay-out and retraction directions, connecting to a standard 24V vehicle or equipment battery system) paired with the direct gear drive (no chain gears engage the drum directly for quiet, smooth retraction without chain stretch or lubrication intervals) of the compact 1125 Series chassis. At 3,000 PSI working pressure across 100 feet of 1/2-inch ID hose, the 1125-4-100-EF fits vehicle service bodies, overhead bay installations, and fixed facility mounting positions where the 1125 Series' smaller frame and direct gear drive quiet operation are advantages over larger-chassis alternatives. A machined solid brass 90° NPT swivel, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and the all-welded 12-gauge steel A-frame bring full 1125 Series production construction to a 24V reversible format suited to daily production use.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor Type: 24V DC, 1/3 HP, Non-Explosion Proof, Reversible | Drive: Direct Gear Drive (No Chain) | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 100 | Hose Included: No | Max PSI: 3,000 | Swivel: Machined Solid Brass 90° NPT | Swivel Seals: Nitrile | Width (in.): 19.75 | Height (in.): 18.75 | Length (in.): 17.63 | Mounting Pattern M (in.): 9.44 | Mounting Pattern N (in.): 10 | Base X (in.): 11.38 | Base Y (in.): 16

Features

• 24V DC, 1/3 HP non-explosion-proof reversible motor connects directly to 24V vehicle or equipment battery systems; no AC outlet or compressed air supply required at the reel
• Reversible motor operation powered control in both pay-out and retraction directions, enabling remote deployment and retrieval from a cab or service body switch
• Direct gear drive no chain or sprocket; engages the drum directly for quiet, smooth retraction without chain slack, stretch, or lubrication requirements
• Machined solid brass 90° full-flow NPT swivel inlet standard on 1/2" and 3/4" 1125 Series models; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or ceiling installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Commercial truck & transit fleet maintenance large commercial vehicles and transit buses on 24V systems where automatic retraction of 1/2-inch air or fluid hose connects into the vehicle's existing DC architecture without additional wiring complexity
• Municipal & utility fleet vehicles street sweepers, refuse trucks, and utility service vehicles on 24V systems where the compact 1125 Series frame fits tighter service body mounting locations than larger-chassis reels
• Heavy construction equipment service large excavator, crane, and off-highway equipment service trucks on 24V platforms where reversible motorized control of 1/2-inch hose reduces operator handling during tool supply and fluid delivery
• Agricultural equipment & tractor service large tractors and 24V self-propelled service units where 100 feet of 1/2-inch hose at 3,000 PSI covers wide equipment service areas from a vehicle-mount or fixed overhead reel station
• Fixed plant & facility installations with 24V DC infrastructure bus depots, fleet maintenance centers, and large-bay facilities running 24V DC control systems where the direct gear drive's quiet operation and compact 1125 footprint suit lower-clearance overhead installations

FAQs

Q: What is the difference between the 1125-4-100-EF and the 1125-4-100-EB?
A: Both are 24V DC reversible motors on the 1125-4-100 drum, but they differ in output and classification. The -EF is 1/3 HP and non-explosion-proof suited to standard non-classified environments where the lighter motor output is sufficient for the hose routing and duty cycle. The -EB is 1/2 HP suited to installations where higher motor torque is needed for heavier routing friction or higher-cycle use. If the installation area is a classified hazardous location, confirm which variant carries the appropriate explosion-proof rating from the 2021 Coxreels catalog before ordering.

Q: When would I choose the 1/3 HP -EF over the 1/2 HP -EB for a 24V installation?
A: The 1/3 HP motor draws less current from the vehicle battery and is adequate for most straightforward overhead drop installations with minimal hose routing friction ceiling or wall mount with a direct vertical drop, standard hose weight, moderate cycle frequency. The 1/2 HP -EB is the better choice when the hose routes through a service body bulkhead, runs horizontally over a long distance, or the reel cycles dozens of times per shift. When in doubt about the duty cycle, the higher-output -EB provides a margin of performance the -EF cannot match.

Q: What is the difference between the 1125-4-100-EF and the 1175-6-100-EF?
A: The motor specifications are the same 24V DC, 1/3 HP, non-explosion-proof, reversible. The difference is chassis and hose size. The 1125-4-100-EF is a compact-chassis reel for 1/2-inch ID hose with direct gear drive and a machined brass swivel. The 1175-6-100-EF is a larger-chassis reel for 1-inch ID hose with chain and sprocket drive and a nickel-plated steel swivel. Choose the 1125 for 1/2-inch hose applications where the compact footprint matters; choose the 1175 when 1-inch hose flow volume is required.

Q: What electrical connection does the 24V DC motor require?
A: The motor connects to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. Coxreels does not publish the exact amperage draw for this motor. Confirm current requirements, circuit fusing, and wiring gauge sized for sustained bidirectional operation with a qualified electrician before installation.

Q: Does the reel come with hose included?
A: No the 1125-4-100-EF ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 100 feet. Select hose rated for your working pressure and media (air, water, oil, or other compatible fluids at up to 3,000 PSI) and install it on the drum before use.
