Coxreels 1175-6-135 Hand Crank Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

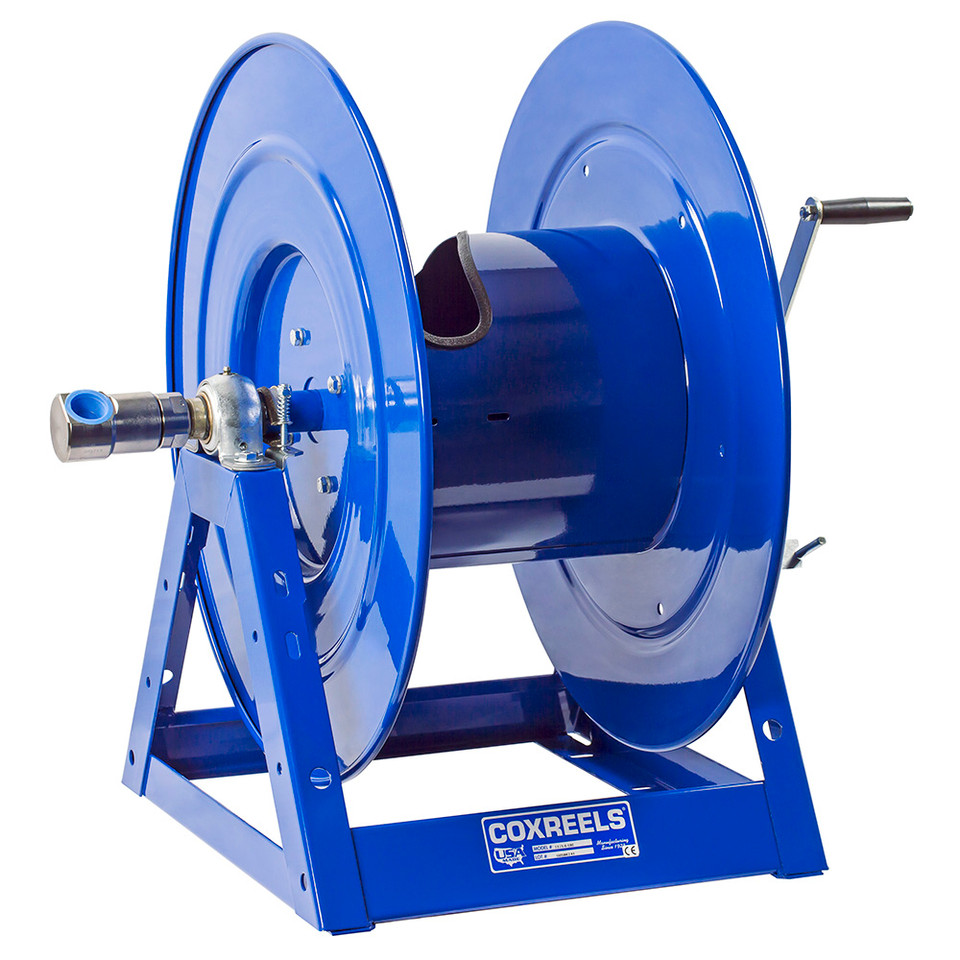

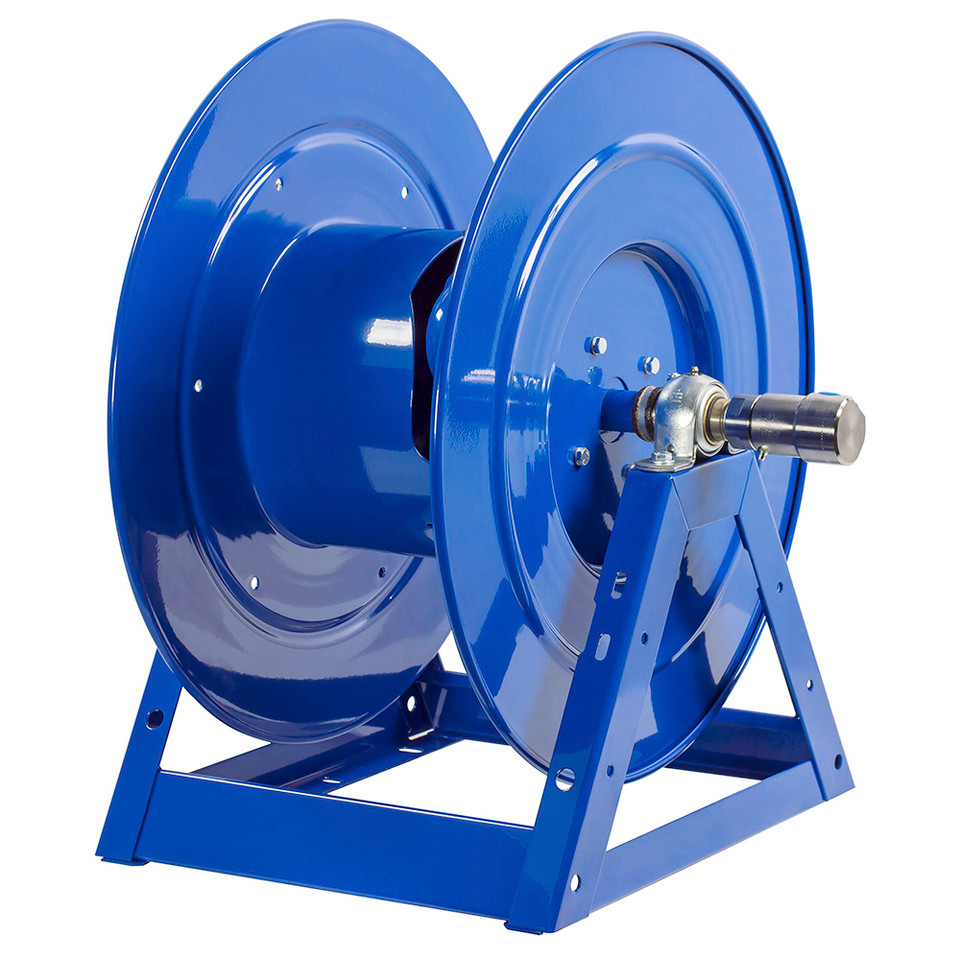

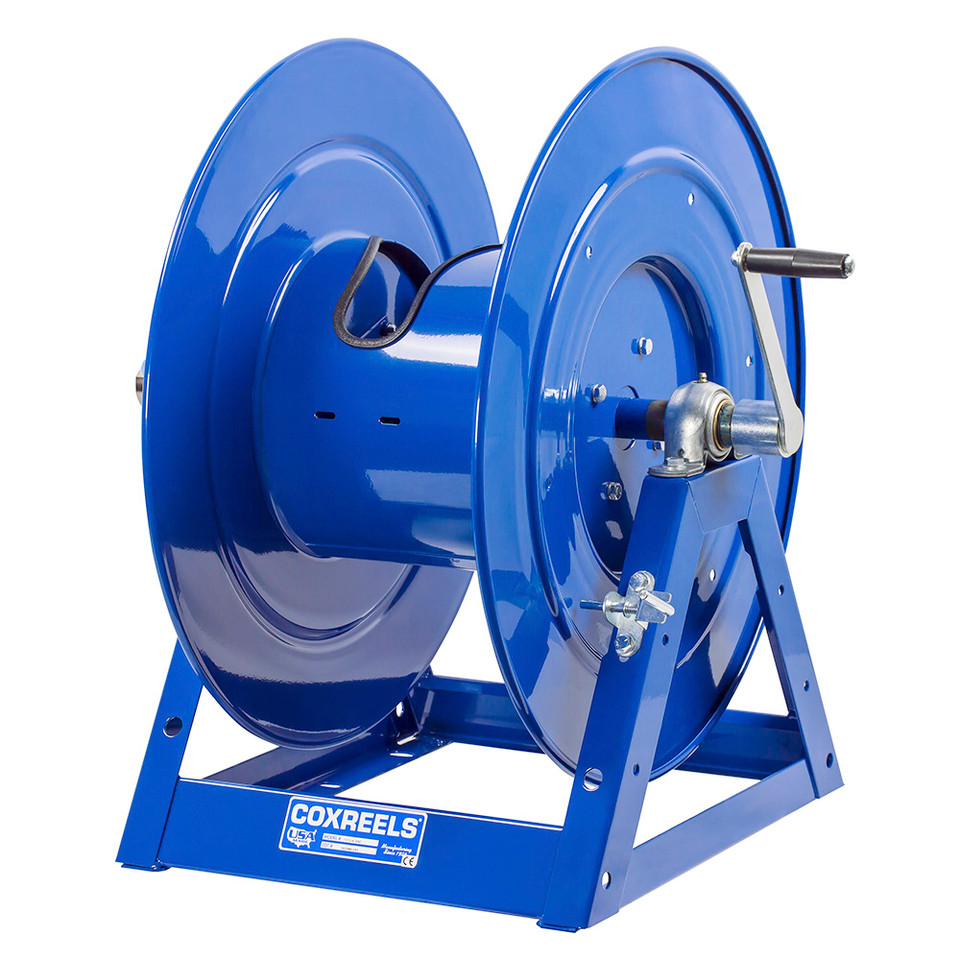

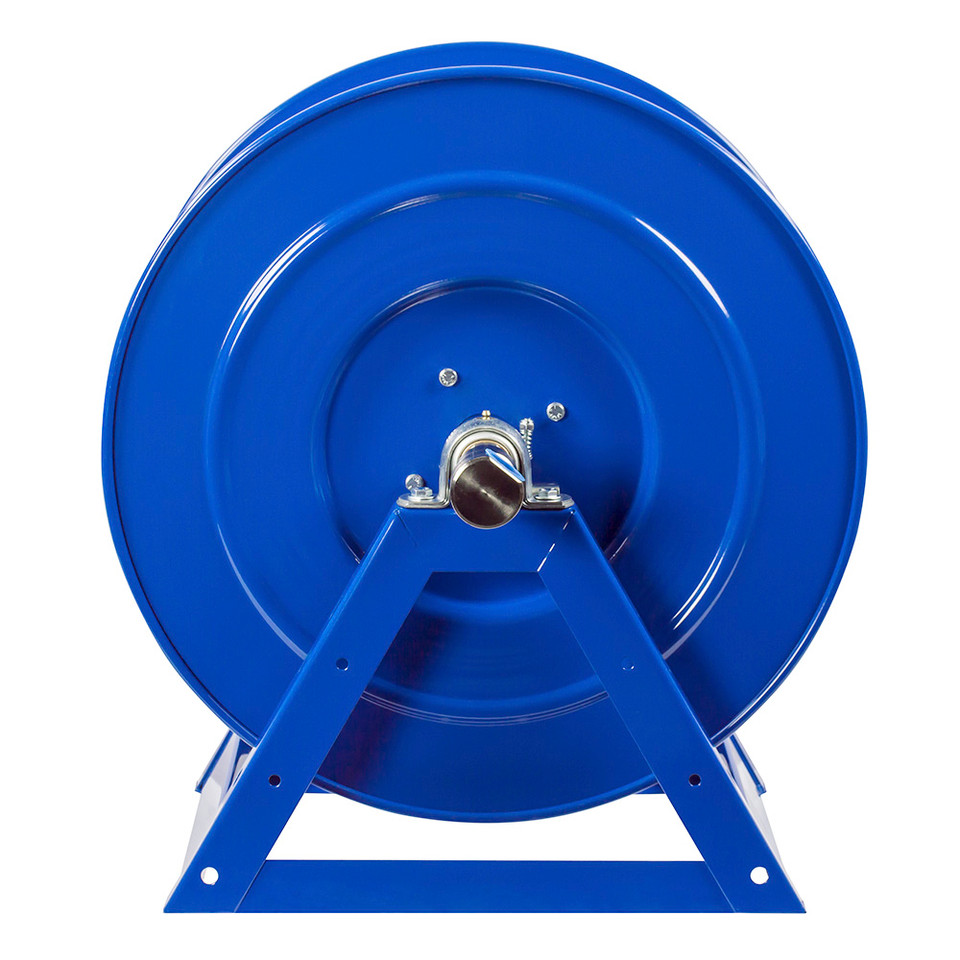

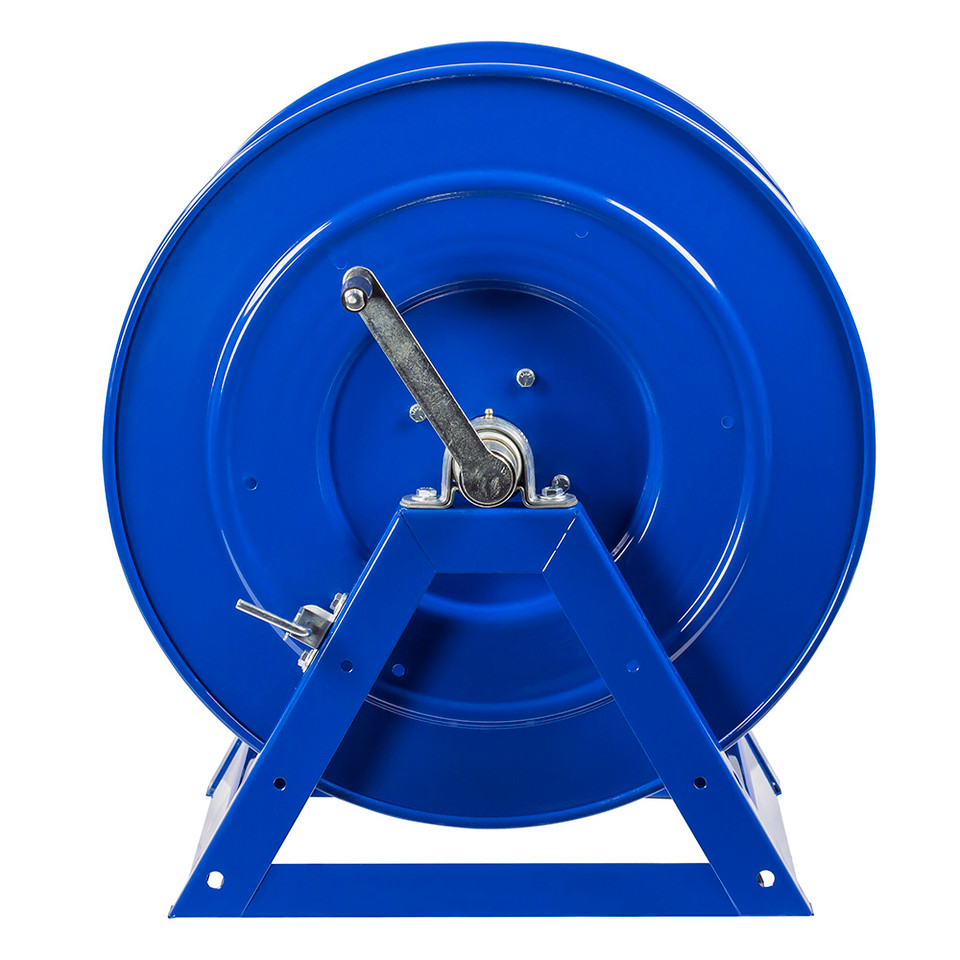

The Coxreels 1175-6-135 is a manually operated hose reel from the 1175 Series, built to store up to 135 ft of 1" I.D. hose. Its solid steel direct hand crank with a smooth round handle gives the operator direct control over hose retrieval without a powered rewind system. With a 3,000 PSI maximum pressure rating, this less-hose reel can be matched with a separately purchased hose that meets the listed dimensions and the requirements of the intended system.

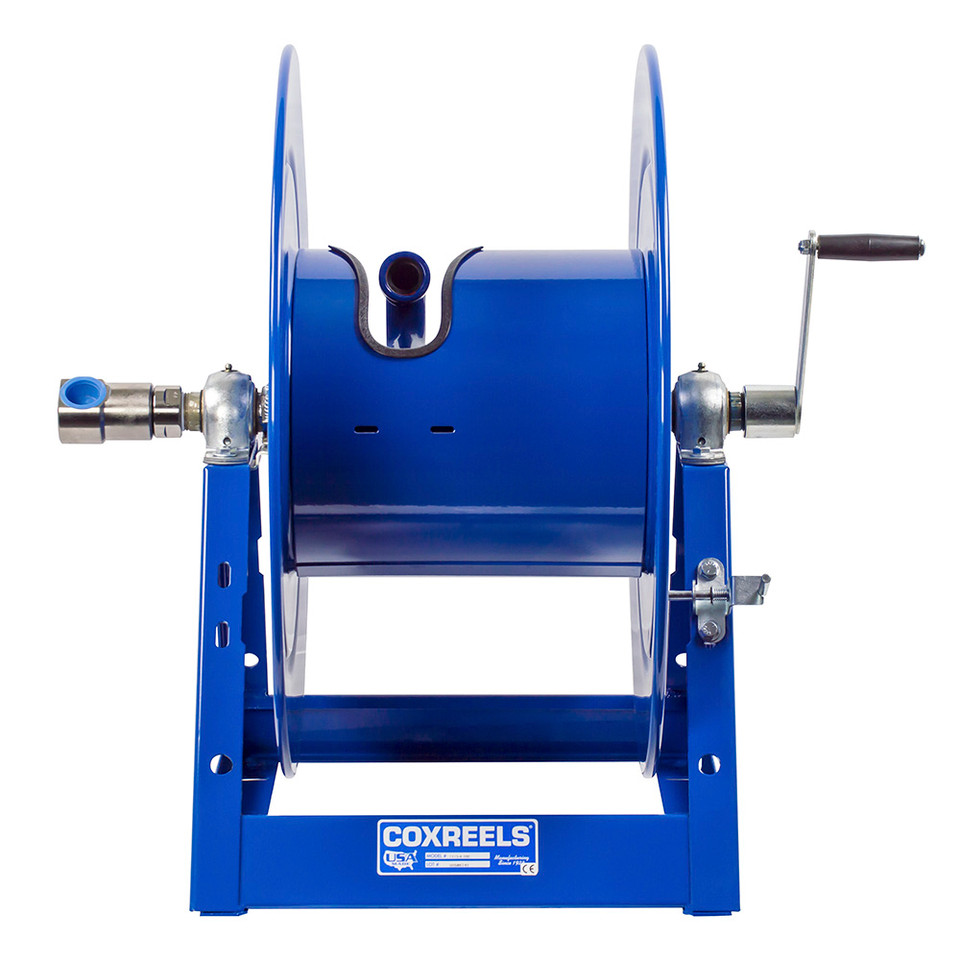

The reel's low-profile outlet riser and open drum slot help the hose form smooth, even wraps around the drum during rewind. For installations using a smaller hose diameter, the catalog also lists an optional capacity of 175 ft for 3/4" I.D. hose with a 1-1/4" O.D.; a reducer is required for that configuration.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Hose Reel | Model: 1175-6-135 | Series: 1175 Series | Configuration: Less Hose | Standard Hose Capacity: 1" I.D. x 1-7/16" O.D. x 135 ft | Optional Hose Capacity: 3/4" I.D. x 1-1/4" O.D. x 175 ft, reducer required | Inlet Swivel Assembly: 1" Female NPT, 90° | Outlet Riser: 1" Female NPT | Max Pressure: 3,000 PSI

Features:

• Solid steel direct hand crank with a smooth round handle for manual hose retrieval.
• Stores up to 135 ft of 1" I.D. hose with a maximum listed O.D. of 1-7/16".
• Optional capacity accommodates up to 175 ft of 3/4" I.D. hose with a 1-1/4" O.D.; reducer required.
• Low-profile outlet riser supports the hose connection at the drum.
• Open drum slot design promotes smooth, even hose wraps.
• 1" female NPT 90-degree inlet swivel assembly.
• 1" female NPT outlet riser.
• Maximum pressure rating of 3,000 PSI.

Made in USA:

2 Year Warranty

Applications:

• Manual storage and retrieval of compatible 1" hose assemblies.
• Stationary hose-management installations that do not require powered rewind.
• Mobile equipment installations where the listed reel capacity and connection sizes match the system.
• Long-hose applications requiring up to 135 ft of 1" I.D. hose.

FAQs:

• Q: Does the Coxreels 1175-6-135 include hose?
  A: No. The catalog identifies this model as a less-hose reel, so the hose must be purchased separately.
• Q: How much 1-inch hose can this reel hold?
  A: The standard listed capacity is 135 ft of 1" I.D. hose with a 1-7/16" O.D.
• Q: Can the reel be used with 3/4-inch hose?
  A: The catalog lists an optional capacity of 175 ft for 3/4" I.D. hose with a 1-1/4" O.D. A reducer is required.
• Q: What are the reel connections?
  A: The reel has a 1" female NPT 90-degree inlet swivel assembly and a 1" female NPT outlet riser.
• Q: Is this a powered rewind reel?
  A: No. The 1175-6-135 uses a solid steel direct hand crank for manual rewind.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
