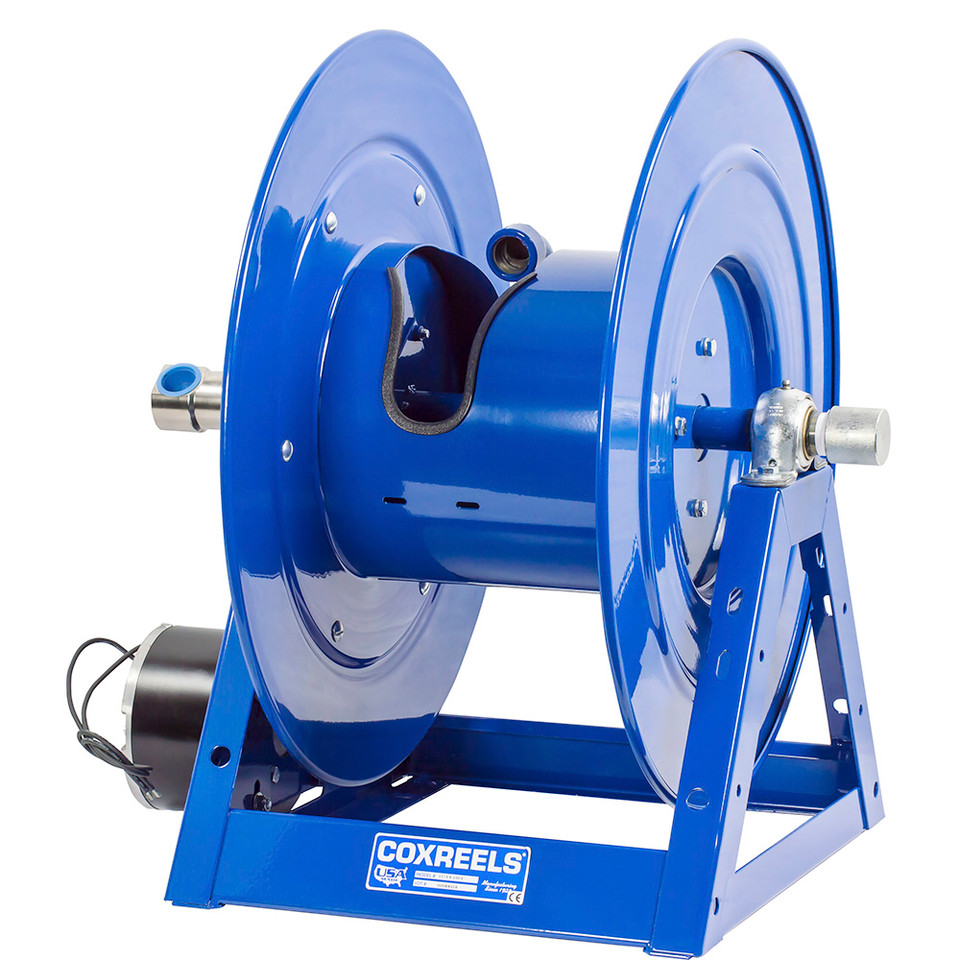

Coxreels 1175-6-135-EF Electric 24V DC Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

Large commercial trucks, transit buses, municipal equipment, and heavy construction machinery standardize on 24-volt DC electrical systems and operators running those platforms in non-classified environments need a motorized hose reel that draws from the vehicle battery directly, retracts automatically, and gives them powered control over hose deployment as well. The Coxreels 1175-6-135-EF delivers exactly that: a 24V DC, 1/3 HP reversible motor (a non-explosion-proof electric rewind drive capable of powered operation in both directions controlled pay-out as well as retraction running off a standard 24V vehicle or equipment electrical system) on the full-capacity 1175 Series large-chassis frame, handling 135 feet of 1-inch ID hose at up to 3,000 PSI without a shore power connection or compressed air supply at the reel. AFLAS swivel seals (a fluoroelastomer compound offering superior heat and chemical resistance over standard nitrile, rated to 250°F) pair with a nickel-plated steel 90° NPT swivel and the all-welded 12-gauge steel A-frame construction to give 24V mobile platforms a fixed-position reel station built for daily production use.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 24V DC, 1/3 HP, Non-Explosion Proof, Reversible | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 22.875 | Length (in.): 20 | Approx. Weight (lbs.): 70

Features

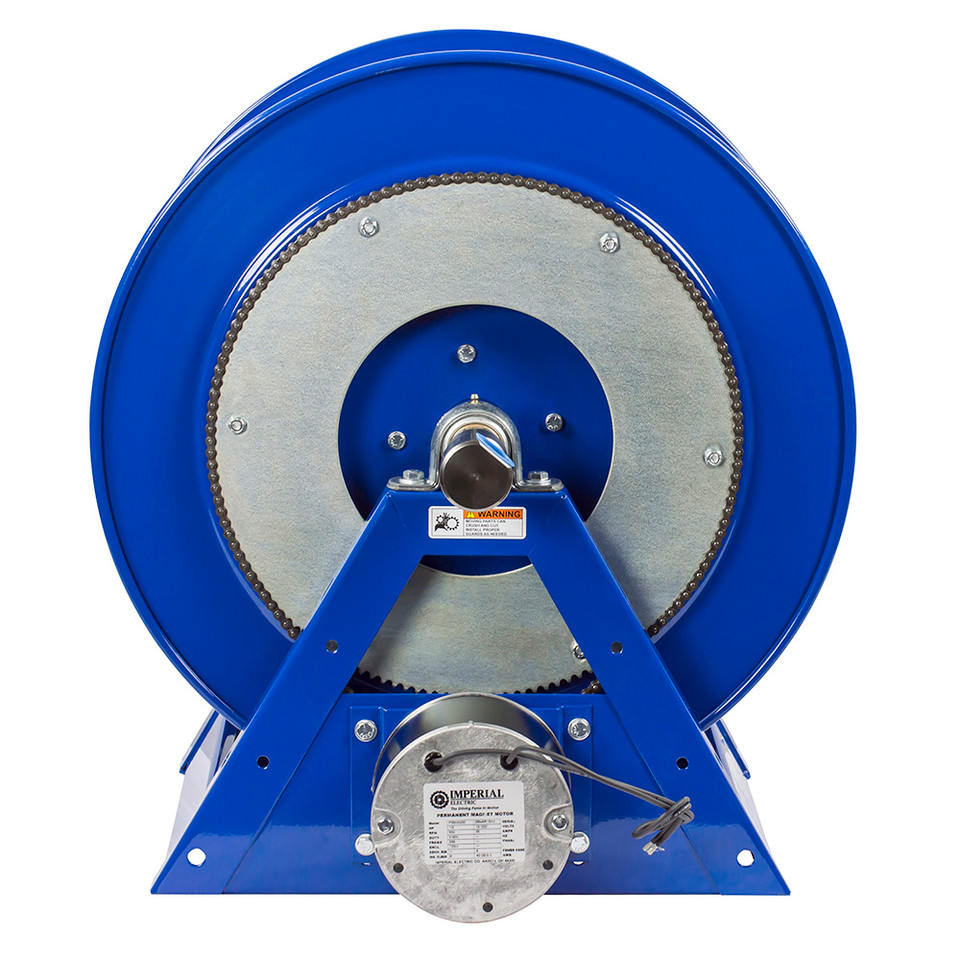

• 24V DC, 1/3 HP non-explosion-proof reversible motor with chain & sprocket drive connects directly to 24V vehicle or equipment battery systems with no AC outlet or air supply required at the reel
• Reversible motor operation powered control in both directions for motorized hose pay-out and retraction, giving operators full deployment control from the vehicle cab or service body switch
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Commercial & municipal fleet vehicles transit buses, refuse trucks, utility vehicles, and street sweepers running 24V electrical systems where automatic hose retraction integrates cleanly into the vehicle's existing DC architecture
• Heavy construction equipment service bodies excavators, motor graders, and large off-highway equipment service trucks equipped with 24V systems requiring powered hose management for fluid delivery and tool supply
• Agricultural equipment & irrigation large tractors, combines, and agricultural service vehicles with 24V systems where long hose reach and motorized retraction reduce operator fatigue between field service calls
• Airport ground support equipment baggage tractors, pushback tugs, and ground power units standardizing on 24V DC where hose management for fluid service or air supply requires a vehicle-mounted motorized reel
• Industrial & plant facilities with 24V DC infrastructure fixed overhead installations where 24V DC control systems are already in place and matching the reel motor to existing infrastructure avoids additional AC or air supply runs

FAQs

Q: What is the difference between the "-EF" and the "-E" variant?
A: Both are non-explosion-proof electric motors, but the "-E" is 12V DC, 1/3 HP and non-reversible suited to light trucks, vans, and vehicles running 12V systems. The "-EF" is 24V DC, 1/3 HP and reversible matched to larger commercial trucks, buses, and heavy equipment running 24V electrical systems, with the added benefit of powered hose pay-out in both directions. If your vehicle runs 12V and non-classified, choose the "-E"; if it runs 24V and non-classified, choose the "-EF."

Q: What is the difference between the "-EF" and the "-EB" variant?
A: Both are 24V DC reversible motors, but they differ in power rating and hazardous-location certification. The "-EF" is 1/3 HP and non-explosion-proof for use in standard, non-classified environments. The "-EB" is 1/2 HP and explosion-proof for use in classified hazardous locations where flammable gases, vapors, or combustible dusts may be present. If your installation area is not a classified hazardous location, the "-EF" covers the application at lower cost; if it is classified, the "-EB" is required.

Q: What does the reversible motor add compared to a single-direction rewind motor?
A: A standard single-direction motor retracts hose automatically but requires manual pull-out during deployment. The reversible motor on the "-EF" powers both directions pushing hose out as well as drawing it back in. This is useful when hose weight, routing friction through a vehicle body, or operator position makes manual pull-out awkward, and allows full deployment control from a remote switch without the operator physically handling the hose at the drum.

Q: Does the reel come with hose included?
A: No the 1175-6-135-EF ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 135 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and install it on the drum before use.

Q: What electrical connection does the 24V DC motor require?
A: The motor connects directly to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. Coxreels does not publish the exact amperage draw for this motor; confirm current requirements and circuit fusing with a qualified electrician before installation to ensure the wiring and switching are appropriately sized for sustained bidirectional motor operation.
