Coxreels 1175-6-135-E Electric DC Non-Explosion Proof Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

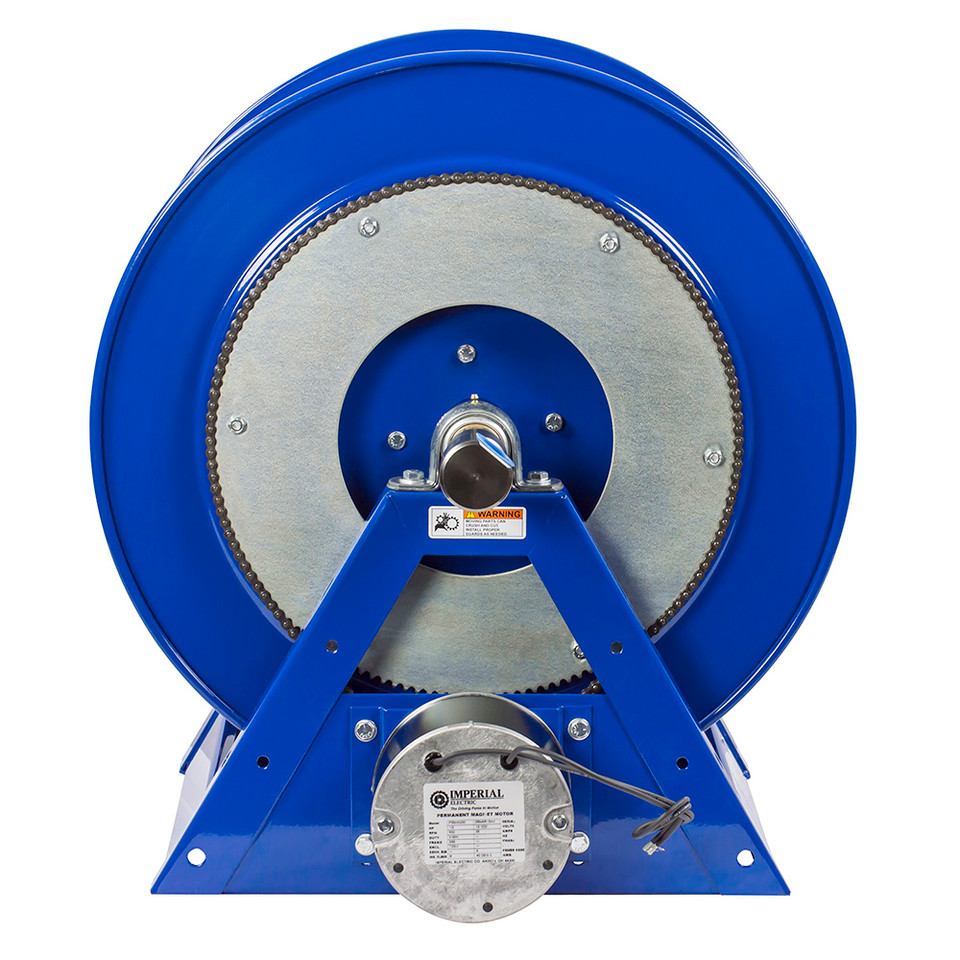

Service trucks, lube vehicles, and mobile equipment that run on 12-volt systems need a hose reel that retracts automatically without tapping into an air supply or a 120V outlet. The Coxreels 1175-6-135-E puts a 12V DC, 1/3 HP electric motor (a direct-current motor that runs off a standard vehicle or equipment battery system, no generator or shore power needed) on the full-capacity 1175 Series large-chassis frame, giving mobile operators push-button retraction across a full 135 feet of 1-inch ID hose at up to 3,000 PSI. That pressure rating covers the delivery demands of production pneumatic tools, fluid transfer lines, and high-volume wash-down equipment run from a service body or mobile maintenance platform. A reliable chain and sprocket drive transfers motor torque to the drum evenly, while CNC-spun ribbed discs, permanently lubricated pillow block bearings, and an all-welded 12-gauge steel A-frame bring the same fixed-installation construction to a vehicle-mount format. No air line to the motor, no AC power required, just a switched 12V connection to your vehicle's electrical system.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 12V DC, 1/3 HP, Non-Explosion Proof | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Approx. Weight (lbs.): 70

Features

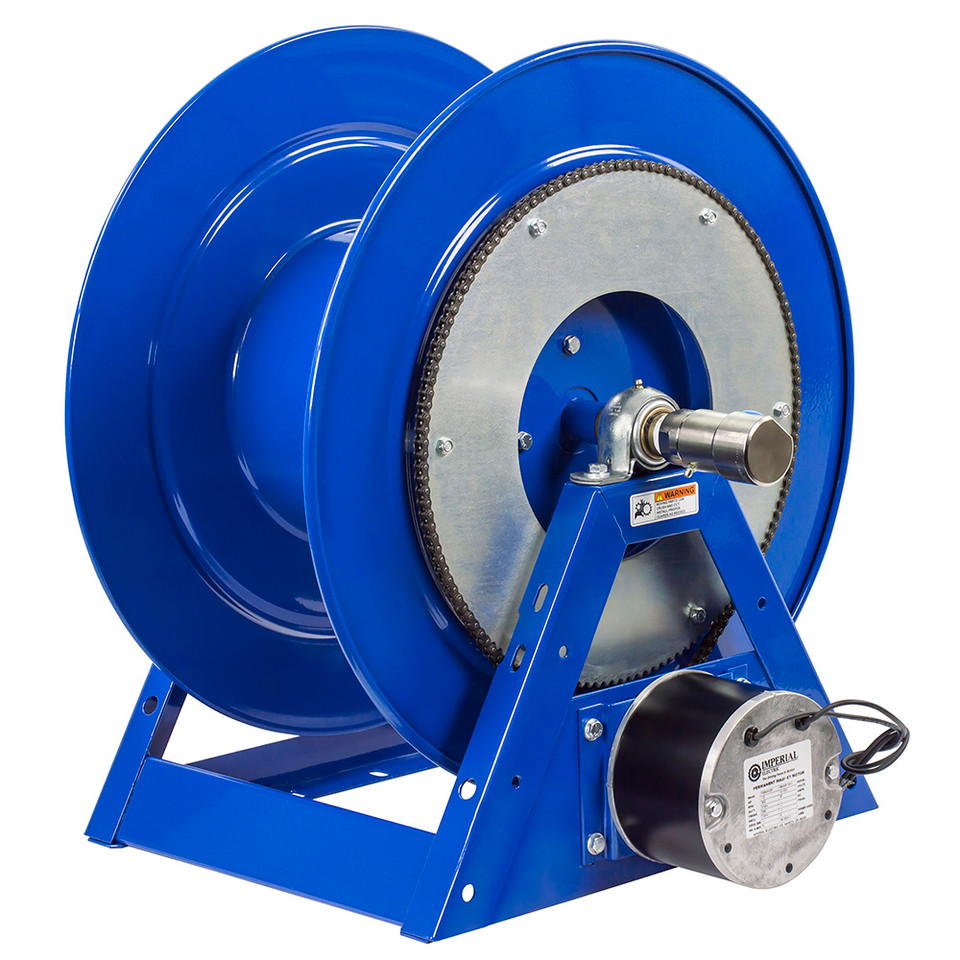

• 12V DC, 1/3 HP electric motor with chain & sprocket drive runs off vehicle or equipment battery systems with no shop air supply or AC outlet required
• Non-explosion-proof motor rated for standard service environments; for hazardous or classified locations, see the -ED (12V DC explosion-proof) variant

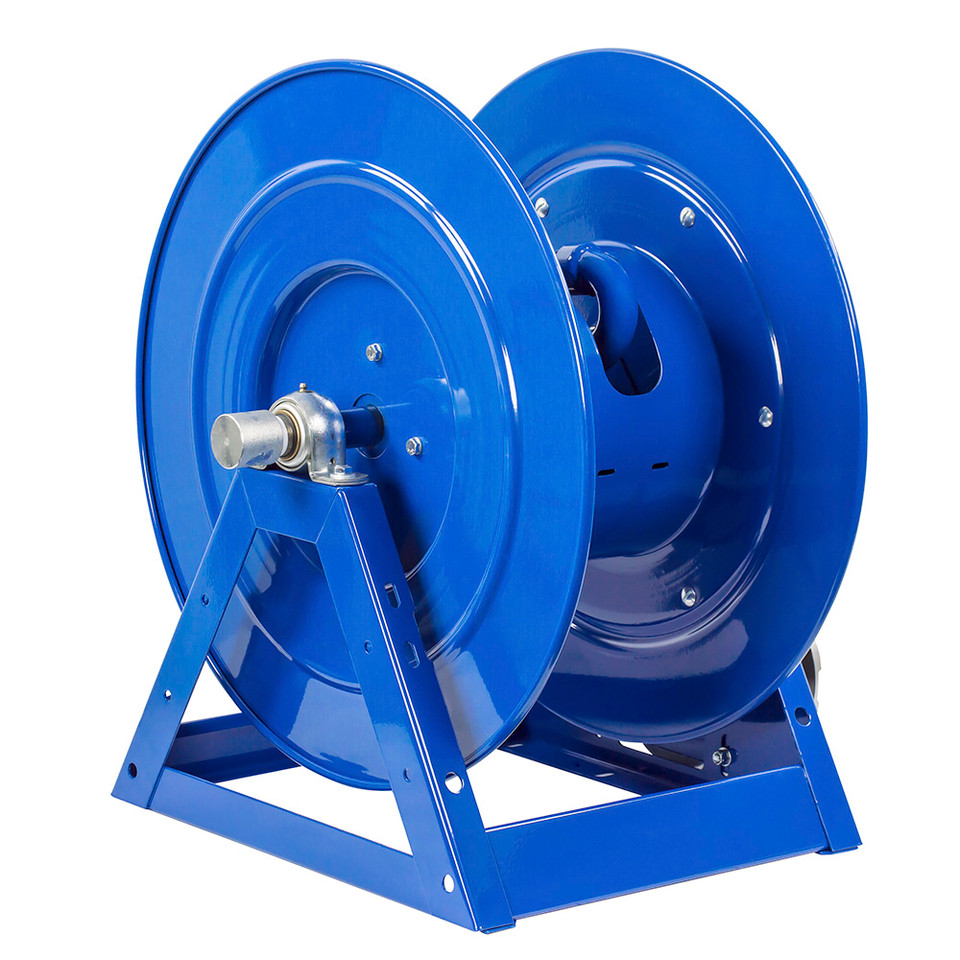

• Nickel-plated steel 90° full-flow NPT swivel inlet no need to remove the reel from its mount for seal maintenance or hose installation

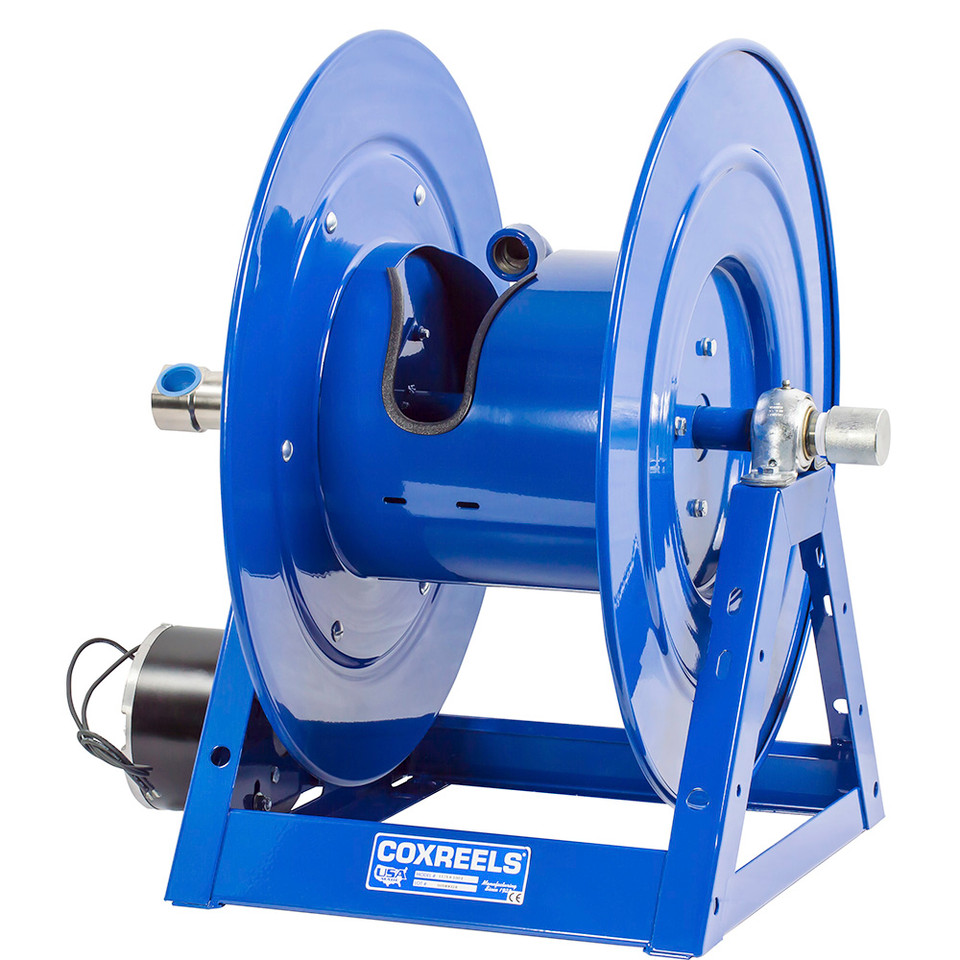

• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety

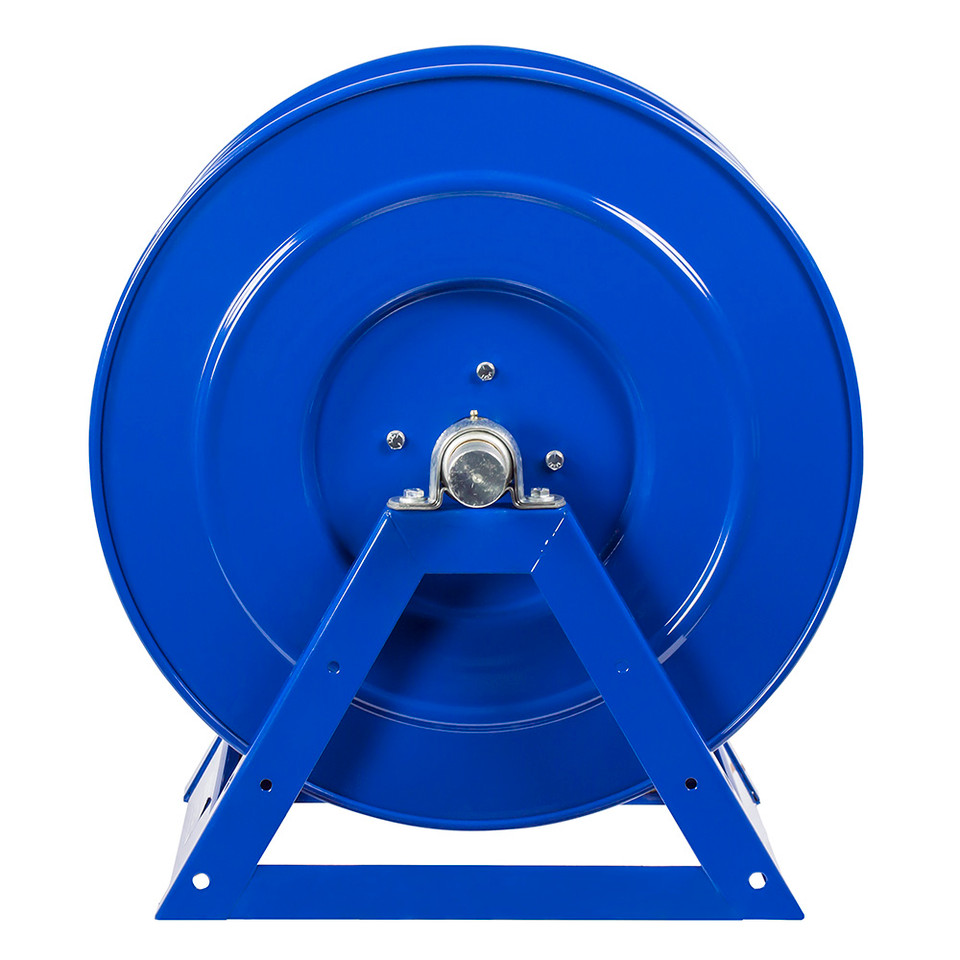

• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, or vehicle-body installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment, giving controlled pay-out at any extension length
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Mobile lube & service trucks automatic retraction of 1" fluid transfer or air hose from a service body running off vehicle battery, where no shore power or air motor supply is available
• Fleet & heavy equipment maintenance vehicles field service of trucks, dozers, and mining equipment where a 12V-powered reel integrates cleanly into the vehicle electrical system
• Wash-down & fluid delivery trailers high-pressure water or fluid delivery at up to 3,000 PSI from a self-contained trailer with its own 12V battery system
• Construction site service remote or off-grid installations where AC power is unavailable and compressed air at the reel is not practical
• Fixed plant installations with DC power infrastructure facilities running 12V control systems where matching the reel motor to existing DC electrical infrastructure simplifies wiring and control integration

FAQs

Q: What electrical connection does the 12V DC motor require?
A: The motor connects to a 12V DC power source typically a vehicle battery, auxiliary battery, or DC power supply. Coxreels does not publish exact amperage draw for this motor; confirm current requirements with your vehicle or system electrician before wiring to ensure the circuit and fusing are appropriately sized for sustained motor operation.

Q: What is the difference between the "-E" and the "-ED" variant?
A: Both are 12V DC motors, but the "-ED" is explosion-proof rated for use in hazardous or classified locations areas where flammable gases, vapors, or dusts may be present (such as fuel service areas, chemical facilities, or Class I/Division 1 environments). The "-E" is a standard non-explosion-proof motor for general service environments where those conditions are not present.

Q: Can the 12V DC motor run off a vehicle alternator while the engine is running?
A: Yes, a vehicle alternator charging system maintains battery voltage at approximately 13.5 14.4V while running, which is within normal operating range for a 12V DC motor. Most service truck installations connect the reel motor directly through a switched circuit so retraction is controlled from the cab or service body switch panel. Confirm wiring gauge and switch ampacity with a qualified electrician for your specific vehicle installation.

Q: Does the reel come with hose included?
A: No, the 1175-6-135-E ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 135 feet. Select hose rated for your working pressure and media (air, water, or other compatible fluids at up to 3,000 PSI) and install it on the drum before use.

Q: Is a hand-crank backup available if the motor loses power in the field?
A: The standard 1175-6-135-E does not include a hand-crank backup. Coxreels offers an auxiliary hand-crank option on some motorized 1175 Series configurations contact our team to confirm availability for this variant if manual backup capability is a requirement for your application.
