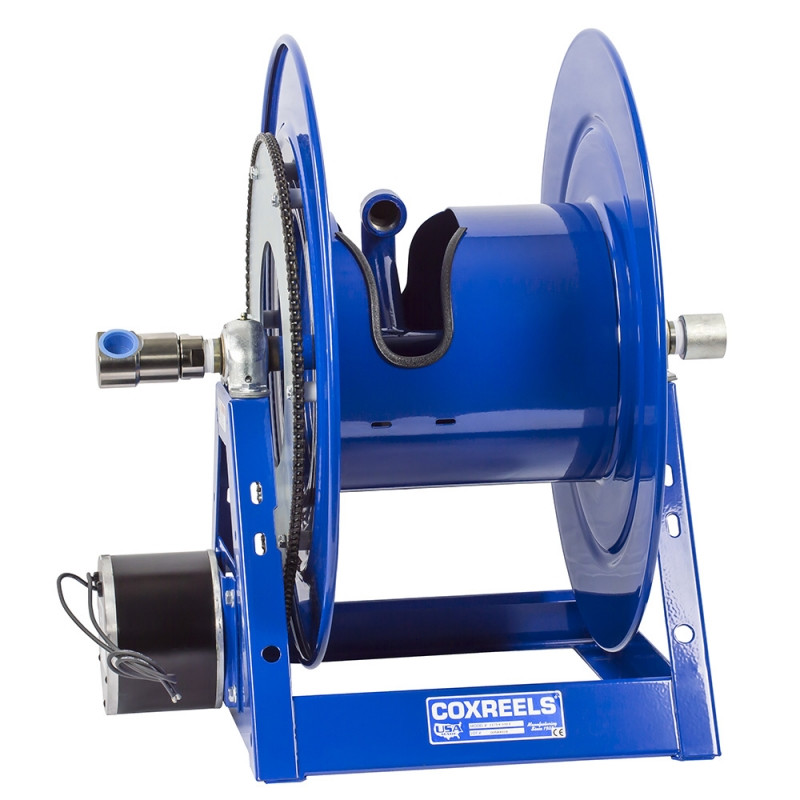

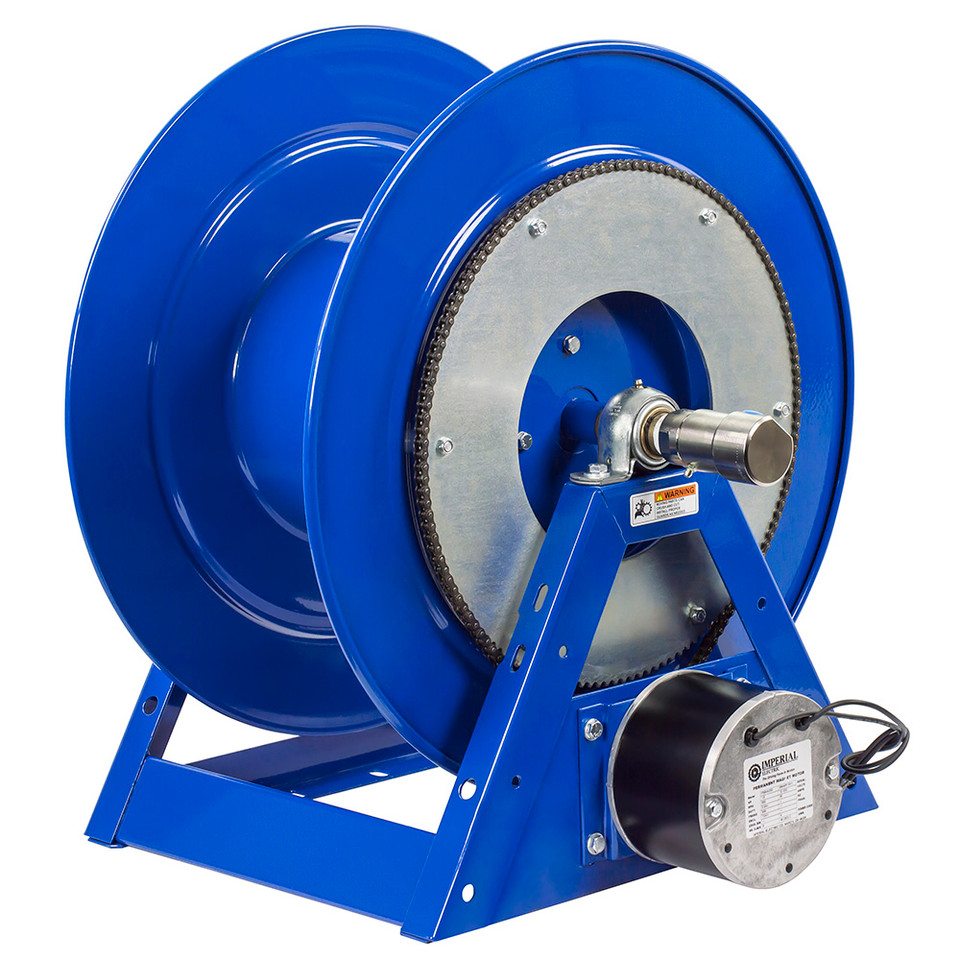

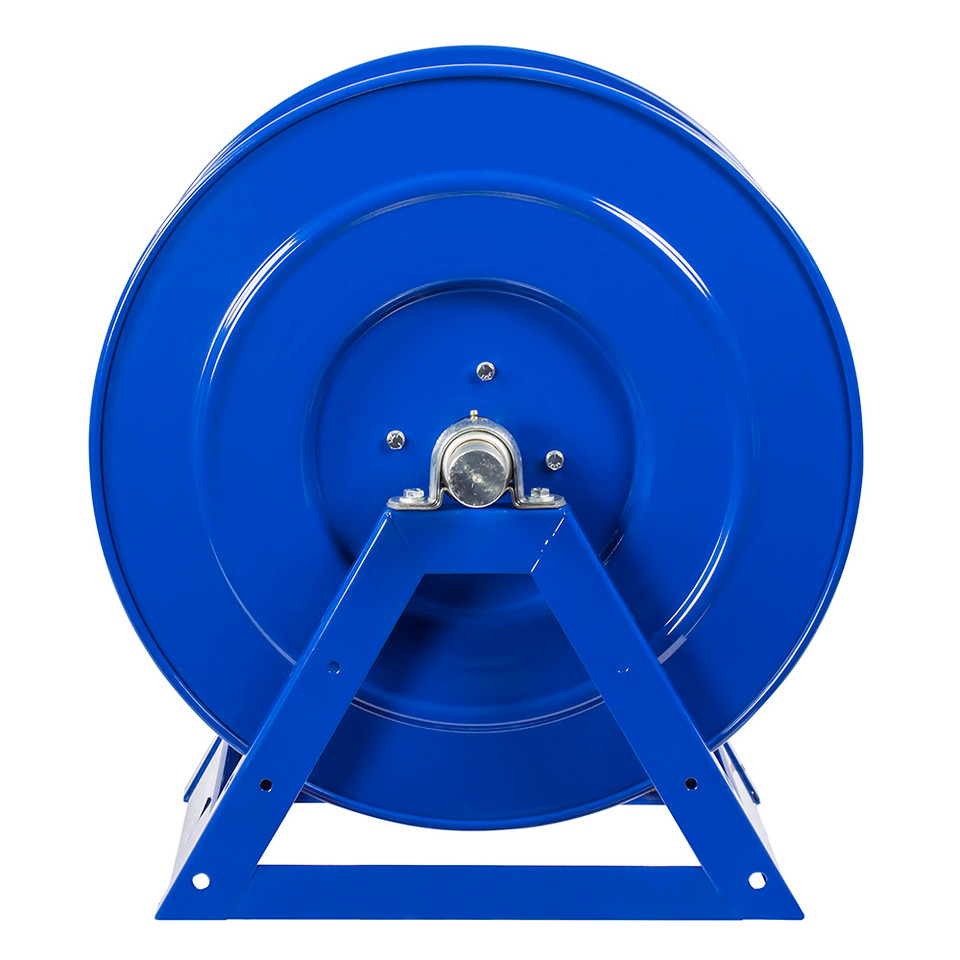

Coxreels 1175-6-135-EA Electric 115V AC Explosion Proof Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

Facilities classified as hazardous locations petroleum processing, chemical plants, solvent handling areas, grain handling, and anywhere flammable gases, vapors, or combustible dusts are present under normal operating conditions require electrical equipment rated for those environments. The Coxreels 1175-6-135-EA puts a 115V AC, 1/2 HP explosion-proof motor (a motor housed in an enclosure rated to contain any internal ignition and prevent it from propagating to the surrounding atmosphere, per NEC hazardous location requirements) on the full-capacity 1175 Series large-chassis reel, giving classified-area installations push-button retraction across 135 feet of 1-inch ID hose at up to 3,000 PSI. AFLAS swivel seals (a high-performance fluoroelastomer with superior resistance to heat, steam, and a broad range of chemicals compared to standard nitrile) pair with a nickel-plated steel 90° full-flow NPT swivel inlet and the all-welded 12-gauge steel A-frame to give this reel the construction depth that hazardous-area service demands chain and sprocket drive, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and a 2-year manufacturer warranty, wall- or ceiling-mounted wherever a standard 115V circuit is available.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 115V AC, 1/2 HP, Explosion Proof | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 22.875 | Length (in.): 20 | Approx. Weight (lbs.): 70

Features

• 115V AC, 1/2 HP explosion-proof motor with chain & sprocket drive rated for hazardous location installation where flammable gases, vapors, or combustible dusts may be present
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet superior chemical and heat resistance to 250°F versus standard nitrile seals, with no need to remove the reel from its mount for maintenance
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, ceiling, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment, giving controlled pay-out at any extension length
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Petroleum & chemical processing facilities hose management in classified areas where flammable vapors or gases are present under normal operating conditions and non-explosion-proof motors cannot be used
• Solvent handling & paint spray operations delivering air or fluid through a permanently mounted reel in finishing areas classified as hazardous locations under NEC Article 501
• Grain handling & agricultural processing dust-classified environments (NEC Article 502) where combustible grain dust creates ignition risk and explosion-proof-rated equipment is required
• Industrial MRO & plant maintenance in hazardous zones fixed overhead air supply stations in refineries, chemical plants, and processing facilities where 115V AC power is available and a compliant motorized reel is required
• Oil & gas production & service wellhead, compressor station, and field service installations in classified areas requiring motor-rewind hose management at 3,000 PSI working pressure

FAQs

Q: What does "explosion proof" mean on this motor, and what hazardous locations does it cover?
A: An explosion-proof motor is housed in an enclosure designed to contain any arc or ignition that occurs internally, preventing it from reaching the surrounding atmosphere. This is required in NEC-classified hazardous locations Class I (flammable gases or vapors), Class II (combustible dusts), or Class III (ignitable fibers). Confirm with your facility safety or electrical engineer that the specific motor rating on this reel matches the Class, Division, and Group designation of your installation area before mounting.

Q: What is the difference between the "-EA" and the "-E" variant?
A: The "-E" uses a 12V DC, 1/3 HP non-explosion-proof motor suited to standard service environments and mobile vehicle installations running off a battery system. The "-EA" uses a 115V AC, 1/2 HP explosion-proof motor more powerful, rated for classified hazardous locations, and requiring a standard AC circuit rather than a DC battery supply. Choose the "-EA" when your installation area is a classified hazardous location and 115V AC power is available at the mount point.

Q: Does the reel come with hose included?
A: No the 1175-6-135-EA ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 135 feet. Select hose rated for your working pressure, media, and temperature requirements (up to 3,000 PSI and 250°F for this reel) and install it on the drum. In chemical or solvent environments, also confirm hose material compatibility with your specific media.

Q: Why do AFLAS seals matter in hazardous or chemical environments?
A: AFLAS (tetrafluoroethylene-propylene) is a fluoroelastomer compound with broader chemical resistance and higher continuous service temperature than standard nitrile rubber. In environments where the swivel is exposed to chemical vapors, steam, or elevated ambient temperatures, AFLAS seals last significantly longer and reduce the maintenance frequency of the swivel assembly. For standard air-only applications the difference is minor, but it is a meaningful advantage in the chemical and processing environments this reel is built for.

Q: What electrical circuit is required for the 115V AC motor?
A: The motor runs on a standard 115V AC single-phase circuit. Coxreels does not publish the exact amperage draw for this motor. In hazardous locations, all conduit, wiring methods, junction boxes, and switching devices in the circuit must also be rated and installed per NEC Article 501 or 502 requirements for the applicable Class and Division consult a licensed electrician experienced in hazardous location wiring before installation.
