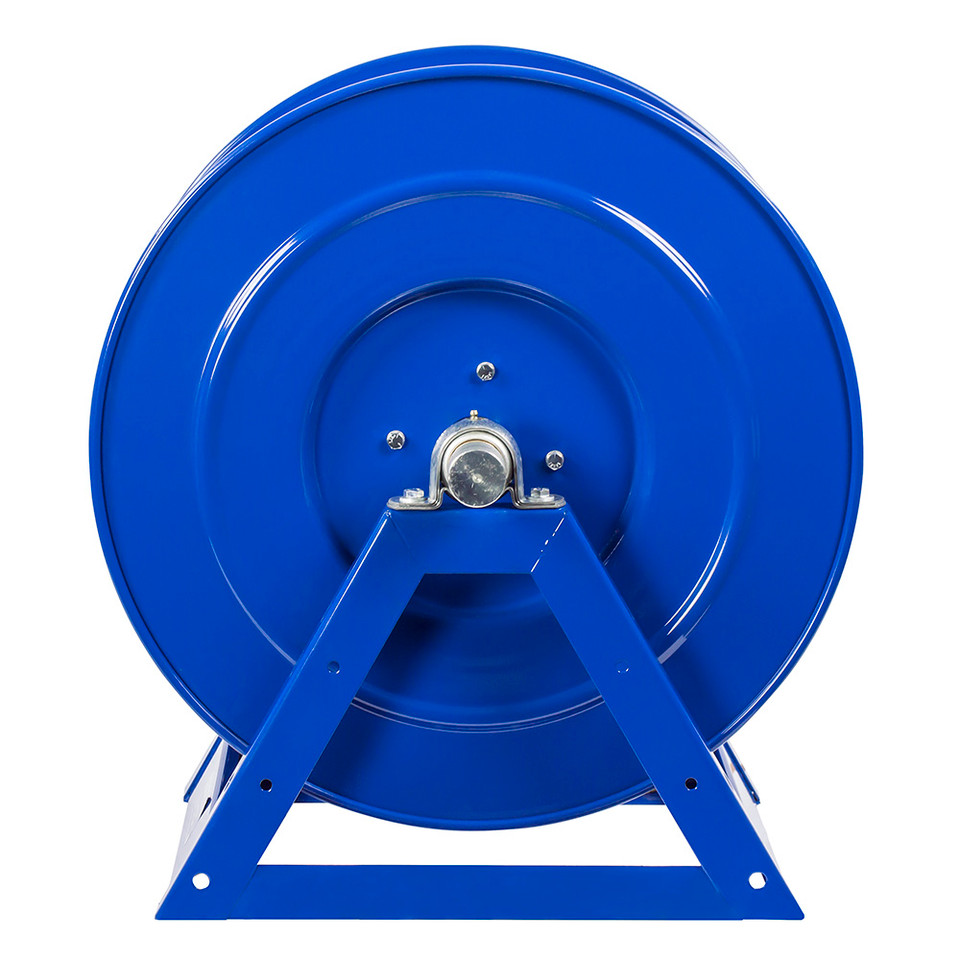

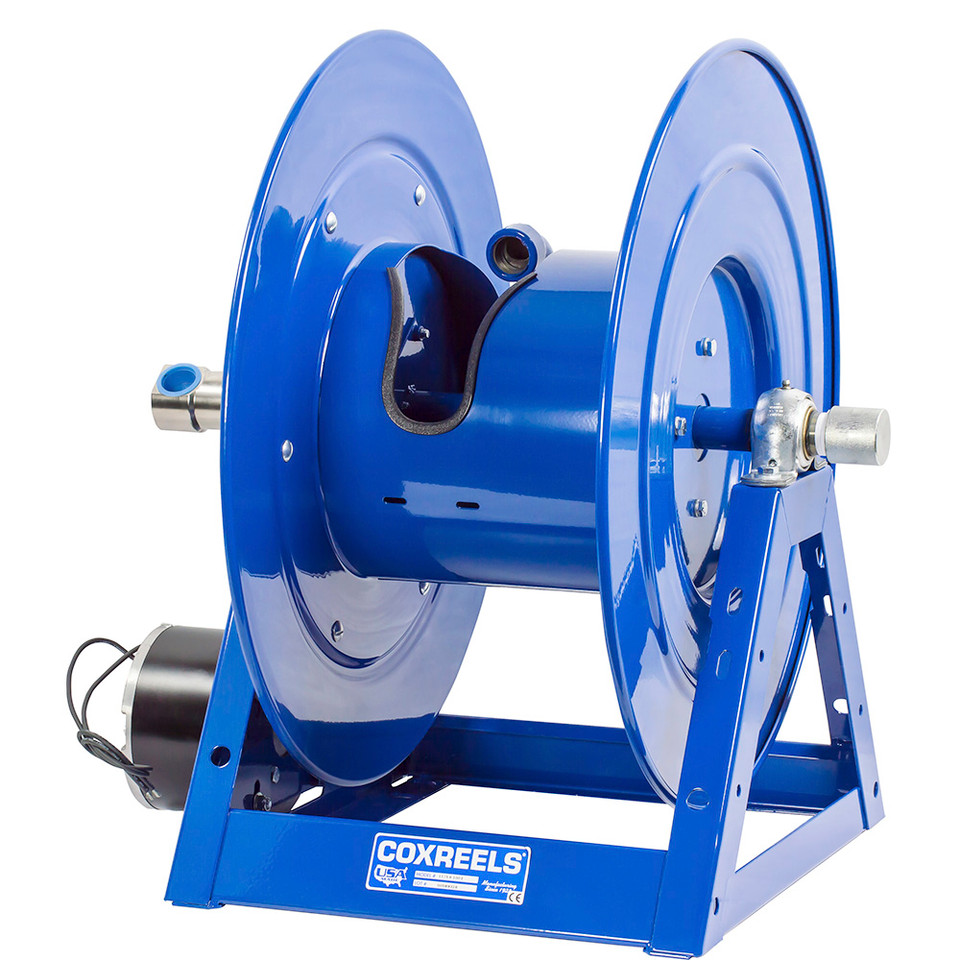

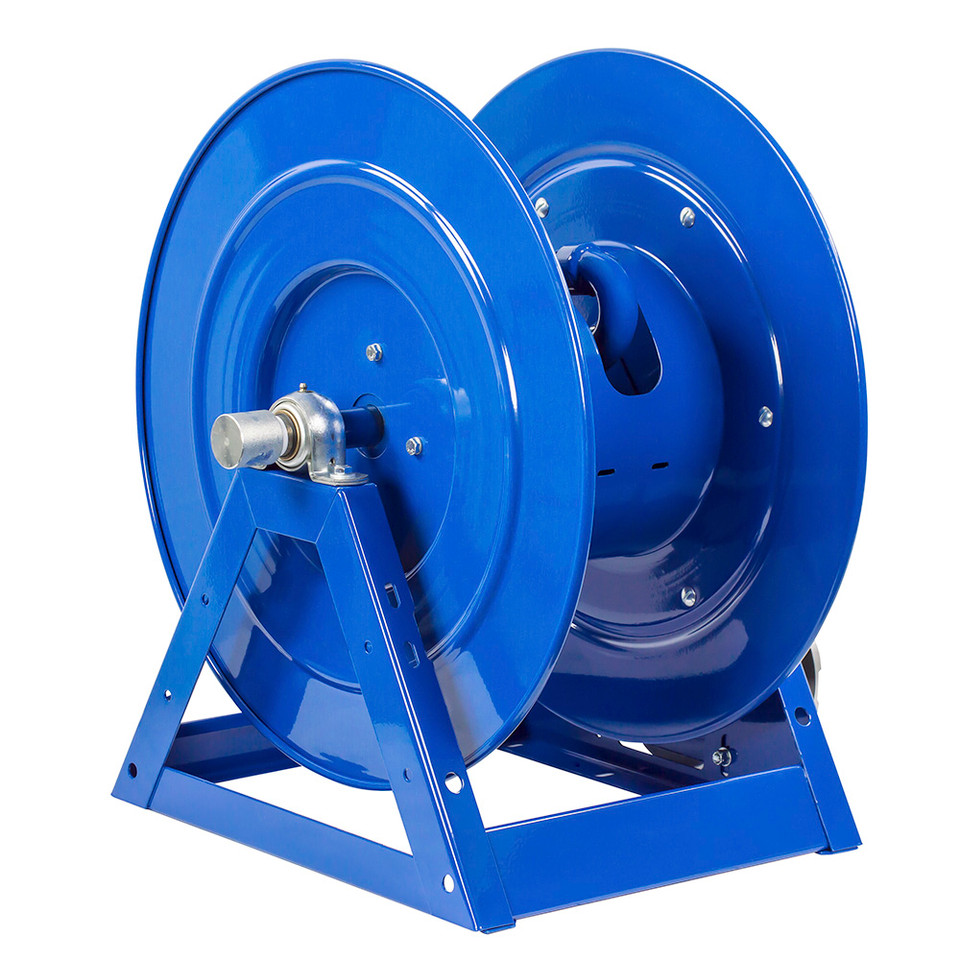

Coxreels 1175-6-135-H Hydraulic Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

Heavy equipment, offshore cranes, marine deck machinery, and mobile hydraulic systems often have one power source that is always available: the vehicle or machine's own hydraulic circuit. Running a separate electrical line or compressed air supply to a hose reel on that equipment adds complexity, potential failure points, and installation cost that a hydraulic-driven reel eliminates. The Coxreels 1175-6-135-H puts a hydraulic motor (a fluid-power-driven rewind drive that taps directly into the machine's existing hydraulic system through end-ported 9/16-18 UNF O-ring boss fittings the SAE straight-thread port standard used on most mobile hydraulic circuits) on the full 1175 Series large-chassis frame, delivering automatic retraction of 135 feet of 1-inch ID hose at up to 3,000 PSI through the same power source that runs the machine's cylinders, drives, and implements. The all-welded 12-gauge steel A-frame, CNC-spun ribbed discs, AFLAS swivel seals, permanently lubricated pillow block bearings, and chain and sprocket drive bring the same industrial construction as every other 1175 Series motorized variant, just driven by hydraulic fluid instead of air or electricity.

Type: Hydraulic Motor Rewind Hose Reel | Series: 1175 | Motor Type: Hydraulic, End Ported | Motor Port: 9/16-18 UNF O-Ring Boss (ORB) | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 22.875 | Length (in.): 20 | Approx. Weight (lbs.): 70

Features

• Hydraulic motor with end-ported 9/16-18 UNF O-ring boss connections integrates directly into existing mobile hydraulic circuits without requiring electrical wiring or a separate compressed air supply at the reel
• Chain & sprocket drive transfers hydraulic motor torque to the drum evenly for smooth, consistent retraction across the full 135-foot hose load
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet rated to 250°F with broad chemical resistance; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Excavators, dozers & heavy construction equipment tapping the machine's existing hydraulic system to power hose reel retraction on the service body or boom, where running electrical or air lines to the reel is impractical
• Logging & forestry equipment skidders, feller bunchers, and forwarders with hydraulic circuits already present at the reel mounting location, eliminating the need for a separate power source in remote field conditions
• Marine & offshore deck equipment vessels and platforms where deck space is constrained, classified location ratings may be required for other motor types, and hydraulic power from the ship's system is the most practical drive source
• Agricultural sprayer & irrigation equipment tractors and self-propelled sprayers with hydraulic remotes available at the hose reel mounting position, enabling powered retraction without additional electrical complexity
• Mobile hydraulic service units & cranes crane trucks, aerial work platforms, and hydraulic service vehicles where the reel motor integrates into the machine's hydraulic manifold or auxiliary circuit

FAQs

Q: What hydraulic flow rate and pressure does the motor require to operate?
A: Coxreels does not publish specific GPM or operating pressure requirements for the hydraulic rewind motor on the 1175 Series. Before installation, contact Coxreels directly or your distributor to confirm the motor's flow and pressure requirements against your machine's available hydraulic output. Mismatched flow rates can result in slow retraction, overheating, or motor damage.

Q: What fitting type do the motor ports use, and what does "end ported" mean?
A: The motor uses 9/16-18 UNF O-ring boss (ORB) ports the SAE straight-thread port standard common on mobile hydraulic equipment. ORB fittings seal on a soft O-ring at the port face rather than relying on thread sealant, making them leak-resistant and compatible with most mobile hydraulic hose assemblies. "End ported" means both the inlet and outlet ports are located on the end face of the motor housing rather than on the sides, which simplifies plumbing in tight mounting locations.

Q: Why choose a hydraulic motor over an electric or air motor for this reel?
A: On equipment that already has a hydraulic circuit at the reel location excavators, cranes, agricultural tractors, logging equipment a hydraulic motor is often the simplest integration: no electrical wiring, no air line to run, no battery to manage. It also works naturally in classified hazardous locations without requiring an explosion-proof motor rating, since the drive fluid is non-sparking. The tradeoff is that the reel requires a functioning hydraulic system to retract it cannot operate independently if the machine is shut down.

Q: Does the hydraulic motor allow reversible operation powered pay-out as well as retraction?
A: Hydraulic motors are inherently reversible by reversing flow direction through the ports, but whether the 1175-6-135-H's motor and drive configuration supports controlled powered pay-out in addition to retraction depends on the hydraulic circuit design and control valve arrangement on the host machine. Confirm with Coxreels whether the motor assembly supports bidirectional operation for your specific application.

Q: Does the reel come with hose included?
A: No the 1175-6-135-H ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 135 feet. Select hose rated for your working pressure, media, and temperature (up to 3,000 PSI and 250°F) and install it on the drum before use.
