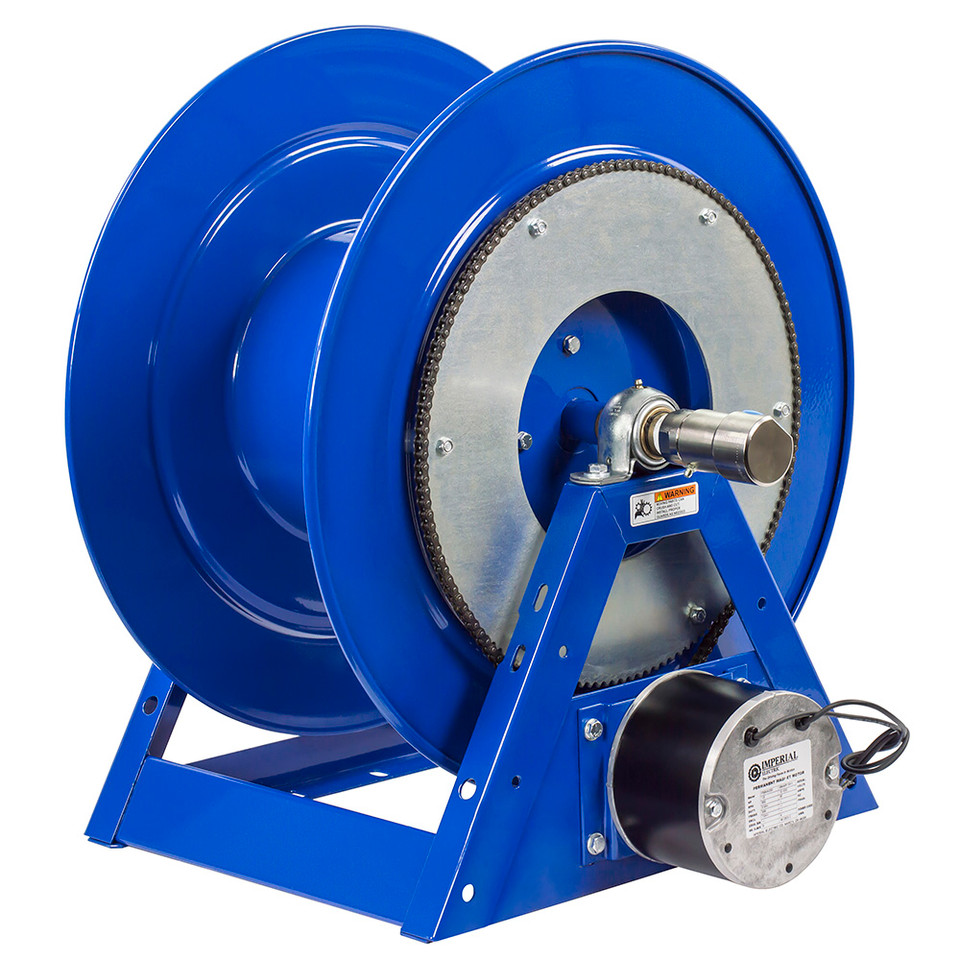

Coxreels 1175-6-135-EB Electric 24V DC Explosion Proof Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

Heavy equipment, fuel delivery trucks, and mobile service vehicles operating in classified hazardous locations face a specific problem: they run 24-volt DC electrical systems, they carry flammable or combustible materials, and they need a motorized hose reel that handles both constraints simultaneously. The Coxreels 1175-6-135-EB answers with a 24V DC, 1/2 HP explosion-proof reversible motor (an electrically powered rewind drive rated for use where flammable gases, vapors, or combustible dusts may be present, drawing from a 24V vehicle or equipment battery system rather than shore power or an air supply) on the full-capacity 1175 Series large-chassis frame 135 feet of 1-inch ID hose at 3,000 PSI, no AC outlet required, no compressed air line to the motor. The reversible motor (capable of running in both directions for powered pay-out and retraction, rather than retraction only) adds operational flexibility for applications where the operator needs powered control over hose deployment as well as retrieval. AFLAS swivel seals, a nickel-plated steel 90° NPT swivel, CNC-spun ribbed discs, and the all-welded 12-gauge steel A-frame round out the construction for mobile and fixed installations in the field environments this reel is built for.

Type: Electric Motor Rewind Hose Reel | Series: 1175 | Motor Type: 24V DC, 1/2 HP, Explosion Proof Reversible | Drive: Chain & Sprocket | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Max Temp (°F): 250 | Swivel Seals: AFLAS | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Width (in.): 34.5 | Height (in.): 22.875 | Length (in.): 20 | Approx. Weight (lbs.): 70

Features

• 24V DC, 1/2 HP explosion-proof reversible motor with chain & sprocket drive rated for hazardous locations where flammable gases, vapors, or combustible dusts may be present, powered from a 24V vehicle or equipment battery system
• Reversible motor operation powered control in both directions for hose pay-out and retraction, adding flexibility for operators who need motorized deployment as well as retrieval
• AFLAS swivel seals on the nickel-plated steel 90° full-flow NPT swivel inlet broad chemical and heat resistance to 250°F; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over extended service life
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Fuel delivery & petroleum service vehicles hose management on trucks carrying gasoline, diesel, or other flammable fuels where 24V DC vehicle systems and explosion-proof ratings are both required
• Underground mining equipment diesel-electric mining vehicles and equipment operating in classified zones where 24V battery systems are standard and hazardous location motor ratings are mandated
• Chemical & solvent service trucks mobile delivery or service of flammable or combustible chemicals where the reel must be explosion-proof and powered from the vehicle's 24V electrical system
• Oil & gas field service vehicles service trucks and equipment operating in wellhead and production areas classified under NEC Article 501, where 24V DC systems and hazardous-location ratings align with site electrical infrastructure
• Hazardous-location fixed installations with 24V DC infrastructure classified facilities running 24V DC control and power systems where matching the reel motor to existing DC infrastructure simplifies installation and compliance

FAQs

Q: What is the difference between the "-EB" and the "-E" variant?
A: Both motors run on DC power from a vehicle or equipment battery system, but they differ in voltage, power, and hazardous-location rating. The "-E" is a 12V DC, 1/3 HP non-explosion-proof motor for standard service environments. The "-EB" is a 24V DC, 1/2 HP explosion-proof reversible motor more powerful, rated for classified hazardous locations, and matched to 24V vehicle electrical systems. Choose the "-EB" when the installation area is a classified hazardous location and the vehicle or equipment runs a 24V system.

Q: What is the difference between the "-EB" and the "-EA" variant?
A: Both are explosion-proof motors rated for hazardous locations, but the power source differs. The "-EA" uses 115V AC power from a standard wall circuit suited to fixed plant installations with AC electrical infrastructure. The "-EB" uses 24V DC power from a vehicle or equipment battery system suited to mobile platforms and field installations where no AC power supply is available. Both are 1/2 HP. The "-EB" is also reversible; confirm whether the "-EA" offers reversible operation for your specific application.

Q: What does "reversible" mean on this motor, and when is it useful?
A: A reversible motor can power the drum in both directions deploying hose out as well as retracting it back. On a standard single-direction motor, hose is pulled out manually and only the retraction is motorized. With a reversible motor, both directions are under powered control, which is useful when friction from the hose weight, routing, or equipment position makes manual pay-out difficult, or when precise, controlled deployment speed matters.

Q: Does the reel come with hose included?
A: No the 1175-6-135-EB ships less hose. The drum accepts 1" ID / 1-7/16" OD hose up to 135 feet. Select hose rated for your working pressure, media, and temperature requirements (up to 3,000 PSI and 250°F) and install it on the drum. In fuel or chemical service applications, confirm hose material compatibility with your specific media before installation.

Q: What electrical connection and wiring does the 24V DC motor require?
A: The motor connects to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. In hazardous locations, all wiring methods, conduit, junction boxes, and control switches in the circuit must also be rated and installed per NEC Article 501 or 502 requirements for the applicable Class and Division. Coxreels does not publish the exact amperage draw for this motor; confirm current requirements and fusing with a licensed electrician experienced in hazardous location wiring before installation.
