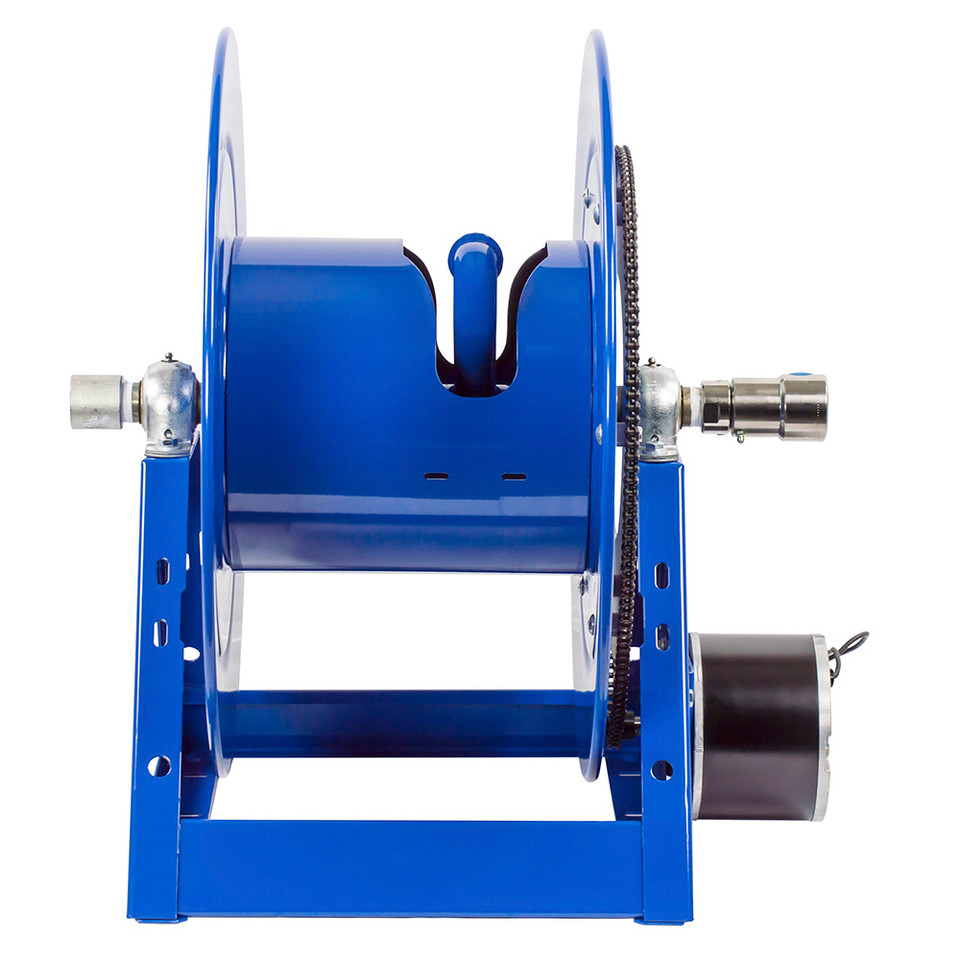

Coxreels 1175-6-135-A Compressed Air Motor Rewind Hose Reel | 1175 Series | 1" Hose Diameter | 135' Hose Length | 3000 Max PSI | Less Hose

When a high-pressure pneumatic line needs 135 feet of reach and you can't afford downtime spent hand-cranking hose back onto a reel, the Coxreels 1175-6-135-A delivers push-button retraction at up to 3,000 PSI enough pressure to run the largest production-grade pneumatic tools and fluid transfer lines without restriction. The aluminum 4-vane compressed air motor (a pneumatically powered rewind drive that uses your shop air supply to retract the hose automatically) handles the full 135-foot drum load with consistent torque, so hose piles up evenly rather than bunching at one side. At 1-inch inside diameter, the reel moves air volume comparable to 1" hose assemblies on impact wrenches, chippers, and heavy-duty air tools that demand high CFM flow. Built on Coxreels' all-welded 12-gauge steel A-frame base with CNC-spun ribbed discs, the 1175-6-135-A is suited to plant floors, maintenance bays, vehicle service pits, and industrial wash-down stations where a wall- or ceiling-mounted reel needs to handle daily production cycles without spring fatigue or manual effort.

Type: Compressed Air Motor Rewind Hose Reel | Series: 1175 | Motor Type: Aluminum 4-Vane Compressed Air Motor | Hose I.D. (in.): 1 | Hose O.D. (in.): 1-7/16 | Hose Length (ft.): 135 | Hose Included: No | Max PSI: 3,000 | Inlet Swivel: 1" F NPT 90° | Outlet Riser: 1" F NPT | Approx. Weight (lbs.): 70

Features

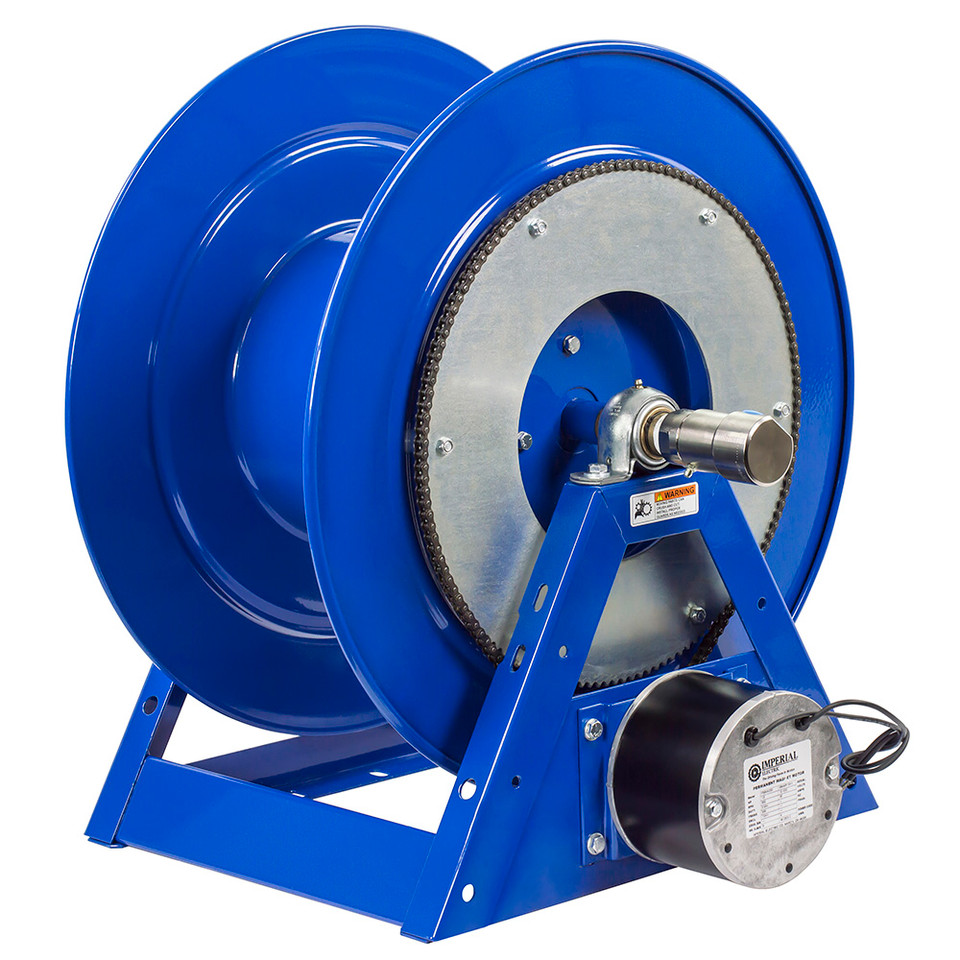

• Aluminum 4-vane compressed air motor with chain & sprocket drive for smooth, reliable automatic hose retraction
• Nickel-plated steel 90° full-flow NPT swivel inlet no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure and rigid wall or ceiling mount
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation over years of production use
• Adjustable tension brake prevents free-wheeling during hose deployment, giving controlled pay-out at any extension length
• Long-lasting chip-resistant, rust-inhibiting CPC powder coat finish

Made in USA:

2 Year Warranty

Applications

• Plant maintenance & industrial MRO supplying air to impact wrenches, chippers, grinders, and other high-CFM tools across large production floors where 100+ feet of reach is required
• Truck & fleet service bays running tire inflation, air-powered lift tools, and undercarriage service equipment at extended reach from a single overhead-mount reel
• Heavy equipment & construction service delivering sustained air supply to excavators, dozers, and construction machinery for maintenance and field service operations
• Manufacturing & fabrication shops keeping hose off the floor and auto-retracting between tool changes to reduce trip hazards and protect hose from foot traffic and forklift damage
• Agricultural & commercial facilities wash-down stations, grain handling, and equipment yards where long hose runs and automatic retraction save labor time at the end of every shift

FAQs

Q: What air supply does the motor need to retract the reel?
A: The compressed air motor on the "-A" suffix models uses your existing shop air supply (typically 90 120 PSI) to power the rewind. A standard 1/4" air line connection to the motor is typical. Exact CFM draw for the motor is not published by Coxreels confirm with your compressed air system before installation to ensure adequate supply without interrupting tool operation nearby.

Q: Does the reel come with hose, or is hose sold separately?
A: The 1175-6-135-A ships less hose (no hose included). The reel is designed to accept 1" ID / 1-7/16" OD hose up to 135 feet. You select and install hose rated for your pressure and media air, water, or other compatible fluids at up to 3,000 PSI.

Q: Can I mount this reel on a ceiling or wall, or does it have to sit on the floor?
A: The 1175-6-135-A is designed for permanent wall, ceiling, or overhead mounting. The mounting pattern is located directly in the steel A-frame base, so you bolt through the base into your structure. Floor mounting is not typical for this series it is a fixed-installation reel, not a portable unit.

Q: What is the difference between the "-A" (air motor) and the "-EA" (electric motor) versions?
A: The "-A" suffix uses a compressed air motor for retraction no electrical wiring required, and it is well suited to locations where an air supply is already present. The "-EA" suffix uses a 115V AC electric motor, which requires a power outlet but no air line at the motor. For hazardous or explosion-proof environments, Coxreels also offers the "-EA" in an explosion-proof rated variant.

Q: Is a hand-crank backup available if air pressure drops?
A: The motorized 1175-6-135-A does not include a hand-crank backup. If your application requires manual retraction capability as a fallback, consider the 1175-6-135 hand-crank version or a spring-return reel series. Contact our team to confirm which variant best fits your installation.
