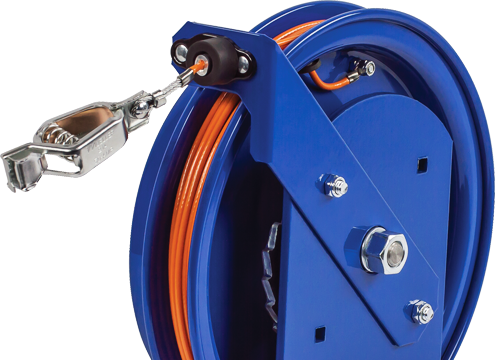

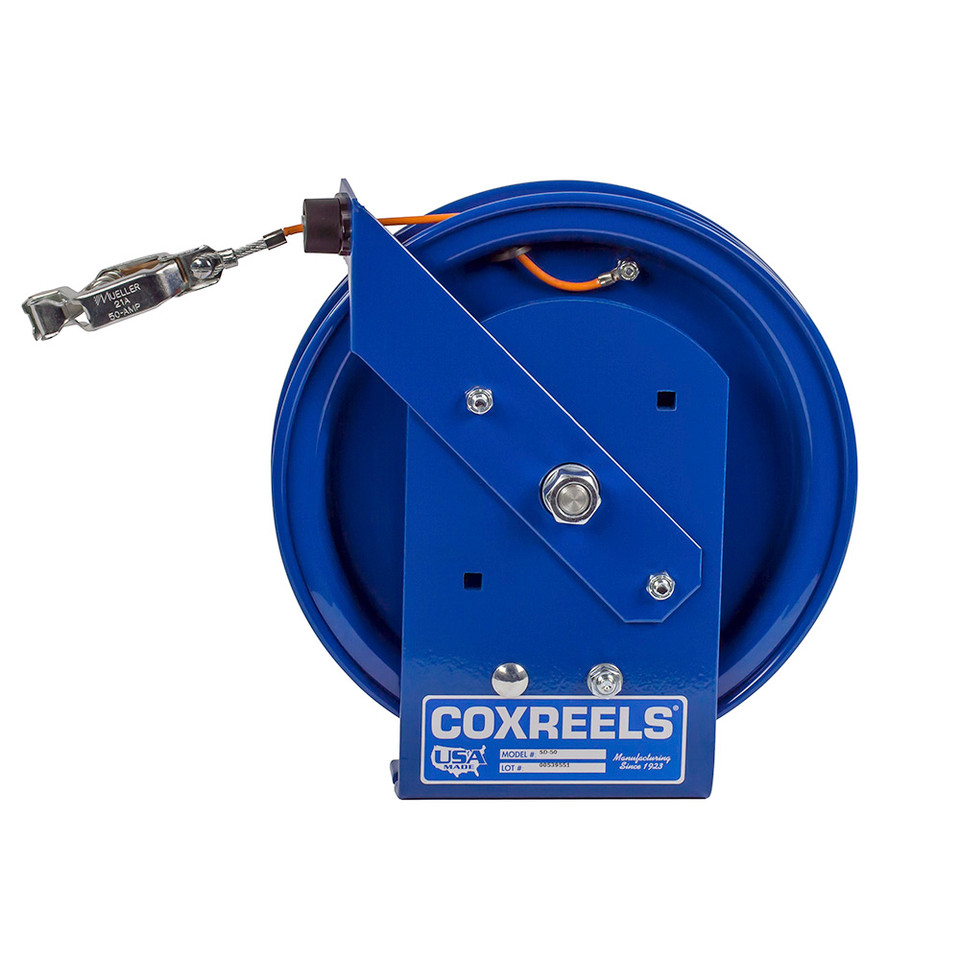

Coxreels SD-50 Spring Rewind Static Discharge Cable Reel | SD Series | 5/32" Cable Diameter | 50' Cable Length

When fuel transfer, refueling, or combustible-area service work requires a dedicated grounding point, the Coxreels SD-50 spring rewind static discharge cable reel keeps the grounding cable stored, visible, and ready to pull into position. This SD Series reel includes a 50 ft galvanized steel cable with a high-visibility orange vinyl cover, giving the cable a listed 5/32" outside diameter with jacket. Static discharge reels help manage static buildup during fuel handling, petroleum service, aviation ground support, marine refueling, and service truck work where organized grounding cable storage is part of the operating procedure.

The SD-50 uses spring rewind retraction, meaning the cable returns to the reel automatically after use without a hand crank. A multi-position, non-sparking lock ratchet secures the cable at the selected working length, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. The reel is supplied with cable, ball stop, and a 50 amp grounding clamp, so it arrives as a complete static discharge cable reel assembly rather than a less-cable reel.

Type: Spring Rewind Static Discharge Cable Reel | Series: SD Series | Model: SD-50 | Cable Included: Yes | Cable Material: Galvanized Steel | Cable Construction: 7 Strand x 7 Wire, 3/32" Cable | Cable O.D. with Jacket: 5/32" | Cable Length: 50 ft | Included Clamp: 50 Amp Grounding Clamp | Approx. Weight: 20 lbs | Size Index: 1

Features:

• Spring rewind static discharge cable reel supports grounding practices in combustible environments where static buildup must be controlled.
• Includes 50 ft galvanized steel 7 strand x 7 wire cable with a high-visibility orange vinyl cable cover.
• 5/32" listed cable outside diameter includes the protective vinyl jacket over the 3/32" galvanized steel cable.
• Includes cable, adjustable ball stop, and 50 amp grounding clamp for a complete static discharge reel setup.
• 50 ft cable length provides practical reach for fuel trucks, dispensing systems, service areas, and grounding points near the reel location.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
• Solid one-piece, heavy gauge 1/4" steel base provides stable support for stationary or vehicle-mounted use.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Bottom of base is not powder coated so the reel can ground through metal-to-metal contact.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
• Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support SD Series retraction performance.
• Multi-position non-sparking lock ratchet mechanism secures the cable at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Fuel and service trucks requiring retractable static grounding cable during dispensing, refueling, or transfer work.
• Fuel storage and dispensing systems where grounding cable storage must stay organized between fueling tasks.
• Aviation refueling and ground support operations where static discharge control is part of the fueling process.
• Fleet yards, vehicle refueling stations, and maintenance facilities handling combustible liquids.
• Marine, ship refueling, offshore, and petroleum handling environments where grounding reels are commonly paired with fuel hose reels.
• Oil refinery and fuel service locations where a compact 50 ft grounding cable reel fits the required work area.

FAQs:

• Q: What is the Coxreels SD-50 used for?
  A: It is used as a retractable static discharge or grounding cable reel. It helps provide an organized grounding connection in combustible environments such as fuel transfer, refueling, petroleum handling, aviation ground support, and service truck applications.
• Q: Does the SD-50 include the cable and grounding clamp?
  A: Yes. This model includes the 50 ft galvanized steel cable, ball stop, and a 50 amp grounding clamp. It is supplied as a cable-included reel, not a less-cable model.
• Q: Why is the cable listed as 5/32" when the cable construction is 3/32"?
  A: The 3/32" measurement refers to the galvanized steel cable itself. The 5/32" dimension is the outside diameter with the high-visibility orange vinyl jacket installed.
• Q: What is the difference between SD-50 and SD-50-1?
  A: The SD-50 uses galvanized steel cable, while the SD-50-1 uses stainless steel cable. Both are 50 ft SD Series spring rewind static discharge cable reels with a 5/32" outside diameter with jacket.
• Q: Can this reel be mounted on a truck, wall, floor, or overhead location?
  A: Yes. The SD Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be installed around the grounding workflow.
