Coxreels SDL-100 Spring Rewind Static Discharge Cable Reel | SD Series | 5/32" O.D Cable | 100' Cable Capacity | Less Cable

When a longer static grounding reach is required, but the cable must be supplied separately, the Coxreels SDL-100 provides the SD Series spring rewind reel platform in a less-cable configuration. This SD Series static discharge cable reel is built for 100 ft cable capacity with 5/32" outside diameter with jacket, giving installers a reel body for custom grounding cable setups used around fuel transfer, petroleum handling, aviation ground support, fleet refueling, and other combustible-area service applications.

The SDL-100 is supplied without a cable, allowing the installer to select the appropriate compatible static grounding cable for the application. Static discharge reels are used to help manage static buildup, which can create ignition risk around fuels and combustible materials. The SD Series spring rewind mechanism retracts the installed cable automatically after use, while the multi-position non-sparking lock ratchet secures the cable at the selected working length. An adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.

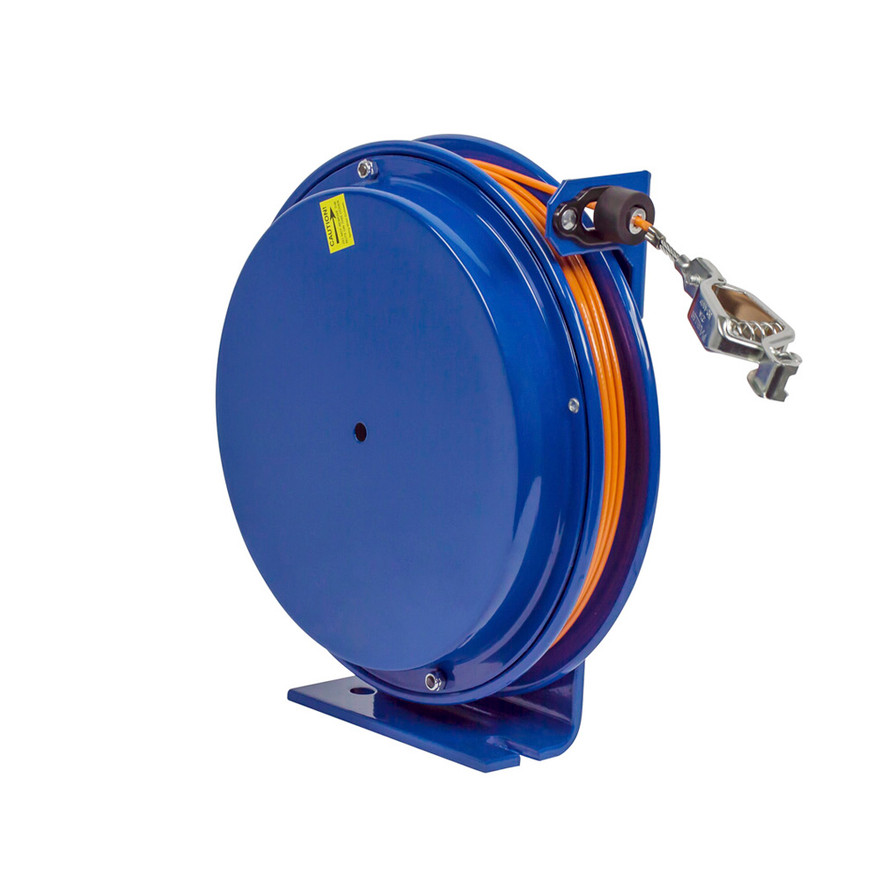

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cable. Please note this before ordering.

Type: Spring Rewind Static Discharge Cable Reel | Series: SD Series | Model: SDL-100 | Configuration: Less Cable | Cable Included: No | Cable Capacity: 100 ft | Cable O.D. with Jacket: 5/32" | Compatible Cable Construction: 7 Strand x 7 Wire, 3/32" Cable | Retraction: Spring Rewind | Approx. Weight: 28 lbs | Size Index: 2

Features:

• Less-cable configuration allows the installer to supply the grounding cable required for the application.
• Built for 100 ft cable capacity with 5/32" outside diameter with jacket when fitted with compatible static discharge cable.
• Spring rewind static discharge reel supports grounding practices in combustible environments where static buildup must be controlled.
• Compatible with 7 strand x 7 wire galvanized steel or stainless steel 3/32" cable used with a high-visibility orange vinyl cable cover.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
• Solid one-piece, heavy gauge 1/4" steel base provides stable support for stationary or vehicle-mounted use.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Bottom of base is not powder coated so the reel can ground through metal-to-metal contact.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
• Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support SD Series retraction performance.
• Multi-position non-sparking lock ratchet mechanism secures the installed cable at the desired working length.
• Rolled edges and ribbed discs provide added strength and safer handling around the reel body.

Made in USA:

2 Year Warranty

Applications:

• Custom static grounding installations where the grounding cable must be selected separately from the reel.
• Fuel and service trucks requiring a retractable grounding reel body for longer cable reach during dispensing or transfer work.
• Bulk fuel storage and dispensing systems where grounding distance and cable material selection are determined by site requirements.
• Aviation refueling and ground support operations where static discharge control is part of the fueling procedure.
• Fleet yards, vehicle refueling areas, and maintenance facilities handling combustible liquids.
• Marine, ship refueling, offshore, petroleum handling, and refinery environments where cable material may need to be matched to corrosion exposure.

FAQs:

• Q: Does the Coxreels SDL-100 include the grounding cable?
  A: No. The SDL-100 is a less-cable model. The compatible static discharge cable must be supplied separately.
• Q: What cable capacity does the SDL-100 support?
  A: The SDL-100 is listed for 100 ft cable capacity with 5/32" outside diameter with jacket. The SD Series uses 3/32" 7 strand x 7 wire galvanized steel or stainless steel cable with an orange vinyl cover on cable-included models.
• Q: How is SDL-100 different from SD-100?
  A: The SD-100 includes 100 ft of galvanized steel cable, ball stop, and a 50 amp grounding clamp. The SDL-100 is the less-cable reel configuration and is supplied for installations where the cable is selected separately.
• Q: Can the SDL-100 be used with stainless steel cable?
  A: The SD Series is available with galvanized steel or stainless steel 3/32" cable on cable-included models. For a less-cable SDL-100 installation, select compatible cable that matches the reel capacity and grounding requirements for the application.
• Q: Can this reel be mounted on a truck, wall, floor, or overhead location?
  A: Yes. The SD Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be installed around the grounding workflow.
