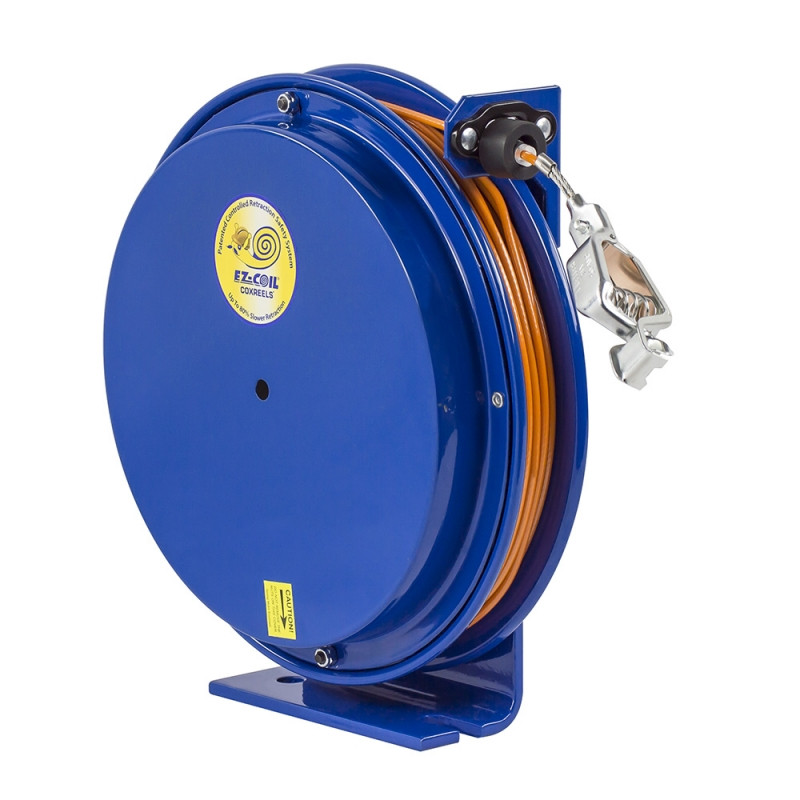

Built for longer grounding runs in fuel transfer, chemical handling, and combustible-environment work areas, the Coxreels EZ-SD-100-1 Spring Rewind Static Discharge Cable Reel helps keep grounding cable organized, retractable, and ready for use. This EZ-SD Series reel includes a 100 ft stainless steel cable with a high-visibility orange vinyl cover and 5/32" O.D., giving operators extended reach for grounding trucks, tanks, drums, dispensing equipment, and transfer points before fluid movement begins.
The EZ-Coil safety rewind system controls spring return speed, helping the cable retract more gradually than a conventional spring driven reel. A multi-position non-sparking lock ratchet secures the cable at the selected working length, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting layouts. The reel includes cable, ball stop, and a 50 Amp grounding clamp for common static discharge control applications.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-100-1 | Cable Material: Stainless Steel | Cable Length: 100 ft | Cable O.D.: 5/32" | Approx. Weight: 32 lbs | Size Index: 2 | Overall Dimensions: 4" W x 15" H x 14-1/2" L | Base Mounting Pattern: 2-1/2" x 6" | Mounting Pattern: 4" | Included: Cable, Ball Stop, 50 Amp Grounding Clamp
Features:
- Stainless steel 7 strand x 7 wire cable with high-visibility orange vinyl cover for grounding in fuel, chemical, and other static-sensitive work areas.
- 100 ft cable length provides the longest reach in the EZ-SD spring rewind lineup for larger service areas, mobile equipment, and transfer zones.
- Includes cable, ball stop, and 50 Amp grounding clamp; 100 Amp copper grounding clamp is available by factory consultation.
- EZ-Coil safety rewind system retracts up to 80% slower than conventional spring driven reels for more controlled cable return.
- Compact static discharge cable reel configuration keeps grounding cable stored on the reel instead of loose on the floor, truck bed, or work platform.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions to match common plant, fleet, fueling, and dispensing station layouts.
- Solid one-piece, heavy gauge 1/4" steel base provides a stable mounting platform.
- 1" solid steel axle, lubricated precision bearings, and multi-position non-sparking lock ratchet support smooth payout, rewind, and cable positioning.
Made in USA:
Applications:
- Fuel transfer and dispensing stations where a 100 ft grounding cable helps reach vehicles, tanks, and equipment positioned farther from the reel.
- Service trucks and mobile refueling units that require longer cable coverage around jobsites, fleet yards, or equipment staging areas.
- Chemical handling and transfer locations where static discharge control is part of the operating procedure before pumping or dispensing begins.
- Aviation, fleet, petroleum, and maintenance operations that ground containers, vehicles, or transfer equipment during fluid movement.
- Plant and facility MRO teams replacing loose grounding cable with a mounted spring rewind reel for cleaner storage and quicker deployment.
FAQs:
- Q: What is the Coxreels EZ-SD-100-1 used for?
A: It is used to help ground equipment, vehicles, tanks, or containers so static buildup can be dissipated before it becomes a spark hazard. Static discharge reels are commonly used around fuel transfer, chemical handling, and other combustible environments. - Q: What is the difference between the EZ-SD-100 and EZ-SD-100-1?
A: The EZ-SD-100-1 uses stainless steel cable. The standard EZ-SD-100 model uses galvanized steel cable. - Q: Does this reel include the cable and clamp?
A: Yes. This model includes the cable, ball stop, and 50 Amp grounding clamp. - Q: What does EZ-Coil mean on this static discharge reel?
A: EZ-Coil is Coxreels' controlled rewind system. It slows the spring return action so the cable retracts more gradually than a conventional spring driven reel. - Q: Can this reel be mounted on a truck or overhead structure?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. Final installation should follow Coxreels mounting instructions and the grounding requirements for the specific application.
| WITH STAINLESS STEEL CABLE | LESS CABLE | SIZE INDEX |
||||
|---|---|---|---|---|---|---|
| SKU | FT. | O.D. | APRX. LBS. |
LESS CABLE SKU | APRX. LBS. |
|
| EZ-SD-35-1 | 35 | 5/32" | 18 | - | - | 1 |
| EZ-SD-50-1 | 50 | 5/32" | 20 | EZ-SDL-50 | 18 | 1 |
| EZ-SD-75-1 | 75 | 5/32" | 31 | - | - | 2 |
| EZ-SD-100-1 | 100 | 5/32" | 32 | EZ-SDL-100 | 28 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
