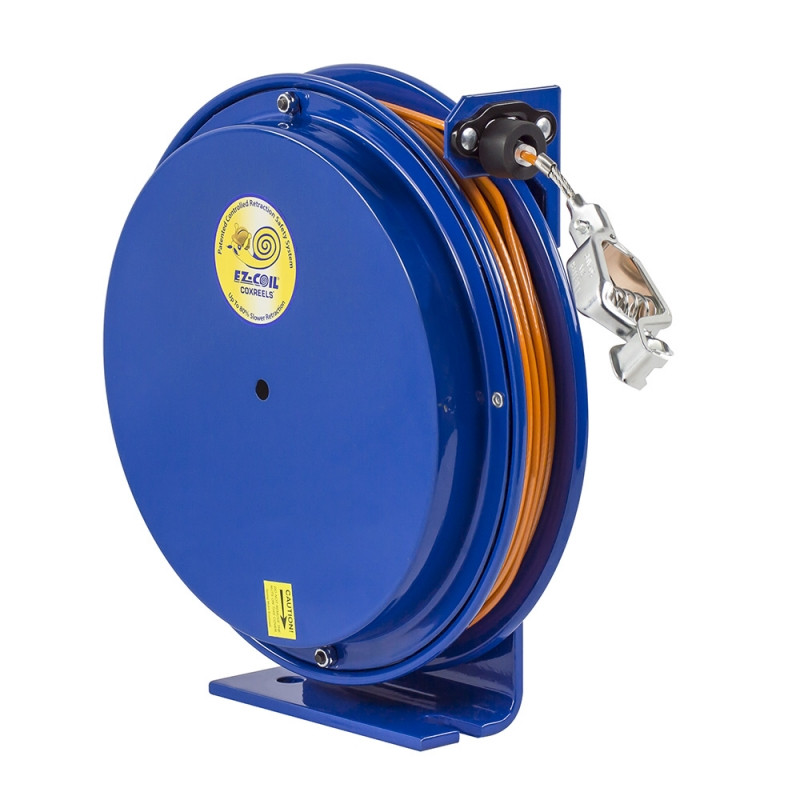

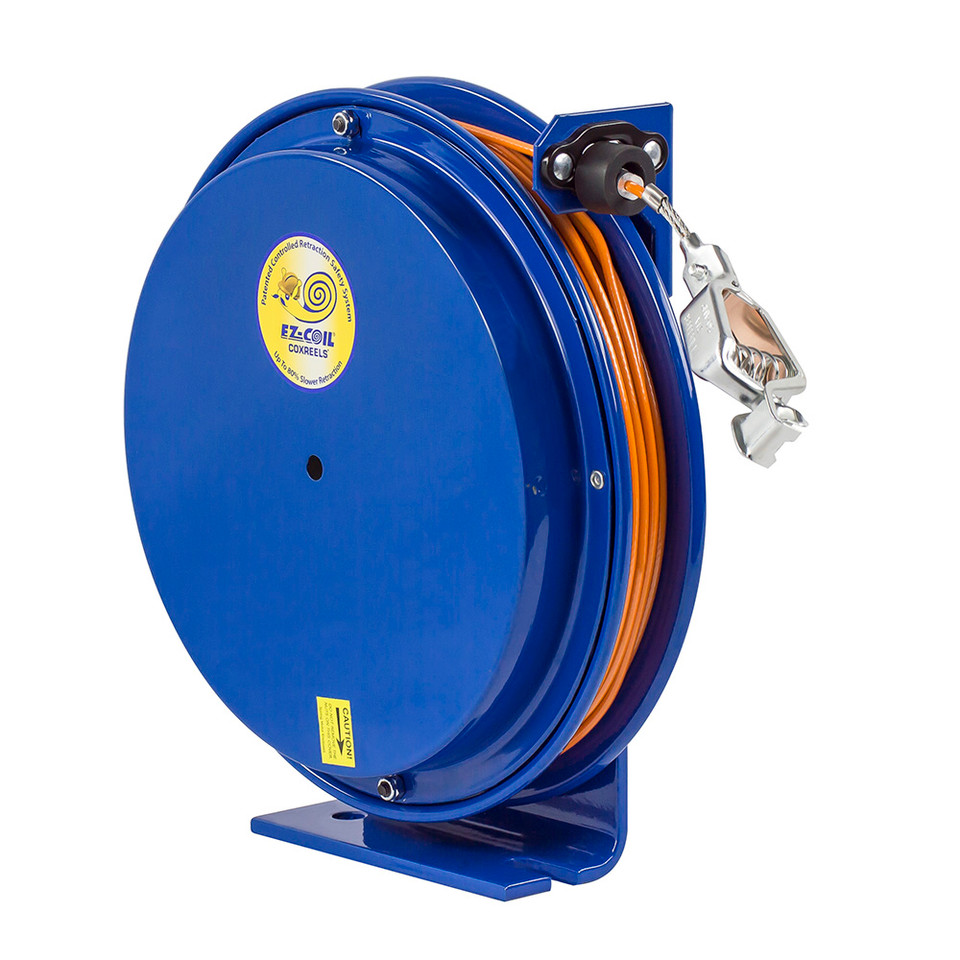

When static buildup needs a controlled path to ground during fuel transfer, chemical handling, or other combustible-environment work, the Coxreels EZ-SD-35 Spring Rewind Static Discharge Cable Reel keeps grounding cable organized, visible, and ready to deploy. This EZ-SD Series reel is supplied with a 35 ft, 5/32" O.D. galvanized steel cable, helping operators reach tanks, drums, service vehicles, and equipment without leaving loose cable on the floor. Its spring rewind design retracts the cable automatically after use, while the EZ-Coil retraction system slows cable return to help reduce snap-back during rewind.
The Coxreels EZ-SD-35 includes a high-visibility orange vinyl cable cover, ball stop, and 50 Amp grounding clamp for static discharge applications where grounding connection matters before fluid movement begins. Static discharge cable reels are commonly paired with fuel hose reels to help manage grounding procedures in service trucks, fueling stations, maintenance shops, and bulk-transfer areas.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-35 | Cable Length: 35 ft | Cable O.D.: 5/32" | Cable Material: 7 strand x 7 wire galvanized steel | Approx. Weight: 18 lbs | Size Index: 1 | Overall Dimensions: 3-7/8" W x 11-1/2" H x 11" L | Base Mounting Pattern: 2-1/2" x 6" with 4" mounting dimension | Included: Cable, ball stop, and 50 Amp grounding clamp
Features:
- Static discharge reel configuration helps provide a grounding path in combustible environments where static buildup may create ignition risk.
- 35 ft galvanized steel cable gives operators reach for grounding tanks, drums, vehicles, and transfer equipment without loose cable storage.
- High-visibility orange vinyl cable cover makes the grounding cable easier to see around fuel reels, service trucks, and shop floors.
- Includes cable, adjustable ball stop, and 50 Amp grounding clamp for a complete standard grounding reel setup.
- EZ-Coil patented safety system retracts up to 80% slower than conventional spring-driven reels to help control cable rewind.
- Enclosed factory-tuned cartridge-style spring motor supports smooth spring rewind operation and serviceable reel construction.
- Multi-position non-sparking lock ratchet mechanism secures the cable at the desired working length during use.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for flexible installation planning.
- Solid one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support stable mounting and smooth rotation.
- Bottom of base is left un-powder-coated to ground the reel when properly installed.
Made in USA:
Applications:
- Fuel transfer and dispensing areas where static discharge grounding is part of the operating procedure.
- Service trucks and mobile maintenance rigs that need a retractable grounding cable stored close to fuel or fluid reels.
- Petroleum, lubricant, and chemical handling stations where cable organization helps reduce trip hazards and loose cable damage.
- Fleet shops, equipment yards, and agricultural maintenance areas grounding tanks or equipment before transfer work.
- Industrial MRO locations pairing grounding reels with hose reels for safer, more organized fluid-handling setups.
FAQs:
- Q: What is a static discharge cable reel used for?
A: A static discharge cable reel stores and retracts grounding cable used to help provide a controlled path for static electricity. This is important in combustible environments, including fuel transfer and similar fluid-handling applications. - Q: Does the Coxreels EZ-SD-35 include the cable?
A: Yes. The EZ-SD-35 is supplied with 35 ft of galvanized steel cable, a ball stop, and a 50 Amp grounding clamp. - Q: What does EZ-Coil do on this reel?
A: EZ-Coil is Coxreels' controlled retraction system. It retracts the cable more slowly than conventional spring-driven reels, helping reduce sudden cable return during rewind. - Q: Can this reel be mounted on a wall, floor, ceiling, or vehicle?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is installed according to Coxreels mounting and grounding requirements. - Q: Is this the stainless steel cable version?
A: No. Model EZ-SD-35 is the galvanized steel cable version. Coxreels lists EZ-SD-35-1 as the stainless steel cable version.
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
