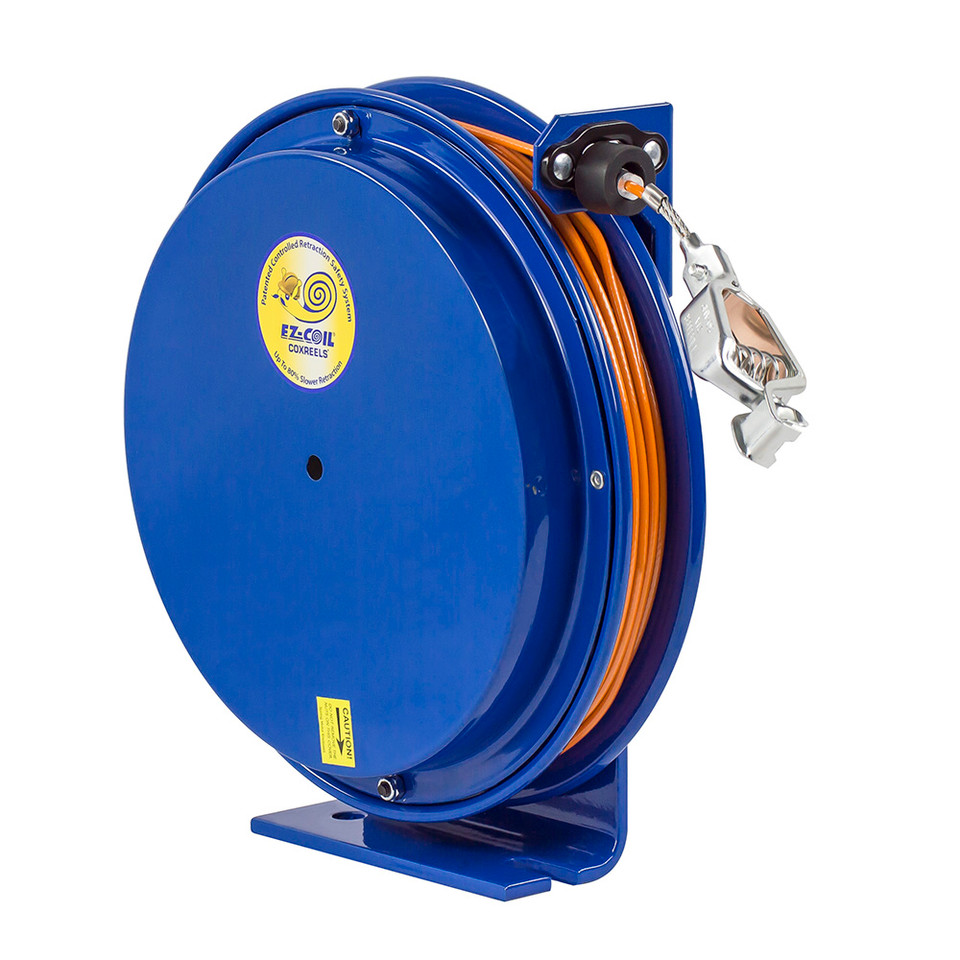

Coxreels EZ-SD-50 Spring Rewind Static Discharge Cable Reel | EZ-SD Series | 50' Cable Length | 5/32" Gauge

For fueling areas, service trucks, and fluid transfer points where static electricity must be managed before work begins, the Coxreels EZ-SD-50 Spring Rewind Static Discharge Cable Reel keeps grounding cable stored neatly and ready to pull. This EZ-SD Series reel includes a 50 ft, 5/32" O.D. galvanized steel cable, giving operators added reach compared with the 35 ft version while still using the compact Size Index 1 reel frame. Static discharge reels help provide a grounding path in combustible environments where static buildup could create an ignition hazard.

The EZ-SD-50 is equipped with Coxreels' EZ-Coil controlled retraction system, which slows spring rewind to help reduce cable snap-back during return. A high-visibility orange vinyl cable cover makes the grounding lead easier to identify around fuel reels and shop equipment, while the included ball stop and 50 Amp grounding clamp support routine grounding connections for tanks, drums, vehicles, and transfer equipment.

Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-50 | Cable Length: 50 ft | Cable O.D.: 5/32" | Cable Material: 7 strand x 7 wire galvanized steel | Approx. Weight: 20 lbs | Size Index: 1 | Overall Dimensions: 3-7/8" W x 11-1/2" H x 11" L | Base Mounting Pattern: 2-1/2" x 6" with 4" mounting dimension | Included: Cable, ball stop, and 50 Amp grounding clamp

Features:

• Static discharge reel helps manage grounding cable in combustible environments where static buildup must be controlled before fluid transfer.
• 50 ft galvanized steel cable provides extra reach for tanks, drums, vehicles, and mobile fueling equipment.
• High-visibility orange vinyl cable cover improves cable awareness around reels, pumps, and shop work areas.
• Includes cable, ball stop, and 50 Amp grounding clamp for a complete standard static discharge reel setup.
• EZ-Coil patented safety system retracts up to 80% slower than conventional spring-driven reels to help control rewind speed.
• Enclosed factory-tuned cartridge-style spring motor supports consistent spring rewind operation.
• Multi-position non-sparking lock ratchet mechanism secures the cable at the desired working length.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.
• Solid one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support stable mounting and smooth reel rotation.
• Bottom of base is left un-powder-coated to ground the reel when properly installed.

Made in USA:

2 Year Warranty

Applications:

• Fuel transfer stations where grounding cable is used before dispensing or moving combustible fluids.
• Service trucks and mobile maintenance rigs that need retractable grounding cable stored close to fuel or lubrication reels.
• Fleet shops and equipment yards grounding vehicles, tanks, and machinery during transfer work.
• Petroleum, lubricant, and chemical handling areas where loose cable storage can create trip hazards or cable damage.
• Industrial MRO departments pairing static discharge reels with fuel reels for cleaner, more organized grounding procedures.

FAQs:

• Q: What is the Coxreels EZ-SD-50 used for?
  A: The EZ-SD-50 is used to store and retract static discharge grounding cable. It is commonly used around fuel transfer, combustible fluid handling, service trucks, and maintenance areas where static buildup must be controlled.
• Q: Does this reel include the grounding cable?
  A: Yes. The EZ-SD-50 includes 50 ft of 5/32" O.D. galvanized steel cable, a ball stop, and a 50 Amp grounding clamp.
• Q: What is the difference between EZ-SD-50 and EZ-SD-50-1?
  A: The EZ-SD-50 uses galvanized steel cable. The EZ-SD-50-1 is the stainless steel cable version.
• Q: Why does this reel have EZ-Coil retraction?
  A: EZ-Coil slows the rewind speed compared with conventional spring-driven reels. This helps reduce sudden cable return and gives operators more control when retracting the cable.
• Q: Can this reel be mounted on a vehicle?
  A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is installed according to Coxreels mounting and grounding requirements.
