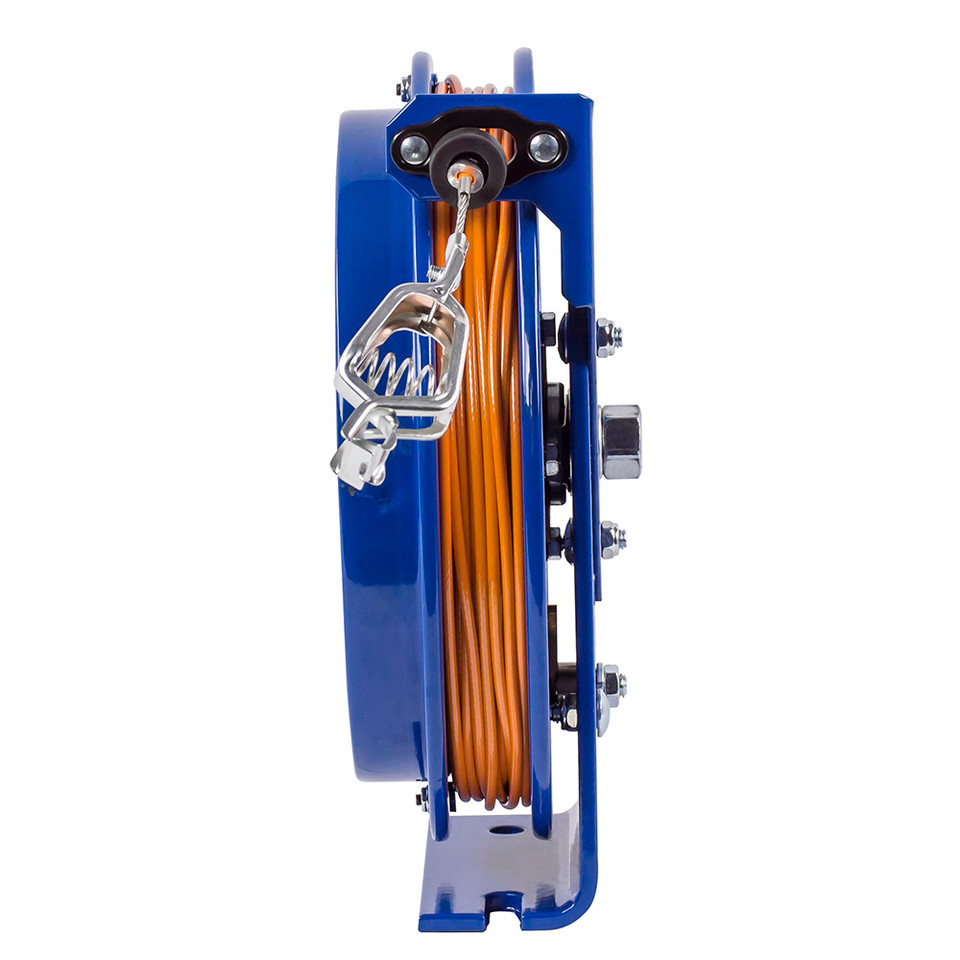

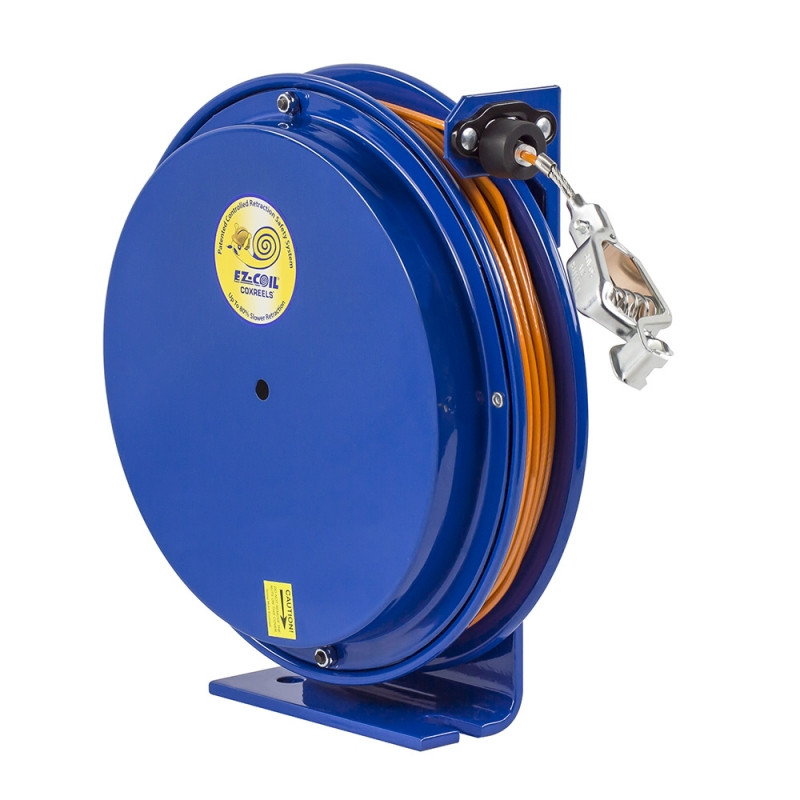

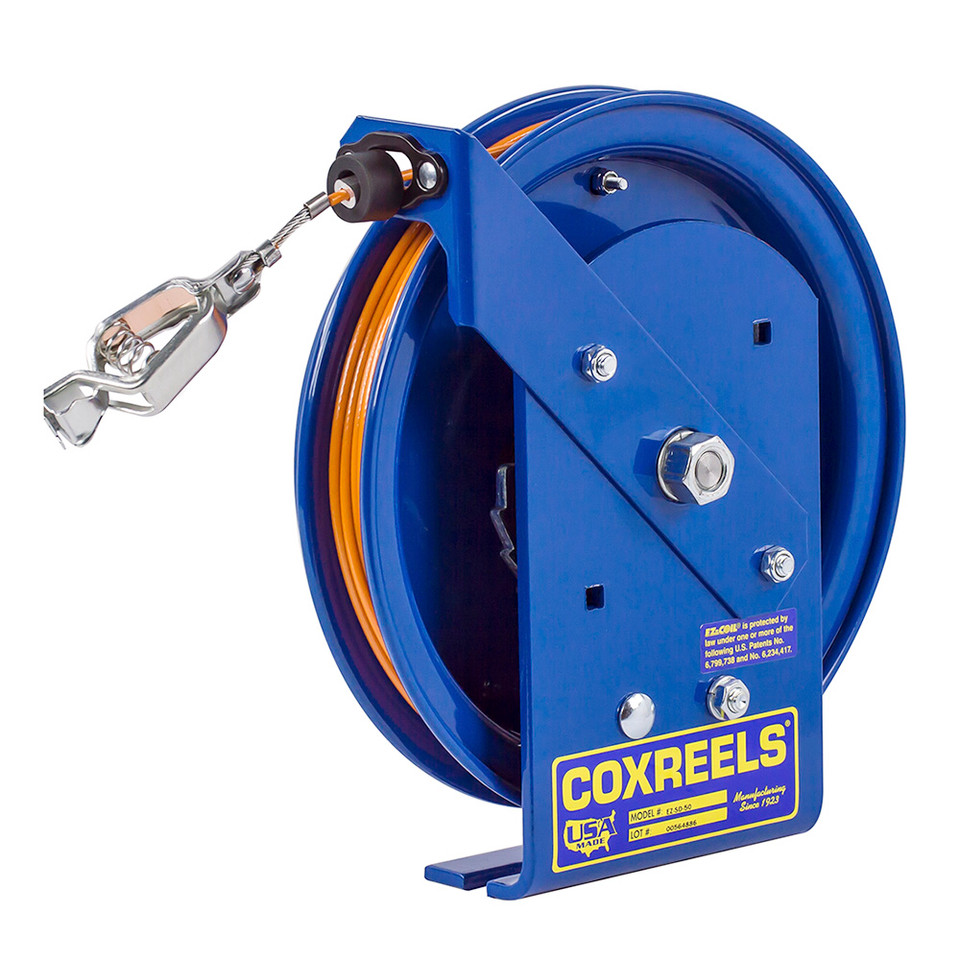

For grounding points that require longer reach from a fixed reel location, the Coxreels EZ-SD-100 Spring Rewind Static Discharge Cable Reel provides 100 ft of 5/32" O.D. galvanized steel cable in a compact, self-retracting package. Part of the EZ-SD Series, this reel is built for static discharge and grounding applications where combustible materials, fuel transfer, or bonded equipment procedures require cable to be deployed, connected, and stored in an orderly way. The high-visibility orange vinyl cable cover helps workers identify the grounding cable quickly, while the included ball stop and 50 Amp grounding clamp support practical use at transfer stations, service vehicles, and shop or plant grounding points.
The EZ-Coil rewind system controls cable return by retracting substantially slower than conventional spring driven reels, reducing aggressive snap-back during rewind. A cartridge-style enclosed spring motor, non-sparking lock ratchet mechanism, 1" solid steel axle, lubricated precision bearings, and one-piece 1/4" steel base help the reel operate smoothly in frequent-use environments. The guide arm adjusts for wall, floor, vehicle, or overhead mounting, and the un-powder coated bottom of the base helps maintain the reel's grounding path.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-100 | Cable Length: 100 ft | Cable O.D.: 5/32" | Cable Material: Galvanized Steel | Approx. Weight: 32 lbs | Clamp: 50 Amp Grounding Clamp | Overall Dimensions: 4" W x 15" H x 14-1/2" L | Base Mounting Pattern: X 2-1/2" | Y 6" | N 4"
Features:
- Spring rewind static discharge cable reel used for grounding and bonding procedures in combustible work environments.
- Includes 100 ft of 5/32" O.D. galvanized steel cable with a high-visibility orange vinyl cable cover.
- Supplied with cable, adjustable solid rubber cable stop, and 50 Amp grounding clamp.
- EZ-Coil Safety Series rewind system retracts up to 80% slower than conventional spring driven reels for more controlled cable return.
- Enclosed, factory-tuned cartridge-style spring motor is removable for safer, more convenient maintenance access.
- Multi-position non-sparking lock ratchet mechanism secures the cable at the desired working length.
- Guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions for flexible installation planning.
- Rolled edges, ribbed discs, 1/4" steel base, 1" solid steel axle, and permanently lubricated precision bearings support strength and smooth rotation.
Made in USA:
Applications:
- Fuel transfer and petroleum handling stations where grounding cable is commonly paired with fuel hose reels.
- Service trucks, fueling skids, and maintenance vehicles that need longer cable reach from a compact reel footprint.
- Chemical handling areas and combustible environments where static buildup must be controlled during transfer or dispensing work.
- Plant maintenance and MRO locations that require a dedicated grounding reel at fixed process equipment or work cells.
- Aviation ground support, bulk fluid handling, and similar operations where bonding cable must be stored neatly between uses.
FAQs:
- Q: What is the main difference between the EZ-SD-75 and EZ-SD-100?
A: The EZ-SD-100 provides 100 ft of cable, while the EZ-SD-75 provides 75 ft. Both use 5/32" O.D. cable and belong to the EZ-SD Series, but the 100 ft model gives more working reach from the reel mounting location. - Q: Does the EZ-SD-100 come with the grounding cable installed?
A: Yes. This model includes galvanized steel cable, a ball stop, and a 50 Amp grounding clamp. Less-cable versions are separate models and should be ordered only when cable will be supplied separately. - Q: What does the 5/32" gauge refer to?
A: For this reel, the 5/32" value refers to the cable outside diameter. It is the cable size used for comparison across the EZ-SD static discharge reel models. - Q: Can the reel be mounted overhead?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Always confirm that the mounting surface and fasteners are appropriate for the reel weight and work environment. - Q: Is this the stainless steel cable version?
A: No. The EZ-SD-100 uses galvanized steel cable. The stainless steel cable model is listed separately as EZ-SD-100-1.
