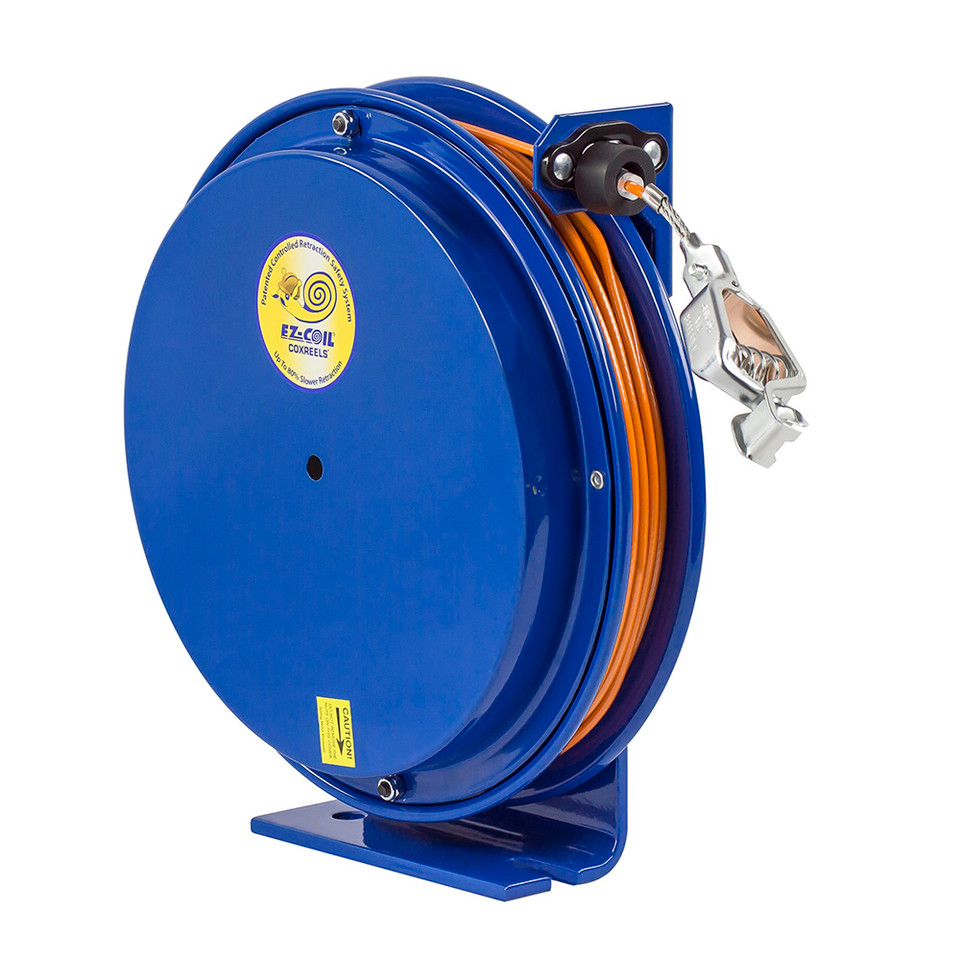

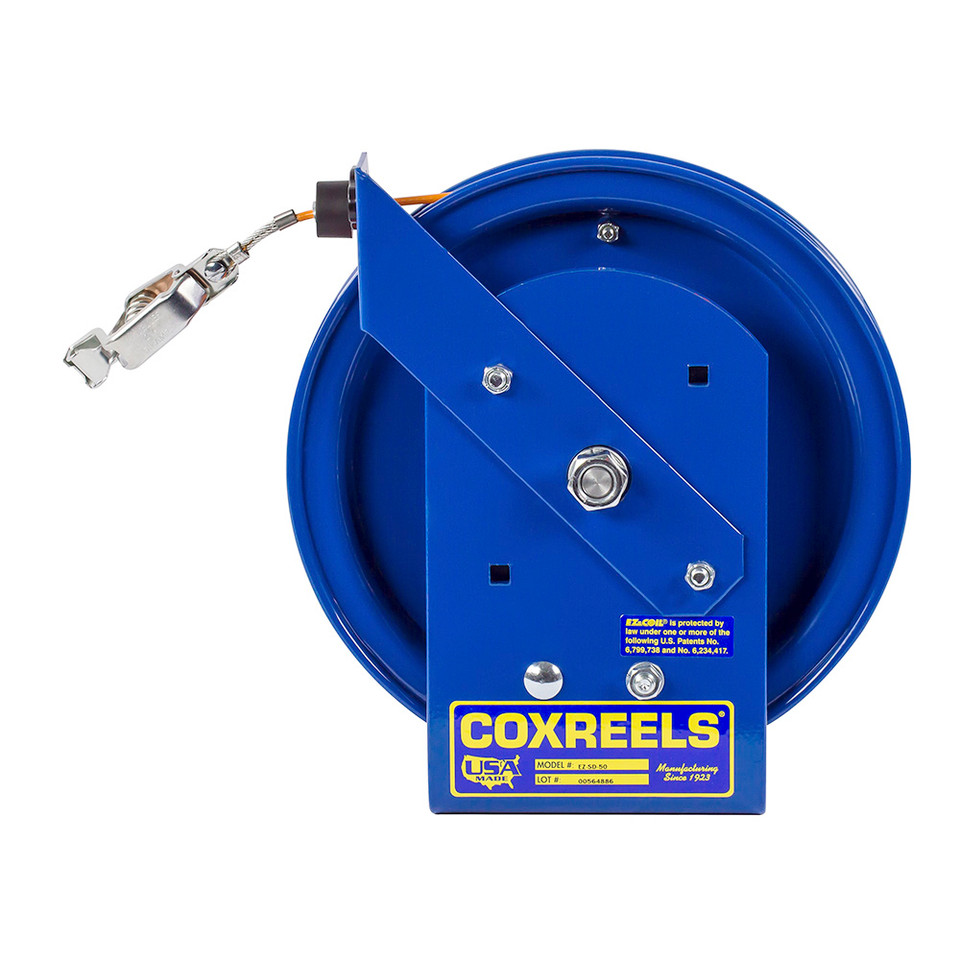

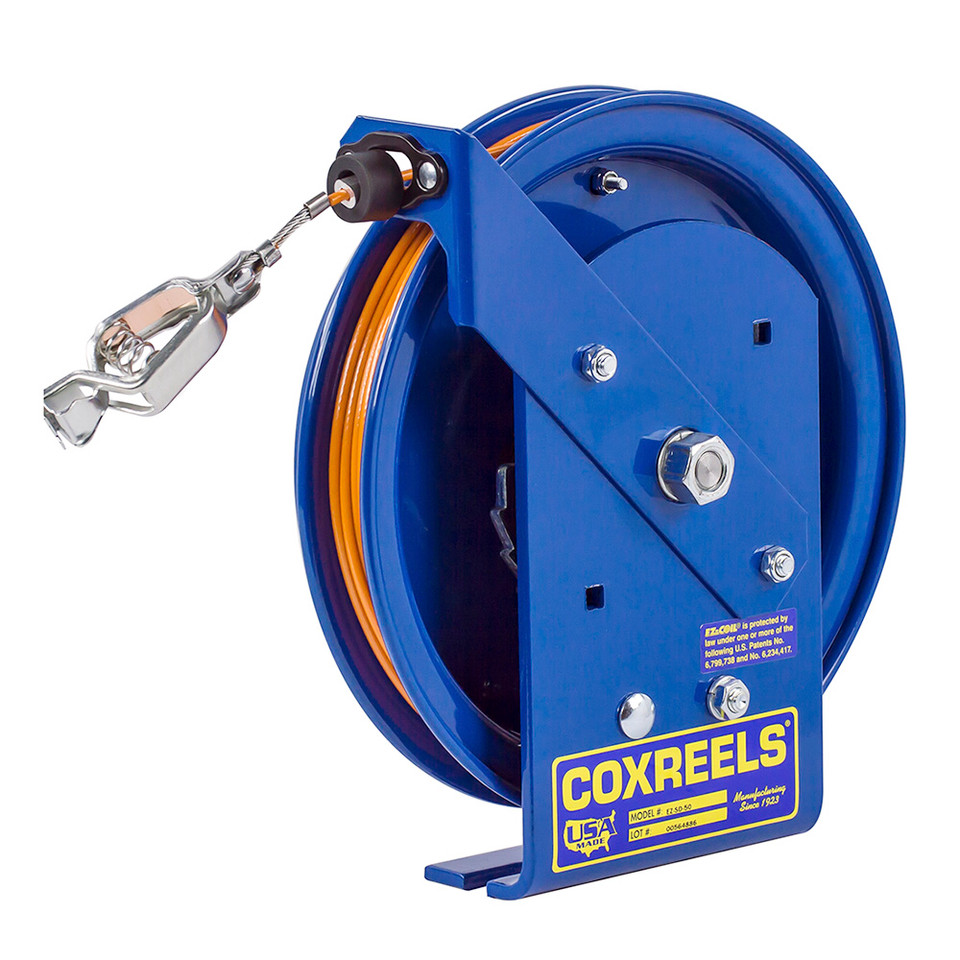

Built for grounding during fuel transfer, chemical handling, and other combustible-environment work, the Coxreels EZ-SD-35-1 Spring Rewind Static Discharge Cable Reel helps manage static buildup before it can create a spark hazard. This EZ-SD Series safety reel includes a 35 ft stainless steel cable with a high-visibility orange vinyl cover and 5/32" O.D., giving operators a compact grounding reel that is easy to spot, pull out, and position near vehicles, tanks, drums, and dispensing equipment.
The EZ-Coil retraction system controls spring return speed, helping the cable rewind at a steadier pace than conventional spring-driven reels. A multi-position lock ratchet holds the cable at the working length selected by the operator, while the adjustable guide arm supports wall, floor, vehicle, and overhead mounting layouts. The reel includes cable, ball stop, and a 50 Amp grounding clamp for common static discharge applications.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-35-1 | Cable Material: Stainless Steel | Cable Length: 35 ft | Cable O.D.: 5/32" | Approx. Weight: 18 lbs | Size Index: 1 | Overall Dimensions: 3-7/8" W x 11-1/2" H x 11" L | Base Mounting Pattern: 2-1/2" x 6" | Mounting Pattern: 4" | Included: Cable, Ball Stop, 50 Amp Grounding Clamp
Features:
- Stainless steel 7 strand x 7 wire cable with high-visibility orange vinyl cover for grounding in fuel, chemical, and other static-sensitive work areas.
- Includes cable, ball stop, and 50 Amp grounding clamp; 100 Amp copper grounding clamp is available by factory consultation.
- EZ-Coil safety rewind system retracts up to 80% slower than conventional spring driven reels for more controlled cable return.
- Compact static discharge cable reel configuration supports spring rewind operation in locations where grounding cable must be kept organized and ready for use.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions to match common service truck, plant, and dispensing station layouts.
- Solid one-piece, heavy gauge 1/4" steel base provides a stable mounting platform.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during cable payout and rewind.
- Multi-position non-sparking lock ratchet mechanism secures the cable at the desired working length.
Made in USA:
Applications:
- Fuel transfer and dispensing stations where grounding cable is needed before fluid movement begins.
- Service trucks and mobile refueling units that need a compact cable reel with controlled spring rewind.
- Chemical handling areas where static discharge control is part of safe operating procedure.
- Aviation, fleet, and maintenance operations that ground vehicles, tanks, or equipment during transfer work.
- Plant and facility MRO teams replacing loose grounding cables with a mounted, retractable cable management solution.
FAQs:
- Q: What is a static discharge cable reel used for?
A: It is used to help ground equipment, vehicles, tanks, or containers so static buildup can be dissipated before it becomes a spark hazard. These reels are commonly paired with fuel hose reels and used in combustible environments. - Q: What is the difference between the EZ-SD-35 and EZ-SD-35-1?
A: The EZ-SD-35-1 uses stainless steel cable. The standard EZ-SD-35 model uses galvanized steel cable. - Q: Does this reel include the cable and clamp?
A: Yes. This model includes the cable, ball stop, and 50 Amp grounding clamp. - Q: What does EZ-Coil do on this reel?
A: EZ-Coil is Coxreels' controlled rewind system. It slows the spring return action so the cable retracts at a steadier pace than a conventional spring driven reel. - Q: Can the guide arm be adjusted for different mounting positions?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be oriented around the work area and cable pull direction.
| WITH STAINLESS STEEL CABLE | LESS CABLE | SIZE INDEX |
||||
|---|---|---|---|---|---|---|
| SKU | FT. | O.D. | APRX. LBS. |
LESS CABLE SKU | APRX. LBS. |
|
| EZ-SD-35-1 | 35 | 5/32" | 18 | - | - | 1 |
| EZ-SD-50-1 | 50 | 5/32" | 20 | EZ-SDL-50 | 18 | 1 |
| EZ-SD-75-1 | 75 | 5/32" | 31 | - | - | 2 |
| EZ-SD-100-1 | 100 | 5/32" | 32 | EZ-SDL-100 | 28 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
