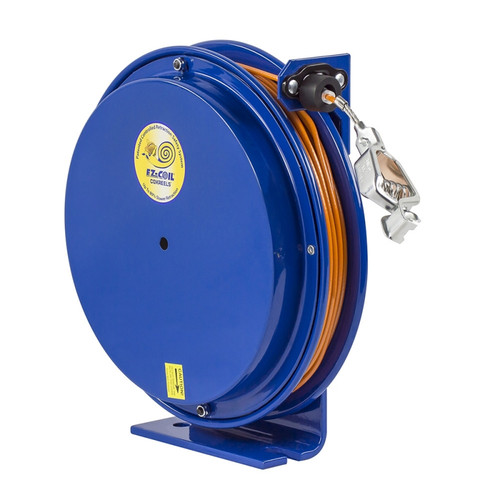

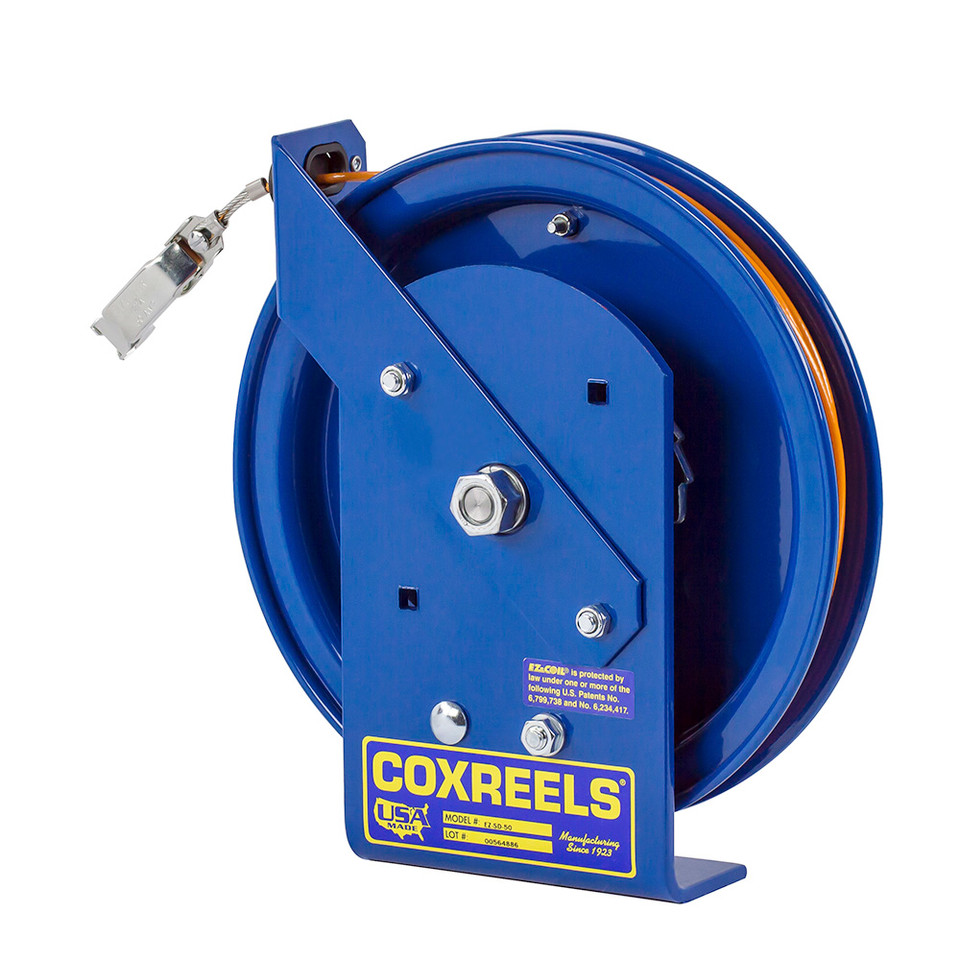

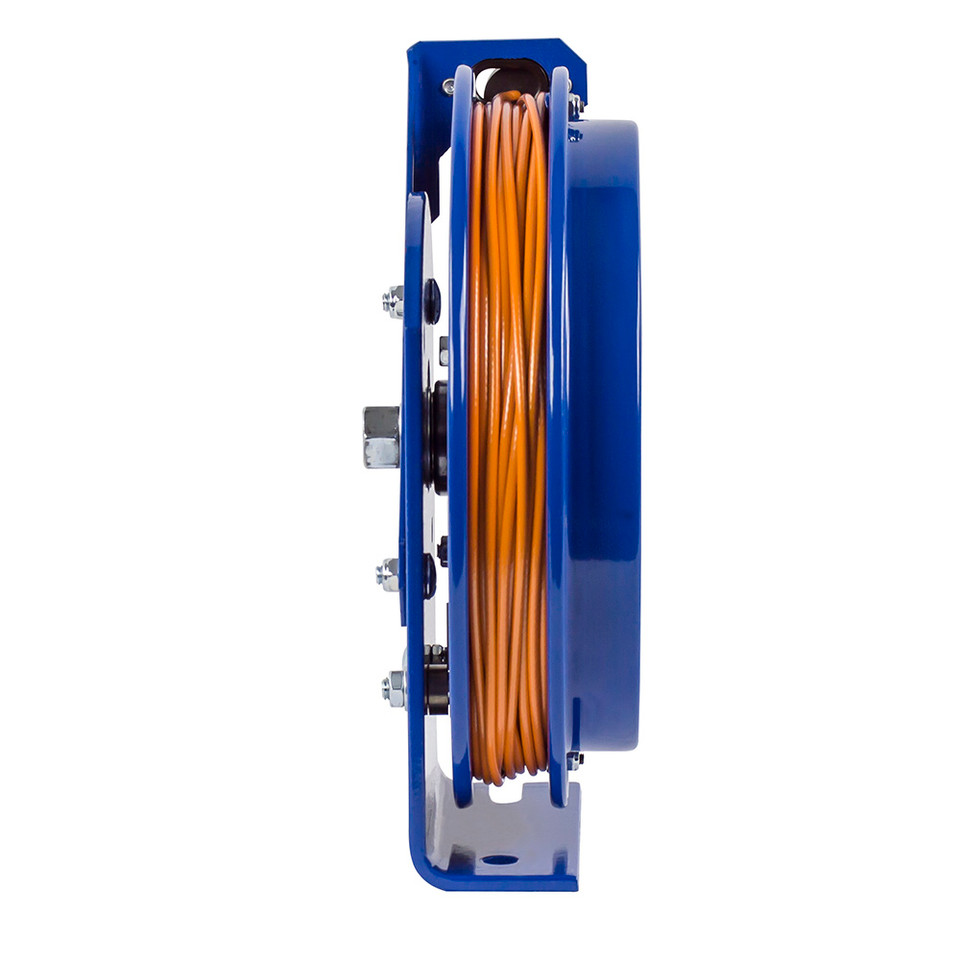

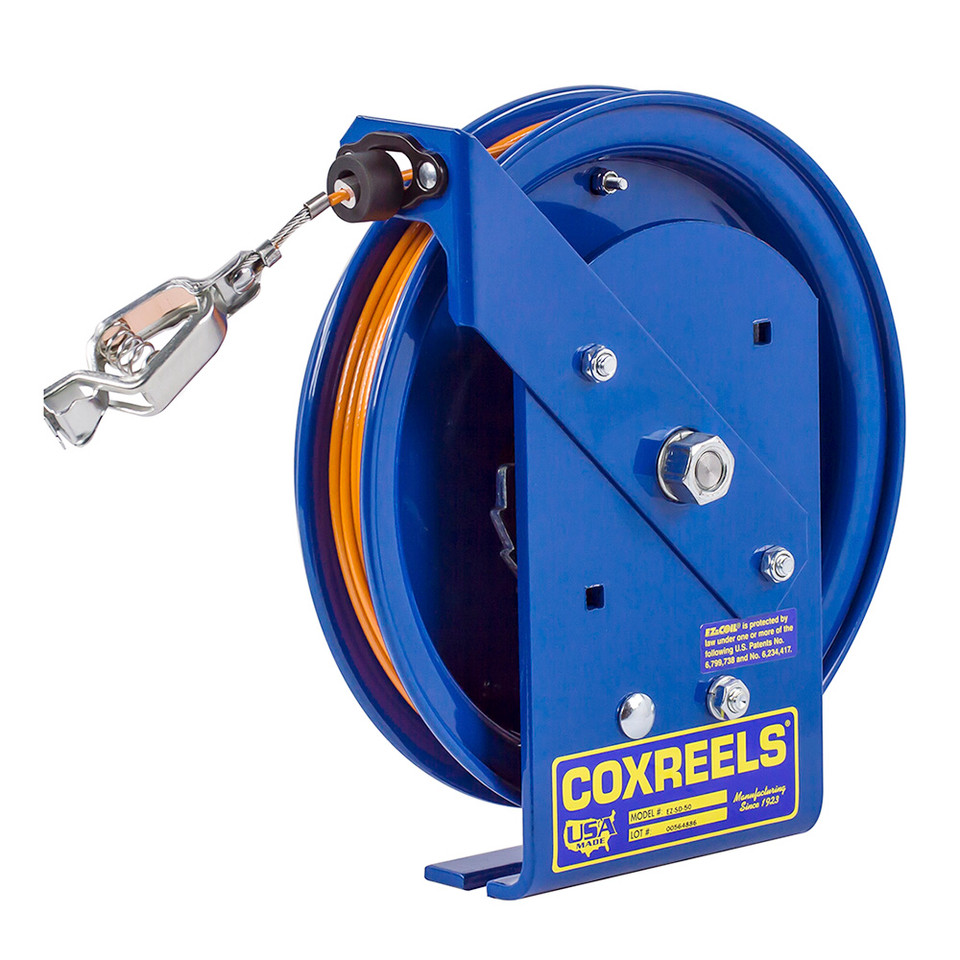

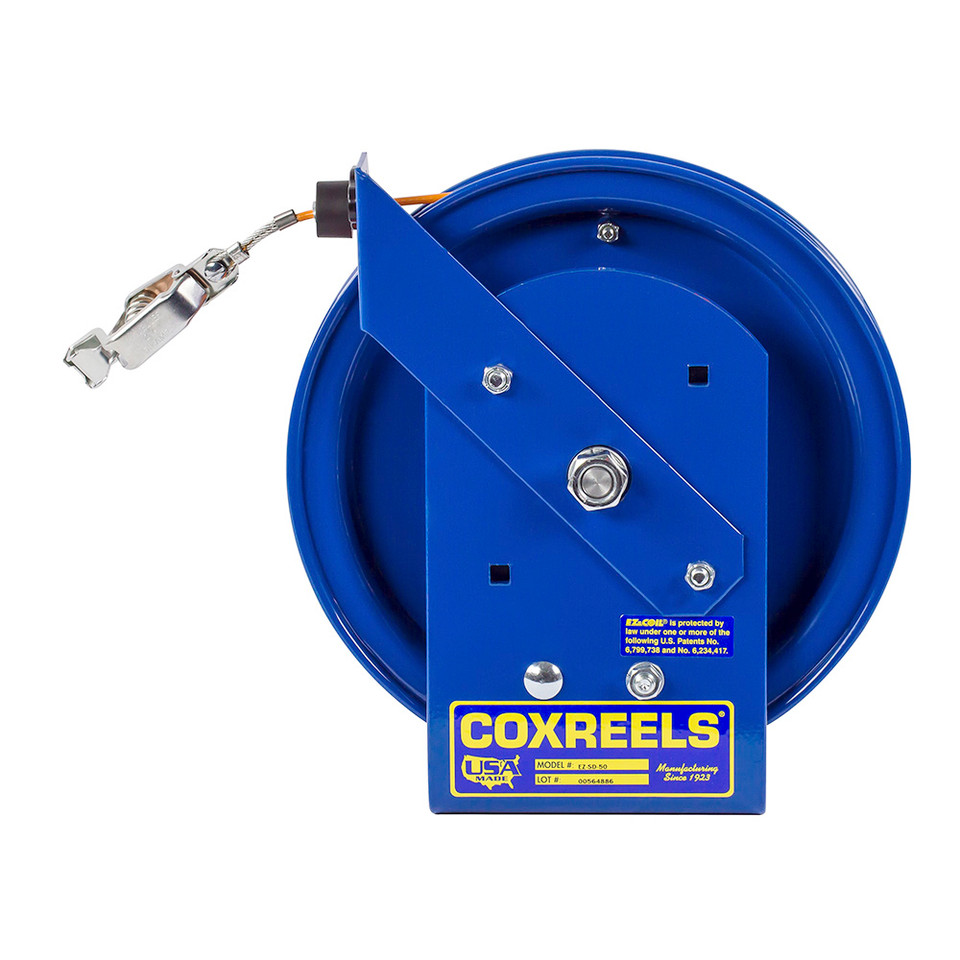

When grounding procedures call for controlled cable payout and automatic rewind, the Coxreels EZ-SD-75 Spring Rewind Static Discharge Cable Reel helps keep bonding cable stored, visible, and ready for use around fuel handling, transfer, and other combustible environments. This EZ-SD Series reel includes 75 ft of 5/32" O.D. galvanized steel cable with a high-visibility orange vinyl cover, helping crews manage static discharge connections without leaving loose cable across the work area. The EZ-Coil retraction system slows rewind speed for more controlled cable return, while the included ball stop and 50 Amp grounding clamp support practical grounding setup at the point of use.
Built for static discharge and grounding service, this reel uses a compact steel frame with an adjustable guide arm for wall, floor, vehicle, and overhead mounting positions. A one-piece 1/4" steel base, 1" solid steel axle, lubricated precision bearings, and non-sparking lock ratchet mechanism help the cable feed smoothly and secure at the desired working length. The bottom of the base is left un-powder coated to maintain the grounding path between the cable clamp and reel base.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-75 | Cable Length: 75 ft | Cable O.D.: 5/32" | Cable Material: Galvanized Steel | Approx. Weight: 31 lbs | Clamp: 50 Amp Grounding Clamp | Dimensions: 4" W x 15" H x 14-1/2" L | Base Mounting Pattern: X 2-1/2" | Y 6" | N 4"
Features:
- Static discharge cable reel for grounding and bonding use in combustible environments where static buildup must be controlled.
- Includes 75 ft of 5/32" O.D. galvanized steel cable with high-visibility orange vinyl cable cover.
- Supplied with cable, ball stop, and 50 Amp grounding clamp for a complete static discharge reel setup.
- EZ-Coil Safety Series rewind system retracts up to 80% slower than conventional spring driven reels for more controlled cable return.
- Enclosed, factory-tuned cartridge-style spring motor supports consistent spring rewind operation and simplifies maintenance access.
- Multi-position non-sparking lock ratchet mechanism secures cable at the desired working length.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions to match the installation location.
- Solid one-piece 1/4" steel base, 1" solid steel axle, and lubricated precision bearings support stable mounting and smooth rotation.
Made in USA:
Applications:
- Fuel transfer and petroleum service where grounding cable is paired with fuel hose reels to help manage static discharge procedures.
- Service trucks, fuel skids, and mobile maintenance units that need cable stored neatly instead of loose on the deck or floor.
- Aviation fueling and ground support areas where equipment bonding and controlled cable rewind support safer work practices.
- Chemical handling and combustible work zones where static buildup could create ignition risk if bonding practices are not followed.
- Plant maintenance and industrial MRO areas that require a dedicated static discharge reel at fixed transfer or dispensing stations.
FAQs:
- Q: What is a static discharge cable reel used for?
A: A static discharge cable reel stores and retracts grounding cable used to bond equipment and help control static buildup. It is commonly used around fuel transfer, combustible environments, and other applications where static spark risk must be managed. - Q: Does the EZ-SD-75 include cable and a clamp?
A: Yes. The EZ-SD-75 includes 75 ft of galvanized steel cable, a ball stop, and a 50 Amp grounding clamp. - Q: What does EZ-Coil do on this reel?
A: EZ-Coil is Coxreels' controlled rewind system. It slows cable retraction compared with conventional spring driven reels, helping reduce aggressive snap-back during rewind. - Q: Can this reel be mounted on a wall, floor, vehicle, or overhead surface?
A: Yes. The guide arm is adjustable for wall, floor, vehicle, and overhead mounting positions. The mounting surface must be structurally suitable for the reel weight and installation conditions. - Q: Is the EZ-SD-75 the stainless steel cable version?
A: No. The EZ-SD-75 is the galvanized steel cable model. The stainless steel cable version is listed separately as EZ-SD-75-1.
