Coxreels SDL-50 Spring Rewind Static Discharge Cable Reel | SD Series | 5/32" O.D Cable | 50' Cable Capacity | Less Cable

When a compact static grounding reel is needed but the cable must be selected separately, the Coxreels SDL-50 provides the SD Series spring rewind reel platform in a less-cable configuration. This SD Series static discharge cable reel is built for 50 ft cable capacity with 5/32" outside diameter with jacket, giving installers a compact reel body for custom grounding cable setups used around fuel transfer, petroleum handling, aviation ground support, fleet refueling, and other combustible-area service applications.

The SDL-50 is supplied without cable, ball stop, or grounding clamp, allowing the installer to select the appropriate compatible static discharge cable and grounding hardware for the application. Static discharge reels are used to help manage static buildup, which can create ignition risk around fuels and combustible materials. The SD Series spring rewind mechanism retracts the installed cable automatically after use, while the multi-position non-sparking lock ratchet secures the cable at the selected working length. An adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.

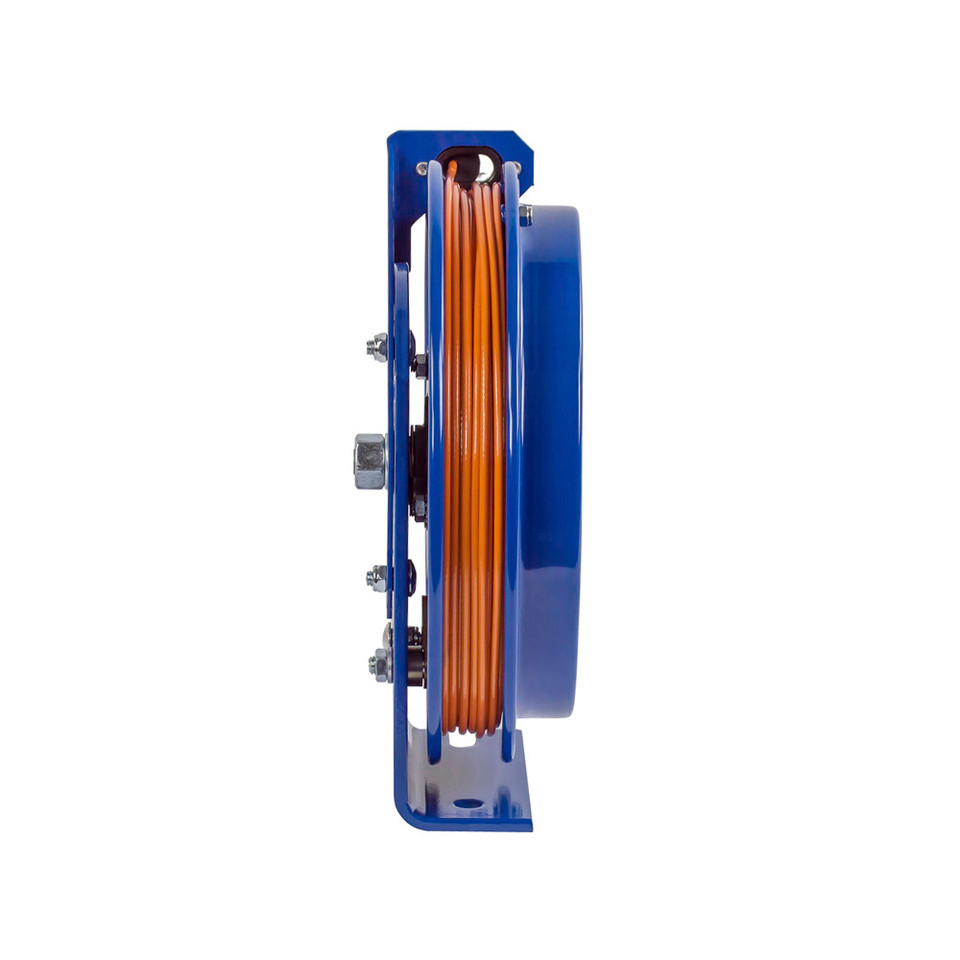

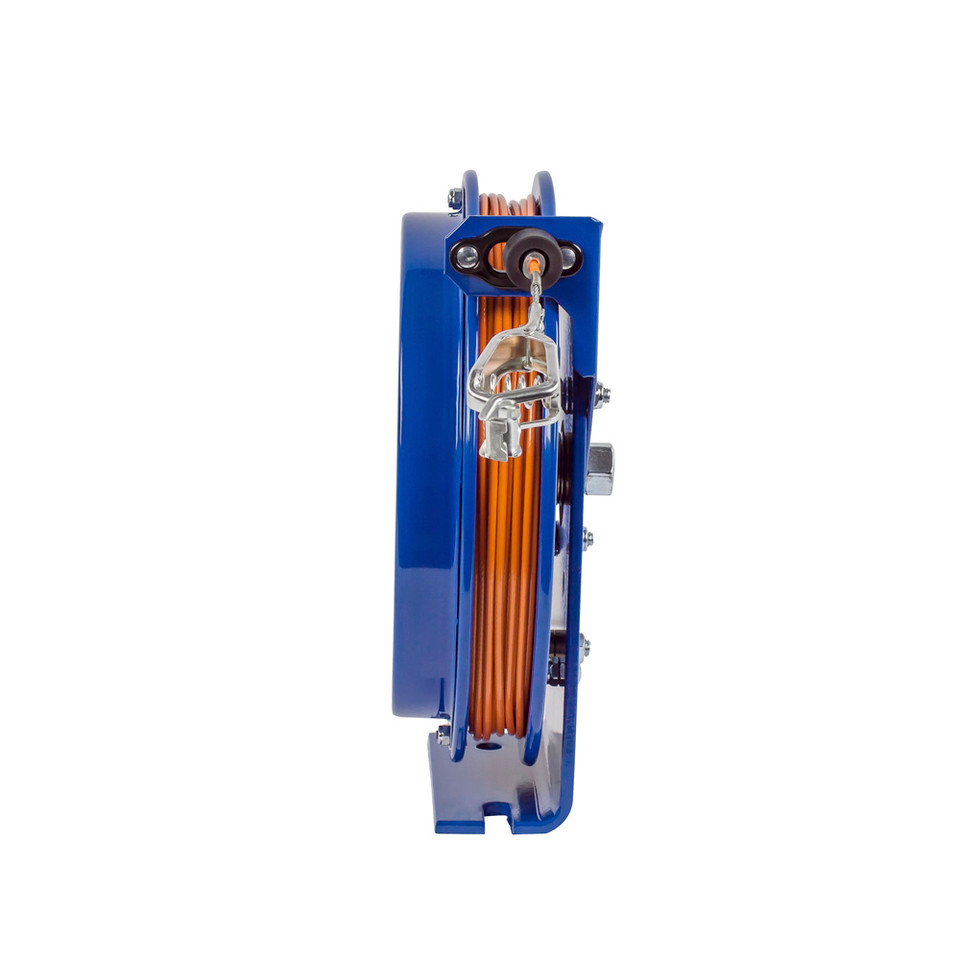

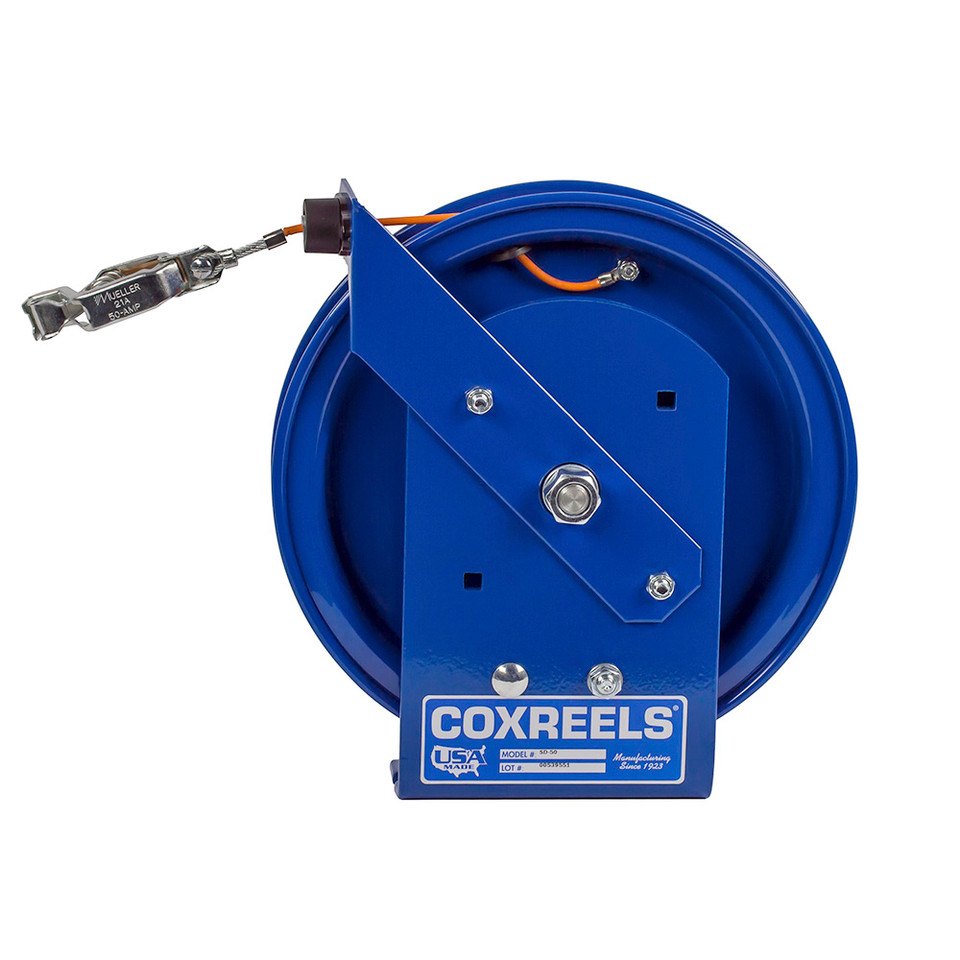

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cable. Please note this before ordering.

Type: Spring Rewind Static Discharge Cable Reel | Series: SD Series | Model: SDL-50 | Configuration: Less Cable | Cable Included: No | Cable Capacity: 50 ft | Cable O.D. with Jacket: 5/32" | Compatible Cable Construction: 7 Strand x 7 Wire, 3/32" Cable | Retraction: Spring Rewind | Approx. Weight: 18 lbs | Size Index: 1

Features:

• Less-cable configuration allows the installer to supply the grounding cable and clamp required for the application.
• Built for 50 ft cable capacity with 5/32" outside diameter with jacket when fitted with compatible static discharge cable.
• Spring rewind static discharge reel supports grounding practices in combustible environments where static buildup must be controlled.
• Designed for use with 7 strand x 7 wire 3/32" cable and high-visibility orange vinyl cable cover used on SD Series cable-included models.
• Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
• Solid one-piece, heavy gauge 1/4" steel base provides stable support for stationary or vehicle-mounted use.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Bottom of base is not powder coated so the reel can ground through metal-to-metal contact.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
• Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support SD Series retraction performance.
• Multi-position non-sparking lock ratchet mechanism secures the installed cable at the desired working length.
• Rolled edges and ribbed discs provide added strength and safer handling around the reel body.

Made in USA:

2 Year Warranty

Applications:

• Custom static grounding installations where cable material and grounding clamp selection must be handled separately from the reel.
• Fuel and service trucks requiring a compact retractable grounding reel body for dispensing, refueling, or transfer work.
• Fuel storage and dispensing systems where grounding cable requirements are determined by site procedure or installation layout.
• Aviation refueling and ground support operations where static discharge control is part of the fueling process.
• Fleet yards, vehicle refueling areas, and maintenance facilities handling combustible liquids.
• Marine, petroleum handling, oil refinery, and offshore environments where cable material may need to be matched to corrosion exposure.

FAQs:

• Q: Does the Coxreels SDL-50 include the grounding cable?
  A: No. The SDL-50 is a less-cable model. The compatible static discharge cable, ball stop, and grounding clamp must be supplied separately.
• Q: What cable capacity does the SDL-50 support?
  A: The SDL-50 is listed for 50 ft cable capacity with 5/32" outside diameter with jacket. Cable-included SD Series models use 3/32" 7 strand x 7 wire cable with an orange vinyl cover.
• Q: How is SDL-50 different from SD-50?
  A: The SD-50 includes 50 ft of galvanized steel cable, ball stop, and a 50 amp grounding clamp. The SDL-50 is supplied less cable for installations where the grounding cable and hardware are selected separately.
• Q: Can the SDL-50 be used with stainless steel cable?
  A: The SD Series is available with galvanized steel or stainless steel 3/32" cable on cable-included models. For an SDL-50 installation, select compatible cable that matches the reel capacity and the grounding requirements for the application.
• Q: Can this reel be mounted on a truck, wall, floor, or overhead location?
  A: Yes. The SD Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be installed around the grounding workflow.
