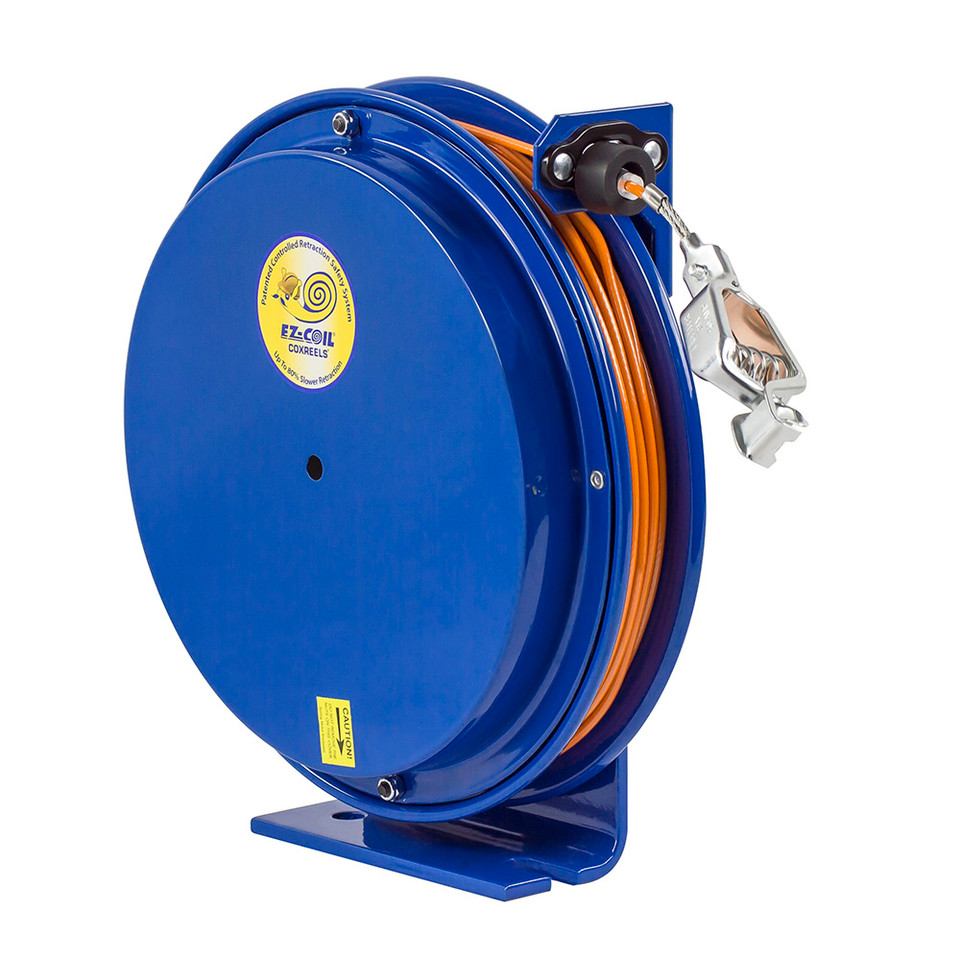

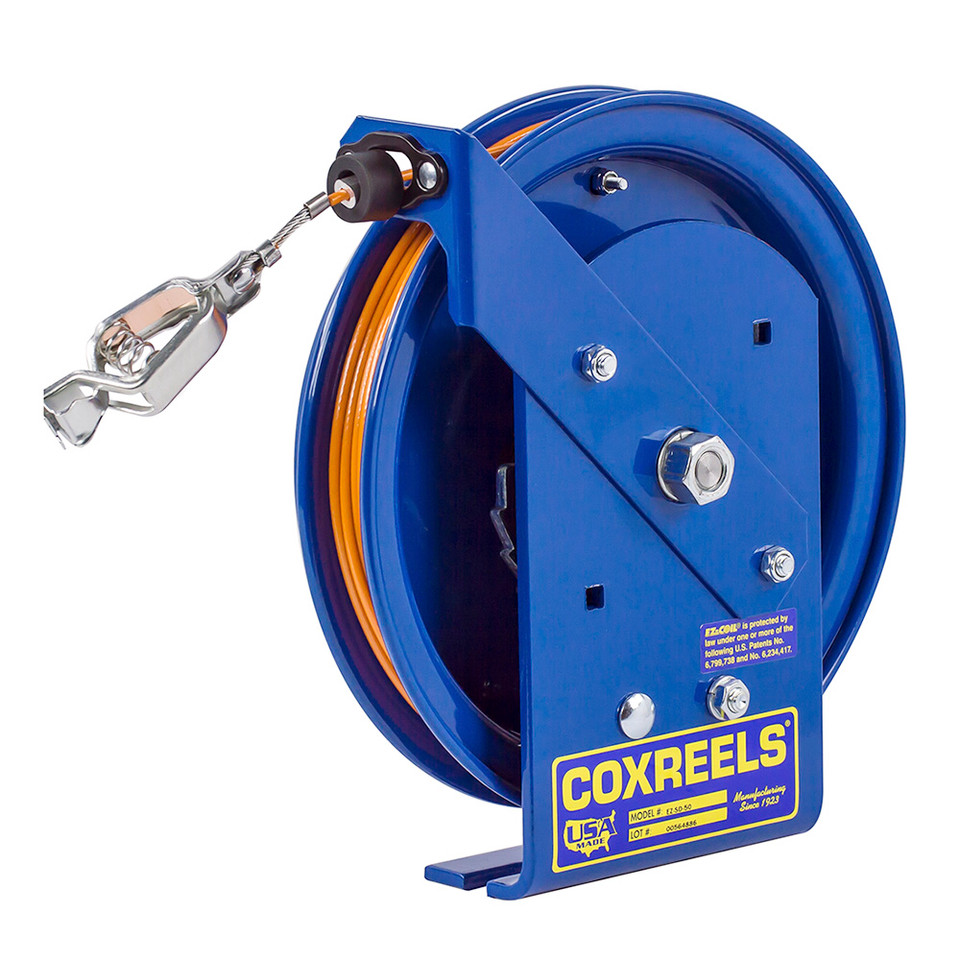

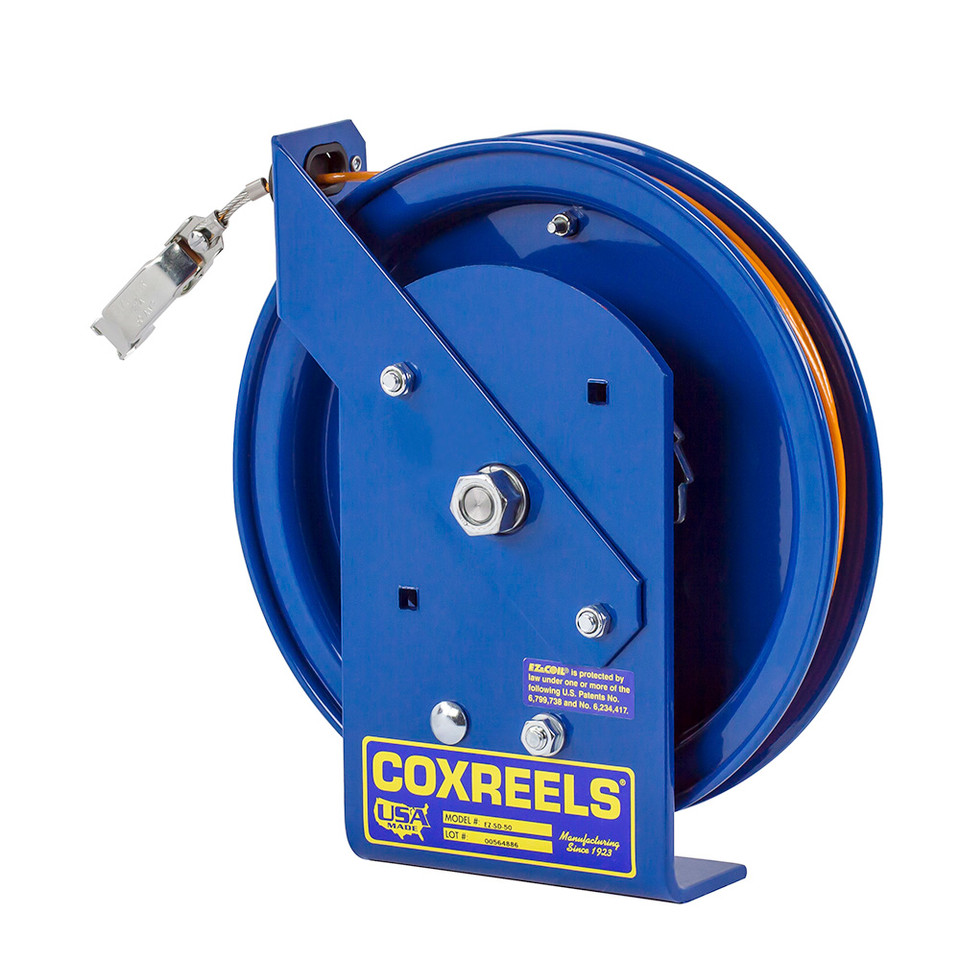

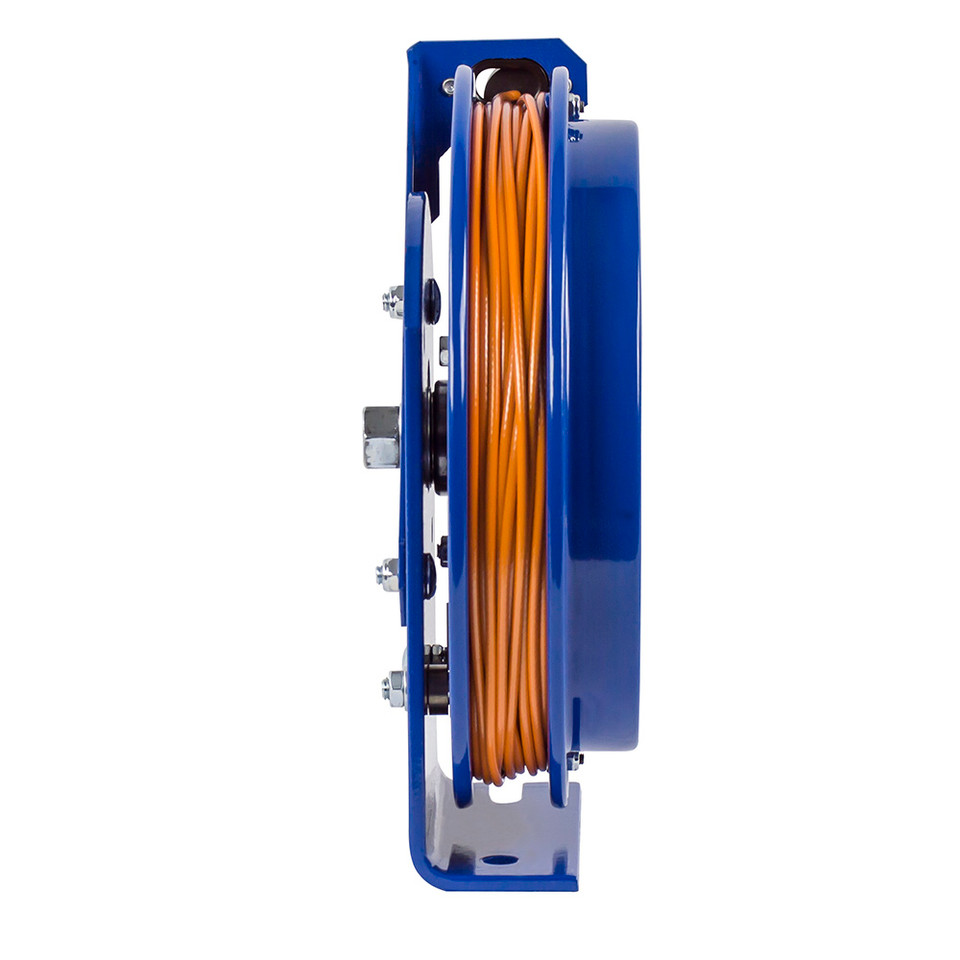

Coxreels EZ-SD-50-1 Spring Rewind Static Discharge Cable Reel | EZ-SD Series | 5/32" Gauge | 50' Hose Length | Stainless Steel

When static grounding must be controlled during fuel transfer, refueling, or combustible-area service work, the Coxreels EZ-SD-50-1 spring rewind static discharge cable reel keeps the grounding cable visible, organized, and ready to deploy. This EZ-SD Series reel includes a 50 ft stainless steel cable with a high-visibility orange vinyl cover, giving the cable a listed 5/32" outside diameter with jacket. Static discharge reels are used to help manage static buildup, which can create ignition risk around fuels, petroleum products, and other combustible environments.

The EZ-SD-50-1 adds Coxreels EZ-Coil controlled retraction, a patented safety rewind system that retracts up to 80% slower than conventional spring driven reels. That slower rewind helps reduce whipping motion and improves control as the cable returns to the reel. The reel includes the cable, ball stop, and 50 amp grounding clamp, while the multi-position non-sparking lock ratchet secures the cable at the selected working length. An adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.

Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SD-50-1 | Retraction: EZ-Coil Controlled Spring Rewind | Cable Included: Yes | Cable Material: Stainless Steel | Cable Construction: 7 Strand x 7 Wire, 3/32" Cable | Cable O.D. with Jacket: 5/32" | Cable Length: 50 ft | Included Clamp: 50 Amp Grounding Clamp | Approx. Weight: 20 lbs | Size Index: 1

Features:

• EZ-Coil safety rewind system retracts up to 80% slower than conventional spring driven reels for more controlled cable return.
• Includes 50 ft stainless steel 7 strand x 7 wire cable with a high-visibility orange vinyl cable cover.
• 5/32" listed cable outside diameter includes the protective vinyl jacket over the 3/32" stainless steel cable.
• Includes cable, adjustable ball stop, and 50 amp grounding clamp for a complete static discharge reel setup.
• Static discharge cable reel supports grounding procedures in combustible environments where static buildup must be controlled.
• Guide arm adjusts to wall, floor, vehicle, and overhead positions for installation flexibility.
• Solid one-piece, heavy gauge 1/4" steel base provides stable support for stationary or vehicle-mounted use.
• 1" solid steel axle and lubricated precision bearings support smooth cable payout and rewind.
• Bottom of base is un-powder coated to ground the reel through metal-to-metal contact.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
• Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support reliable retraction performance.
• Multi-position non-sparking lock ratchet mechanism secures cable at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Fuel and service trucks that need a slower-retracting grounding cable during dispensing, fueling, or transfer work.
• Aviation refueling and ground support operations where static discharge control is part of the fueling procedure.
• Petroleum handling, bulk fuel storage, and tank service areas where grounding reels are commonly paired with fuel hose reels.
• Fleet maintenance yards, vehicle refueling locations, and service facilities handling combustible liquids.
• Marine, ship refueling, and offshore service environments where stainless steel cable may be preferred for corrosion resistance.
• Industrial combustible environments where a retractable grounding cable helps keep the work area organized between uses.

FAQs:

• Q: What is the Coxreels EZ-SD-50-1 used for?
  A: It is used as a retractable static discharge or grounding cable reel. It helps provide a controlled grounding connection in combustible environments such as fuel transfer, refueling, petroleum handling, and service truck applications.
• Q: What is the difference between the EZ-SD Series and the standard SD Series?
  A: The EZ-SD Series includes Coxreels EZ-Coil controlled retraction, which retracts up to 80% slower than conventional spring driven reels. This helps provide a more controlled rewind compared with the standard SD Series spring rewind design.
• Q: Does the EZ-SD-50-1 include the cable and clamp?
  A: Yes. This model includes the stainless steel cable, ball stop, and a 50 amp grounding clamp. It is not a less-cable reel.
• Q: Why is the cable listed as 5/32" if the cable construction is 3/32"?
  A: The 3/32" measurement refers to the stainless steel cable itself. The 5/32" dimension is the outside diameter with the high-visibility vinyl jacket installed.
• Q: Can this reel be mounted on a truck, wall, floor, or overhead location?
  A: Yes. The EZ-SD Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the reel to be positioned around the grounding workflow.
