Ingersoll Rand QS1T05S1D Inline Pneumatic Screwdriver | 500 RPM | 2.7 - 47.8 (In-lbs) Torque Range | Lever and Push-to-Start

For repetitive fastening where operators need a choice between manual lever activation and pressure-initiated startup, the Ingersoll Rand QS1T05S1D Inline Pneumatic Screwdriver combines 500 RPM free speed with a 2.7 to 47.8 in-lb torque range and lever and push-to-start operation. The inline configuration keeps the tool aligned with the fastener axis, supporting controlled screwdriving at production benches, assembly cells, and manufacturing workstations with direct access to the joint.

The Ingersoll Rand QS1T05S1D provides two ways to initiate the fastening cycle. Lever start gives the operator direct manual control from the tool body, while push-to-start begins rotation when axial pressure is applied to the bit. Its 500 RPM configuration supports measured fastener rundown, and the adjustable torque range allows output to be matched to compatible joints that require more turning force than faster QS1 screwdriver configurations can provide.

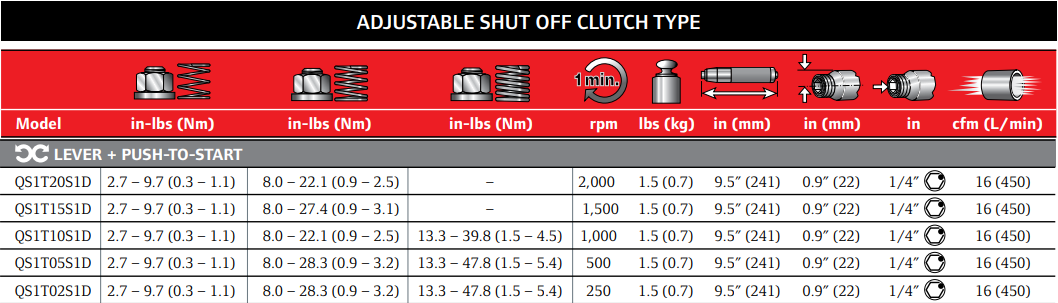

Type: Inline Pneumatic Screwdriver | Model: QS1T05S1D | Configuration: Inline | Free Speed: 500 RPM | Torque Range: 2.7 - 47.8 in-lbs | Start Type: Lever and Push-to-Start

Features: 500 RPM free speed supports controlled fastener rundown in repetitive pneumatic assembly operations. 2.7 to 47.8 in-lb torque range allows tool output to be adjusted for compatible fastening applications. Lever-start control gives the operator direct manual command of the fastening cycle from the tool body. Push-to-start actuation begins operation when axial pressure is applied to the bit, reducing the need for a separate lever action during repeated cycles. Dual-start configuration lets the workstation use the activation method that best matches the joint, fixture, and operator workflow. Inline body keeps the tool aligned with the fastener axis for straight-access assembly positions. Pneumatic operation supports repeated fastening at workstations supplied with clean, regulated compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible fasteners in panels, housings, brackets, frames, and mechanical subassemblies.
• Automotive component assembly — completing controlled screwdriving operations on production parts with direct fastener access.
• Electrical equipment production — installing fasteners in cabinets, enclosures, control assemblies, and related components.
• General manufacturing — handling repetitive fastening where adjustable torque and controlled 500 RPM rundown suit the joint requirements.
• Production workstations — switching between lever activation and push-to-start operation according to fixture layout and operator preference.

FAQs:

• Q: What does lever and push-to-start mean on the QS1T05S1D?
  A: The tool can be activated manually with its lever or started by applying axial pressure through the bit. This gives the operator flexibility to choose the activation method that best fits the workstation and fastening process.
• Q: What torque range does the Ingersoll Rand QS1T05S1D provide?
  A: The screwdriver has a specified torque range of 2.7 to 47.8 in-lbs. Select the setting according to the fastener, joint condition, component material, and assembly specification, then verify the result on the actual production joint.
• Q: When is lever start useful?
  A: Lever start is useful when the operator wants direct control over exactly when the tool begins rotating or when the assembly process does not permit enough axial movement for push-to-start actuation.
• Q: When is push-to-start useful?
  A: Push-to-start can streamline repetitive fastening because the cycle begins when the bit is placed on the fastener and axial pressure is applied. This can reduce unnecessary hand movements at high-cycle production stations.
• Q: Does the selected torque setting guarantee final joint torque?
  A: No. Final torque can vary with air pressure, joint characteristics, fastener condition, component material, and operating technique. Verify fastening results on the actual assembly using the quality-control method required for the production process.
