Ingersoll Rand QS1P15S1D Inline Air Screwdriver | 1,500 RPM | 2.7 - 27.4 (In-lbs) Torque Range | Adjustable Shut-Off Clutch

For repetitive fastening operations that require controlled torque delivery with faster rundown than lower-speed QS1 configurations, the Ingersoll Rand QS1P15S1D Inline Air Screwdriver combines 1,500 RPM free speed with a 2.7 to 27.4 in-lb torque range and an adjustable shut-off clutch. The inline configuration keeps the tool aligned with the fastener axis for straight-access assembly positions, while the clutch automatically shuts off the tool when the preset torque level is reached, supporting consistent tightening on compatible production joints.

The Ingersoll Rand QS1P15S1D balances productive fastener rundown with adjustable torque control for manufacturing and assembly processes. Its 1,500 RPM configuration provides a middle-speed option between the supplied 1,000 RPM and 2,000 RPM QS1 screwdriver models, while the specified torque range allows tool output to be matched to different fastening requirements within its capability. Final torque should be verified on the actual production joint after tool adjustment or changes to fasteners, materials, bits, or air-supply conditions.

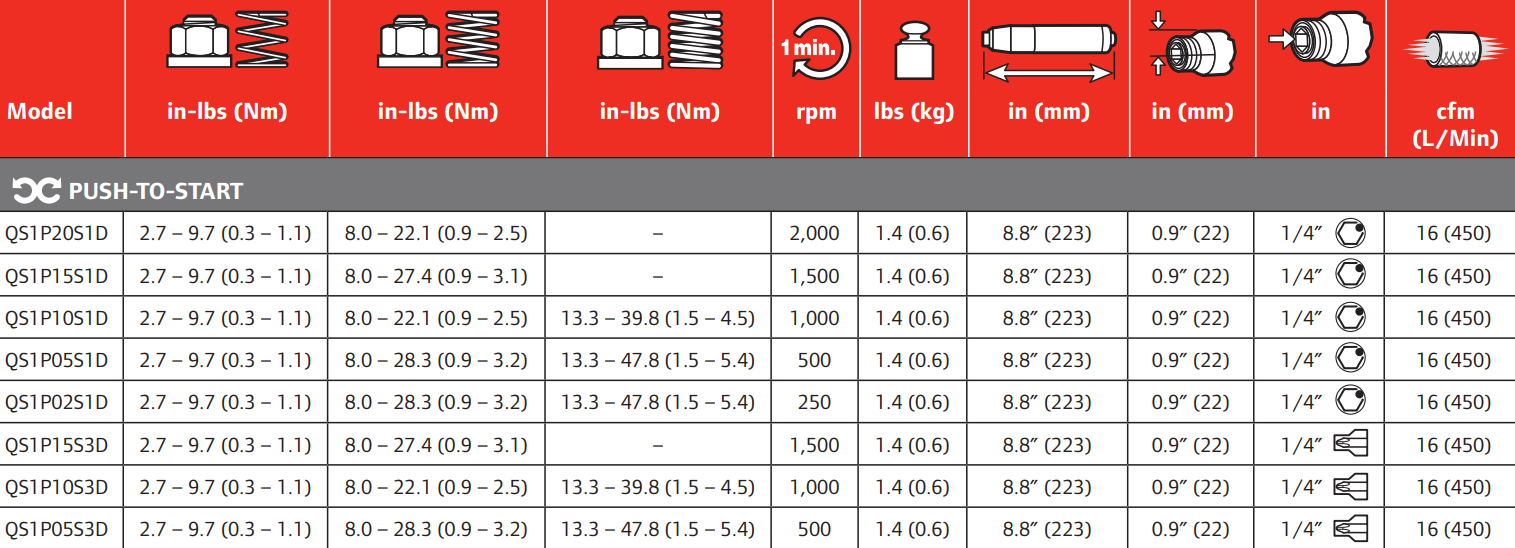

Type: Inline Air Screwdriver | Model: QS1P15S1D | Configuration: Inline | Free Speed: 1,500 RPM | Torque Range: 2.7 - 27.4 in-lbs | Clutch Type: Adjustable Shut-Off

Features: 1,500 RPM free speed supports productive fastener rundown in repetitive pneumatic assembly operations. 2.7 to 27.4 in-lb torque range allows tool output to be adjusted for compatible fastening applications. Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque level is reached. Inline configuration keeps the screwdriver aligned with the fastener axis for straight-access assembly positions. Mid-range speed configuration provides an option between faster cycle rates and the higher torque capability available from lower-speed QS1 models. Controlled shut-off operation helps reduce overtightening when the tool is properly adjusted and validated on the production joint. Pneumatic operation supports repeated fastening cycles at production workstations supplied with clean, regulated compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible fasteners in panels, housings, brackets, frames, and mechanical subassemblies.
• Automotive component assembly — completing controlled screwdriving operations on production parts and assemblies within the specified torque range.
• Electrical equipment production — installing fasteners in cabinets, enclosures, controls, and related equipment assemblies.
• General manufacturing — performing repetitive fastening where adjustable shut-off control and 1,500 RPM rundown suit the production process.
• Assembly workstations — supporting repeated tightening cycles where automatic shut-off at a preset setting is preferred over manual cycle termination.

FAQs:

• Q: What does the adjustable shut-off clutch do on the QS1P15S1D?
  A: The clutch automatically stops the screwdriver when the preset torque level is reached. This supports repeatable tightening and helps reduce overtightening when the tool is correctly adjusted for the production joint.
• Q: What torque range does the Ingersoll Rand QS1P15S1D provide?
  A: The screwdriver has a specified torque range of 2.7 to 27.4 in-lbs. Select the setting according to the fastener, joint condition, component material, and assembly specification, then verify the result on the actual production joint.
• Q: When is the 1,500 RPM configuration useful?
  A: The 1,500 RPM speed provides a balance between fastener rundown rate and torque capability for compatible assembly joints that do not require the higher speed of a 2,000 RPM model or the greater maximum torque of lower-speed configurations.
• Q: How does the QS1P15S1D compare with the QS1P20S1D?
  A: The QS1P15S1D operates at 1,500 RPM with a torque range of 2.7 to 27.4 in-lbs, while the QS1P20S1D operates at 2,000 RPM with a torque range of 2.7 to 22.1 in-lbs. The QS1P15S1D provides lower rundown speed with higher maximum torque capability.
• Q: Does automatic shut-off guarantee the final torque on every fastener?
  A: No. Final torque can vary with joint characteristics, fastener condition, component material, air supply, tool adjustment, and other process variables. Verify fastening results on the actual production joint using the quality-control method required for the assembly process.
