Ingersoll Rand QS1L10S1D Inline Pneumatic Screwdriver | 1,000 RPM | 2.7 - 39.8 (In-lbs) Torque Range | Lever-Start

For repetitive fastening operations where direct manual control over cycle initiation is preferred, the Ingersoll Rand QS1L10S1D Inline Pneumatic Screwdriver combines 1,000 RPM free speed with a 2.7 to 39.8 in-lb torque range and lever-start operation. The inline configuration keeps the tool aligned with the fastener axis for straight-access assembly positions, while the lever allows the operator to control exactly when the fastening cycle begins during production work.

The Ingersoll Rand QS1L10S1D provides a controlled rundown speed for assembly joints that require more torque capability than faster QS1 screwdriver configurations. Its 1,000 RPM speed supports productive fastening while allowing tool output to be adjusted within the specified torque range for compatible joints. Lever-start actuation is useful at workstations where operators need intentional cycle control, where axial tool movement is limited, or where the assembly process does not favor push-to-start operation.

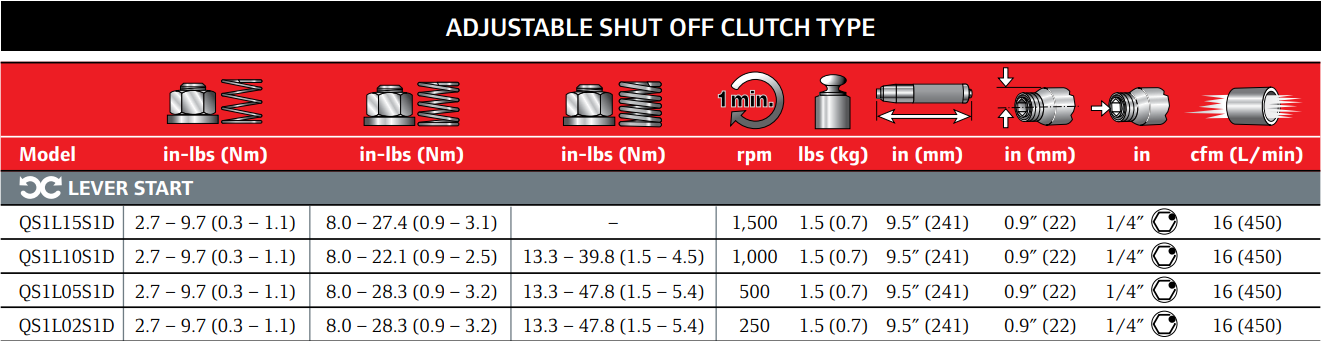

Type: Inline Pneumatic Screwdriver | Model: QS1L10S1D | Configuration: Inline | Free Speed: 1,000 RPM | Torque Range: 2.7 - 39.8 in-lbs | Start Type: Lever-Start

Features: 1,000 RPM free speed supports controlled fastener rundown in repetitive pneumatic assembly operations. 2.7 to 39.8 in-lb torque range allows tool output to be adjusted for compatible fastening applications. Lever-start control gives the operator direct manual command over cycle initiation from the tool body. Inline configuration keeps the screwdriver aligned with the fastener axis for straight-access assembly positions. Manual lever activation suits applications where intentional start control is preferred or axial movement for push-to-start operation is restricted. Adjustable torque capability allows tool output to be matched to the fastener, joint condition, component material, and assembly requirements. Pneumatic operation supports repeated fastening cycles at production workstations supplied with clean, regulated compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible fasteners in panels, housings, frames, brackets, and mechanical subassemblies.
• Automotive component assembly — completing controlled screwdriving operations on production parts where direct fastener access is available.
• Electrical equipment production — installing fasteners in cabinets, enclosures, control assemblies, and related components.
• General manufacturing — handling repetitive fastening where adjustable torque, 1,000 RPM rundown, and manual cycle initiation suit the process.
• Production workstations — supporting fastening tasks where the operator needs direct control over when the screwdriver begins each cycle.

FAQs:

• Q: What does lever-start mean on the Ingersoll Rand QS1L10S1D?
  A: Lever-start means the operator manually activates the screwdriver using a lever on the tool body. This provides direct control over when each fastening cycle begins.
• Q: What torque range does the QS1L10S1D provide?
  A: The screwdriver has a specified torque range of 2.7 to 39.8 in-lbs. Select the setting according to the fastener, joint condition, component material, and assembly specification, then verify the result on the actual production joint.
• Q: When is lever-start preferable to push-to-start operation?
  A: Lever-start can be preferable when the operator needs intentional control over cycle initiation, when the assembly setup limits axial tool movement, or when the process requires the tool to be positioned before rotation begins.
• Q: How does the QS1L10S1D differ from the QS1P10S1D?
  A: Both supplied models operate at 1,000 RPM and have a torque range of 2.7 to 39.8 in-lbs. The QS1L10S1D uses lever-start operation, while the QS1P10S1D uses push-to-start actuation.
• Q: Does the selected torque setting guarantee final joint torque?
  A: No. Final torque can vary with joint characteristics, fastener condition, component material, air supply, and other process variables. Verify fastening results on the actual production joint using the quality-control method required for the assembly process.

Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Screwdrivers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
