Ingersoll Rand QS1P10S3D Inline Air Screwdriver | 1,000 RPM | 2.7 - 39.8 (In-lbs) Torque Range | Adjustable Shut-Off Clutch

When repetitive assembly work calls for controlled fastening with more torque capability than higher-speed QS1 configurations, the Ingersoll Rand QS1P10S3D Inline Air Screwdriver combines 1,000 RPM free speed with a 2.7 to 39.8 in-lb torque range and an adjustable shut-off clutch. The inline body keeps the tool aligned with the fastener axis for straight-access work, while the shut-off clutch (a torque-control mechanism that automatically stops the fastening cycle at the preset setting) supports consistent tightening on compatible production joints.

The Ingersoll Rand QS1P10S3D provides a lower rundown speed and higher maximum torque capability than the supplied 1,500 RPM QS1P15S3D configuration. Its 1,000 RPM operation gives fasteners more controlled engagement during repetitive assembly, while the adjustable clutch allows output to be matched to the joint requirements within the specified torque range. Final fastening results should be verified on the actual production joint after changes to the clutch setting, fastener, bit, component material, or air-supply conditions.

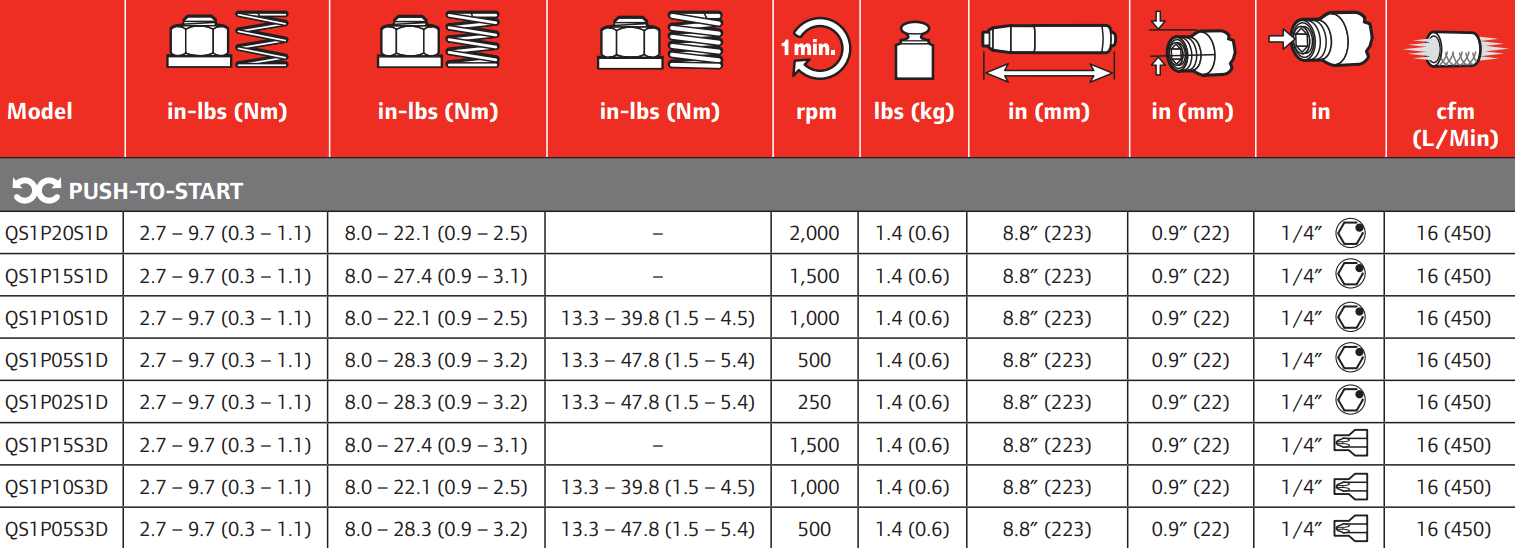

Type: Inline Air Screwdriver | Model: QS1P10S3D | Configuration: Inline | Free Speed: 1,000 RPM | Torque Range: 2.7 - 39.8 in-lbs | Clutch Type: Adjustable Shut-Off

Features: 1,000 RPM free speed supports controlled fastener rundown during repetitive pneumatic assembly operations. 2.7 to 39.8 in-lb torque range allows tool output to be adjusted for compatible fastening applications. Adjustable shut-off clutch automatically stops the fastening cycle when the preset torque setting is reached. Inline configuration keeps the screwdriver aligned with the fastener axis for direct-access production assembly positions. Lower rundown speed provides greater maximum torque capability than the supplied 1,500 RPM QS1P15S3D configuration. Automatic shut-off helps limit overtightening when the clutch is correctly adjusted and validated on the actual production joint. Pneumatic operation supports repeated fastening cycles at workstations supplied with clean, regulated compressed air. Made in USA:

Applications:

• Appliance manufacturing — tightening compatible fasteners in housings, frames, brackets, panels, and mechanical subassemblies.
• Electrical equipment production — completing controlled screwdriving operations in cabinets, enclosures, controls, and related assemblies.
• Automotive component assembly — fastening interior, electrical, and light mechanical components within the tool's specified torque range.
• General manufacturing — handling repetitive fastening processes where 1,000 RPM rundown and automatic torque shut-off match the joint requirements.
• Production assembly stations — supporting repeated tightening cycles where controlled torque delivery and automatic cycle termination are preferred.

FAQs:

• Q: What does the adjustable shut-off clutch do on the QS1P10S3D?
  A: The clutch automatically stops the screwdriver when the preset torque setting is reached. This supports repeatable tightening and helps limit overtightening when the tool is properly adjusted and validated for the production joint.
• Q: What torque range does the Ingersoll Rand QS1P10S3D provide?
  A: The specified torque range is 2.7 to 39.8 in-lbs. Select the setting according to the fastener, joint condition, component material, and assembly specification, then confirm the final result using the required production quality-control method.
• Q: How does the QS1P10S3D compare with the QS1P15S3D?
  A: The QS1P10S3D operates at 1,000 RPM with a torque range of 2.7 to 39.8 in-lbs, while the QS1P15S3D operates at 1,500 RPM with a torque range of 2.7 to 27.4 in-lbs. The QS1P10S3D provides slower rundown with higher maximum torque capability.
• Q: When should I choose a 1,000 RPM screwdriver instead of a faster model?
  A: A 1,000 RPM configuration can suit compatible joints that benefit from more controlled fastener engagement and higher torque capability. Faster models may provide shorter rundown times when the joint requires less maximum torque.
• Q: Does the shut-off clutch guarantee the same final torque on every fastener?
  A: No. Final torque can vary with joint characteristics, fastener condition, component material, bit fit, air supply, and tool adjustment. Validate fastening results on the actual production joint and recheck the process whenever operating conditions change.
