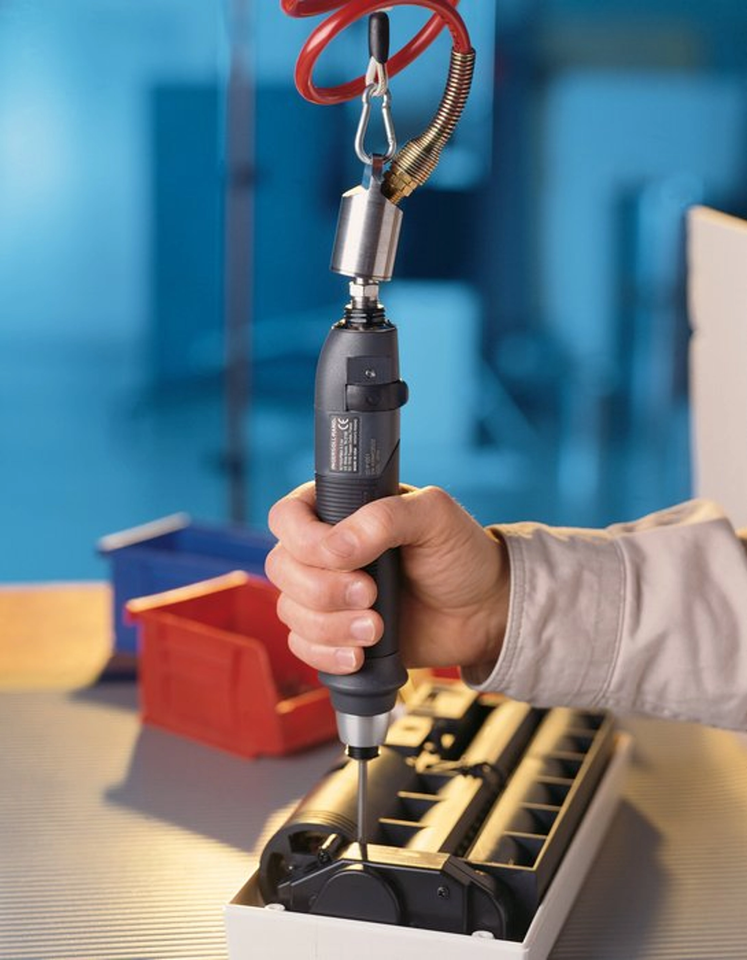

For repetitive fastening operations that require higher torque capability and direct manual control over cycle initiation, the Ingersoll Rand QS1L05S1D Inline Pneumatic Screwdriver combines 500 RPM free speed with a 2.7 to 47.8 in-lb torque range and lever-start operation. The inline configuration keeps the tool aligned with the fastener axis for straight-access assembly positions, while the lever allows the operator to start each fastening cycle intentionally from the tool body.
The Ingersoll Rand QS1L05S1D provides a lower-speed, higher-torque alternative to the 1,000 RPM QS1L10S1D. Its 500 RPM configuration supports controlled fastener rundown on compatible joints that require more turning force, while the adjustable torque range allows output to be matched to different assembly requirements. Lever-start actuation is useful where operators need precise control over when rotation begins or where the workstation does not allow the axial movement required for push-to-start operation.
Type: Inline Pneumatic Screwdriver | Model: QS1L05S1D | Configuration: Inline | Free Speed: 500 RPM | Torque Range: 2.7 - 47.8 in-lbs | Start Type: Lever-Start
|
Features:
Made in USA: |
 |
Applications:
- Appliance manufacturing — tightening compatible fasteners in panels, housings, frames, brackets, and mechanical subassemblies.
- Automotive component assembly — completing controlled screwdriving operations on production parts where direct fastener access is available.
- Electrical equipment production — installing fasteners in cabinets, enclosures, control assemblies, and related components.
- General manufacturing — handling repetitive fastening where adjustable torque, 500 RPM rundown, and manual cycle initiation suit the joint requirements.
- Production workstations — supporting assembly tasks where the operator needs direct control over when the screwdriver begins each cycle.
FAQs:
- Q: What does lever-start mean on the Ingersoll Rand QS1L05S1D?
A: Lever-start means the operator manually activates the screwdriver using a lever on the tool body. This provides direct control over when each fastening cycle begins. - Q: What torque range does the QS1L05S1D provide?
A: The screwdriver has a specified torque range of 2.7 to 47.8 in-lbs. Select the setting according to the fastener, joint condition, component material, and assembly specification, then verify the result on the actual production joint. - Q: How does the QS1L05S1D differ from the QS1L10S1D?
A: The QS1L05S1D operates at 500 RPM with a maximum torque of 47.8 in-lbs, while the QS1L10S1D operates at 1,000 RPM with a maximum torque of 39.8 in-lbs. The QS1L05S1D is the slower-speed option with higher maximum torque capability. - Q: When is lever-start preferable to push-to-start operation?
A: Lever-start can be preferable when the operator needs intentional control over cycle initiation, when the assembly setup limits axial tool movement, or when the process requires the tool to be positioned before rotation begins. - Q: Does the selected torque setting guarantee final joint torque?
A: No. Final torque can vary with joint characteristics, fastener condition, component material, air supply, and other process variables. Verify fastening results on the actual production joint using the quality-control method required for the assembly process.
Available Variations and Specifications
| Model | Torque Range 1 in-lbs (Nm) |
Torque Range 2 in-lbs (Nm) |
Torque Range 3 in-lbs (Nm) |
RPM | Weight lbs (kg) |
Length in (mm) |
Side to Center in (mm) |
Drive in |
Air Consumption CFM (L/min) |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QS1L15S1D | 2.7–9.7 (0.3–1.1) | 8.0–27.4 (0.9–3.1) | — | 1,500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L10S1D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | 13.3–39.8 (1.5–4.5) | 1,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L05S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1L02S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 250 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| Push-to-Start | |||||||||
| QS1P20S1D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | — | 2,000 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P15S1D | 2.7–9.7 (0.3–1.1) | 8.0–27.4 (0.9–3.1) | — | 1,500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P10S1D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | 13.3–39.8 (1.5–4.5) | 1,000 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P05S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P02S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 250 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P15S3D | 2.7–9.7 (0.3–1.1) | 8.0–27.4 (0.9–3.1) | — | 1,500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P10S3D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | 13.3–39.8 (1.5–4.5) | 1,000 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| QS1P05S3D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 500 | 1.4 (0.6) | 8.8" (223) | 0.9" (22) | 1/4" | 16 (450) |
| Lever + Push-to-Start | |||||||||
| QS1T20S1D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | — | 2,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1T15S1D | 2.7–9.7 (0.3–1.1) | 8.0–27.4 (0.9–3.1) | — | 1,500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1T10S1D | 2.7–9.7 (0.3–1.1) | 8.0–22.1 (0.9–2.5) | 13.3–39.8 (1.5–4.5) | 1,000 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1T05S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 500 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
| QS1T02S1D | 2.7–9.7 (0.3–1.1) | 8.0–28.3 (0.9–3.2) | 13.3–47.8 (1.5–5.4) | 250 | 1.5 (0.7) | 9.5" (241) | 0.9" (22) | 1/4" | 16 (450) |
Looking for more information about Ingersoll Rand Screwdriver? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Screwdrivers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
