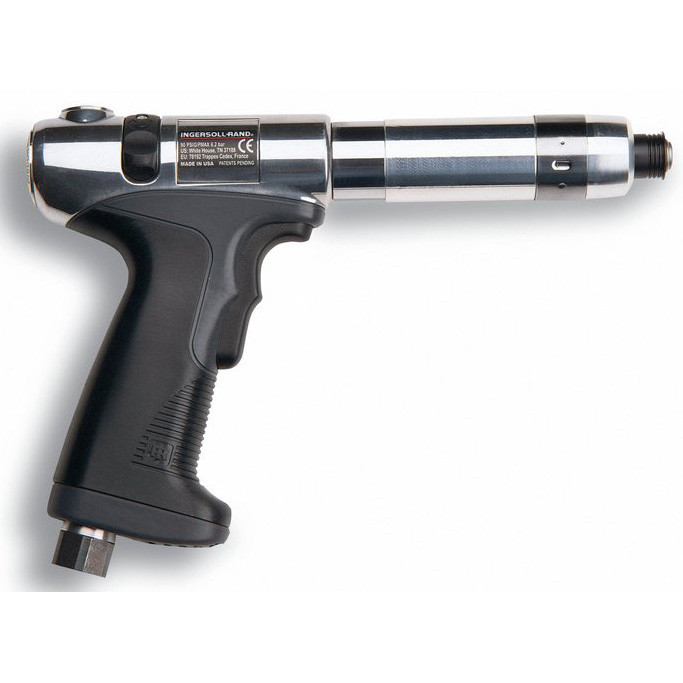

Ingersoll Rand QP1T10S1TD Pneumatic Screwdriver | 1,000 RPM | 2.7 - 39.8 (In-lbs) Torque Range | Trigger and Push-To-Start

For repetitive assembly operations that benefit from flexible tool activation and controlled fastener rundown, the Ingersoll Rand QP1T10S1TD Pneumatic Screwdriver combines 1,000 RPM free speed with a 2.7 to 39.8 in-lb torque range and trigger and push-to-start operation. The dual-start configuration gives operators a choice in how the fastening cycle is initiated, supporting production setups where tool handling, fastener access, or operator preference varies across assembly tasks.

The Ingersoll Rand QP1T10S1TD provides adjustable torque capability for compatible fastening joints that fall within its specified range. Its 1,000 RPM speed supports controlled screw rundown. At the same time, the trigger and push-to-start configuration allows the tool to be activated manually with the trigger or through axial pressure during push-start operation. This combination makes the screwdriver suitable for repetitive assembly processes where controlled fastening and flexible cycle initiation are important.

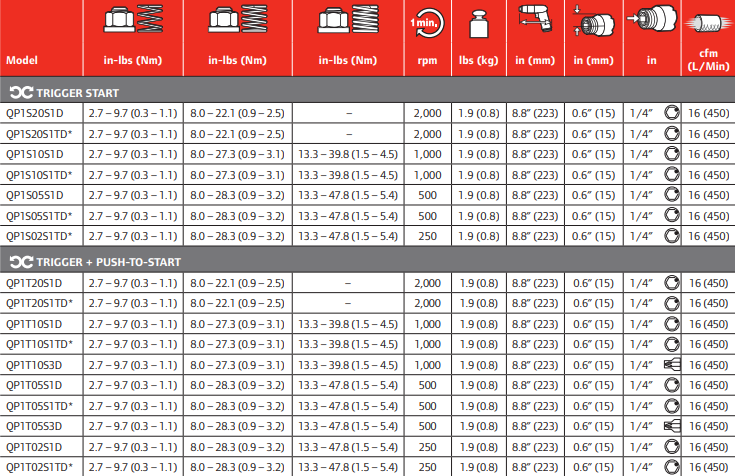

Type: Pneumatic Screwdriver | Model: QP1T10S1TD | Free Speed: 1,000 RPM | Torque Range: 2.7 - 39.8 in-lbs | Start Type: Trigger and Push-to-Start

Features: 1,000 RPM free speed supports controlled fastener rundown in repetitive pneumatic assembly operations. 2.7 to 39.8 in-lb torque range provides adjustment capability for fastening applications within the tool's specified output range. Trigger activation gives the operator manual control over tool startup during fastening operations. Push-to-start capability allows the fastening cycle to begin through axial pressure when the application and operator technique suit push-start operation. Dual-start configuration provides flexibility for assembly processes with different tool-handling and fastener-access requirements. Adjustable torque capability allows tool output to be matched to the fastener, joint condition, component material, and assembly specification. Pneumatic operation supports repeated fastening cycles when supplied with properly conditioned compressed air. Made in USA:

Applications:

• Appliance manufacturing — fastening panels, brackets, housings, and subassemblies that require controlled torque.
• Automotive component assembly — tightening compatible fasteners on production parts and mechanical subassemblies.
• Electrical equipment production — installing screws in enclosures, cabinets, controls, and related assemblies.
• General manufacturing — completing repetitive fastening tasks where adjustable torque and flexible start control support the assembly process.
• Production workstations — supporting fastening operations where operators may benefit from trigger activation or push-to-start cycle initiation.

FAQs:

• Q: What does trigger and push-to-start mean on the QP1T10S1TD?
  A: The tool provides two methods of initiating operation: manual trigger activation and push-to-start actuation using axial pressure at the fastener. This gives operators flexibility in matching tool activation to the assembly process.
• Q: What torque range does the Ingersoll Rand QP1T10S1TD provide?
  A: The specified torque range is 2.7 to 39.8 in-lbs. The appropriate setting should be established according to the fastener, joint characteristics, component material, and assembly specification.
• Q: Why would an operator choose trigger activation instead of push-to-start?
  A: Trigger activation provides deliberate manual control over startup and may be preferred when positioning the bit before rotation is important. Push-to-start can streamline repetitive cycles where the tool can be aligned directly with the fastener before axial pressure is applied.
• Q: Is the 1,000 RPM rating the actual fastening speed under load?
  A: The 1,000 RPM specification is the tool's free speed. Actual operating speed can vary with torque demand, joint characteristics, air supply, and fastening conditions.
• Q: How should the final fastening torque be verified?
  A: Adjust the tool within its specified torque range according to the assembly requirements, then verify the resulting fastener torque on the actual production joint using the quality-control method required for the process.

Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
